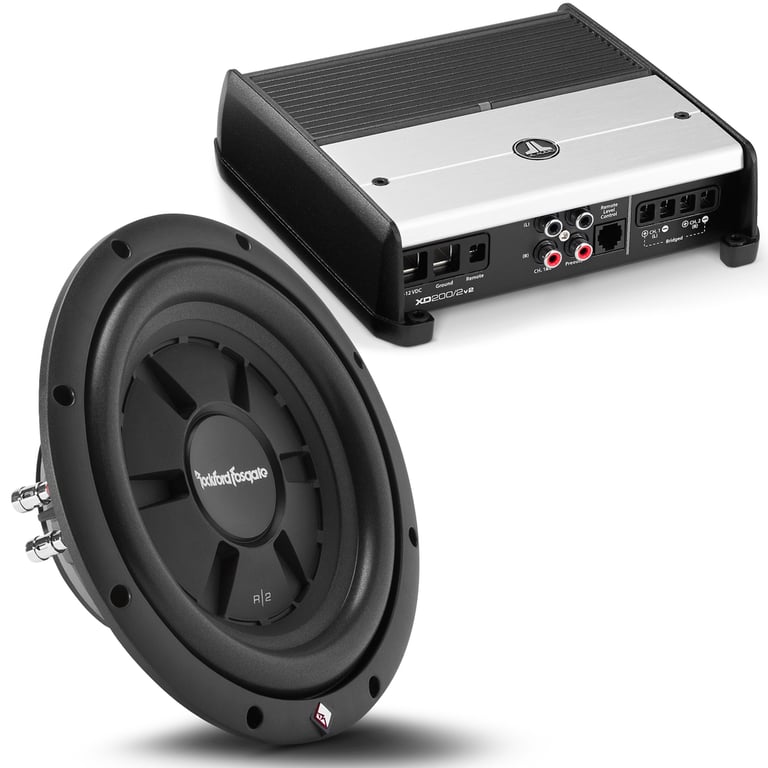

JL Audio XD200/2v2 with Rockford Fosgate R2SD2-10

200W 2-Channel Class D Amplifier with 200W RMS 10" Shallow Mount Dual 2-ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• NexD Switching Technology
• Differential Balanced Input Section
• Advanced Rollback Protection
• Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
• Detented, Calibrated Filter Freq. Potentiometer
• Rockford 10" Dual 2 ohm Subwoofer
• 400W Peak
• 200W RMS
• Mica Injected Polypropylene Cone
• StampCast Basket
• Anodized Aluminum Voice Coil Former
• Frequency Response: 45-250 Hz

Learn more about the xd2002v2_r2sd210

We apologize

This item has been discontinued


Loading...
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Description


JL Audio brand icon

Authorized dealer

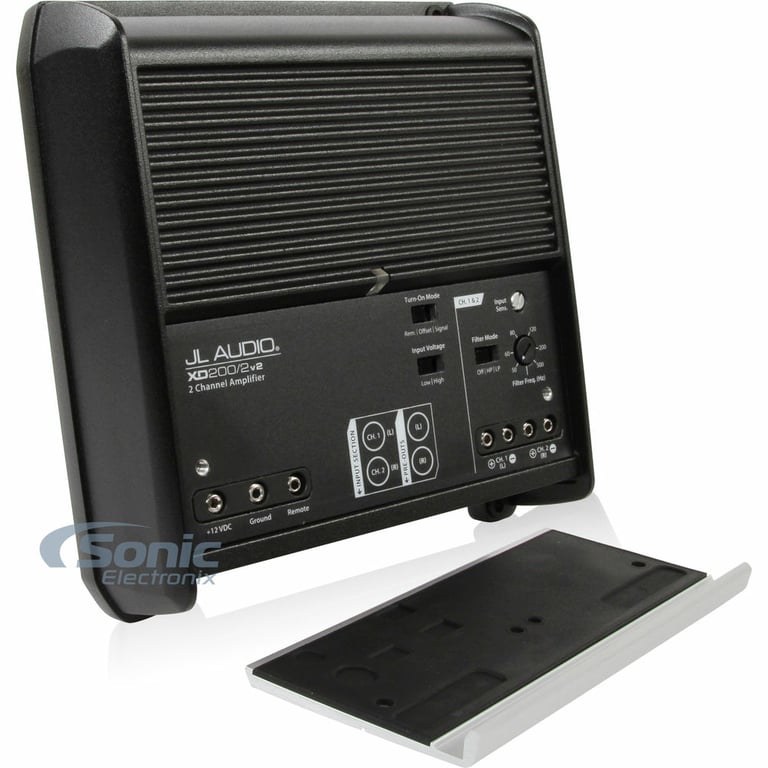

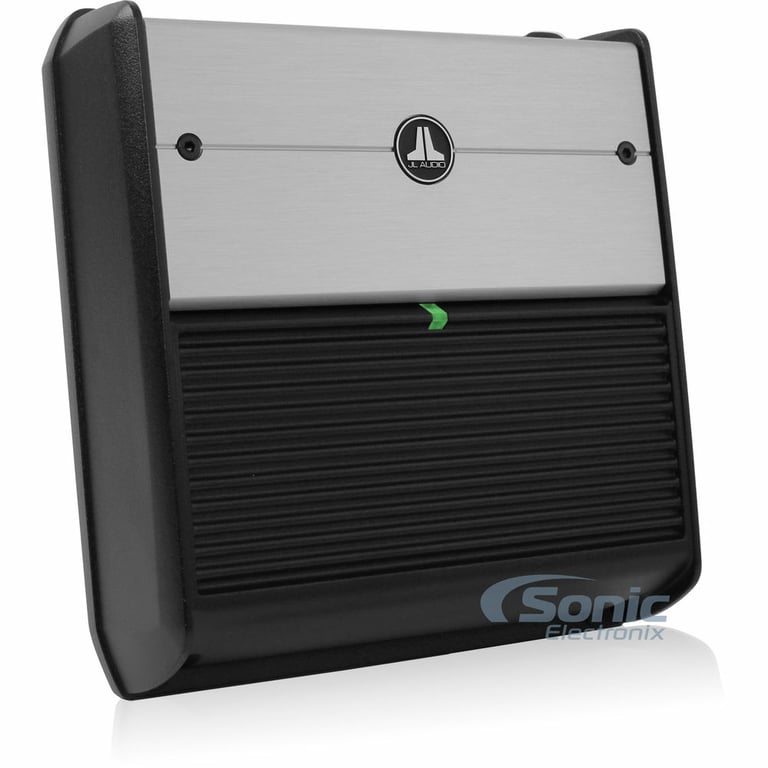

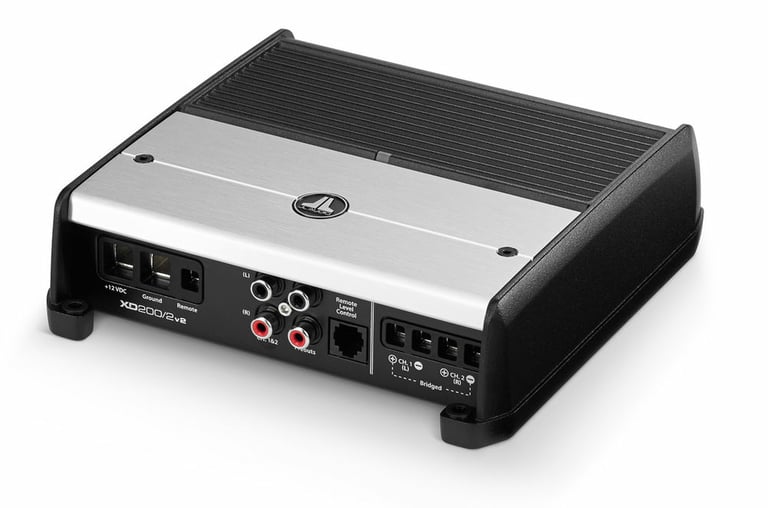

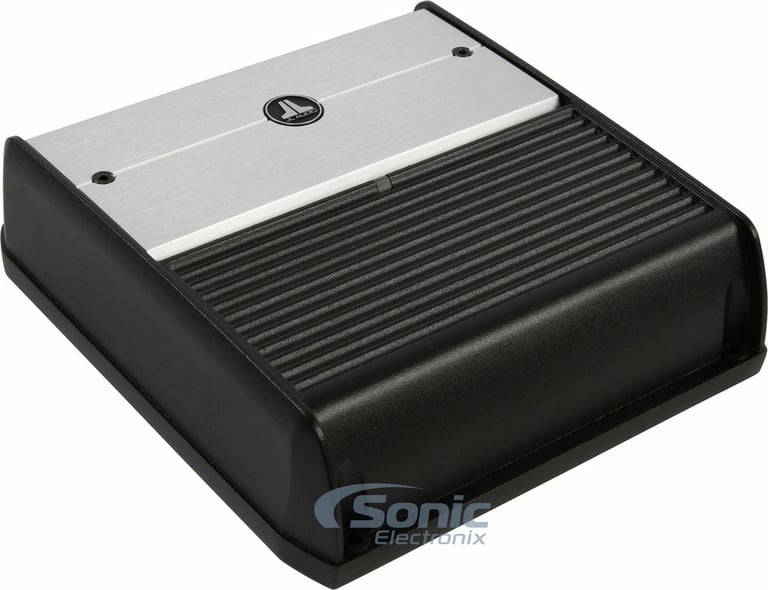

JL Audio XD200/2v2

JL Audio XD200/2v2 - XDv2 Series 2-Channel Class D Full-Range Amplifier

This potent 2-Channel amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 200W of continuous power into a 4 ohm load (14.4V, 1% THD) Bridged. Targeted specifically for an audiophile-grade subwoofer or two satellite system, the XD200/2v2 includes a variable mode low-pass/high-pass filter with a continuously variable cutoff frequency selection from 50-500 Hz. The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you can control the volume of the XD200/2v2 from the front of the vehicle. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.


NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD amplifiers and channels feature a variable, ultra-high speed version of the NexD technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

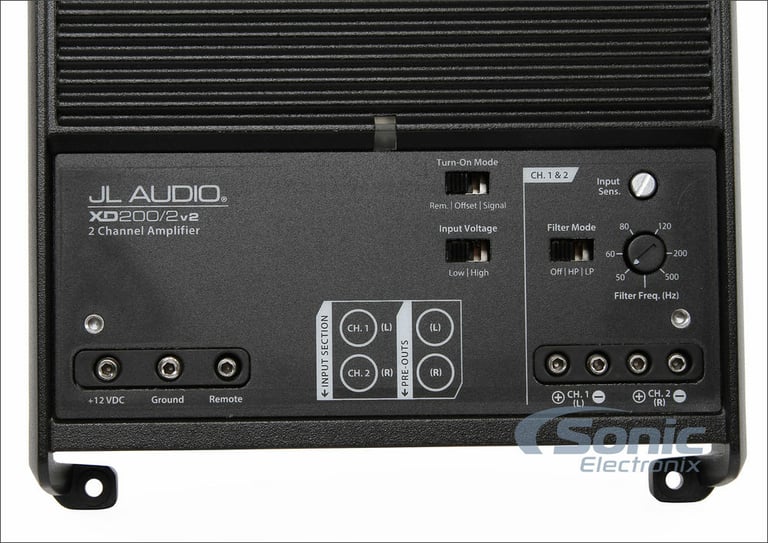

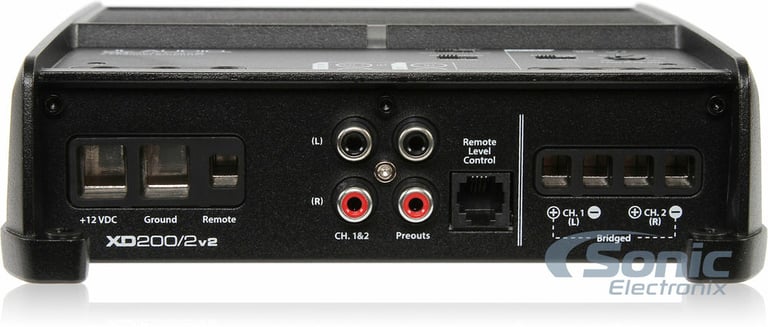

JL Audio XD200/2v2

200W RMS XDv2 Series Class-D 2-Channel Amplifier
Quantity: 1

Product Details:

  • XD-v2 Series Class D 2 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 2 channel
    • 2 ohm: 100 watts x 2 channel
    • Bridged: 200 watts x 1 channel @ 4 ohm
  • Total power output: 200 watts
  • LED Power/Protect Light
  • Wired bass level remote control with optional JL Audio HD-RLC
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • Protection Circuitry with Status LED
  • NextD™ switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Speaker-level (high-level) inputs
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 800mV - 8 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 20A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7-1/8" L x 6-7/8" W x 2" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: XD200/2V2
Check out the JL Audio XD200/2v2 Owner's Manual

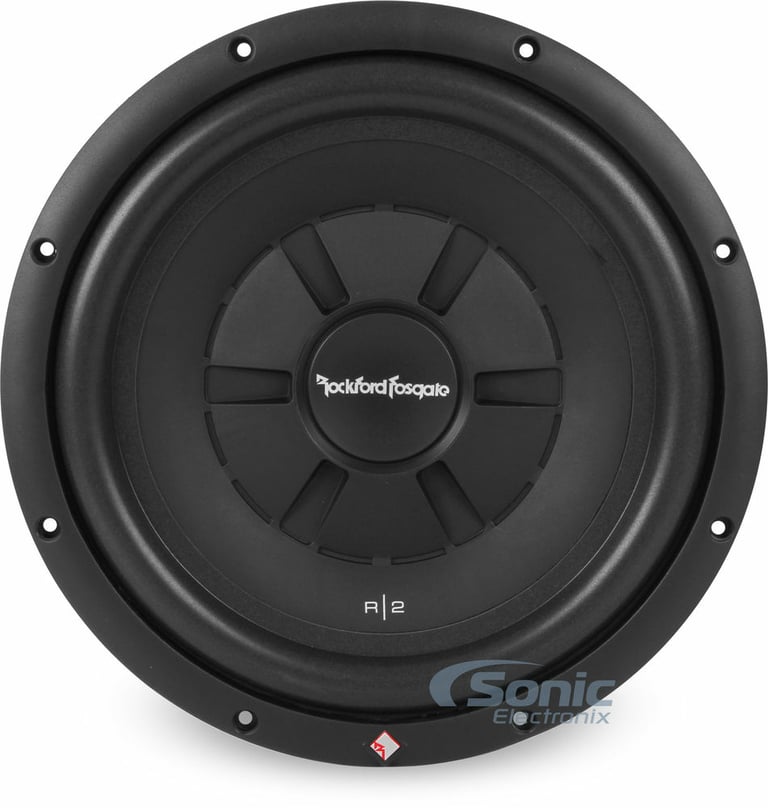

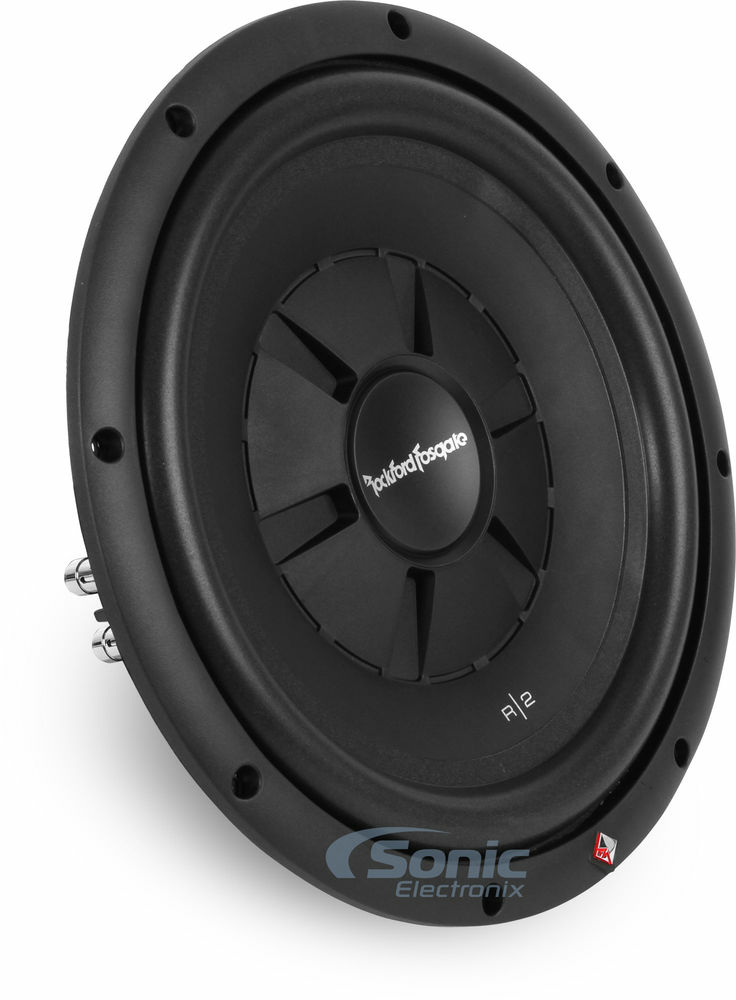

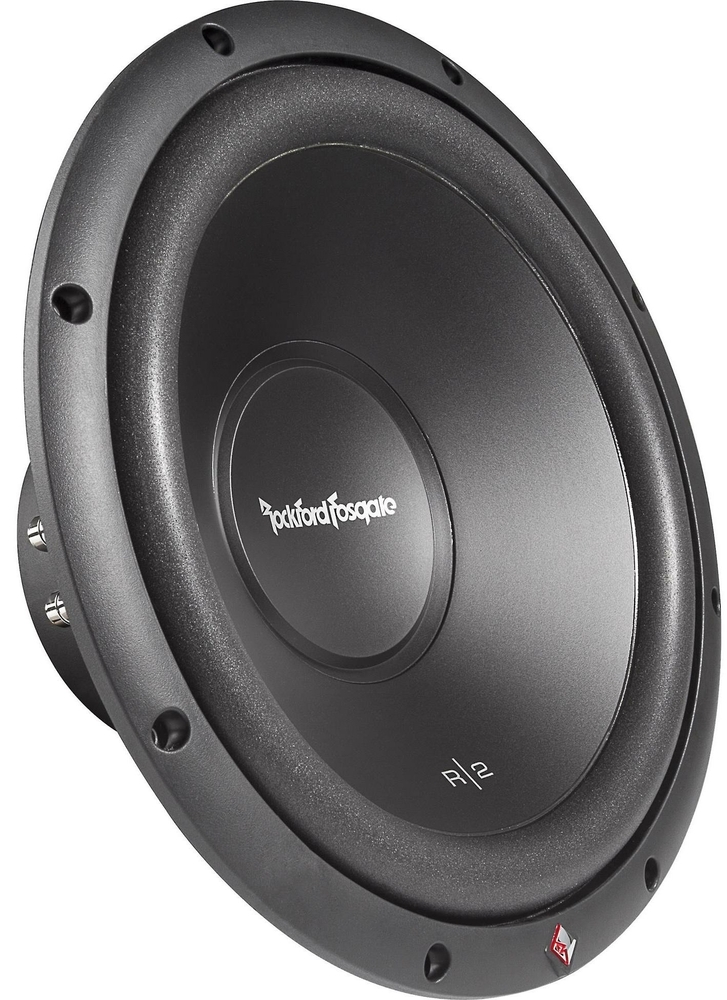

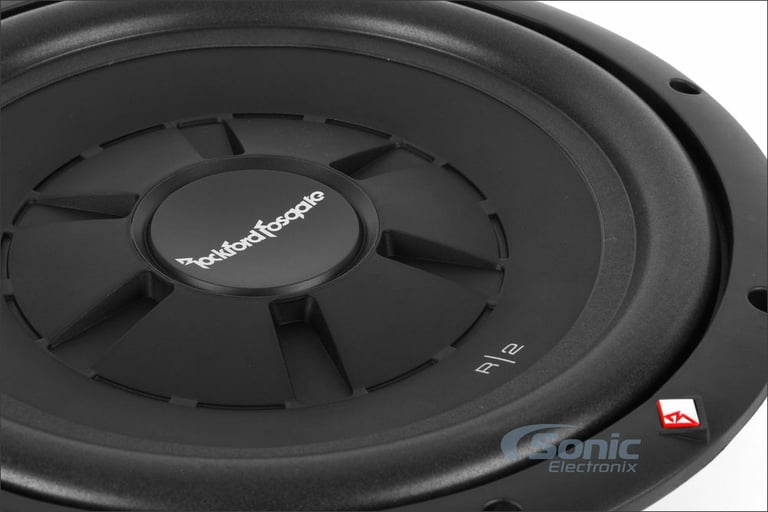

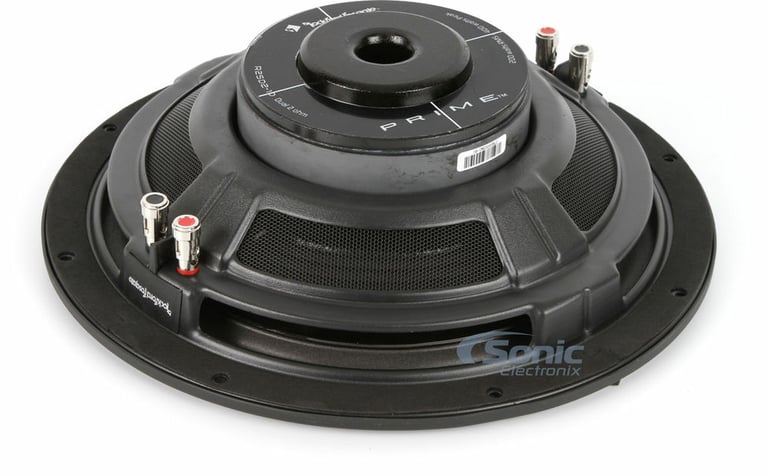

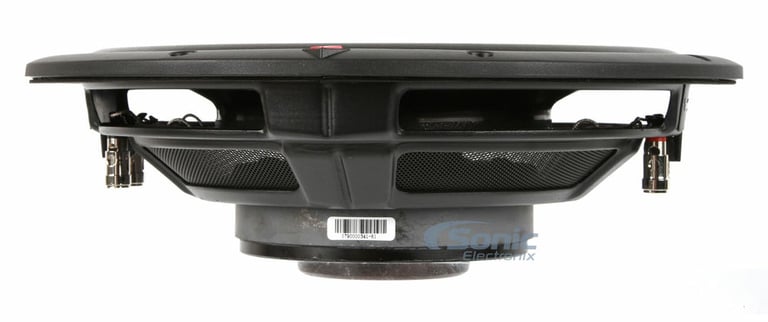

Rockford Fosgate Prime R2 R2SD2-10

400W Peak (200W RMS) 10" Prime Series Dual 2-ohm Shallow Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 2 ohm Prime Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Mica Injected Polypropylene - MIPP Cone
  • Foam Surround
  • 12 AWG compression terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Optimized for sealed enclosures
  • Shallow Motor Assembly
  • Integrated PVC trim ring
  • Anodized aluminum voice coil former
  • StampCast basket with integrated spider venting
  • 2" High Temperature Aluminum Voice coil
  • 8 mm Xmax
  • 45 oz. Double Stacked magnet motor structure
  • Frequency Response: 45 - 250 Hz
  • Resonance Frequency (Fs): 38.1 Hz
  • Sensitivity: 82 dB
  • Recommended sealed box volume: 0.7 cubic feet
  • Recommended ported box volume: 1.4 cubic feet
  • Top-mount depth: 3.417"
  • Cutout diameter: 9.125"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

JL Audio XD200/2V2, R2SD2-10 thumbnail
(newest, current model)
JL Audio XD200/2 thumbnail
(previous model, replaced by JL Audio XD200/2v2 with Rockford Fosgate R2SD2-10)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
20A X 1 In-Line Fuse Recommended
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Prime R2 Series
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
200 watts
Peak Power Handling
400 watts
Woofer Surround
Foam
Woofer Composition
Mica Injected Polypropylene - MIPP
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.40 cubic feet
Maximum Ported Box Volume
1.40 cubic feet
Sensitivity
82 dB
Frequency Response
45 - 250 Hz
Xmax (millimeters)
8 mm
Top-Mount Depth (Mounting Depth)
3-7/16"
Cutout Diameter
9-1/8"
Recommended Enclosure Type
Ported / Vented
Sealed
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD200/2V2, R2SD2-10

Weight:

14.20lbs

Internal SKU:

xd2002v2_r2sd210

Internal Product ID:

200993

Customer Ratings & Reviews


JL Audio XD200/2v2 with Rockford Fosgate R2SD2-10 thumbnail image

5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.8
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

This sub is the answer!!

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

I completely recommend this sub. It fit perfect under my 02 2500 superduty extended cab rear seat. I built a sealed box to spec and have amazing tight bass. I'm pushing 300watts rms to it and it takes it beautifully. Rockford fosgate knows how to built clear and durable speakers. Save your money on anything else as this price is perfect.

By Fox on October 19, 2014

57 found this helpful


R2D2 10"

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

Installed a 10" R2D2 in a 2013 Toyota Tacoma behind the rear passenger seat in slightly modified shallow box after removing the storage bin. Used a Boss amp high level inputs off factory deck. What an improvement!! Just the right about of good clean bass for a small cab truck without breaking the bank. Better performance then expected on a shallow speaker and box. Also removed factory door speakers and replaced with JBL GTO's. Good clean sound and money left for gas!

By aklacie on March 24, 2014

54 found this helpful


Awesome Subs

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

These subs are great they are small but pack a punch got them in a 03 f150 crewcab and they hit hard, would defintely recommend

By Rigoberto on September 17, 2013

56 found this helpful


Rockford Fosgate R2SD2-10

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

Nice speaker performs as expected for cost, bass response not the best

By Alex on June 5, 2013

53 found this helpful


great for price

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

had them over powered and ran them hard. never had any issues with them. great sound for a low profile sub.

had 2 mounted under seats of my jeep. had a lot of water contact (yes, i off road it), and damage from the seats themselves, but nothing that actually affected the output. made well.

By ludski on September 16, 2014

53 found this helpful


Great Woofer

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

I purchased two of these for my wife '11 highander. I paired em with a a Jl 360 ...and boy do they knock. Sonic did a great job with price and shipping!

By D. on October 16, 2011

54 found this helpful


Clean bass from a shallow

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

Best shallow I've worked with so far.. .7 cu sealed mdf custom down firing box under rear seats of a s crew f-150 approx 200w to it and it performs like a 12". I was pleasantly suprised by this sub. Recommend this sub most definitely. Thanks sonic

By david on June 27, 2014

51 found this helpful


Awesome Value

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

This subwoofer is the best thing ever, it sounds good and powerful.

By Luoi on February 28, 2014

52 found this helpful


suprizing

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

Put these in my truck with a 250w amp and was blown away. wired at 2 ohm and im still underpowering them these things are crazy. i would recommend them to anyone.

By justin on December 23, 2012

50 found this helpful


It had to 'break in'

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

this sub hits hard, and in a tight space. on a budget, I would get this subwoofer every time. due to confinements, I can only fit shallow mount subs in my truck, so I bought two of these, and DAYUM. at first they were quiet. but after a week or so, NEVERMIND, LOUD LOUD LOUD. very clean and punchy.

By ChadiferLee64 on May 14, 2014

50 found this helpful



Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1982 Dodge 024

1984 Ford LTD

2006 Honda Insight

1977 Jeep J10

2007 Saab 9-3

1997 Toyota Supra

1995 Chrysler LHS

2001 Mazda MX-5 Miata

2001 Dodge Ram Van

2021 Lexus NX300h

Vehicle
Store
Delete

2012 Harley Davidson FLTR Road Glide

1992 Honda CT70

2011 Harley Davidson FLHT Electra Glide Standard

2000 Harley Davidson FLTRSEI Screamin Eagle Road Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
