Memphis MX600.6

600W RMS Class D MX Series 6 Channel Powersports Amplifier

Memphis
Shop all Memphis
Limited time!
highlight-star-icon

• 50 watts x 4 channel 100 watts x 2 channel @ 4 ohm
• 75 watts x 4 channel 150 watts x 2 channel @ 2 ohm
• Bridged: 150 watts x 2 channel 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 6-Channel Amplifier

Learn more about the mx6006

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


Memphis brand icon

Authorized dealer

Product Details:

  • MX Series Class D 2 ohm Stable 6-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 channel 100 watts x 2 channel
    • 2 ohm: 75 watts x 4 channel 150 watts x 2 channel
    • Bridged: 150 watts x 2 channel 300 watts x 1 channel @ 4 ohm
  • Total power output: 600 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Conformal coated board
  • IP66 rated water & element resistant

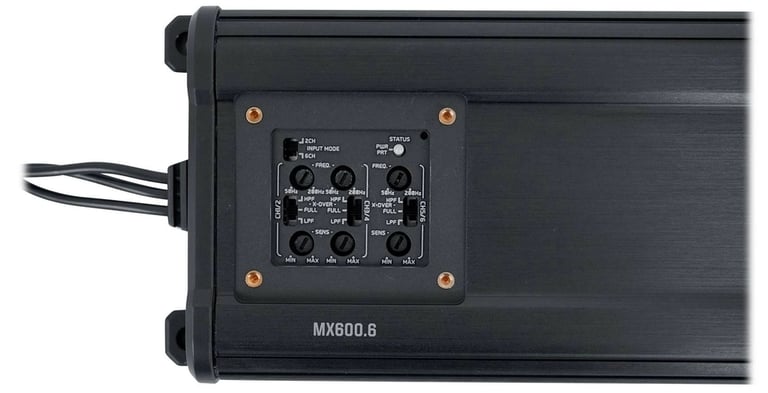

  • Top mounted controls
  • Sealed connectors
  • Input sensitivity: 0.30 - 9.7 volts
  • Frequency Response: 10 - 20K Hz
  • Total Harmonic Distortion (THD): 1%
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 12.6" L x 4.3" W x 1.75" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MX600.6

PDF IconMemphis MX6006 owner’s manual

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

Specifications & Details


Key Features
Amplifier Key Features
Compact Design
Speaker Level Inputs
Weather-Resistant
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
150 watts x 2 channel
Amplifier Specifications
Series
MX Series
Amplifier Class
D
Number of Channels
6-Channel
Total RMS Power Output
600 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 20K Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Sonic Certified Amplifier
Not Tested
Low-Level Input Sensitivity
0.30 - 9.7 volts
High-Level Input Sensitivity
0.30 - 9.7 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
Power certification
WITB: Amplifiers
Amplifier
Mounting screws (4)
High-level input wiring harness w/ molex connector
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MX600.6

Weight:

5.01lbs

Internal SKU:

mx6006

Internal Product ID:

201031
