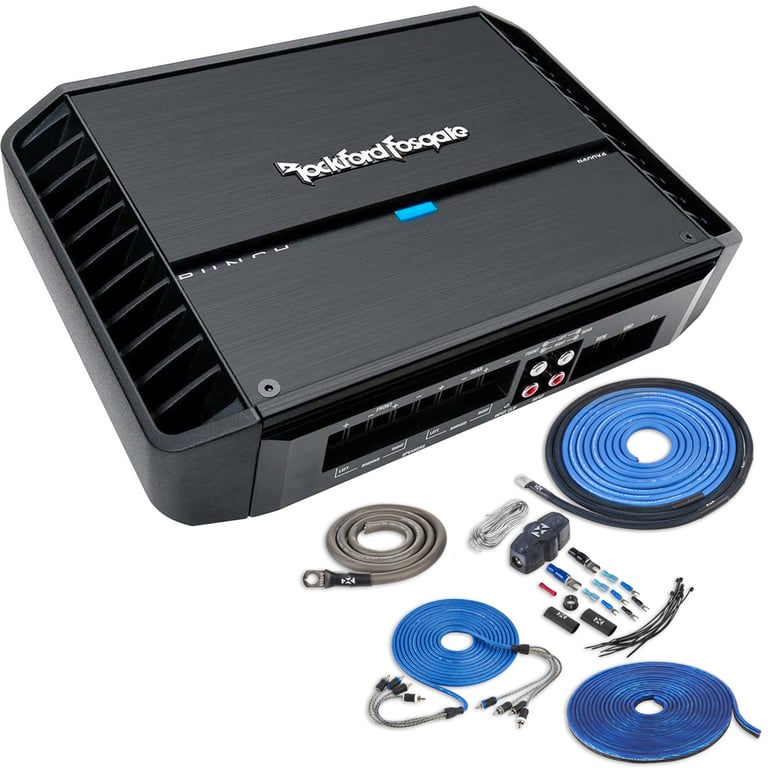

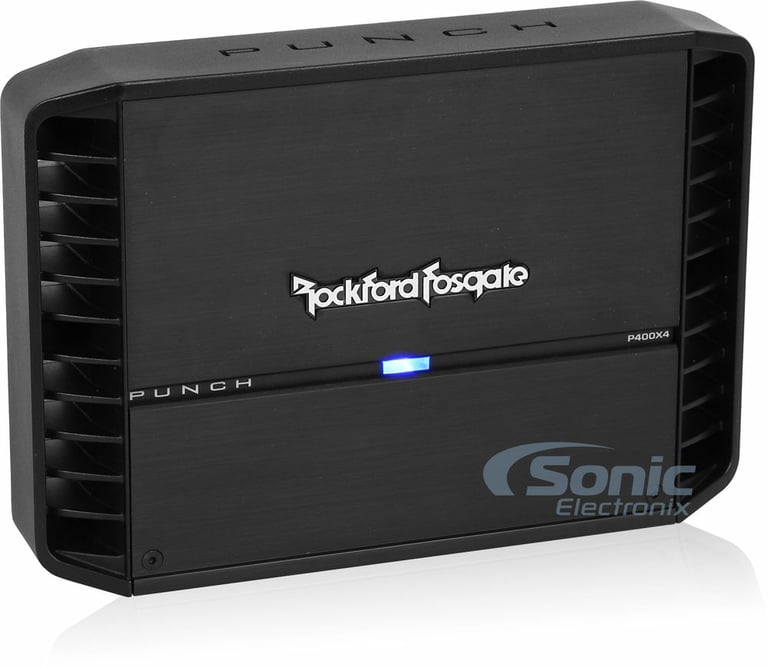

Rockford Fosgate Punch P400X4 with Amplifier Wiring Kit

Product Details:

• Punch Series Class A/B 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 50 watts x 4 channel
• 2 ohm: 100 watts x 4 channel
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS power output: 400 watts
• Power, protect, thermal, input, and output clip LED visual indicators
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• 12dB/octave Butterworth crossover
• Features C.L.E.A.N. Set-up
• High level input capable with Auto Turn-On circuit
• On-board Punch EQ with +18dB boost @ 45Hz
• Short circuit and over current protection
• Cast aluminum heatsink
• Muted turn on

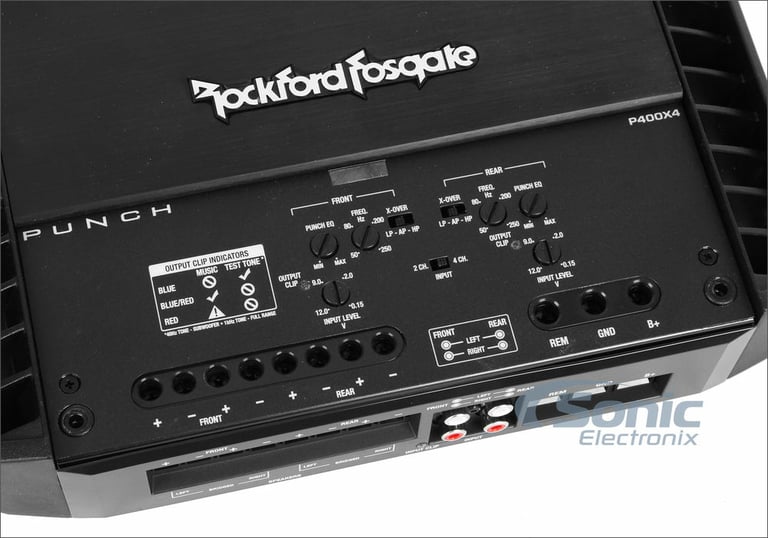

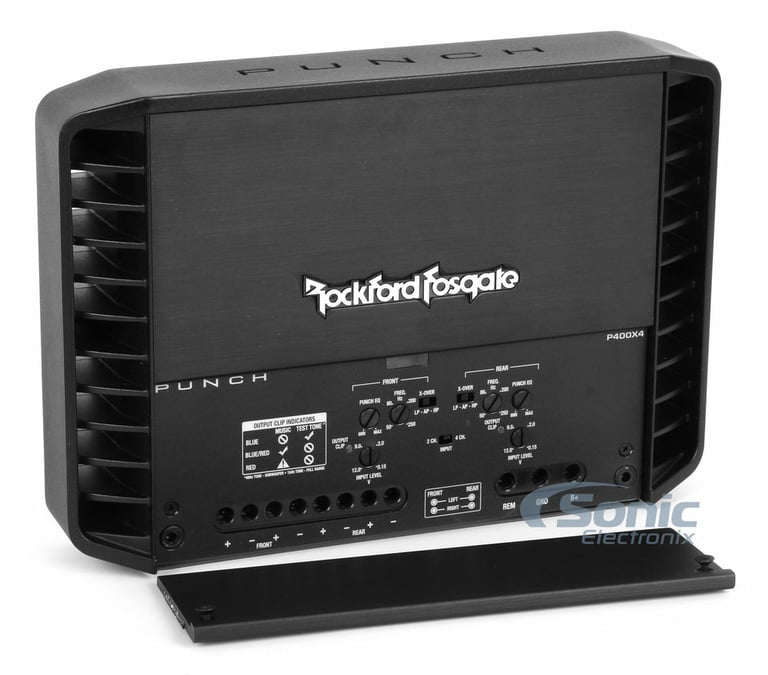

• Stealth top mounted control panel
• CTA-2006 compliant
• Input sensitivity: 150mV - 12 volts
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 85 dB
• Variable high-pass filter: 50 - 250 Hz
• Variable low-pass filter: 50 - 250 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 60A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.76" L x 11.03" W x 2.38" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: P400X4

Product Details:

• 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

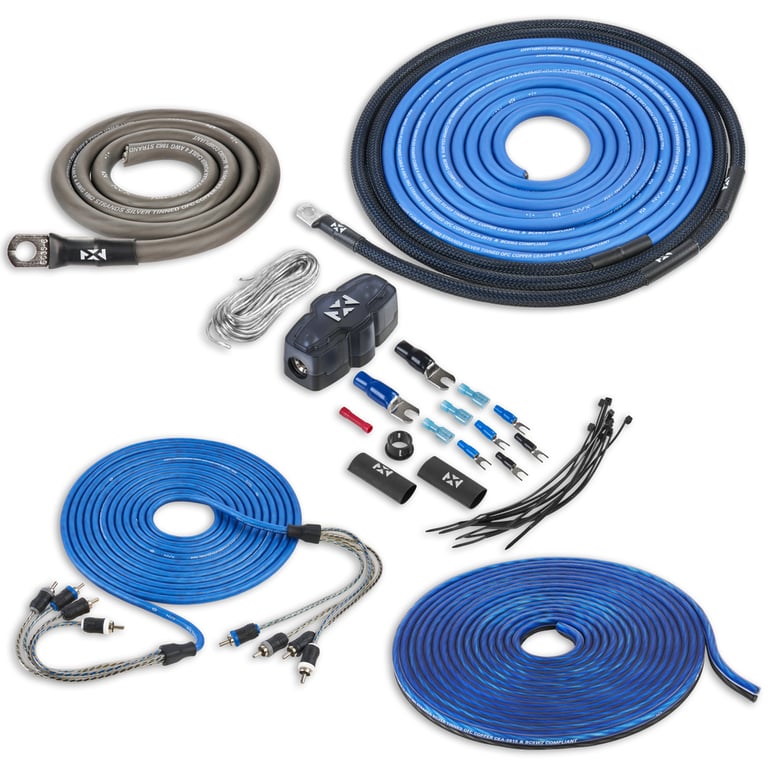

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
