See all parts that fit your 2012 FLHTC Electra Glide Classic

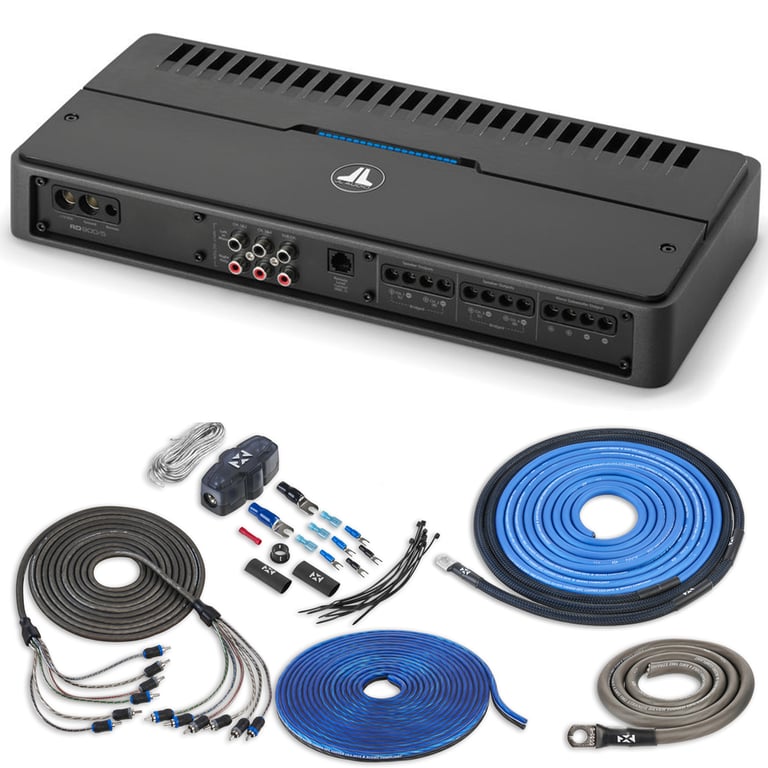

JL Audio RD900/5 with Amplifier Wiring Kit

900W RMS RD Series Class-D 5-Channel Amplifier

JL Audio
Shop all JL Audio
highlight-star-icon

• 70 watts x 4 channel + 225 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

Learn more about the rd9005_xkit46

We apologize

This item has been discontinued


Loading...
82-9600 main

Metra 82-9600

6" to 6.5" Speaker Mounting Adapters for

6
-10.00%

$26.99

List price $29.99

PRO-SM6.2 main

DS18 PRO-SM6.2 (Sold Individually)

400W Peak (200W RMS) 6.5” PRO Series Shallow Midrange 2-ohm Motorcycle and Powersports Loudspeaker

2

Description


JL Audio brand icon

Authorized dealer

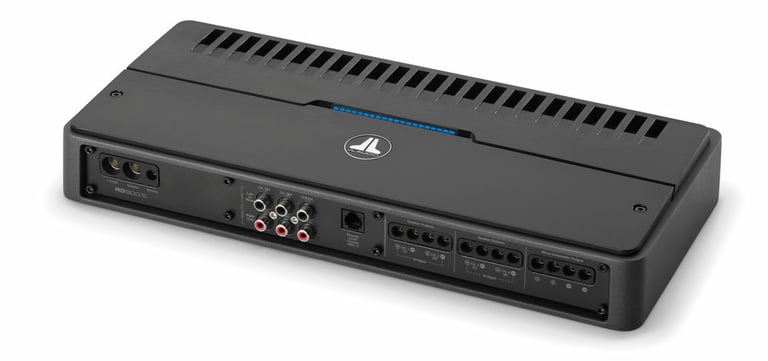

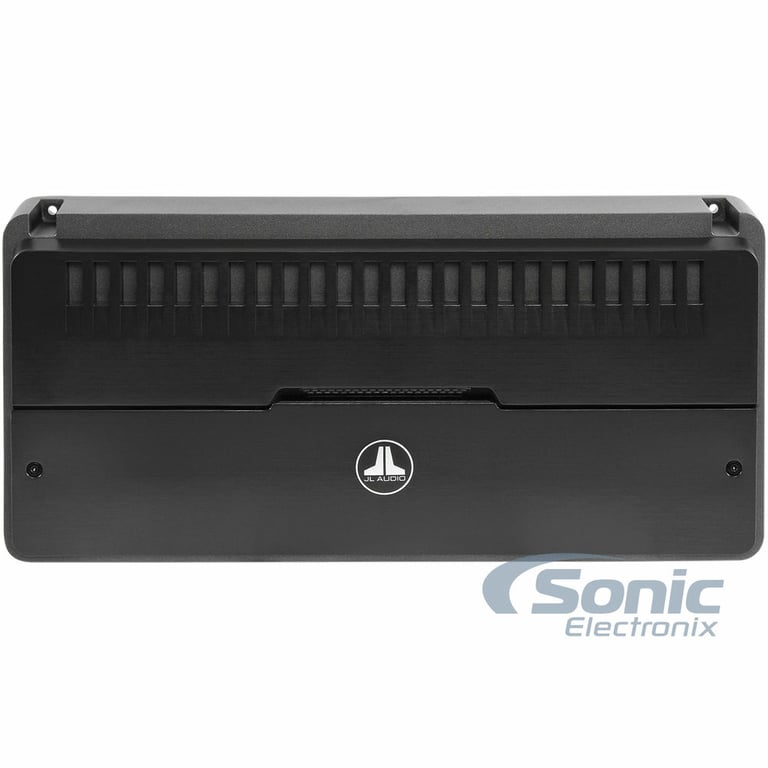

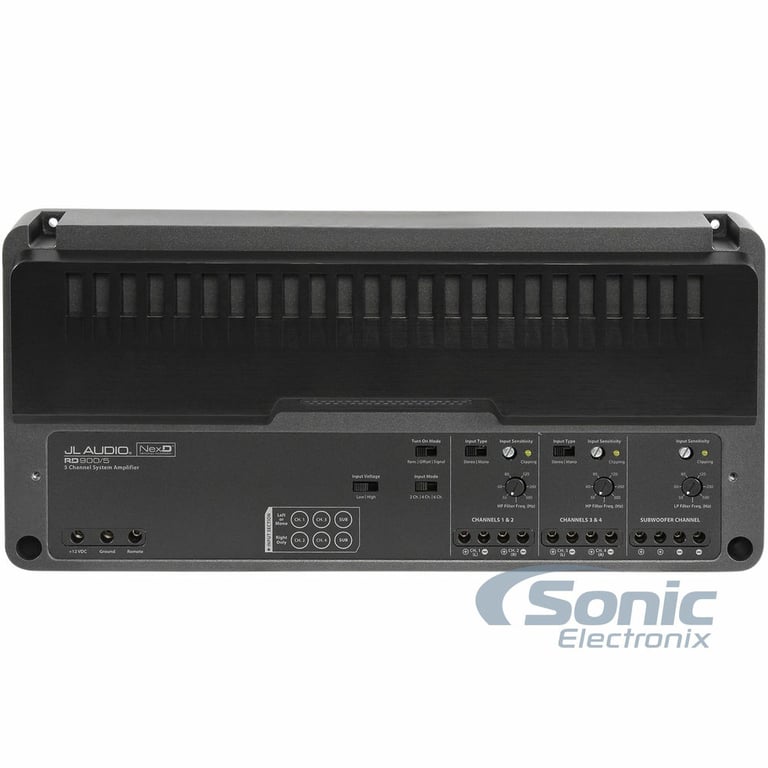

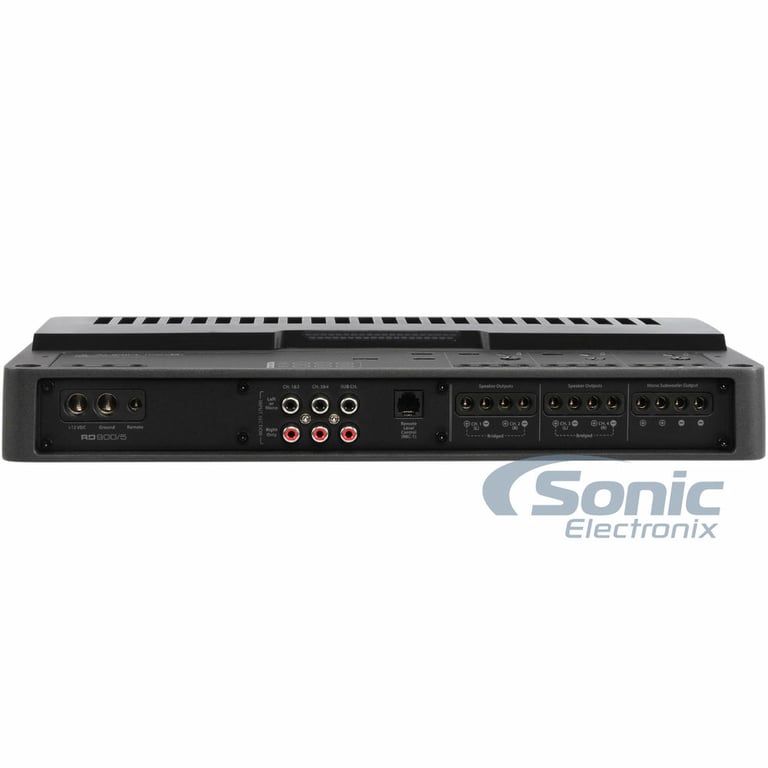

JL Audio RD900/5

900W RMS Class D RD Series 5 Channel Car Amplifier
Quantity: 1

Product Details:

  • RD Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 4 channel + 225 watts x 1 channel
    • 2 ohm: 100 watts x 4 channel + 500 watts x 1 channel
    • Bridged: 200 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
  • Total power output: 900 watts
  • Onboard LED clipping indicator rings
  • Optional wired bass level remote control (sold separately)
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • NextD switching amplifier technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 800mV - 8 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 80A (AFS, AGU or MaxiFuse)
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 14.66" L x 6.96" W x 2.13" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: RD900/5

NVX XKIT46

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance

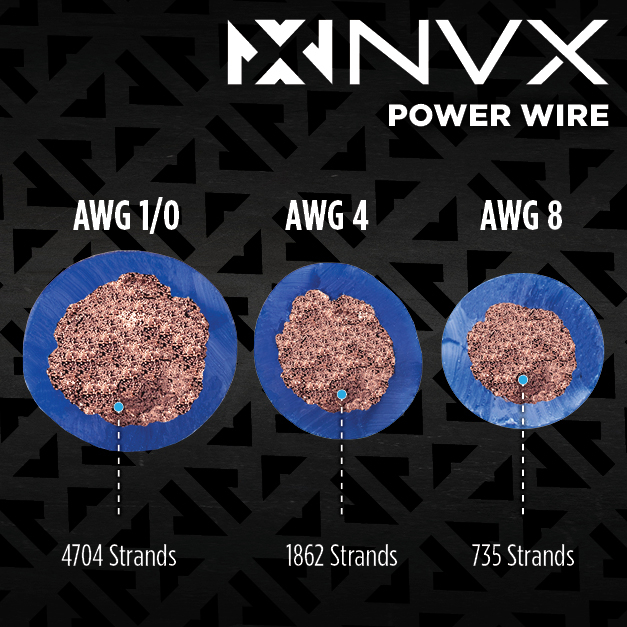

  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

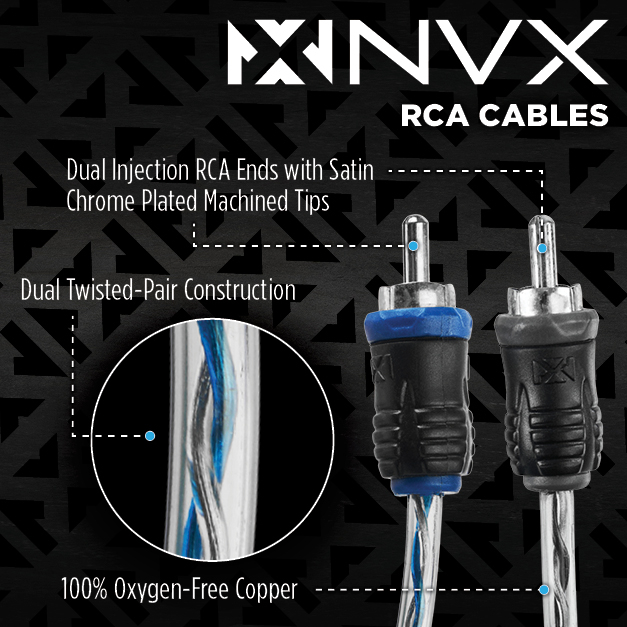

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

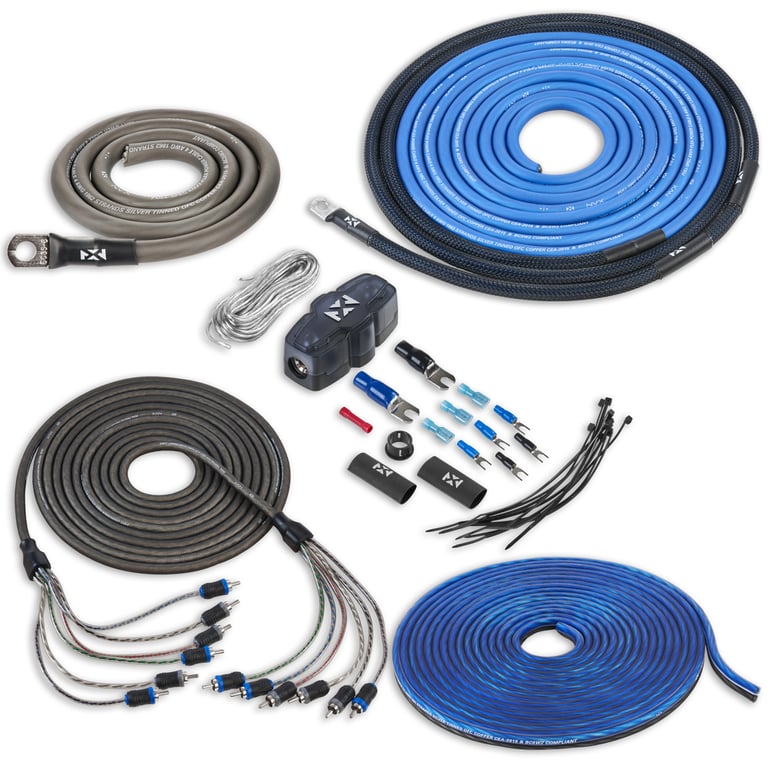

Kit includes:

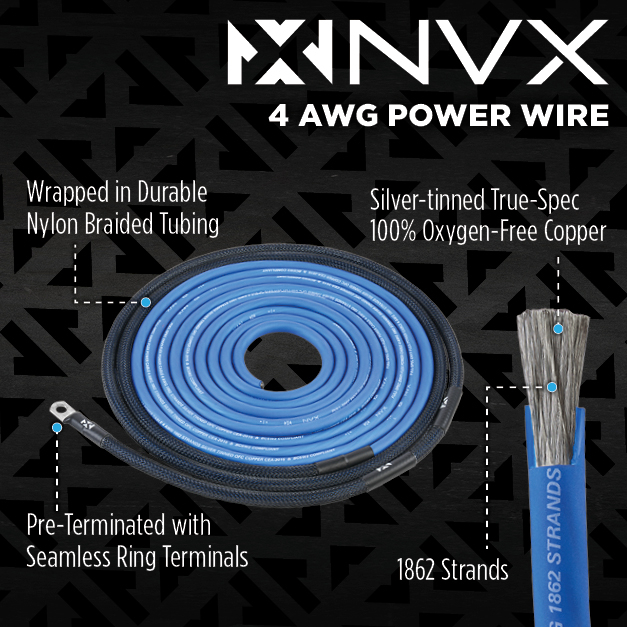

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 60 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
  6. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

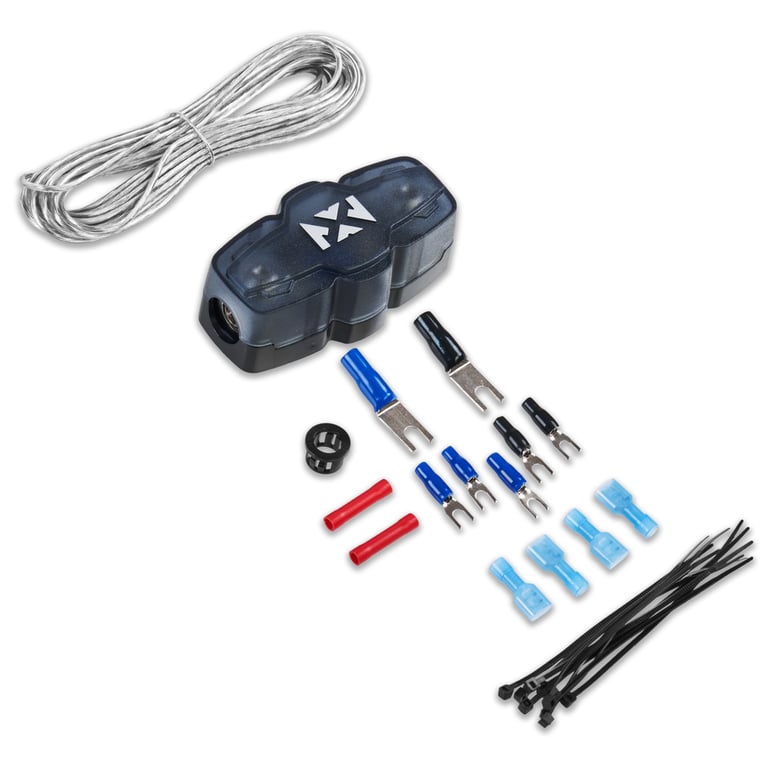

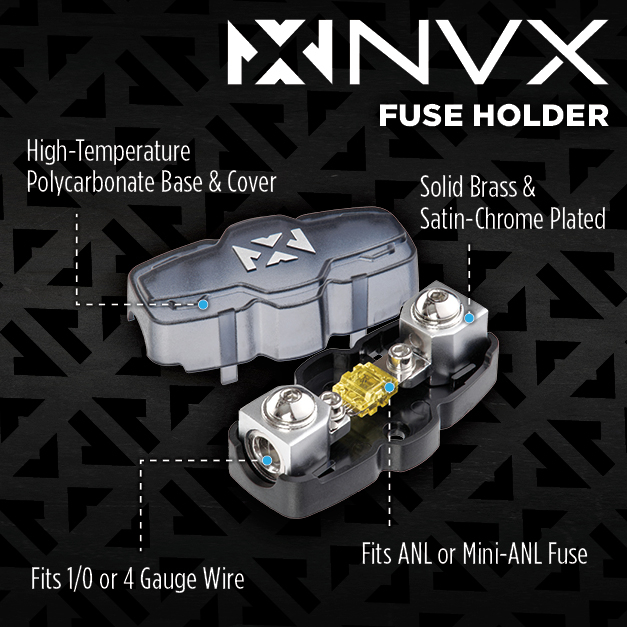

  7. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  8. One Black rubber firewall grommet
  9. Two 4 Gauge Nickel Plated spade terminals
  10. Four 18 Gauge Spade terminal
  11. Two 18 Gauge Red butt connectors
  12. Four 16 Gauge quick disconnect
  13. Five 16 Gauge Nickel Plated spade terminals
  14. Two Heat Shrink tubes with the NVX logo
  15. Ten 6" Black zip ties

Loading...
HD13.SBWR main

Precision Power HD13.SBWR

300W RMS Loaded Single 10" Amplified Sealed Saddlebag Enclosure for select 1998-2013 vehicles from Harley Davidson (Brake Side)

2
-20.00%

$999.99

List price $1249.99

RPMPODVM65 main

Cerwin-Vega RPMPODVM65

500W Peak (120W RMS) 6.5" RPM Stroker Series Speaker Kick Pods for Harley-Davidson Motorcycles

TMS57 main

Rockford Fosgate TMS57

Power 5"x7" Harley-Davidson® Replacement Bag Lid Speakers

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
225 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total RMS Power Output
900 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
12 - 22000 Hz
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
80A x 1
Total Fuse Rating
80
CEA-2031 Compliant
No
Sonic Certified Amplifier
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 2 volts
High-Level Input Sensitivity
800mV - 8 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
6 Channel / 5 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RD900/5, XKIT46

Weight:

16.56lbs

Internal SKU:

rd9005_xkit46

Internal Product ID:

201336

Customer Ratings & Reviews


JL Audio RD900/5 with Amplifier Wiring Kit thumbnail image

5 star
96%
4 star
4%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great buy

The following review is for XKIT46, which is a part of the bundle you are viewing.

The kit would work great in a car but in a boat the kit needs to have alot more speaker wire and a longer ground wire

By Cory on March 10, 2015

101 found this helpful


Good stuff

The following review is for XKIT46, which is a part of the bundle you are viewing.

I got this kit for 50% off with my NVX amp. The power wires are very nice, the 6channel RCA cable is fantastic and the speaker wire is great quality too. The assortment of connectors they give you didn't really help. I ended up purchasing my own nicer ones.

By Nathanael on April 22, 2020 Checkmark Icon Verified purchase

62 found this helpful


Awesome Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This kit was free with an amp purchase. I definitely like it, but I used 9 conductor speedwire for remote wire and 4 speakers. Worked out very well overall, great quality.

By Justin on March 30, 2018

57 found this helpful


Very complete! High Quality

The following review is for XKIT46, which is a part of the bundle you are viewing.

What a great kit. Far exceeded expectations. Nice touches like, mesh loom for the engine compartment on the 4GA power cable, heat shrinked where the you cut to install the fuse. Speaker wire is heavy gauge. The power and ground are come with the end connectors installed. My only complaint is there are no instructions so I had to reconfigure the fuse to add the rubber connectors. At least I assume thats where they go as it didnt have waterproof bushings.

By Ron on March 16, 2018 Checkmark Icon Verified purchase

57 found this helpful


Great kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

I was impressed with this kit. Their claim of a "true gauge" wire seems to be true because wires are thicker compared to other wires I have used claiming to be the same gauge. Overall the wires seem to be of great quality. Patch cables are good. They aren't super high end, but they do the job well. I'd recommend it to anyone looking for an amp kit.

By Kenneth on August 13, 2015 Checkmark Icon Verified purchase

61 found this helpful


Awesome kit!

The following review is for XKIT46, which is a part of the bundle you are viewing.

Nice flexible, durable, strong wires! Everything you need! Makes for easy connections/install! Thanks again NVX and Sonic!!!

By Anonymous on September 21, 2018

57 found this helpful


NVX XKIT46 (5- or 6-Channel Amp Kit)

The following review is for XKIT46, which is a part of the bundle you are viewing.

This Amp wiring kit was perfect for my 5-Channel amp. Wire is good quality and so far I have had no issues. Would not hesitate to recommend.

By Anonymous on June 13, 2018 Checkmark Icon Verified purchase

56 found this helpful


Great Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This is a great amp kit. The actual wire is much thicker than other 4 gauge amp kits. It's also a very affordable price. I'm happy with the kit.

By Anonymous on April 1, 2019 Checkmark Icon Verified purchase

53 found this helpful


Everything you need

The following review is for XKIT46, which is a part of the bundle you are viewing.

I live by these and FREE with an infinity amp. You can't complain.

By Kev on March 8, 2018

53 found this helpful


Awesome kit!

The following review is for XKIT46, which is a part of the bundle you are viewing.

Nice flexible, durable, strong wires! Everything you need! Makes for easy connections/install! Thanks again NVX and Sonic!!!

By Anonymous on September 21, 2018

53 found this helpful



2-10C82 small

Kicker C82 (10C82) Comp 8" Subwoofer Pair Combo

Pair of 8" Single 2 Ohm Comp Series Car Subwoofers

(2)

$104.00

List price $199.90

No picture

Boston Acoustics G108-4 Open Box

(Open Box) 8" G1 Series Single 4 ohm Voice Coil Subwoofer

$67.99

List price $109.95

Tone Ultra HBS-800 (White) small

LG Tone Ultra HBS-800 (White) Open Box Complete

Premium Wireless Bluetooth Headset Stereo Earbuds with Signature JBL Sound

$29.99

List price $129.99

L8 small

FiiO L8 1/8" (3.5mm) to 1/8" (3.5mm) Stereo Audio Cable

Universal 1/8" (3.5mm) Interconnect with PCOCC-A Copper and TPE Sheath

(1)

$5.00

List price $14.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1984 Ford Escort

2020 Chevrolet Equinox

2024 Genesis G80

2015 Chevrolet Express 2500

1973 Chevrolet Nova

2021 Buick Enclave

2006 Saturn Relay

2017 Mazda MX-5 Miata

2005 Ford Five Hundred

2022 Ram 1500 Classic

Vehicle
Store
Delete

2012 Harley Davidson FLHTC Electra Glide Classic

2008 Harley Davidson FXD Dyna Super Glide

2002 Harley Davidson FLHRSEI Screamin Eagle Road King

2000 Harley Davidson FXD/I Dyna Super Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
