JL Audio RD900/5 | 900 Watt Class-D 5-Channel Amplifier

JL Audio RD900/5

900W RMS RD-Series NexD™ Class-D 5-Channel Amplifier

900W RMS RD-Series NexD™ Class-D 5-Channel Amplifier

• 75 watts x 4 chan. + 250 watts x 1 chan. @ 4 ohms
• 100 watts x 4 chan. + 500 watts x 1 chan. @ 2 ohms
• Total Peak Power: 1800 Watts
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Heavy duty aluminum alloy heat-sink
• 7"W x 14-11/16"L x 2-3/16"H

10% Rewards
Free 2-day Shipping
Free Return Shipping
Extended Warranty
Learn More

4.0

(1)

$649.99

Out of Stock - Backorder with warranty
vip-image
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.

Open box: $579.99


protection

Add a protection plan

squarespace
3 years for
4 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JL Audio

Authorized dealer

JL Audio's RD Series Amplifiers
Class D Power for Days


JL Audio RD900/5 5-Channel Class D Amplifier

Lots of power, installer-friendly design and options for every audio enthusiast, all make it easy to choose a JL Audio RD Series amplifier.


RD900/5

The RD900/5 has the do-it-yourself audiophile completely in mind while powering your entire sound system. Capable of pushing out up to 75 watts of clean power to 4 channels at 4 ohms, plus another 500 watts at 2 ohms to your sub, this amp has the flexibility to push your cabin speakers, your subwoofers, or a combination of them depending on your needs. The RD multi-channel amps have built-in 12 dB/octave low-pass filters and three turn-on modes: Traditional 12-volt trigger, signal sensing and DC offset. Top off the package with a sleek, single-cast piece of aluminum in black powdercoat and blue LEDs, and your power looks as clean as it sounds.


Designed For Installers


RD900/5

JL Audio’s engineers had professional and at-home installers in mind with the RD Series. All of the inputs and controls are on the same side of the chassis, simplifying the setup whether you’re in a shop or in your driveway. The output clipping indicators on each channel section mean you don’t need specialized tools to accurately set the gain. A remote level control input gives you the option to install a bass level knob, sold separately, in the front seat, giving you full control over the bass output for every song you play.


NexD™ Switching Technology

NexD™ Switching Technology

The RD Series also incorporates JL Audio’s NexD Switching Tehnology. Since Class D amplifiers have a tendency to produce distortion at some ranges, NexD Switching helps cancel it out before feedback is ever applied. All of this helps ensure the some of the cleanest possible signal to your subwoofer and speakers from your brand new Class D amplifier.

For an amp that delivers power, utility, simplicity and plenty of options, take a look at all of the JL Audio RD Series amps at Sonic Electronix. We’re sure you’ll end up with one in your cart.

General Features:

  • JL Audio RD-Series RD900/5
  • Class-D 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 chan. + 250 watts x 1 chan.
    • 2 ohms: 100 watts x 4 chan. + 500 watts x 1 chan.
    • 1 ohm: ------------N/A------------
  • Total power output: 1800 watts
  • NexD™ Technology delivers outstanding sound quality, efficiency and reliability
  • LED clipping indicators
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Bridging switch for each channel pair
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Total Harmonic Distortion (THD): <1%
  • Variable low-pass filter: 50 - 500 Hz, 12 dB/octave
  • Variable high-pass filter: 50 - 500 Hz, 12 dB/octave
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • Fuse Rating: 80 A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7"W x 14-11/16"L x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channels
RMS Power @ 2 ohms
100 watts x 4 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channels
RMS Power @ 2 ohms
500 watts x 1 channels
Amplifier Specifications
Amplifier Series
RD (JL Audio)
Marine Certified
No
Amplifier Class
D
Number of Channels
5
Total Peak Power Output
1800 watts
Total RMS Power Output
900 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Channel Separation
12 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
80A x 1
Total Fuse Rating
80
Strappable
Yes
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Allen wrench
Paperwork
User manual
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO

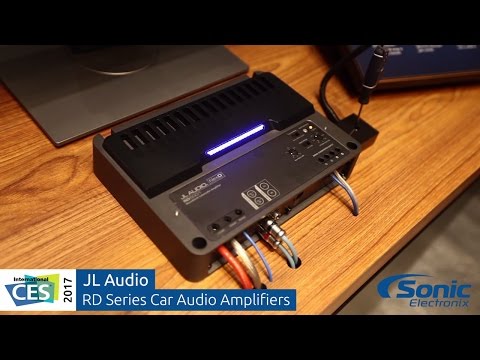

  • JL Audio RD Series Car Amplifiers | Clipping LED Demonstration | CES 2017
