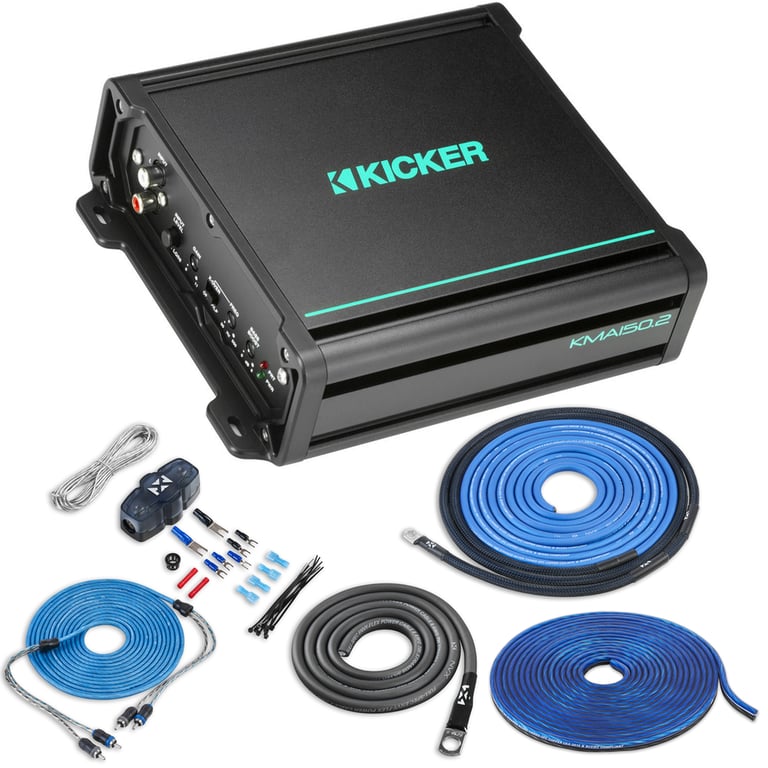

Kicker KMA150.2 (48KMA1502) with Amplifier Wiring Kit

150W RMS KMA Series Class-A/B 2-Channel Marine Amplifier

Kicker
Shop all Kicker
Lowest price in 30 days
highlight-star-icon

• 40 watts x 2 channel @ 4 ohm
• 75 watts x 2 channel @ 2 ohm
• Bridged: 150 watts x 1 channel @ 4 ohm
• Total RMS Power: 150 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

Learn more about the 48kma1502_xkit82

We apologize

This item has been discontinued


Loading...
UNIFRING main

NVX UNIFRING

Universal Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 6)

5
-16.65%

$29.99

List price $35.98

Description


Kicker brand icon

Authorized dealer

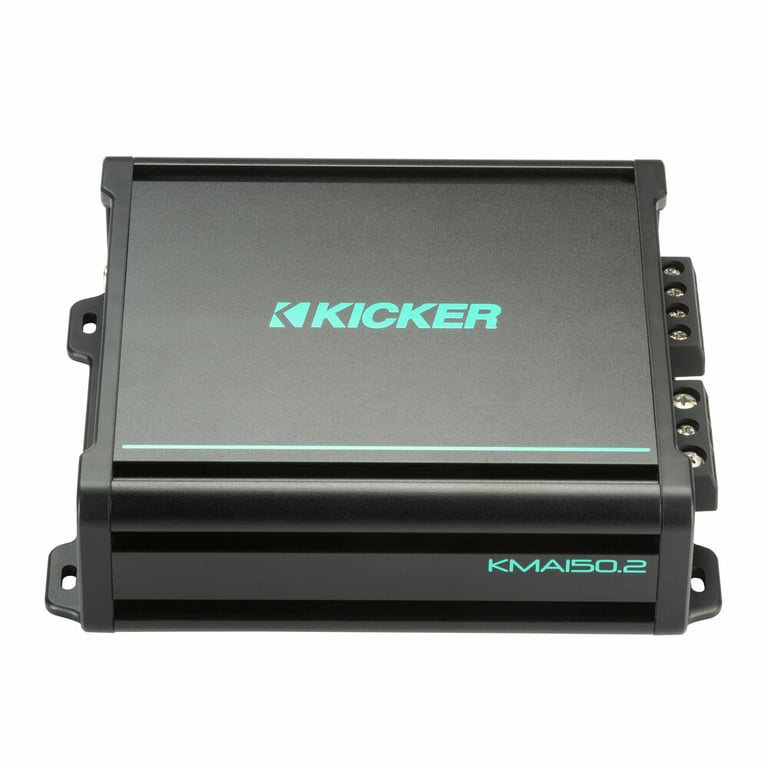

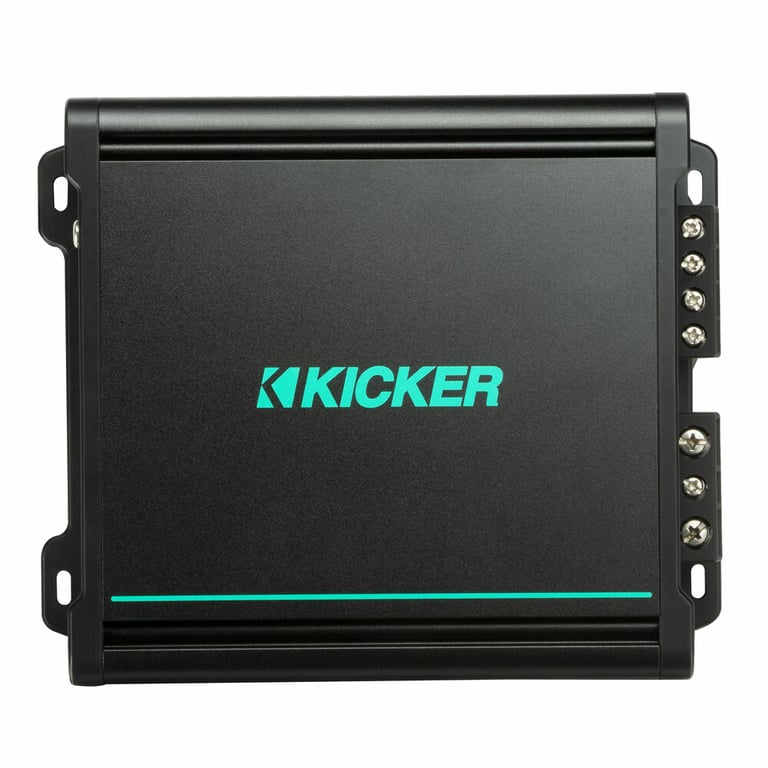

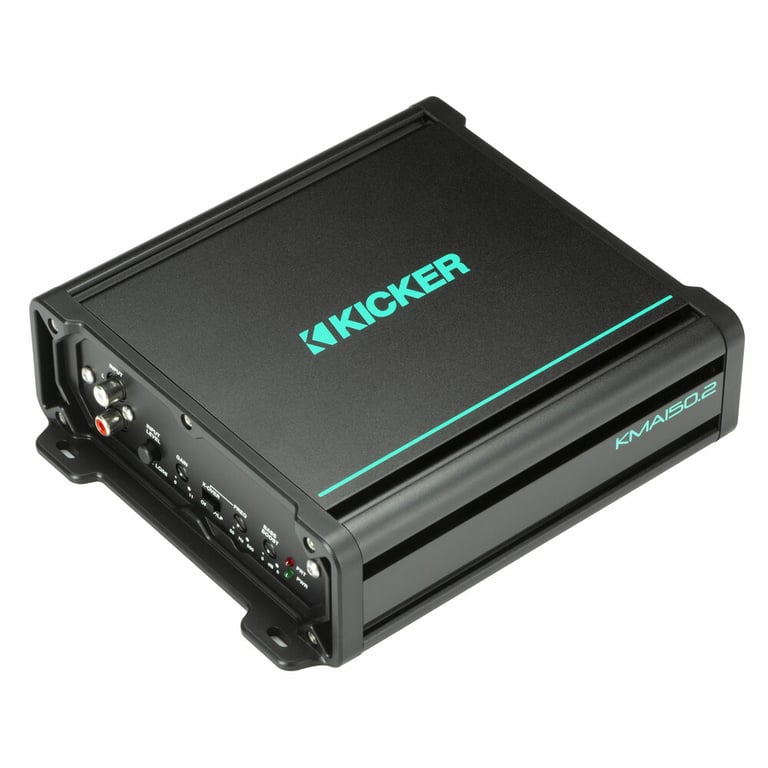

Kicker KMA150.2 (48KMA1502)

190W Peak (150W RMS) Class AB KM Series 2-Channel Marine Amplifier
Quantity: 1

Product Details:

  • KM Series Class A/B 2 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 2 channel
    • 2 ohm: 75 watts x 2 channel
    • Bridged: 150 watts x 1 channel @ 4 ohm
  • Total power output: 150 watts
  • Top-mounted teal LED light pipe
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • Signal sensing remote turn-on
  • Black anodized Aluminum chassis
  • KickEQ bass boost

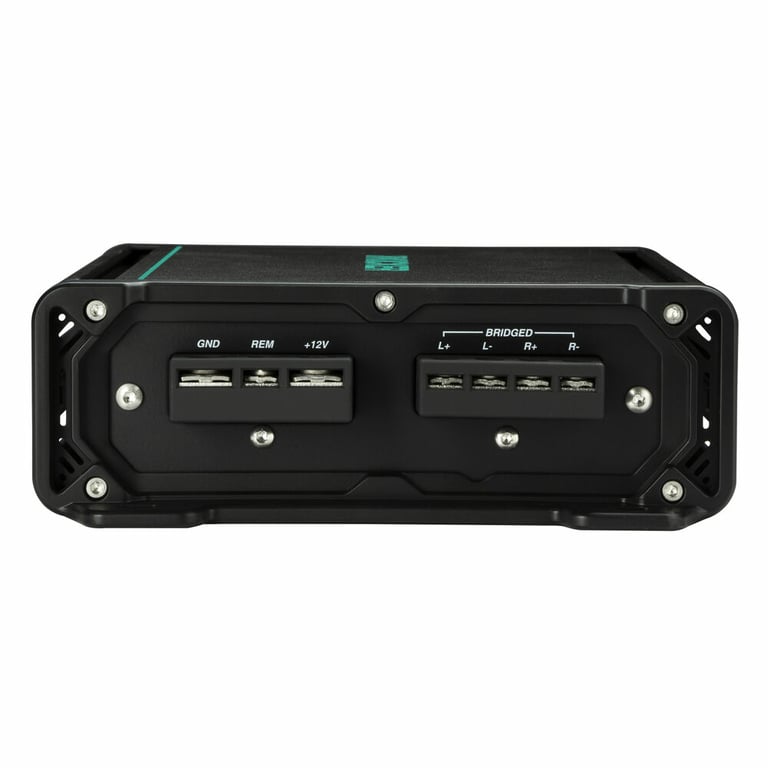

  • ABYC-NMMA-compliant power terminals
  • Conformal-coated circuit boards

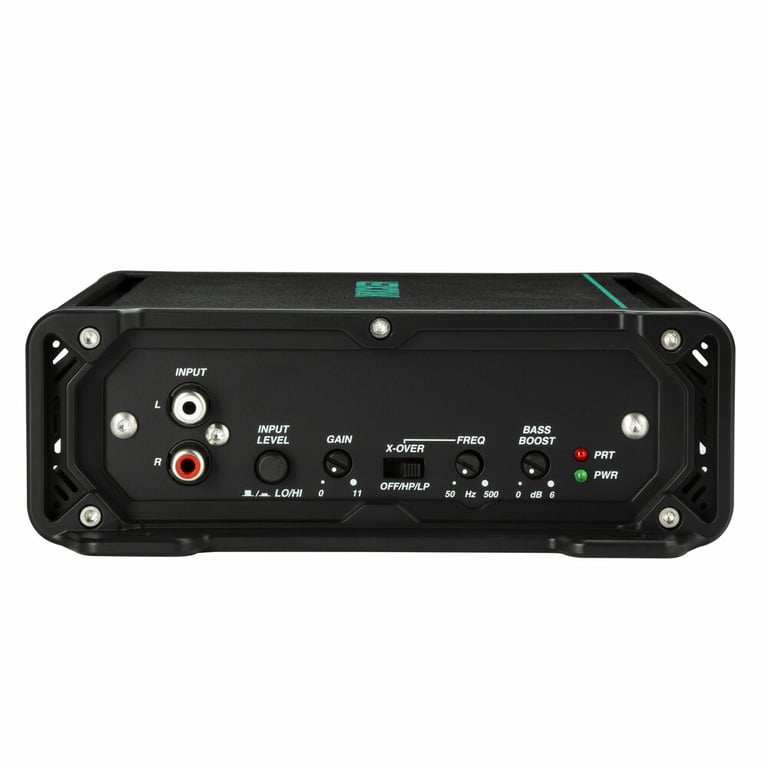

  • Easy access to settings behind a gasket-sealed cover panel
  • Black anodized Aluminum chassis
  • Stainless steel mounting hardware included
  • Input sensitivity:
    • Low level: 125 mV - 5 volts
    • High level: 250 mV - 10 volts
  • Frequency Response: 10 - 20000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 95 dB
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • Variable Bass Boost: 0 - 6 dB
  • Fuse Rating: 40A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8-1/16" L x 7-1/8" W x 2-5/16" H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
  • MFR #: KMA150.2

NVX XKIT82

Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 800 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Product history:

Kicker KMA150.2, XKIT82 thumbnail
(newest, current model)
Kicker 45KMA1502 thumbnail
(previous model, replaced by Kicker KMA150.2 (48KMA1502) with Amplifier Wiring Kit)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 2 channel
RMS Power @ 2 ohms
75 watts x 2 channel
Bridged RMS Power
150 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
150 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 20000 Hz
THD at Rated RMS Power
<1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Total Fuse Rating
40
CEA-2031 Compliant
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
125mV - 5 volts
High-Level Input Sensitivity
250mV - 10 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KMA150.2, XKIT82

Weight:

9.48lbs

Internal SKU:

48kma1502_xkit82

Internal Product ID:

201346

Customer Ratings & Reviews


Kicker KMA150.2 (48KMA1502) with Amplifier Wiring Kit thumbnail image

5 star
92%
4 star
8%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Best bang for the buck

The following review is for XKIT82, which is a part of the bundle you are viewing.

DO NOT buy Non-Name brand kits that are under 50$, Get this one, NVX is a brand name and they don't cut corners on their products. This kit is everything I needed to install my 12" Rockford Fosgate sub, The gauge is true to spec, everything is fine, the RCA cables are top notch, highly recommend

By anton on March 9, 2014

154 found this helpful


Great Deal!!

The following review is for XKIT82, which is a part of the bundle you are viewing.

I dont think I can find another kit that is as good as this one. Sure is very high quality as well as the materials of the sure insulator. It just feels right. Realy heavybduty too. Just buy it. Good stuff.

By Bugatti on January 30, 2014

144 found this helpful


The Real Deal

The following review is for XKIT82, which is a part of the bundle you are viewing.

I originally purchased this kit because it was a good price and I liked the idea of having true-gauge wire. I was leery of the stuff at my local store as it looked a little cheap. Lots of plastic and not much wire. Not the case here. This is a high-quality wiring kit that gets you everything you need for a basic amp install. Convenient markings on the wire to help you lace the fuse holder and measure your speaker wire. High quality covering and wire, very flexible and plenty of length to help you do a quality job. The connectors supplied could be a little better, but they did do the job. It is nice they are stiff metal, but hand-crimping effectively was a little rough. That is a minor complaint.

I have since purchased a second kit for another amp and from now on NVX is a go-to brand for me.

By Mark on January 17, 2015

141 found this helpful


amp kit

The following review is for XKIT82, which is a part of the bundle you are viewing.

This is the first time going with NVX. Now..... NVX will be what I always go with.

By Shannon on October 1, 2014

139 found this helpful


Great ofc kit

The following review is for XKIT82, which is a part of the bundle you are viewing.

This is a great kit all of the wires including the RCA is super flexible, I would buy it again in a heartbeat

By Corey on April 26, 2014

137 found this helpful


NVX XKIT82

The following review is for XKIT82, which is a part of the bundle you are viewing.

I purchased this sub woofer set kit and it had everything needed to install the sub and all for a great price.I would recommend this kit for anyone needing the complete wire kit.

By Galen on March 3, 2014

136 found this helpful


Just what I needed, again!

The following review is for XKIT82, which is a part of the bundle you are viewing.

This amp kit is perfect for installing the 3channel JBL amp I purchased. Amazing quality for the best price out there. Do yourself a favor and look at everything NVX.

I had an extra RCA laying around so I only needed one.

By Ryan on January 19, 2014

135 found this helpful


quick turnaround

The following review is for XKIT82, which is a part of the bundle you are viewing.

When I ordered the product it was out of stock. Estimated delivery was weeks away, but it arrived just a few days later. True 8AWG OFC power and ground cable, high quality remote lead and high quality rca's and speaker leads. 10/10 would purchase again

By AK on May 17, 2015

105 found this helpful


I love it

The following review is for XKIT82, which is a part of the bundle you are viewing.

I'm glad I bought this kit it has everything I needed and the quality is excellent.

By Peter on April 26, 2015 Checkmark Icon Verified purchase

104 found this helpful


professional look

The following review is for XKIT82, which is a part of the bundle you are viewing.

I got this for free when i purchased my amp that it was recommended for. I was a little skeptical at first. But after a quick reference to my apm's manual and a little reassurance from the knowledgeable techs at sonic, i was ready. The whole kit come with everything you need and more. The quality is great and looks awesome. I also got a nvx bass knob as well. Thanks sonic.

By Keon on August 10, 2015

91 found this helpful



SR 6.5C small

RE Audio SR 6.5C-OPEN BOX

6.5" 2-Way RE Series Component Car Speaker System

$99.95

List price $324.98

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1961 Chrysler Imperial

2019 Chevrolet Bolt EV

1994 GMC Sonoma

2023 Chevrolet Malibu

2019 Lamborghini Urus

1996 Lexus SC300

1974 Mercury Capri

1975 GMC C3500 Pickup

1994 Lexus SC300

2008 Acura RDX

Vehicle
Store
Delete

1950 Harley Davidson EL

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
