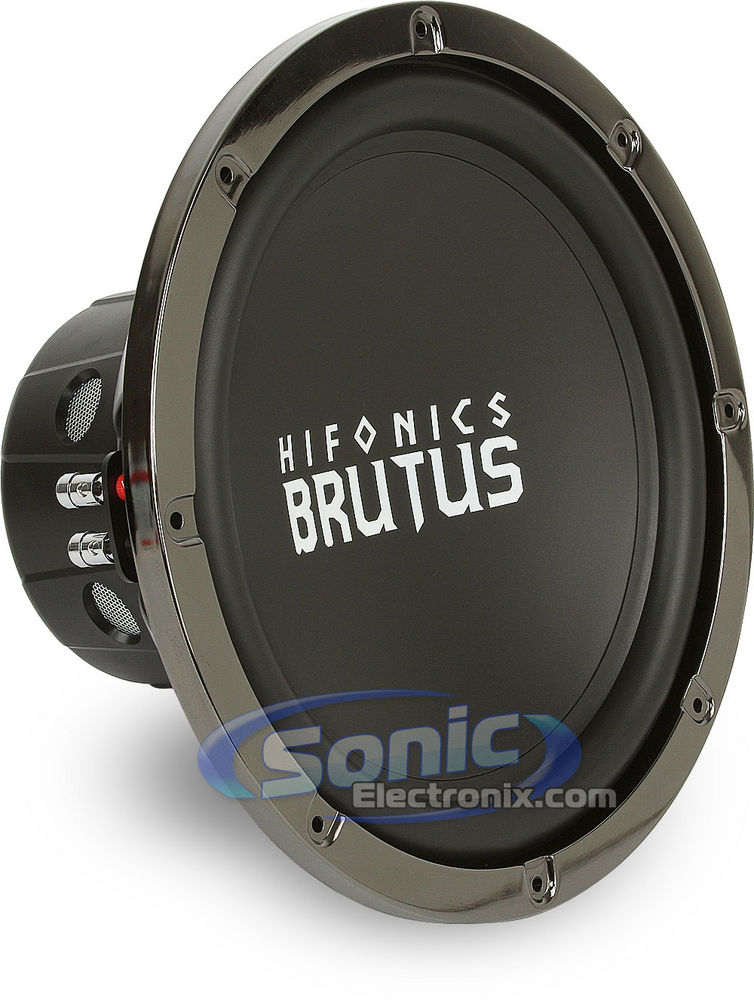

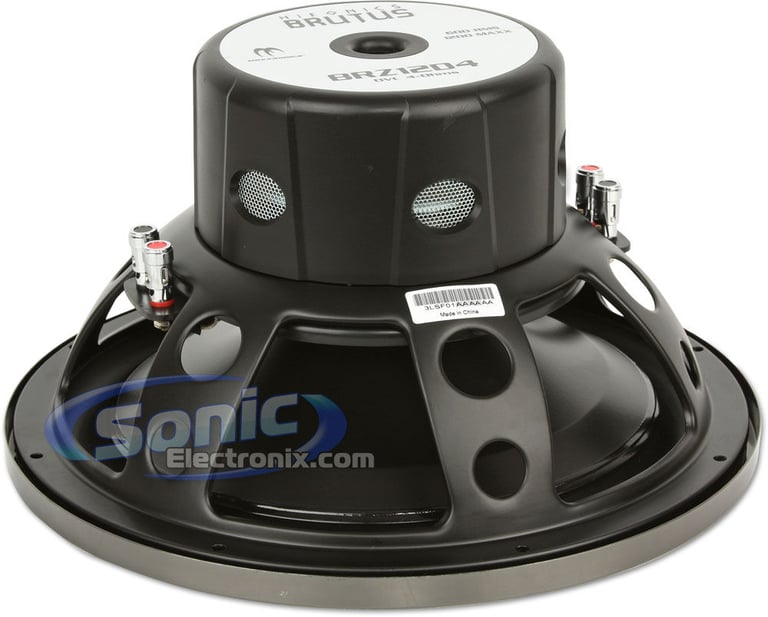

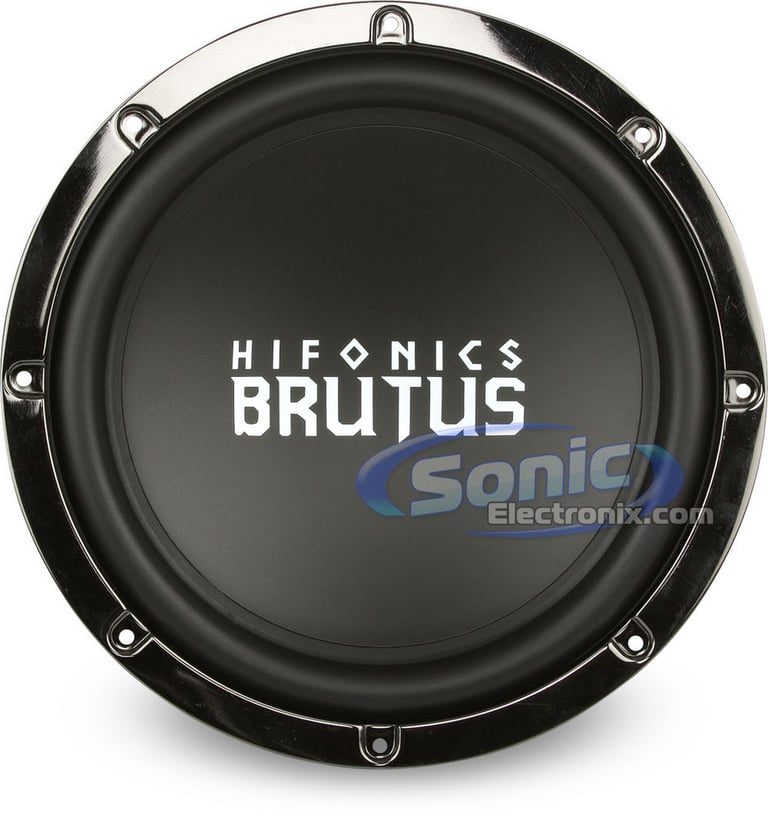

Hifonics BRZ12D4

12" Dual 4 ohm Brutus Series Car Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

12" Dual 4 ohm Brutus Series Subwoofer • 1200W Max • 600W RMS • Polypropylene cone woofer • Rubber surround • Dual flat nomex spider with woven tinsel leads • Ultra ridged stamped steel basket

Learn more about the brz12d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
43DSC404 main

Kicker DSC40 (43DSC404)

240W Peak (60W RMS) 4" DS Series 2-way 4-ohm Coaxial Car Speakers

45
-13.34%

$64.99

List price $74.99

FKB110 main

MB Quart FKB110

160W Peak (80W RMS) 4" Formula Series 2-Way 4-ohm Coaxial Car Speakers

-36.18%

$29.99

List price $46.99

Product Highlights


12" Dual 4 ohm Brutus Series Subwoofer • 1200W Max • 600W RMS • Polypropylene cone woofer • Rubber surround • Dual flat nomex spider with woven tinsel leads • Ultra ridged stamped steel basket

Description


Hifonics brand icon

Authorized dealer

  • 12" Dual 4 ohm Brutus Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Polypropylene cone woofer
  • Rubber surround
  • Dual flat nomex spider with woven tinsel leads
  • Nickel plated push and insert speaker terminals
  • Heat dispersing ported nicked plated back plate
  • Ultra ridged stamped steel basket
  • High strength ABS Motor cover
  • Black chrome plated gasket
  • 2-1/2" High temperature voice coil
  • Double stacked magnet structure
  • Sensitivity: 86 dB
  • 1-year Sonic Electronix warranty

Product history:

Hifonics BRZ12D4 thumbnail
(newest, current model)
Hifonics B12D4 thumbnail
(previous model, replaced by Hifonics BRZ12D4)
Hifonics BX12D4 thumbnail
(previous model, replaced by Hifonics Brutus B12D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics BRZ12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics BRZ12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics BRZ12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics BRZ12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

1
-17.26%

$239.95

List price $290.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Brutus Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BRZ12D4

Weight:

15.00lbs

Internal SKU:

brz12d4

Internal Product ID:

20195

Product and How-to Videos


Customer Ratings & Reviews


Hifonics BRZ12D4 thumbnail image

5 star
77%
4 star
18%
3 star
3%
2 star
0%
1 star
3%



Durability
4.6
Value
4.8
Features
4.8
Design
4.6
Usability
4.8

Customer Reviews

Sort by:

Loading...

Overrated

says it handles 600 watts but dont trust it. half power on my Hifonics HFi1000D and it over heated and died. i would recommend you spend a little more money for a better sub if you truly want 600 watts


**Note From Sonic: When overpowering woofers keep in mind to tune your system to compensate for the additional power. HFi1000D can push a true 700W+ at 2 Ohms which is a little more power than you want to constantly push into this sub, especially with high gains or bass boost.**

By Michael on May 26, 2010

12 found this helpful


Excellent bass for reasonable budget

I have 2 of these in a sealed box with a 1500 watt RMS Hifi amp and they handle it fine even with the bass turned up. Have not had a single problem with this setup. Anyone who says these are not good subs is terribly mislead. obviously there are bigger and louder subs, but if you are on a budget, I highly recommend these subs, Hifonics is an industry leader in several aspects of good sound, and these prove it day after day of use.

By The Big Ham Bass on June 10, 2011

9 found this helpful


amp too strong?

I bought one of these about two weeks ago and its just as loud as two Audiobahns I had before. But I think I need to get two more because my amp has the voice coils burning after a song. I have a Clarion dpx11500 class d mono block. I think the amp may be too strong?

By Cody on May 16, 2011

9 found this helpful


amazing

They hit hard. Really hard. Especially for the price. Never gave out. Had them for like a year now and still look and slam like there brand new

By Austin on October 6, 2010

9 found this helpful


they thump

i put these subs in about a year ago. they keep up with a lot of abuse i give them. they hit hard. they could be louder but definitely a lot of power. it massages my back in my truck. for the price you cant beat them.

By Austin on October 4, 2010

10 found this helpful


pretty good

These are my second pair. I have them in my 2003 Chevy silverado extended cab in 2 down-firing subwoofer boxes. They sound decent in there considering small amount of airspace. In my 1995 suburban they were ridiculous with a hiphonics brutus2006 which toasted them but while it was working it pounded too much

By Doniel on September 28, 2010

9 found this helpful


Pretty Good Sub

Well, I have 1 of these hooked up to a Sony XM-ZZR3301, which is giving it 600w rms. To be honest, when I first hooked it up, I was a little disappointed because it was not getting as loud as I thought it would, but after a few weeks of breaking it in, it did seem to get a bit louder. So overall, I'm pretty pleased. This sub will hit a wide range of notes, I was surprised at some of the low notes it could hit. And if you turn up the volume, it will get loud. I would recommend this sub to anyone, although I would probably recommend getting 2 if you have the space/money, unfortunately I was on a tight budget.

By Billy on August 18, 2010

9 found this helpful


LOTS OF POWER

I bought this amp thinkin it was 1300w!! Boy was I wrong I believe its way underated

By MIKE on December 12, 2010

7 found this helpful


Nice Bass-Great Price

I would definitely recommend this sub to anyone who likes power and clarity. I got this hooked to the hifonics 2000D at 2ohms, great bass cant beat it.

By Ricky on October 5, 2010

8 found this helpful


preety good

Right now I have one sub on a weak amp that's only pushing around 300 watts and my cousin can hear me coming from 2 blocks away. So its a really good sub for the price. If u get a good amp and a pro box this sub will hit hard. To be honest if u can afford a square sub u should get it but if not, trust me if u hook this sub up the right way it can out bump alot of subs at the same price. I even wooped two kickers already with this one sub lol so just get the right stuff and go out beatin

By big k on September 6, 2012

6 found this helpful




ADCR-150-USB small

Audiovox ADCR-150-USB

Universal G2 30-pin iPod/iPhone Cradle With 6 Interchangeable Holders

$38.27

List price $79.00

F5U233-APL small

Belkin F5U233-APL

Hi-Speed USB 2.0 4-Port Hub

$27.99

List price $39.99

F5U237V1 small

Belkin F5U237V1

Hi-Speed USB 2.0 7-Port Hub

$39.99

List price $69.99

Supreme UC small

Jabra Supreme UC

Unified Communications (UC) Noise Cancelling Bluetooth Headset

$101.99

List price $149.95

SHQ3205/28 small

Philips SHQ3205 - Orange/Gray

In-Ear ActionFit Sports Earhook Headphones/Headset with Microphone-Orange/Gray

(1)

$27.00

List price $39.99

BC300 small

Maxell BC300

Fast Charger with 4 AA NiMH Rechargeable Batteries

$18.99

List price $29.99

Supreme+ (Black/Silver) small

Jabra Supreme Plus (Supreme+)

Wireless Bluetooth Active Noise Cancelling Headset

$99.99

List price $99.99

F3U134-06 small

Belkin F3U134-06

6 ft. (1.83 Meters) of USB Extension Cable

$5.99

List price $29.99

F3U133-06 small

Belkin F3U133-06

6 ft. of Pro Series High-Speed A/B USB 2.0 Cable

(1)

$6.99

List price $24.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 BMW 528i xDrive

2001 Toyota RAV4

2009 Ford Focus

2015 Cadillac Escalade

2002 BMW 530i

2021 Cadillac XT5

1987 Ford Taurus

2008 Kia Optima

1978 MG MGB

1980 Buick Electra

Vehicle
Store
Delete

2011 Harley Davidson FLSTSB Cross Bones

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
