Rockford Fosgate Stage 5 20GLADR-STG5

Product Details:

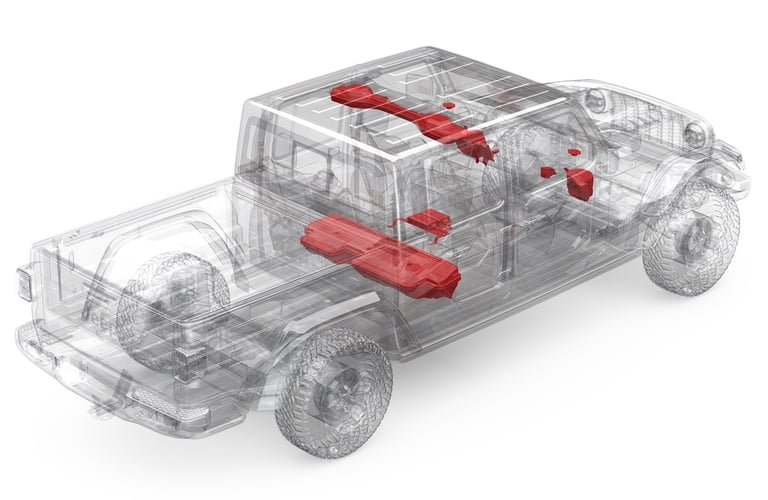

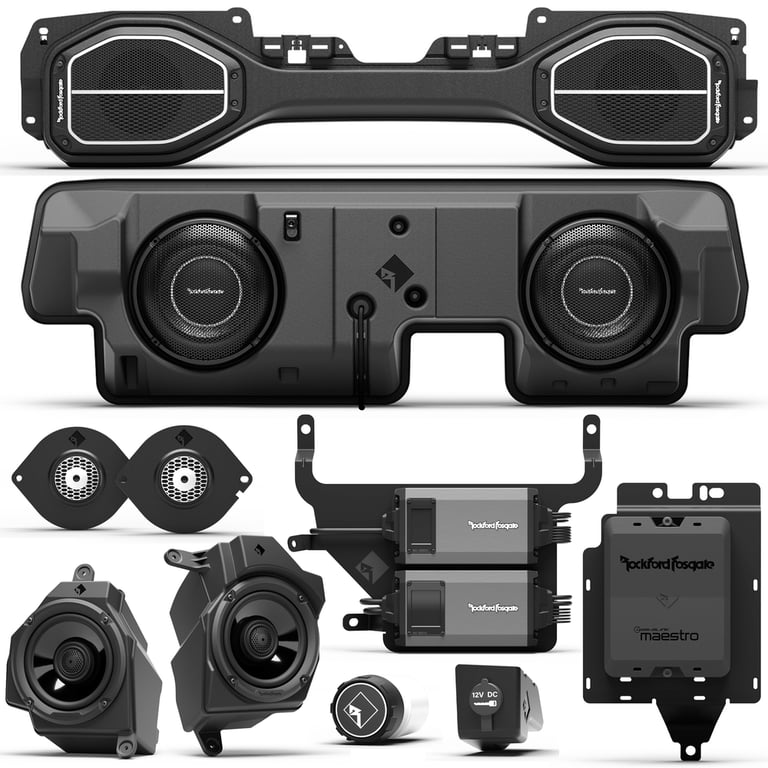

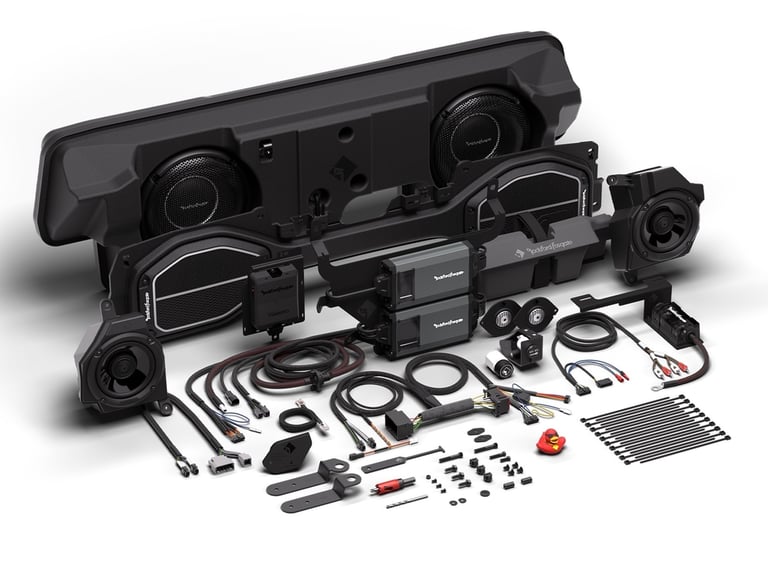

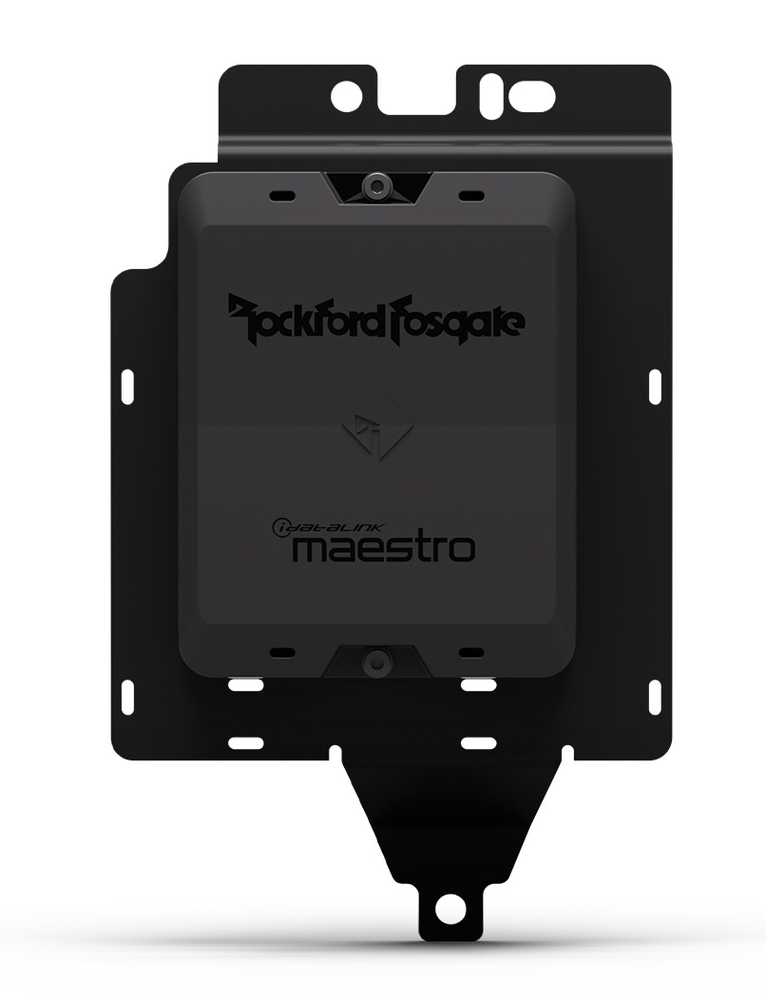

• System includes four 6.5" speakers preloaded in custom-fit enclosures, one pair of tweeters, two subwoofers in custom-fit enclosures, two marine amplifiers, one digital signal processor, and vehicle-specific harnesses and hardware
• Compatible with select 2020-2023 Gladiator
• Designed and engineered to match and compliment the factory fit and finish of your vehicle
• Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
• Plug and Play design for easy installation
• No drilling or cutting required
• IPX-5 water resistant
• Total power: 1800 watts
• Estimated Install Time: 8 hours
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty

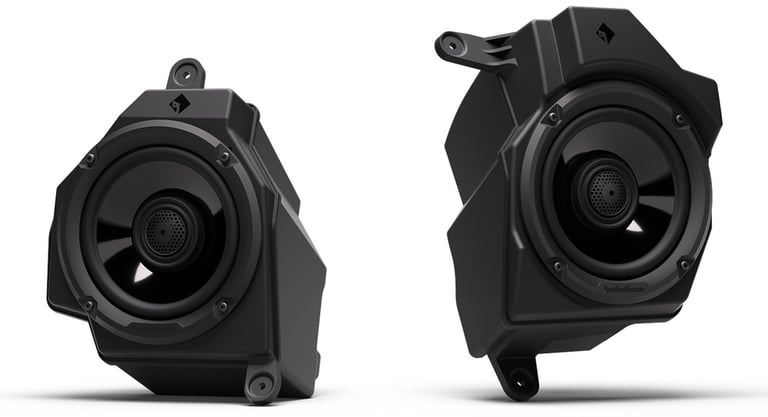

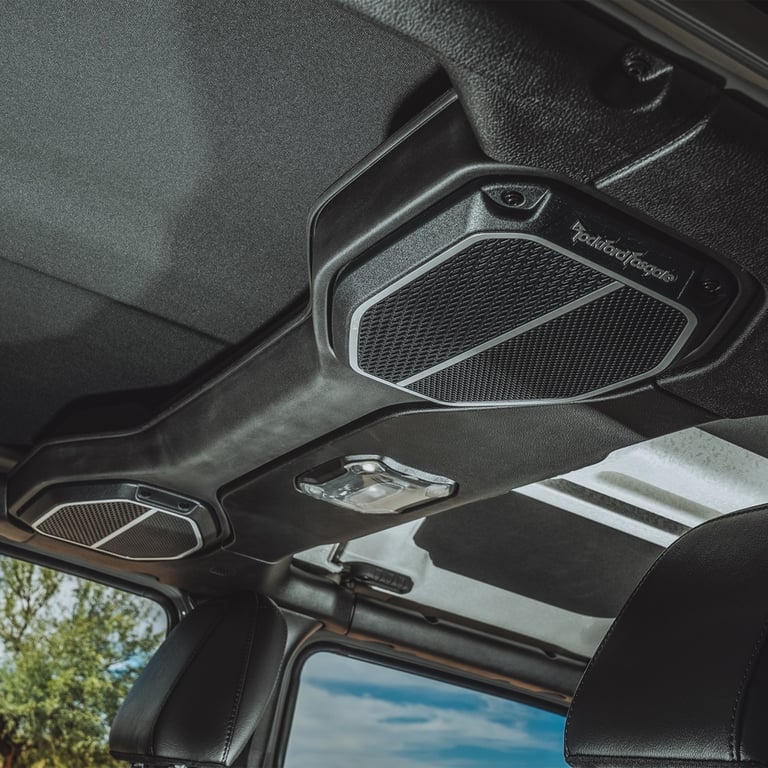

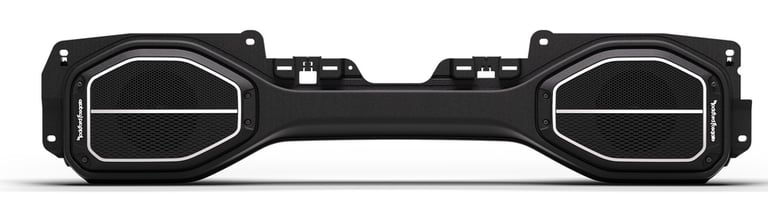

6.5" Full Range Front Dash and Overhead Speakers:

• Carbon fiber-reinforced Polypropylene cone
• Santoprene surround
• Poly-cotton spider
• Integrated 6dB crossover with high-power Polyester capacitor
• Power Handling:
• Peak: 300 watts per pair / 150 watts each
• RMS: 150 watts per pair / 75 watts each
• 1" proprietary film dome neodymium tweeters
• Integrated phase plug
• Speaker enclosure included
• Integrated 6dB crossover with high-power polyester capacitor
• Low profile coaxial tweeter design
• Ultra-high temperature glass reinforced polymer frame
• 1.4" high-power voice coil
• Impedance: 4-ohm
• Frequency Response: 56 - 20000 Hz
• Sensitivity: 94 dB
• MFR #: TMS65

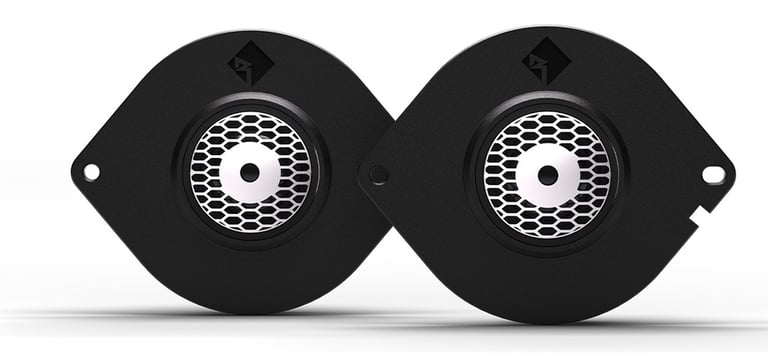

Rockford Fosgate M2-TS 1" Tweeter Add-On Kit:

• Aluminum diaphragm
• PEI rubber surround
• Customizable flush or horn mounting options, with bezels included
• High-temperature Kapton voice coil former
• External 18dB/octave high-pass crossover
• Power Handling:
• Peak: 1600 watts per pair / 800 watts each
• RMS: 400 watts per pair / 200 watts each
• High-temperature Kapton voice coil former
• Impedance: 4-ohm
• Frequency Response: 1425 - 25000 Hz
• Sensitivity: 97 dB
• MFR #: M2-TS

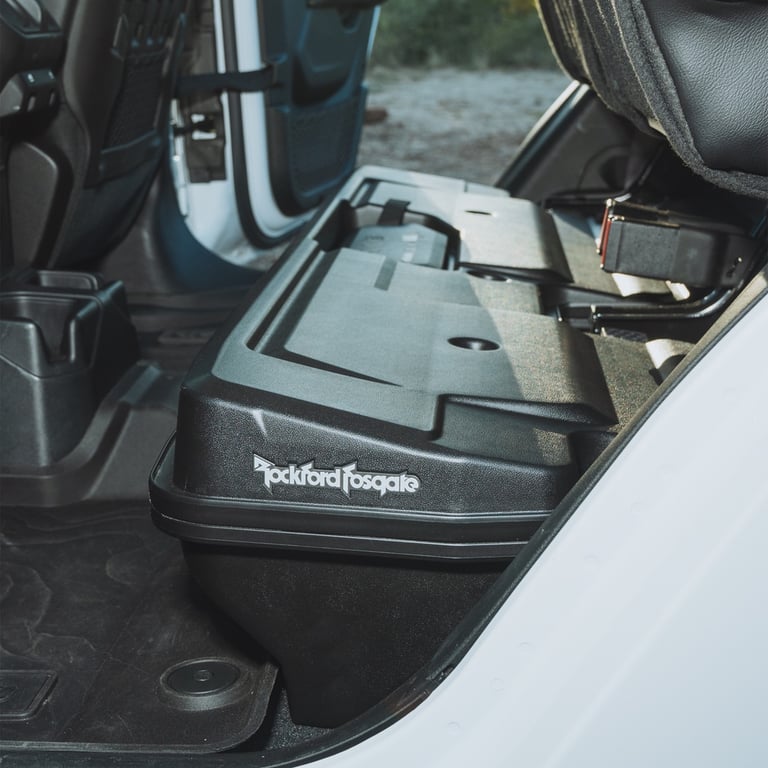

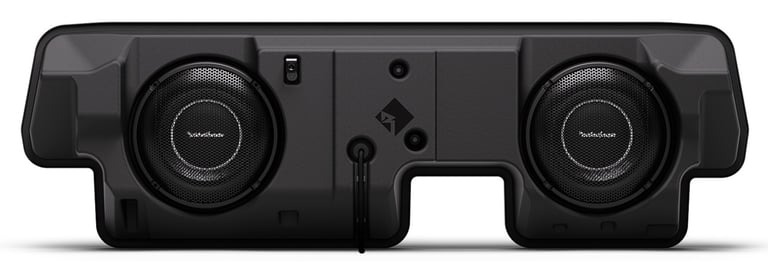

Rockford Fosgate T1S2-12 Loaded 12" Subwoofer Enclosure:

• Shallow-mount design with custom-fit enclosure
• Carbon fiber/PMI/glass fiber cone with aluminum dustcap
• Injection molded foam surround with VAST
• Dual Nomex progressive spiders with integrated lead wires
• High-temperature, high-energy Neodymium magnet motor structure
• Custom 10 AWG slot loaded brass push spring terminals
• Power Handling:
• Peak: 1000 watts each
• RMS: 500 watts each
• Dual wound 2.5" voice coil with interior and exterior windings
• Impedance: Single 2-ohm
• Frequency Response: 28-250 Hz
• Sensitivity: 85 dB
• MFR #:T1S2-12

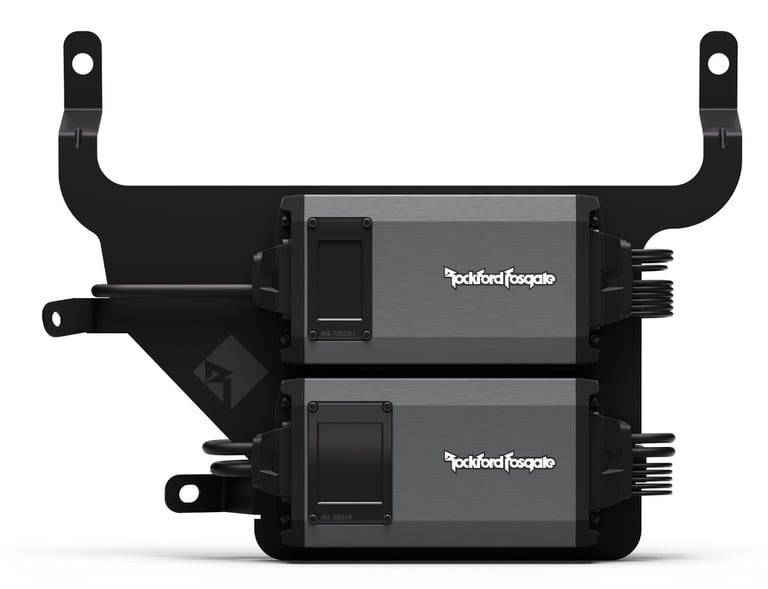

Rockford Fosgate M5-800X4 4-Channel Marine Amplifier:

• PRESET switch removes the need to set up and tune the amp when used with Rockford Fosgate SUVaudio kits
• Balanced Differential Inputs eliminate noise picked up by signal cables
• Top-mounted control panel
• Class-AD technology
• IPX6 water intrusion rating
• Element Ready chassis and conformal-coated PC boards
• LED power (green) and protect (red) indicators
• Protection circuitry (thermal, overload, and speaker short protection)
• Power Specifications
• 4 ohm: 100 watts x 4 channels
• 2 ohm: 200 watts x 4 channels
• Bridged @ 4 ohm: 200 watts x 2 channels
• Total RMS power output: 800 watts
• Frequency Response: 10-50000 Hz
• Total Harmonic Distortion (THD): 0.25%
• Signal to Noise Ratio: 105 dB
• Variable low-pass filter: 50-250 Hz @ 12dB/octave
• Variable high-pass filter: 50-250 Hz @ 12dB/octave
• Variable Bass Boost: 0-18dB
• MFR #: M5-800X4

Rockford Fosgate M5-1000X1 Monoblock Marine Amplifier:

• PRESET switch removes the need to set up and tune the amp when used with Rockford Fosgate SUV audio kits
• Balanced Differential Inputs eliminate noise picked up by signal cables
• Top-mounted control panel
• IPX6 water intrusion rating
• Element Ready™ chassis and conformal-coated PC boards
• Class-BD technology
• LED power (green) and protect (red) indicators
• Protection circuitry (thermal, overload, and speaker short protection)
• Power Specifications
• 4 ohm: 500 watts x 1 channel
• 2 ohm: 750 watts x 1 channel
• 1 ohm: 750 watts x 1 channel
• Total RMS power output: 1000 watts
• Frequency Response: 30-245 Hz
• Total Harmonic Distortion (THD): 0.1%
• Signal to Noise Ratio: 110 dB
• Variable low-pass filter: 50-250 Hz
• Variable Bass Boost: 0-18 dB
• MFR #: M5-1000X1
