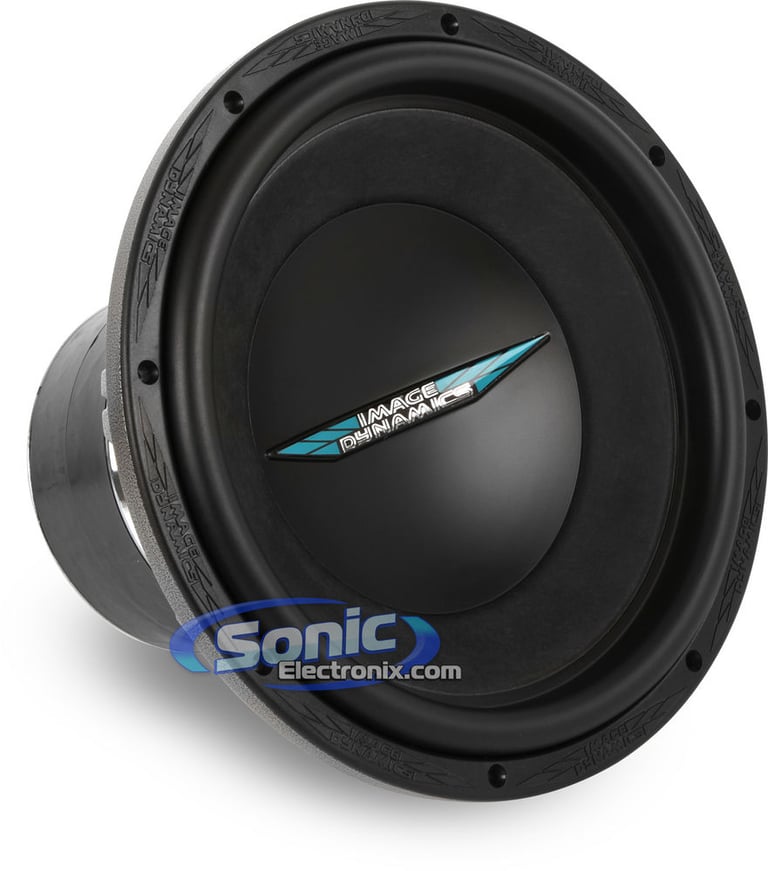

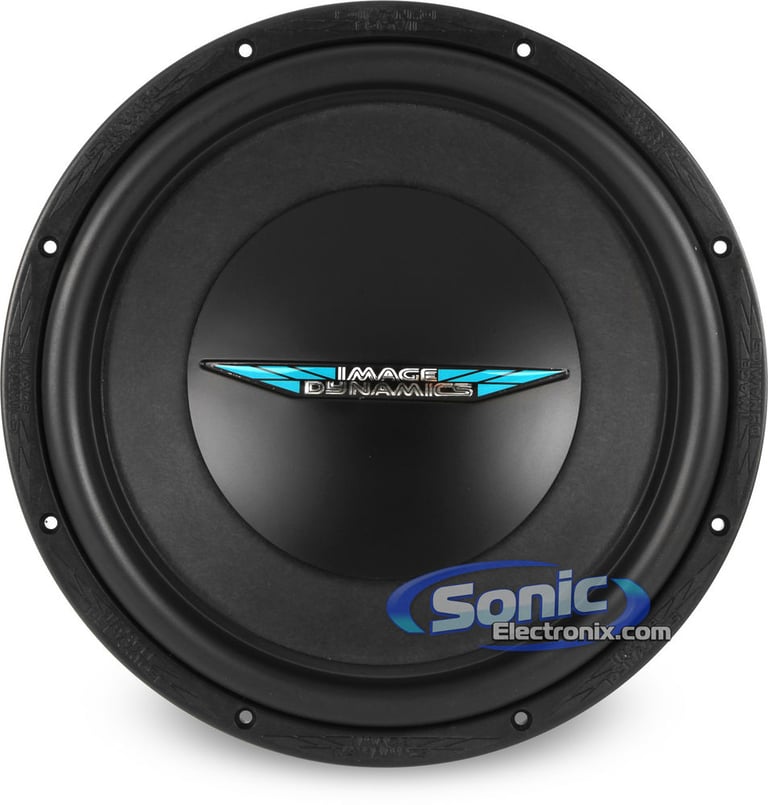

Image Dynamics IDMAX12 V.3 D2

12" Dual 2 ohm ID MAX V.3 Series Car Subwoofer

Product videos
highlight-star-icon

12" Dual 2 ohm ID MAX V.3 Series Subwoofer • 1800W Max • 1000W RMS • Paper Composite Cone Woofer • Parabolic EPDM Rubber Surround • Over 2" Linear Excursion • RaDiaToR Cooling System

Learn more about the idmax12v3d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

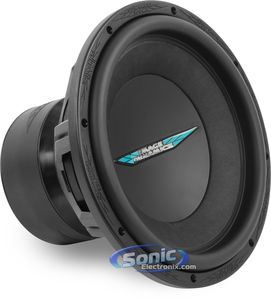

idmax12d2v4 thumbnail

Image Dynamics IDMAX12 D2 V.4

OUR PRICE: $398.99

View item

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

HRN-HRR-FO2 main

iDataLink Maestro HRN-HRR-FO2 Wiring Harness

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2011-2023 vehicles from Ford

-18.27%

$84.99

List price $103.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Lowest price in 30 days
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

MM652 main

Polk Audio MM652 (MM 652)

600W Peak (200W RMS) 6.5" Mobile Monitor Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

9
-28.11%

$179.00

List price $249.00

H765C main

Cerwin Vega H765C

800W Peak (120W RMS) 6.5" HED Series 2-Way 4-ohm Component Speaker System

17
-16.67%

$129.99

List price $155.99

ADS-MRR2 main

iDataLink Maestro RR2 Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

5
-18.75%

$259.99

List price $319.99

Limited time!

Rockford Fosgate Prime R1675X2

180W Peak (90W RMS) 6.75" Prime Series 2 Way Coaxial 4-ohm Speakers

56
-12.50%

$69.99

List price $79.99

NVX XSP65KIT

600W Peak (200W RMS) 6.5" X-Series 2 Way Component Car Speakers

12
-11.46%

$169.99

List price $191.99

Product Highlights


12" Dual 2 ohm ID MAX V.3 Series Subwoofer • 1800W Max • 1000W RMS • Paper Composite Cone Woofer • Parabolic EPDM Rubber Surround • Over 2" Linear Excursion • RaDiaToR Cooling System

Description


Image Dynamics brand icon

Authorized dealer


  • 12" Dual 2 ohm ID MAX V.3 Series Subwoofer
  • Power Handling:
    • RMS: 1000 watts
    • Recommended Power Range: 200-1000 watts

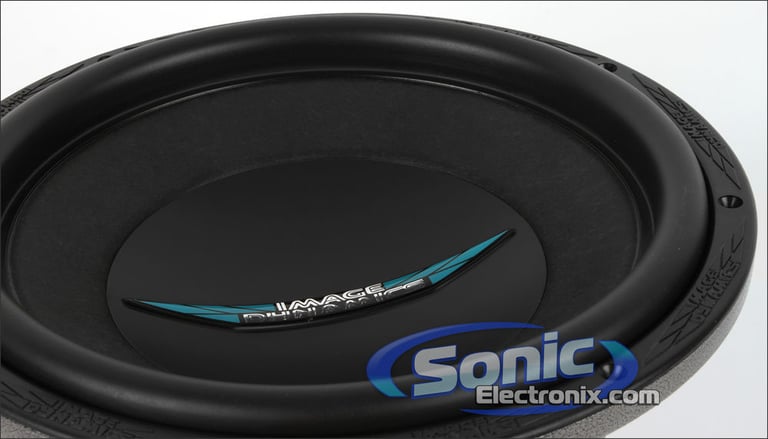

  • Pressed paper composite cone woofer
  • Parabolic EPDM rubber surround
  • Over 2" long linear excursion
  • RaDiaToR cooling system for heat dissipation
  • Radiant Diametric Torsional Reinforcement
  • High compliance suspension design
  • Flat spider with NOMEX cloth woven tinsel leads
  • High-temperature flat wire, flat wound voice coil
  • Inverted dust cap with logo

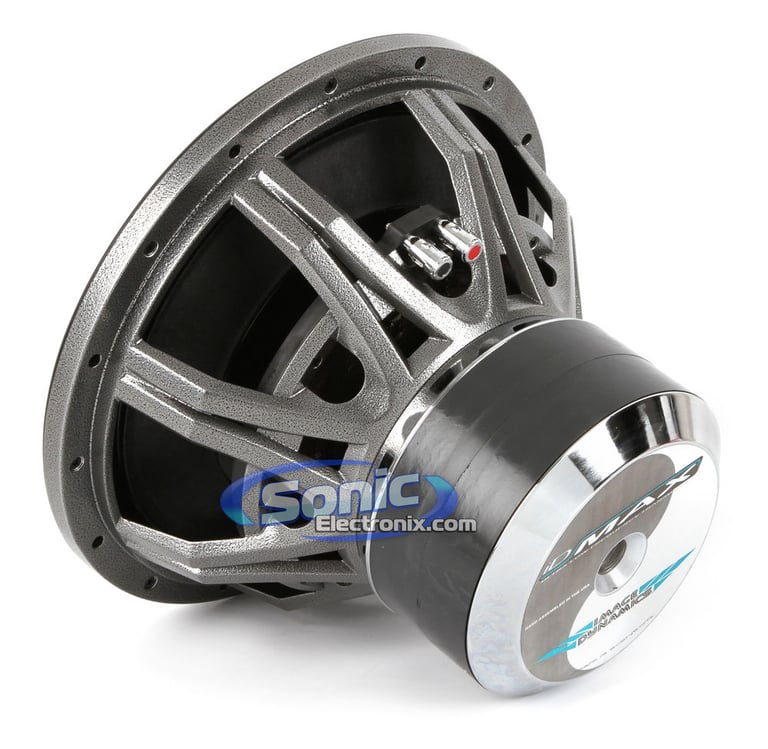

  • Powder coated alloy proprietary basket
  • 3-1/2" peak-to-peak surround excursion
  • Also found as: IDMAX12D2 V.3, IDMAX12 D2 V.3, IDMAX12 D2, IDMAX12D2, IDMAX12V.3 D2, IDMAXv3
  • Frequency response: 20-250 Hz
  • Sensitivity: 93.1dB
  • Mounting depth: 8-1/4"
  • Cutout dimensions: 11"
  • 1-year Manufacturer's Warranty

Product history:

Image Dynamics IDMAX12 D2 V.4 thumbnail
(newest, current model)
Image Dynamics IDMAX12 V.3 D2 thumbnail
(previous model, replaced by Image Dynamics IDMAX12 D2 V.4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics IDMAX12 V.3 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics IDMAX12 V.3 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics IDMAX12 V.3 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics IDMAX12 V.3 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
ID Max V.3 Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 150 Hz
Sensitivity
93.1 dB
Xmax (millimeters)
24.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Reinforced Paper
Woofer Surround
EPDM Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.30 cubic feet
Maximum Sealed Box Volume
1.52 cubic feet
Minimum Ported Box Volume
1.80 cubic feet
Maximum Ported Box Volume
2.50 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/4"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDMAX12 V.3 D2

Weight:

35.00lbs

Internal SKU:

idmax12v3d2

Internal Product ID:

20231
