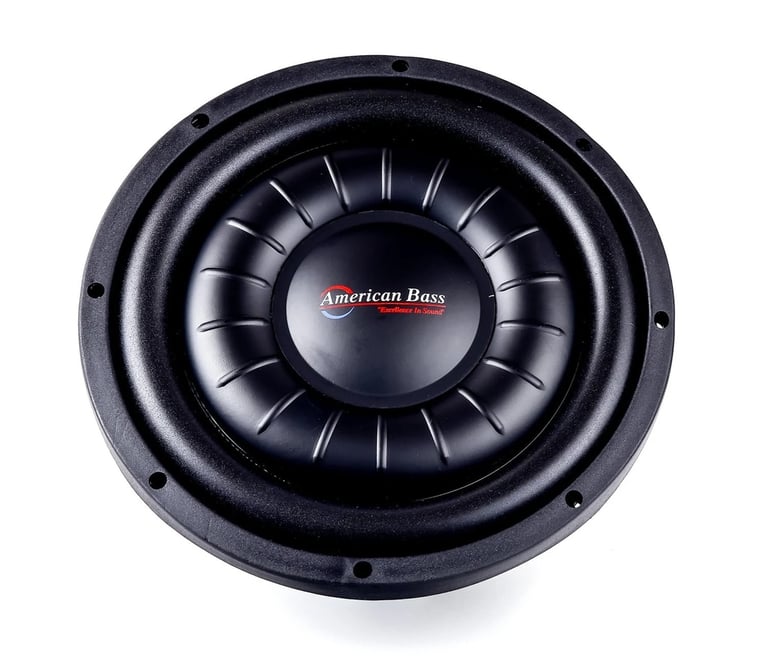

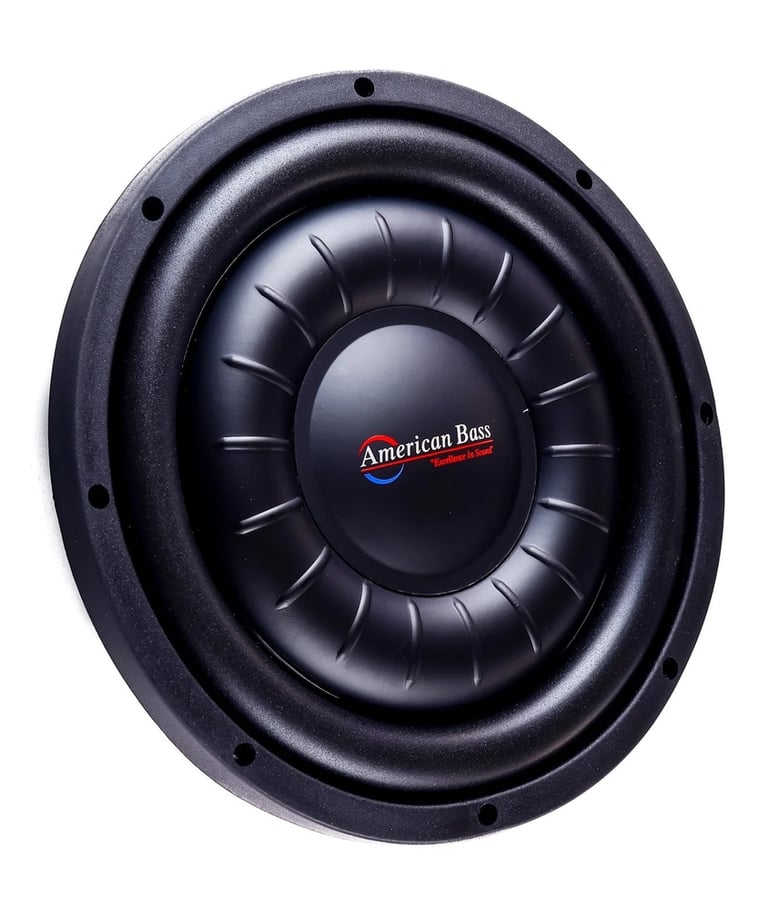

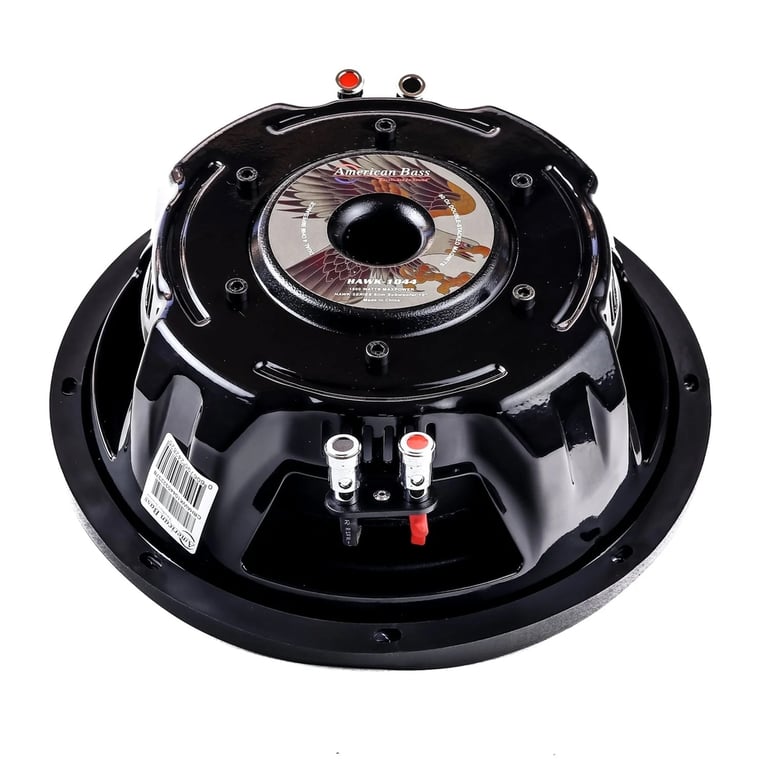

American Bass HAWK-1044SL (Slim)

1500W Peak (700W RMS) 10" HAWK Series Dual 4-ohm Shallow Car Subwoofer

American Bass
Shop all American Bass
highlight-star-icon

• Peak Power: 1500 watts
• RMS Power: 700 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Foam Surround
• Mount depth: 3.14"
• Sensitivity: 84.3 dB

Learn more about the hawk10slim

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


American Bass brand icon

Authorized dealer


American Bass HAWK SLIM 10

You have a truck. You have a lot of power. But you don’t have a lot of space or bass. That’s why you need the American Bass Hawk Slim subwoofer. This subwoofer is so slim, you can squeeze it in any corner or crevice of your truck. But it’s not slim on sound. This subwoofer has magnets with vented cooling to keep it blasting and booming. It has high power 4 layers aluminum former voice coil to give it sharp and clear sound. It has high density foam surround and high quality spider suspension system to make it sturdy and steady. The American Bass Hawk Slim subwoofer will make your truck sound awesome with its deep and solid bass. Don’t let your space limit your sound. Get the American Bass Hawk Slim now.


Product Details:

  • 10" Dual 4 ohm Hawk Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 700 watts
  • Polypropylene Cone
  • Foam Surround
  • Slim/shallow subwoofer construction
  • High quality spider suspension system
  • 2.75" High Temperature Aluminum Voice coil
  • 10.5 mm Xmax
  • 80 oz. magnet motor structure
  • Resonance Frequency (Fs): 41.491 Hz
  • Sensitivity: 84.3 dB
  • Recommended ported box volume: 0.6 cubic feet - 0.9 cubic feet
  • Top-mount depth: 3.14"
  • Cutout diameter: 9.25"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 American Bass HAWK-1044SL (Slim) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 American Bass HAWK-1044SL (Slim) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 American Bass HAWK-1044SL (Slim) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 American Bass HAWK-1044SL (Slim) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
Hawk Series
Subwoofer Size
10"
Peak Power Handling
1500 watts
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.75"
Sensitivity
84.3 dB
Xmax (millimeters)
10.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Magnet weight
80 oz.
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
0.6 cubic feet
Maximum Ported Box Volume
0.9 cubic feet
Top-Mount Depth (Mounting Depth)
3.14"
Cutout Diameter
9.25"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
41.491 Hz
Equivalent Compliance (Vas)
16.972 liters
Total Speaker Q Value (Qts)
0.598
Electrical Q Value (Qes)
0.697
Electrical Resistance of Voice Coil (Re)
7.6 ohm
Mechanical Q Value (Qms)
4.216
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HAWK-1044-2

Weight:

17.00lbs

Internal SKU:

hawk10slim

Internal Product ID:

202796
