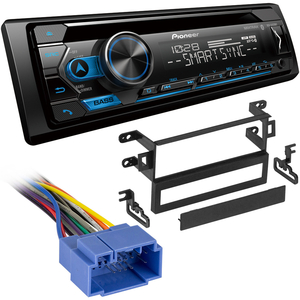

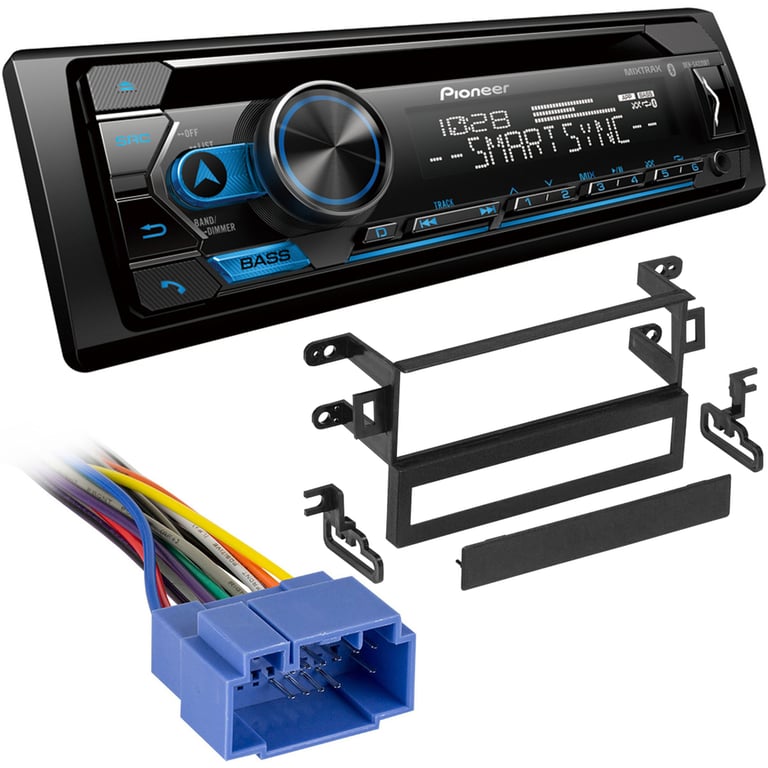

1998-2002 Honda Accord Single DIN Bluetooth Car Stereo Upgrade | Pioneer

Product Details

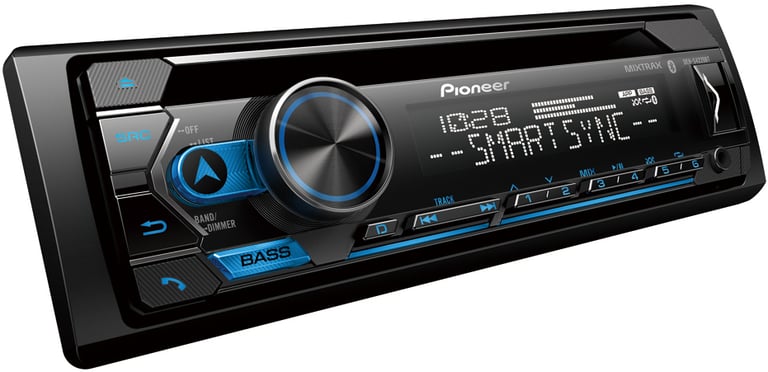

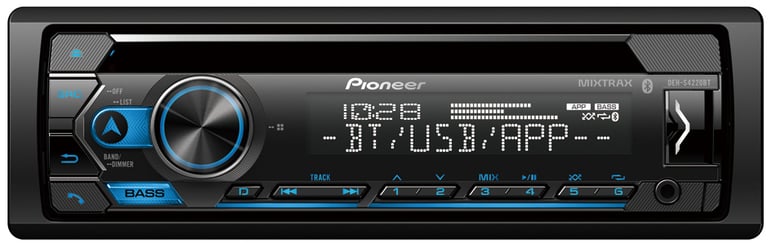

• Single DIN In-Dash Bluetooth CD Media Receiver
• Digital LED Backlit Display Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Detachable face plate
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DEH-S4220BT

Smartphone Features

• Compatible with Pioneer's Smart Sync App for multimedia functionality
• Display and control music and other apps with iPhone and Android
• Pandora and Spotify capable
• Selectable source lets you charge your phone without activating the USB port as a source
• USB Quick Charge (1.5 amps)
• Voice control button to access phone assistant

Playback and Audio Features

• CD | CD-R/RW | MP3 | WMA | WAV (Hi-Res) | AAC and FLAC (Hi-Res) Audio Playback
• Advanced Sound Retriever (ASR) for improved sound quality from compressed music files
• AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Equalizer
• 7 Equalizer Presets
• Low-pass and high-pass filters
• Subwoofer level control

Expandability Options

• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

Audio/Video Inputs and Outputs

• 2 sets of 4 volts preamp outputs (front and rear/subwoofer)
• Front Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Front USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a external wired microphone for clear, convenient, distortion-free talking

Pioneer DEH-S4220BT owner’s manual

Product Details:

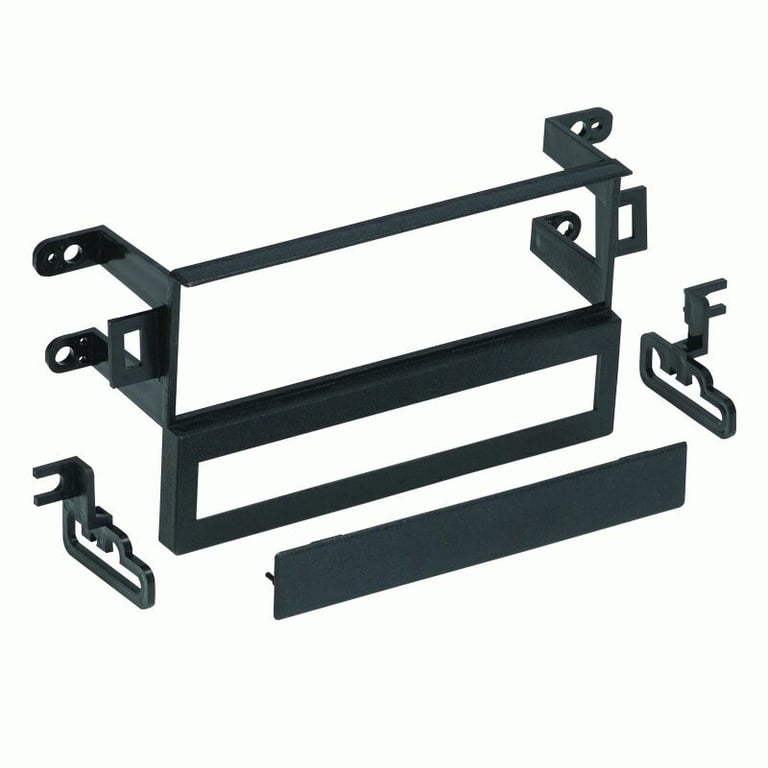

• Installation Dash Kit for Single DIN Headunits
• Compatible with select 1998-2002 Honda Accord
• Accommodates ISO Single DIN mount
• Provision for retaining the factory pocket or for the installation of a 1/4“ or 1/2“ equalizer
• Designed and manufactured with precision tolerances
• Gapless fit between the dash and the kit
• Painted to match factory dash color
• Factory matched texture style
• High-grade ABS plastic construction
• Color: Black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit Includes:

1. Radio housing
2. Trim plate
3. Radio support
4. Mounting bracket
5. Equalizer plate
6. Shaft masks
7. (2) PAL nuts

Recommended Tools

1. Panel Removal Tool
2. Phillips Screwdriver
3. Socket Wrench

Product Features:

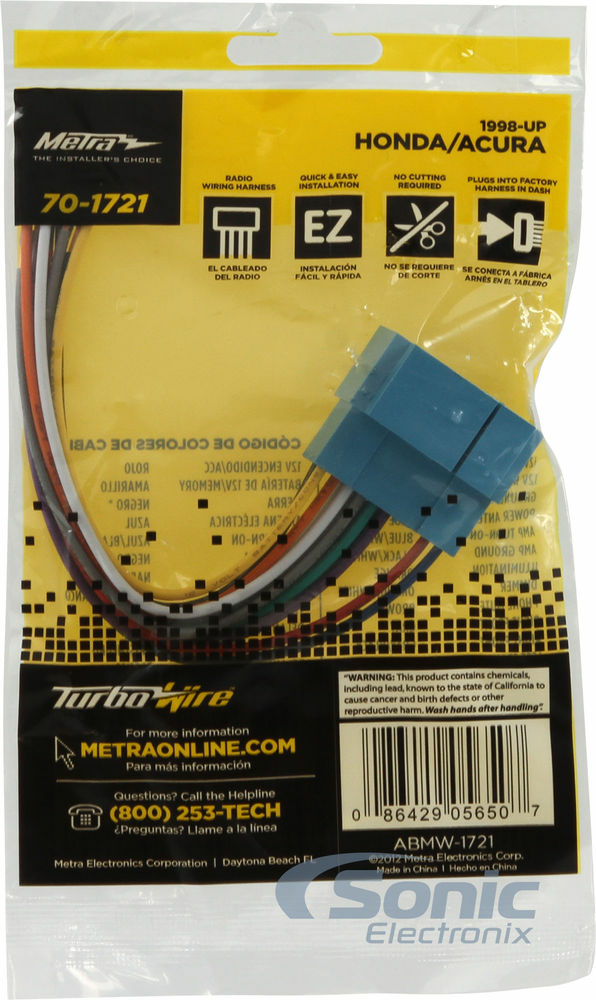

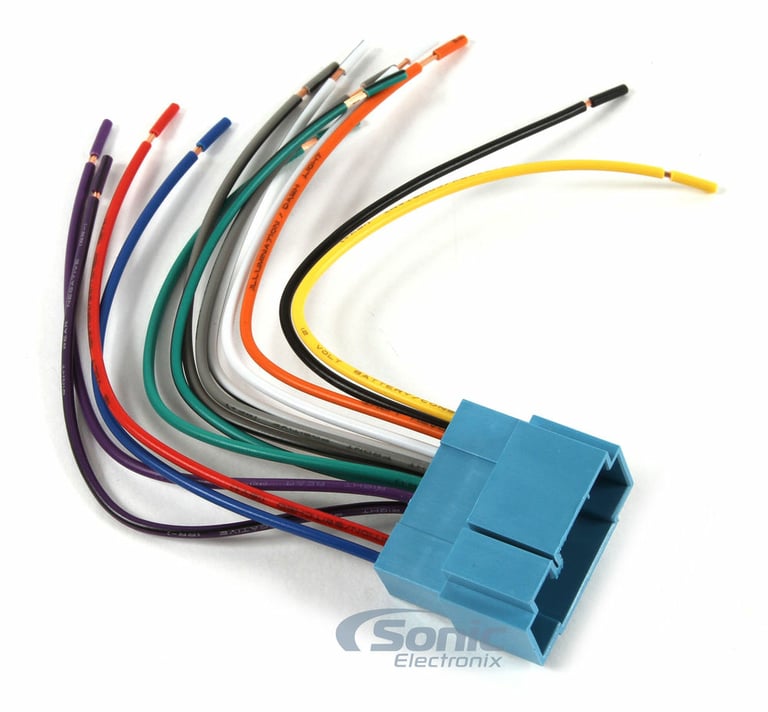

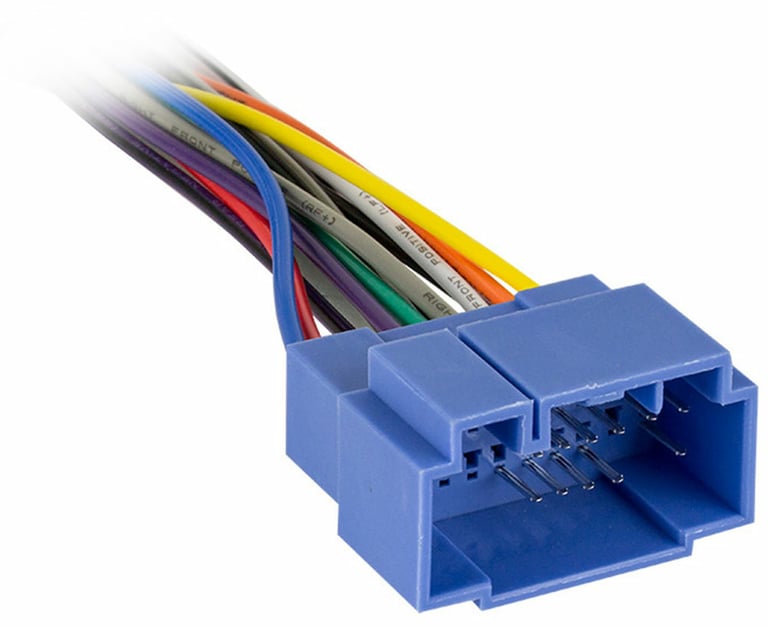

• Wire harness to Install a new car stereo in Compatible with select 1998-2013 vehicles from Honda, Suzuki, Acura
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
