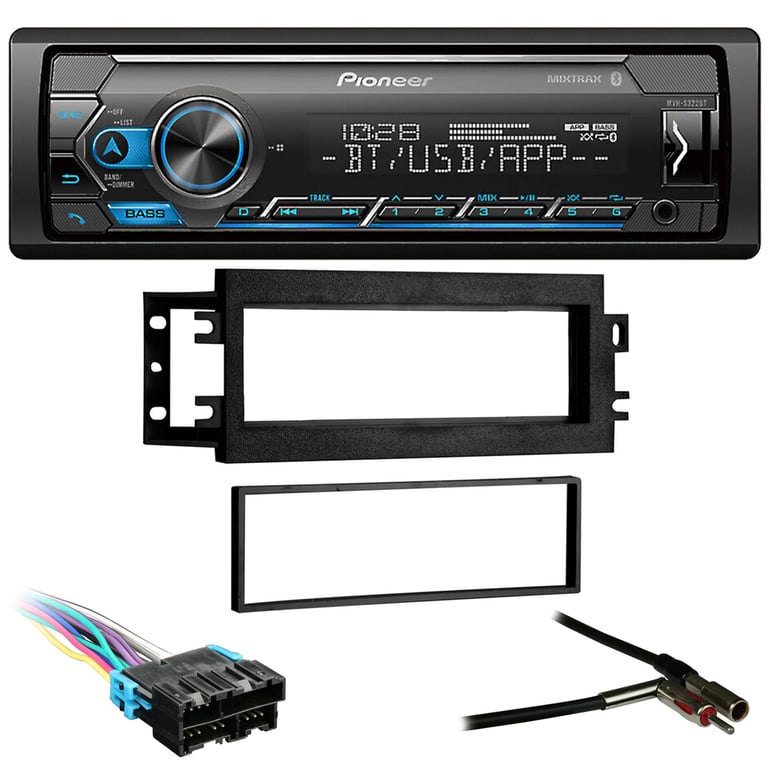

1993-1996 Chevy Camaro Single DIN CD/Bluetooth Car Stereo Upgrade | Pioneer

Product Details

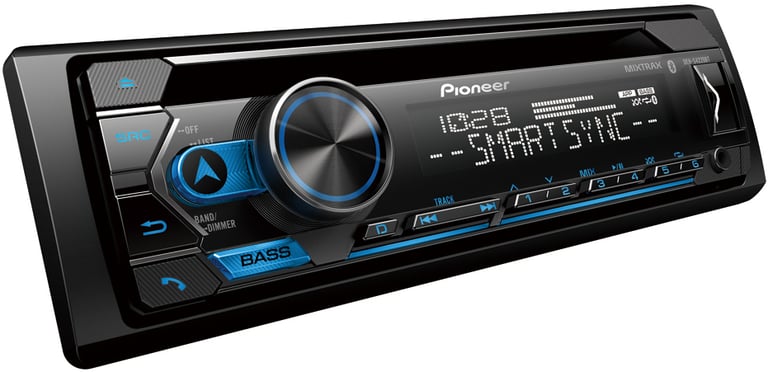

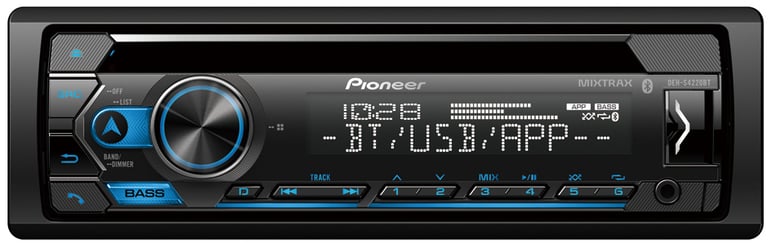

• Single DIN In-Dash Bluetooth CD Media Receiver
• Digital LED Backlit Display Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Detachable face plate
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DEH-S4220BT

Smartphone Features

• Compatible with Pioneer's Smart Sync App for multimedia functionality
• Display and control music and other apps with iPhone and Android
• Pandora and Spotify capable
• Selectable source lets you charge your phone without activating the USB port as a source
• USB Quick Charge (1.5 amps)
• Voice control button to access phone assistant

Playback and Audio Features

• CD | CD-R/RW | MP3 | WMA | WAV (Hi-Res) | AAC and FLAC (Hi-Res) Audio Playback
• Advanced Sound Retriever (ASR) for improved sound quality from compressed music files
• AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Equalizer
• 7 Equalizer Presets
• Low-pass and high-pass filters
• Subwoofer level control

Expandability Options

• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

Audio/Video Inputs and Outputs

• 2 sets of 4 volts preamp outputs (front and rear/subwoofer)
• Front Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Front USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a external wired microphone for clear, convenient, distortion-free talking

Pioneer DEH-S4220BT owner’s manual

Product Features:

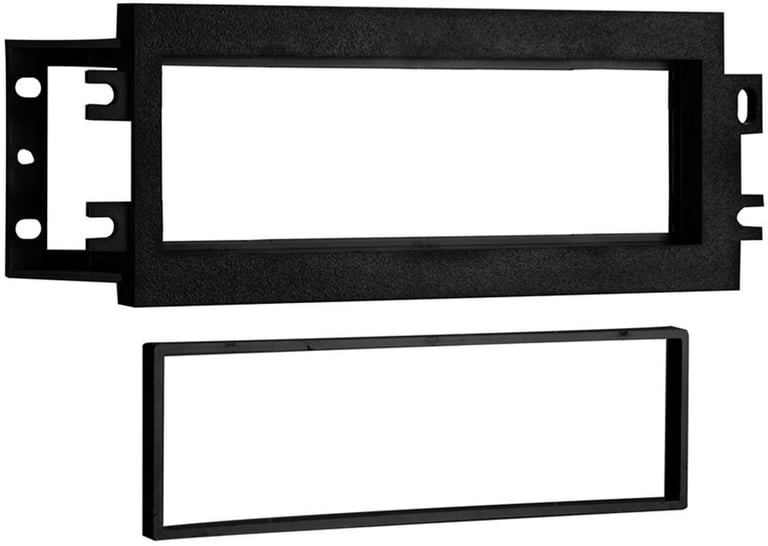

• Allows for installation of an aftermarket Single-Din car stereo
• Compatible with select 1993-1996 Chevrolet Camaro
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

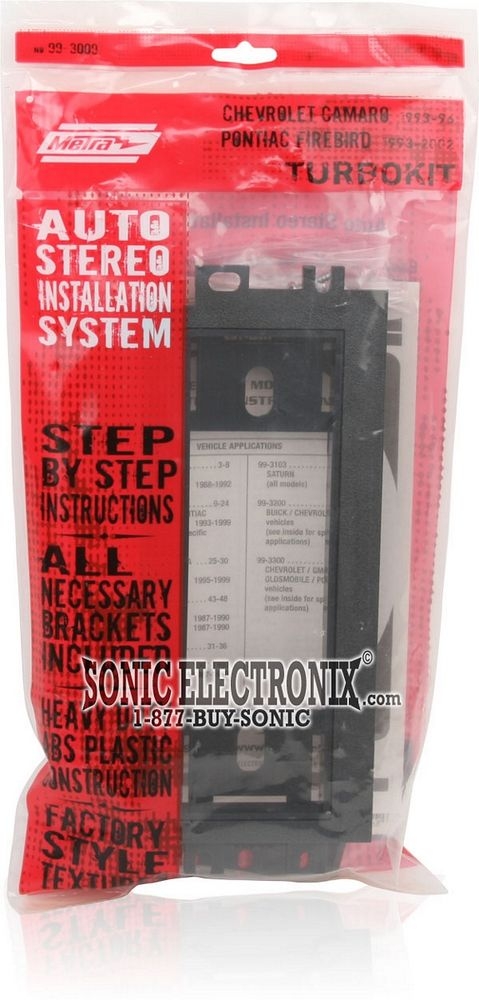

Kit Includes:

1. Radio Housing
2. Spacer
3. (1) Keps nut
4. (1) Carriage bolt
5. (1) Phillips pan-head screw
6. Step by step instructions

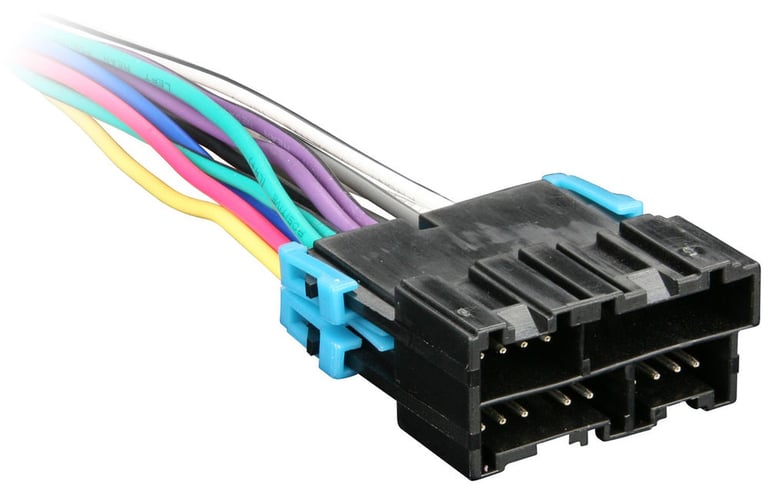

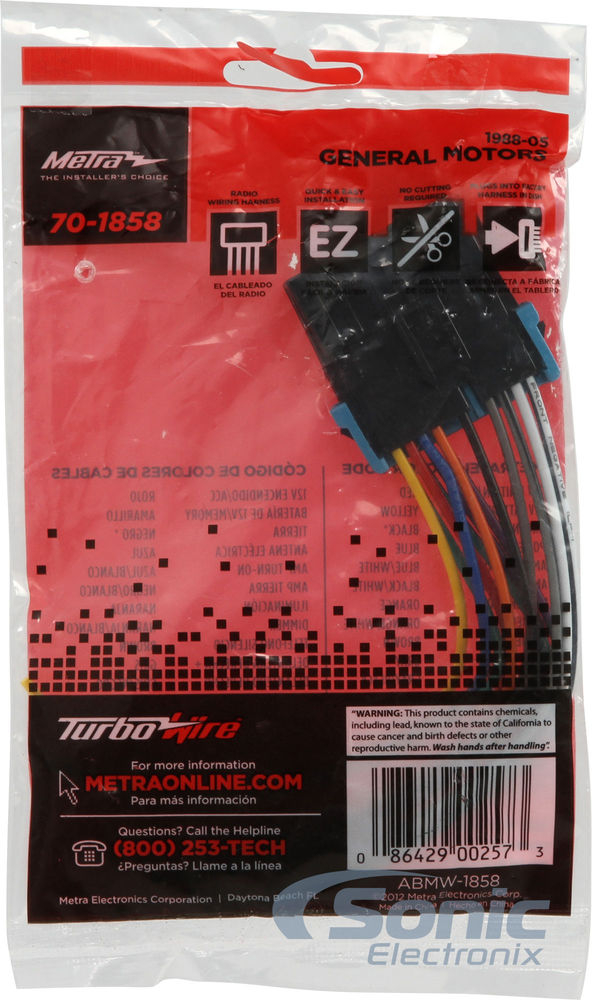

Product Features:

• Compatible with select 1986-2006 vehicles from Chevrolet, GMC, Pontiac
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

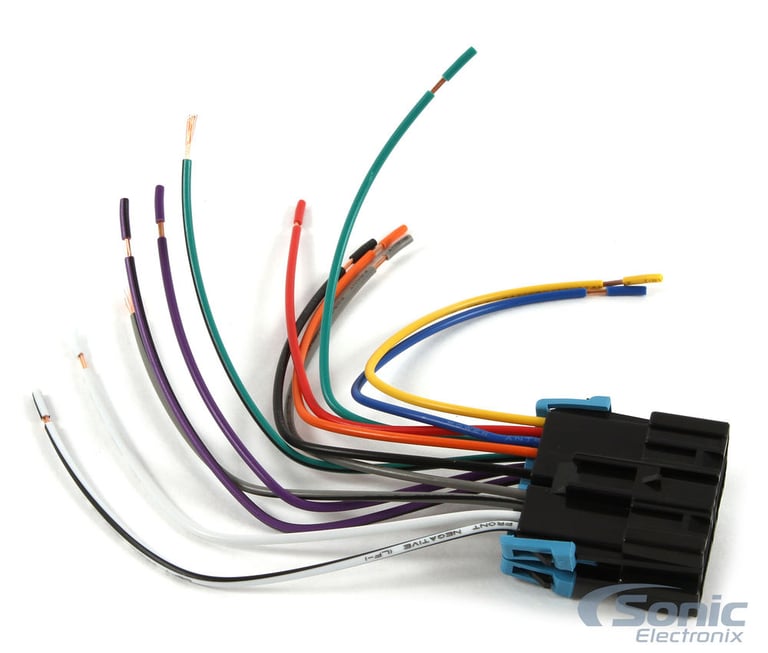

Power Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Blue - Power Antenna / Amp Turn-On
• Orange – Dash Light Dimmer/Illumination
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
• Green – Left Rear Speaker (+)
• Green with Black Stripe - Left Rear Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)

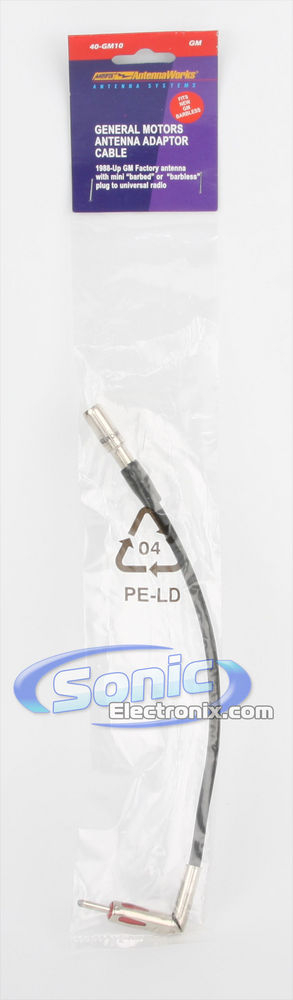

Product Details:

• Compatible with select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

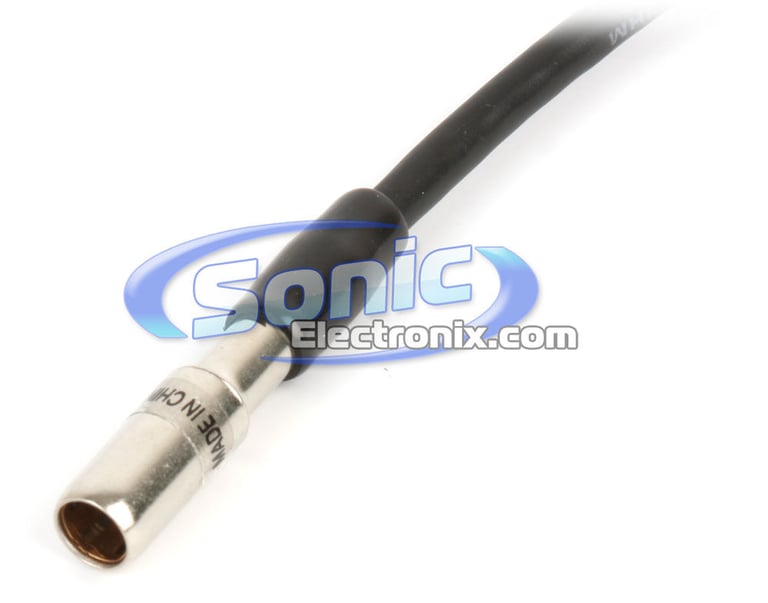

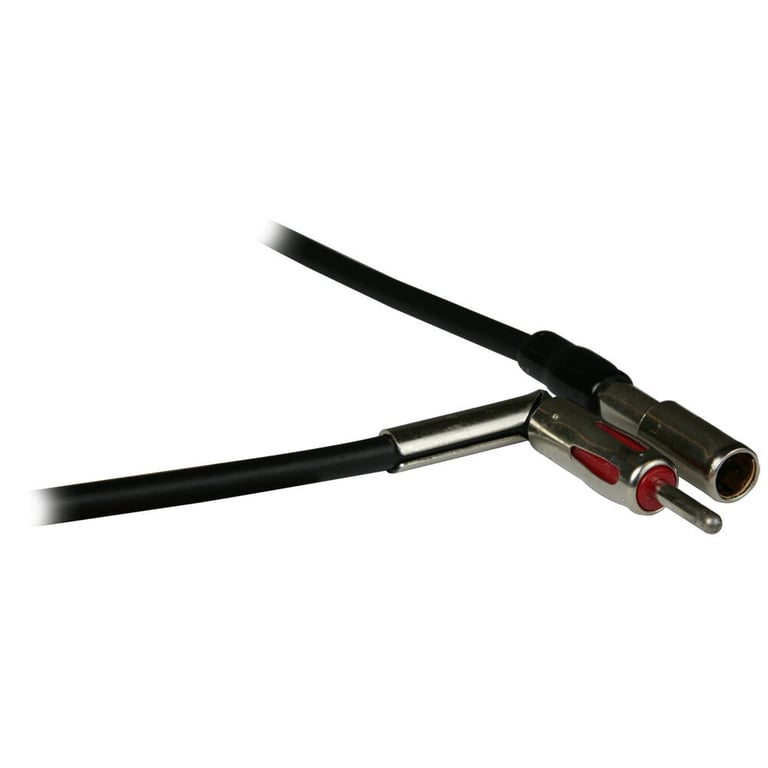

• Used to adapt the vehicle’s antenna cable to use with an aftermarket radio
• Male Motorola connector on one end
• Female connector for a mini “barbed” or “barbless” connector from the factory antenna on the other end
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Equivalent to: Scosche MDA1B & American International GM-6
