DS18 EXL-X10.2D

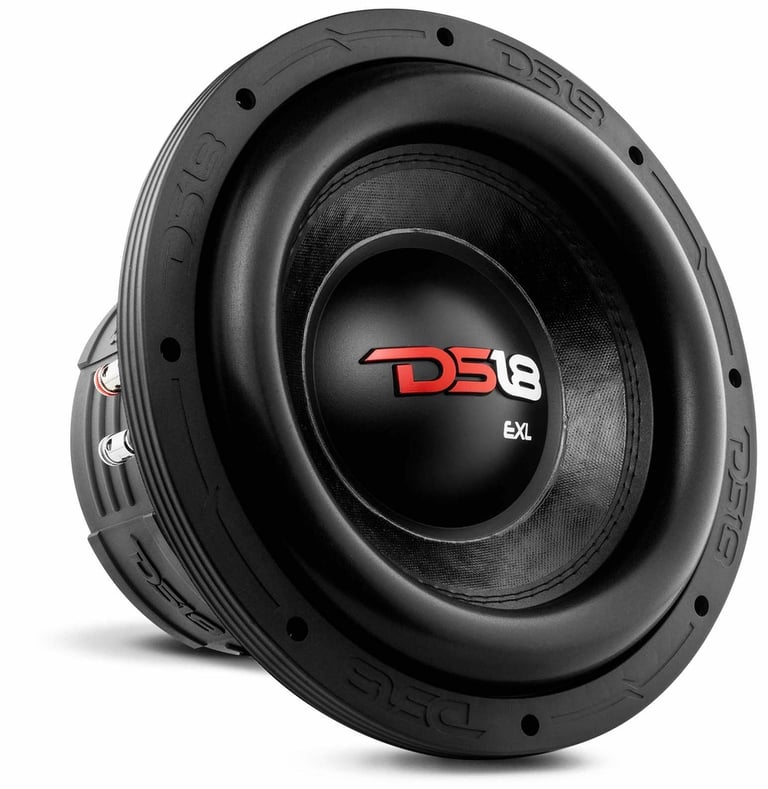

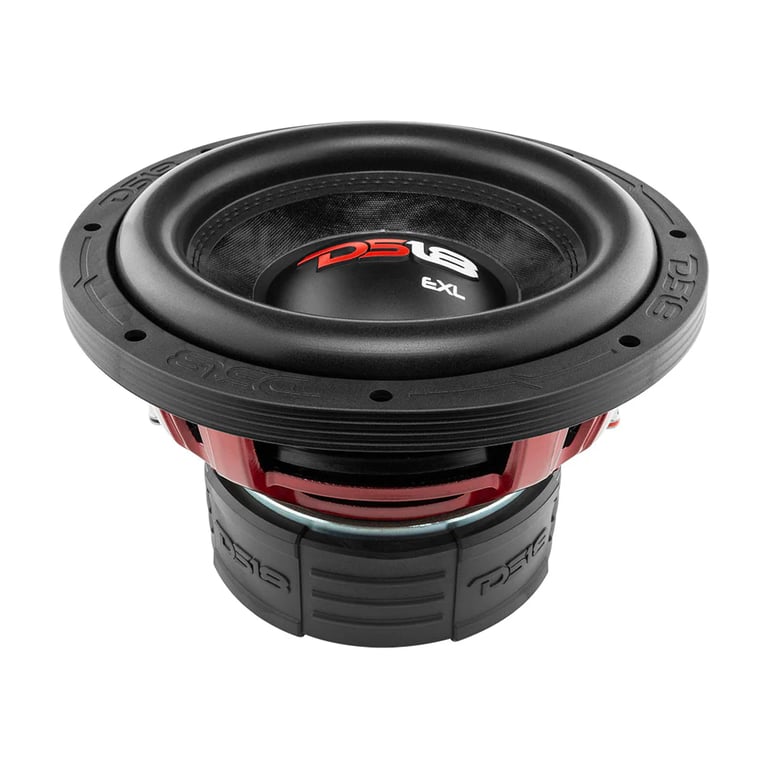

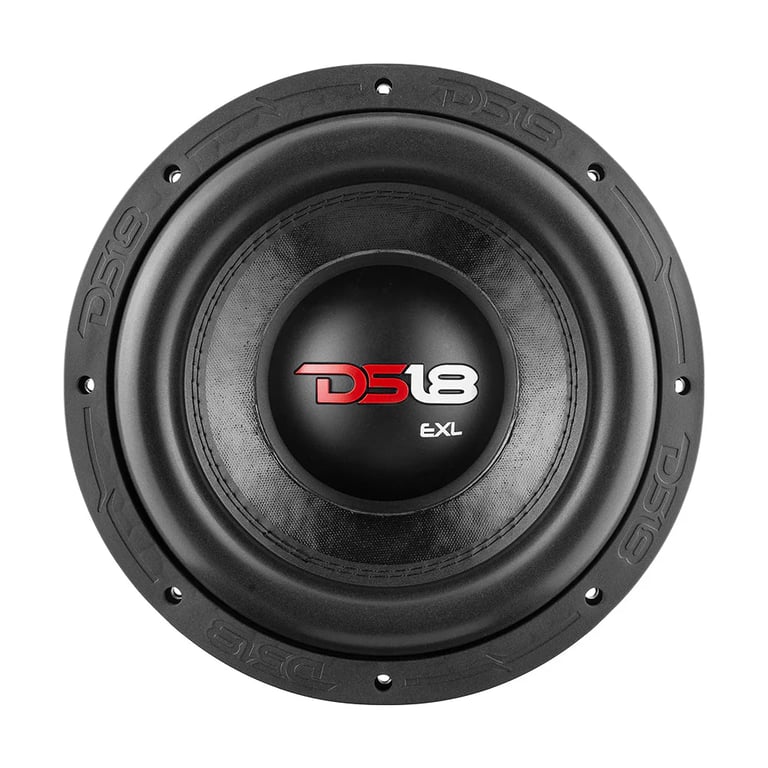

1700W Peak (850W RMS) 10" EXL-X Series Dual 2-ohm Car Subwoofer

DS18
Shop all DS18
Limited time!
highlight-star-icon

• Peak Power: 1700 watts
• RMS Power: 850 watts
• Impedance: Dual 2 ohm
• Non-Pressed Paper Cone
• Foam Surround
• Mount depth: 6.29"
• Sensitivity: 88.7 dB

Learn more about the exlx102d

We apologize

This item has been discontinued

Description


DS18 brand icon

Authorized dealer


EXL-X10.2D

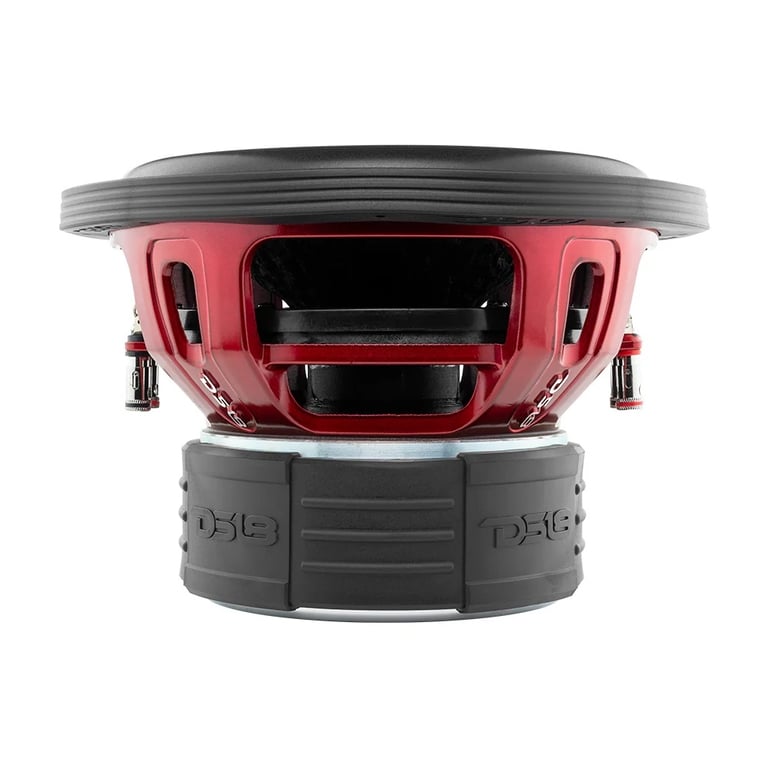

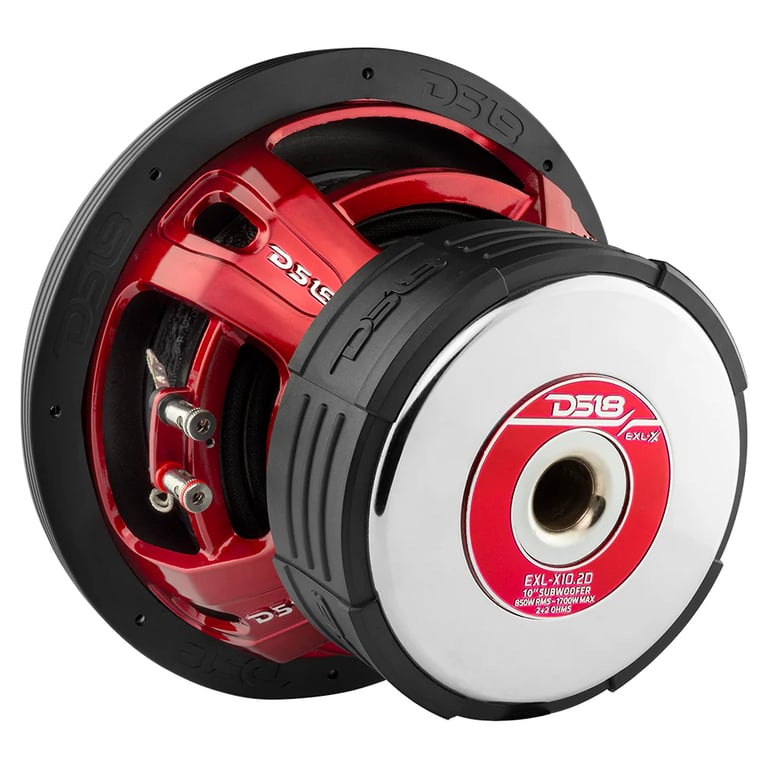

The private red aluminum basket showcases the unmistakable flair all DS18’s products have, but also lays a great foundation for one of our most durable subwoofers yet. The fiber glass dust cap, besides adding a touch of sophistication to the already sleek design, plays a crucial role in enhancing the overall audio quality. By protecting the subwoofer's delicate components from potential damage, it ensures consistent and reliable performance.

Versatility is key, and the EXL-X10.2D doesn't disappoint. Whether you prefer ported or sealed boxes, this subwoofer thrives in all vehicle shapes and sizes. It effortlessly adapts to your audio setup, ensuring that you can enjoy your favorite music the way it was meant to be heard—powerful, crisp, and immersive. Unlock the true potential of your audio system with DS18’s EXL-X10.2D.


Product Details:

  • 10" Dual 2 ohm EXL-X Series Subwoofer
  • Power Handling:
    • Peak: 1700 watts
    • RMS: 850 watts
  • Non-Pressed Paper Cone
  • Foam Surround
  • Glossy red aluminum basket
  • SV winding material
  • PPI dust cap material
  • 2.57" High Temperature Aluminum Voice coil
  • 90 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 35 - 1200 Hz
  • Resonance Frequency (Fs): 55 Hz
  • Sensitivity: 88.7 dB
  • Recommended sealed box volume: 0.35 cubic feet
  • Recommended ported box volume: 0.75 cubic feet
  • Top-mount depth: 6.29"
  • Cutout diameter: 9.4"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually


PDF IconDS18 EXLX102D owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DS18 EXL-X10.2D Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DS18 EXL-X10.2D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DS18 EXL-X10.2D Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DS18 EXL-X10.2D Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(27)

$519.99

List price $519.99

Kicker 47KBRW10 ReFLEX™

• 10" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

$59.99

List price $69.99

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(64)

$139.99

List price $139.99

NVX YSW102

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 5.90"
• Sensitivity: 85 dB

(1)

$129.99

List price $179.99

NVX YSW104

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 5.90"
• Sensitivity: 85 dB

(1)

$149.99

List price $179.99

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$299.99

List price $359.95

JL Audio 10W3v3-2

• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 5.93"
• Sensitivity: 85.37 dB

(48)

$419.99

List price $419.99

NVX NSW102 Version 3 (NSW102v3)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 5.36"
• Sensitivity: 85 dB

(51)

$89.99

List price $107.99

NVX ESW104

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

(4)

$69.99

List price $89.99

Rockford Fosgate Punch P3 P3D4-10

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Sensitivity: 82 dB

(35)

$239.99

List price $239.99

Specifications & Details


Subwoofer Specifications
Series
EXL-X Series
Subwoofer Size
10"
Peak Power Handling
1700 watts
RMS Power Handling
850 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.57"
Frequency Response
35 - 1200 Hz
Sensitivity
88.7 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Double Stacked
Magnet weight
90 oz.
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.35 cubic feet
Optimum Ported Box Volume
0.75 cubic feet
Top-Mount Depth (Mounting Depth)
6.29"
Cutout Diameter
9.4"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
55 Hz
Equivalent Compliance (Vas)
5.73 liters
Total Speaker Q Value (Qts)
0.719
Electrical Q Value (Qes)
0.802
Electrical Resistance of Voice Coil (Re)
Dual 2 ohm
Mechanical Q Value (Qms)
6.982
Efficiency Bandwidth Product (EBP)
68.57
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EXL-X10.2D

Weight:

25.50lbs

Internal SKU:

exlx102d

Internal Product ID:

204647
