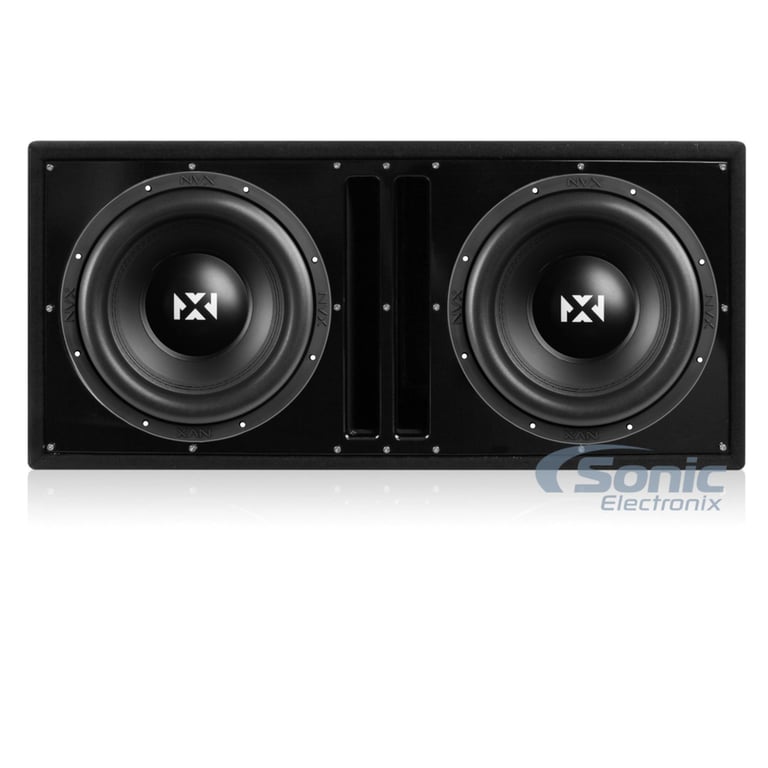

NVX YSW124 with Ported Enclosure (BBX212BK)

1600W Peak (800W RMS) Y-Series 12" Dual 4-Ohm Car Subwoofer + Dual Enclosure with Custom Black Baffle

NVX
Shop all NVX
highlight-star-icon

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Sensitivity: 85 dB
• Includes Ported Subwoofer Enclosure

Learn more about the ysw124_bbx212bk

We apologize

This item has been discontinued


Loading...
MI3017B main

Scosche MI3017B / MI3017 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2012 Eclipse and Eclipse Spyder (Black)

6
-18.07%

$39.99

List price $48.81

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Description


NVX brand icon

Authorized dealer

NVX Y Series 12 Inch Subwoofer
High Roll Surround 3 Inch Voice Coil Dual Layer Spider with Woven Tinsel Leads
Vented Magnet Gap

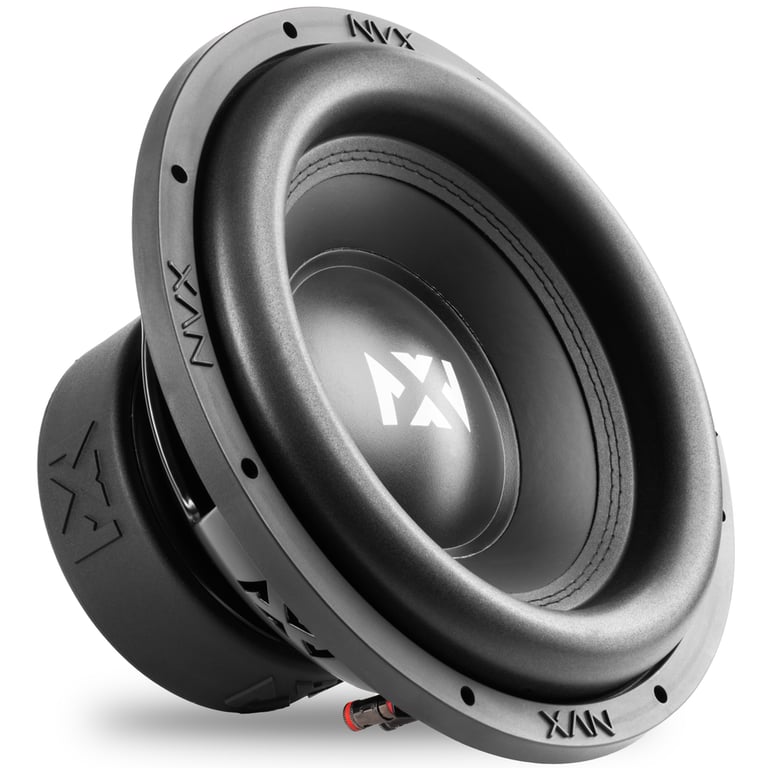

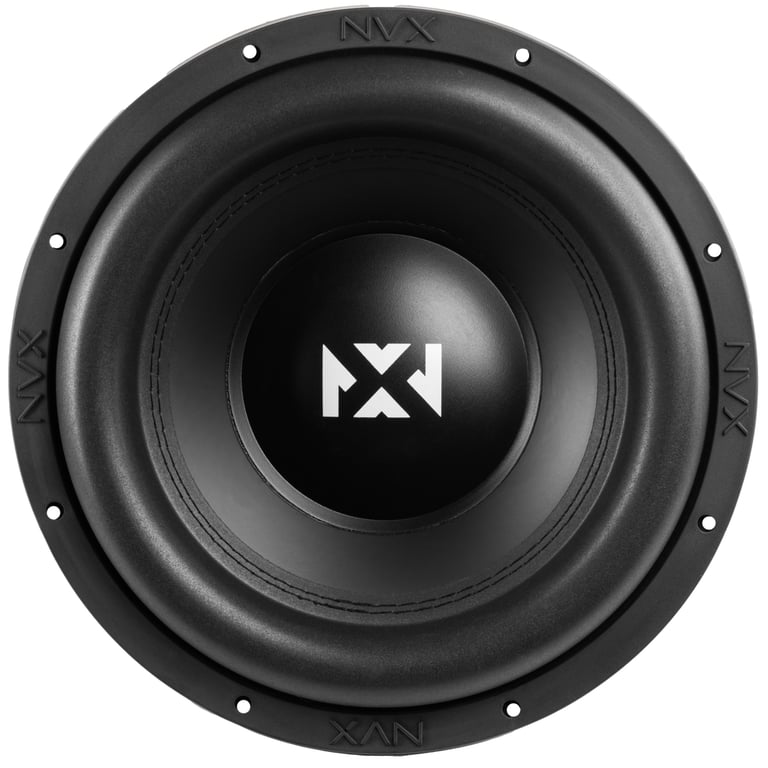

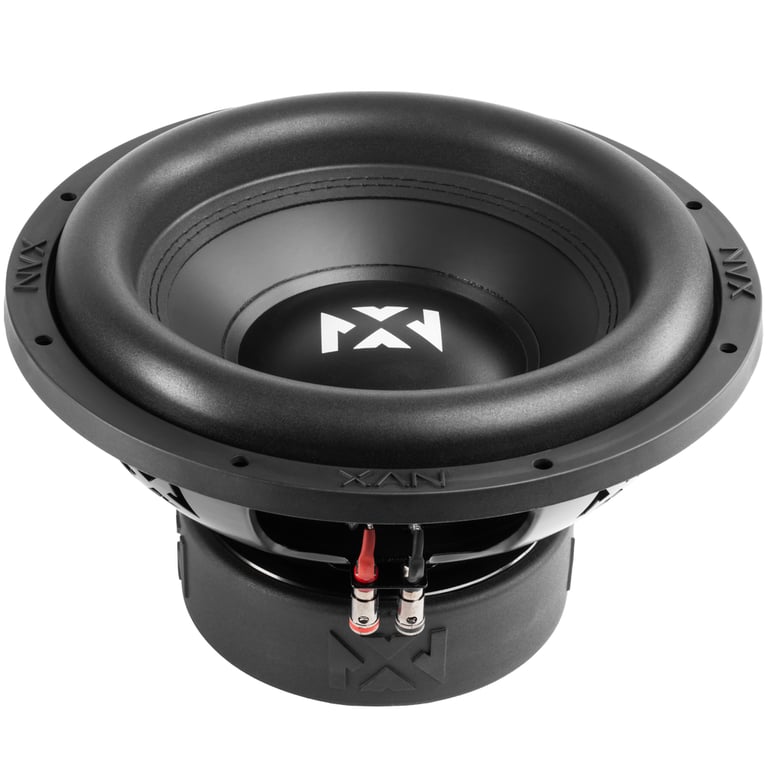

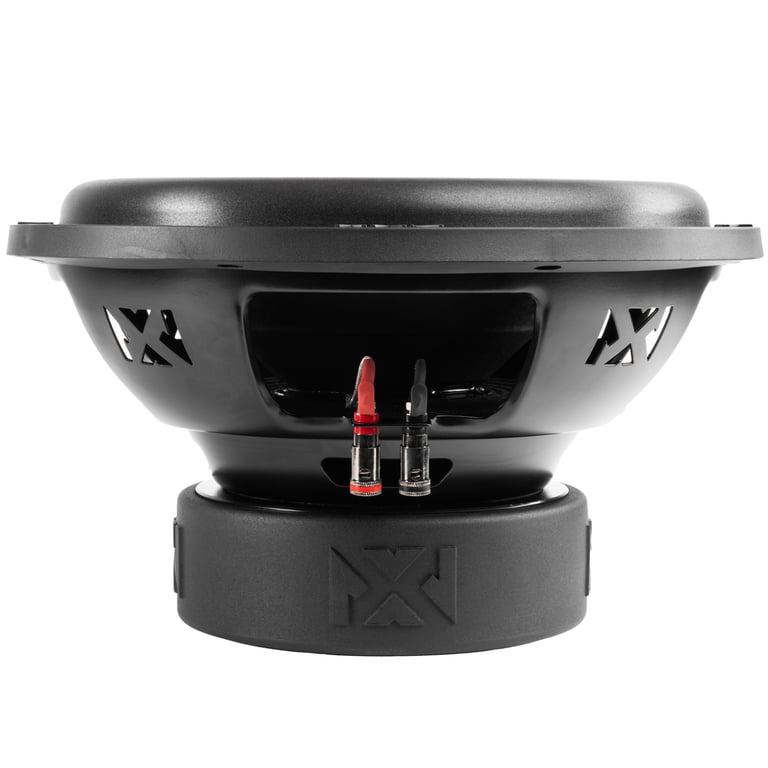

NVX YSW124

1600W Peak (800W RMS) 12" Y-Series Dual 4-ohm Car Subwoofer
Quantity: 2

Product Details:

  • 12" Dual 4 ohm Y-Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 800 watts
  • 15 mm Xmax
  • Enhanced Pressed Paper Cone

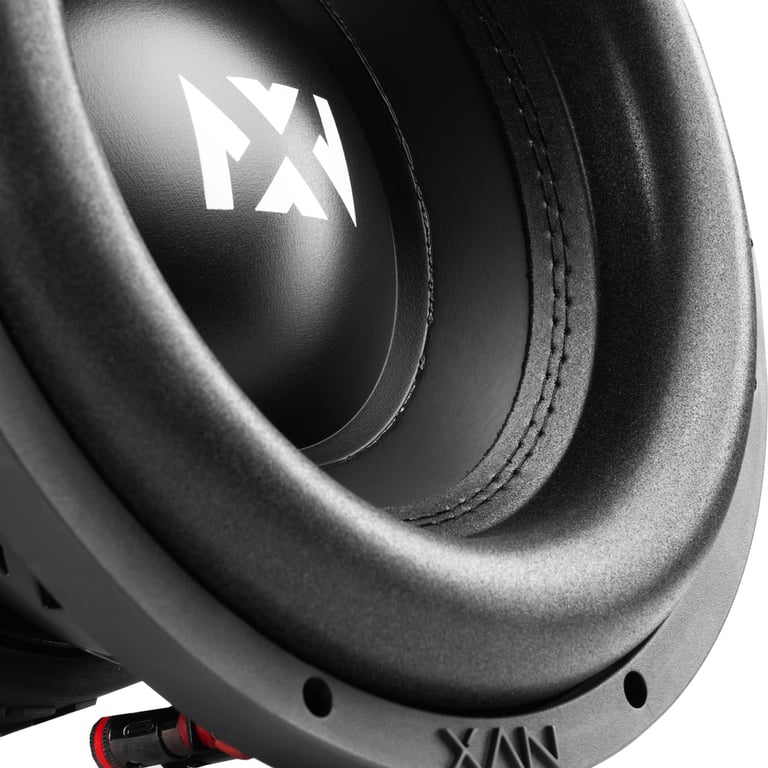

  • Custom High-Roll Foam Surround with Black Nylon Stitching

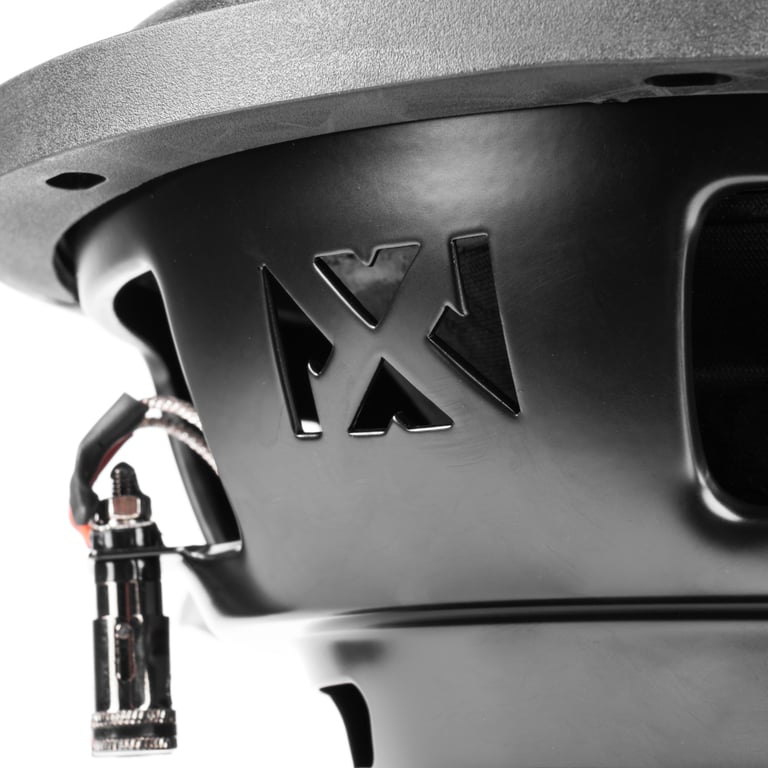

  • Stamped Steel Vented Basket with NVX Punched Logo
  • 3.0" High Temperature Copper Voice coil with Aluminum Former

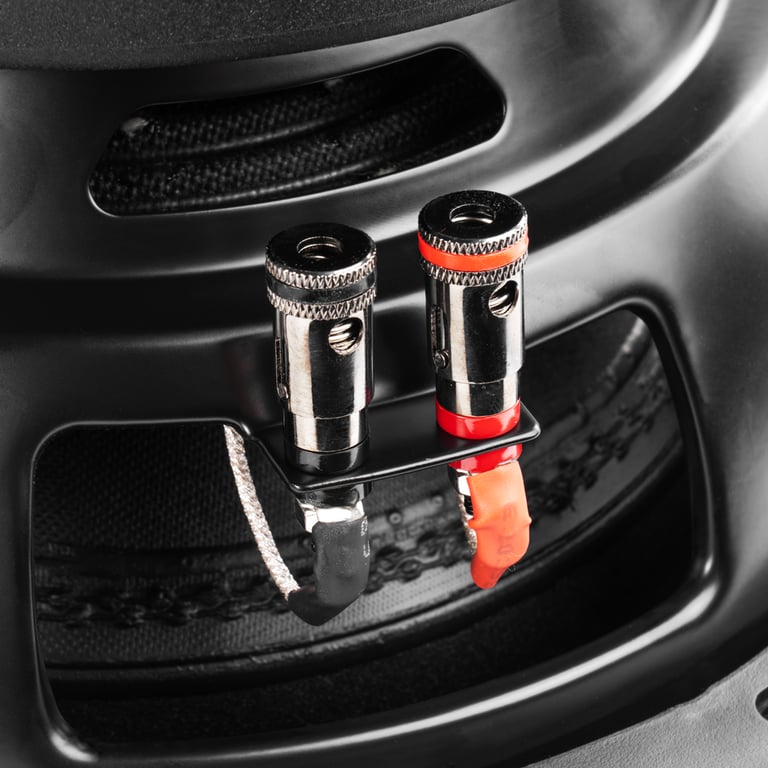

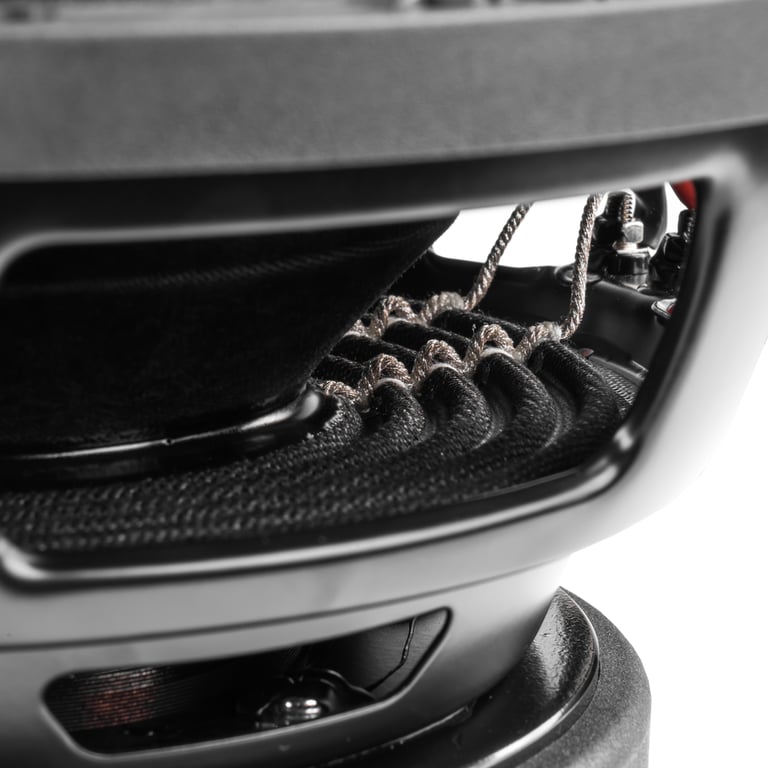

  • Progressive Roll Dual-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 28.6 Hz
  • Sensitivity: 85 dB
  • Recommended sealed box volume: .75 cubic feet
  • Recommended ported box volume: 1.85 cubic feet
  • Top-mount depth: 6.5"
  • Cutout diameter: 11.14"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconNVX YSW124 owner’s manual

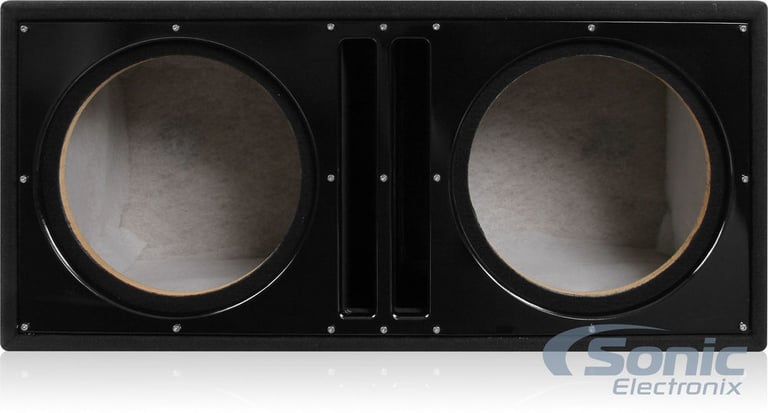

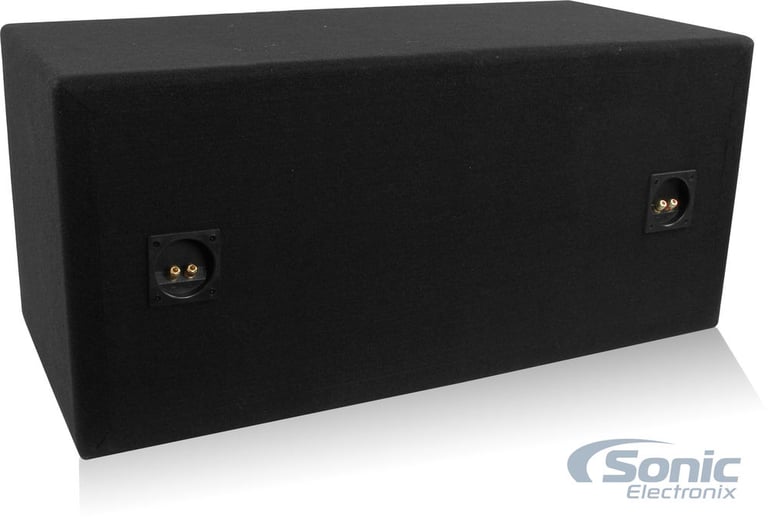

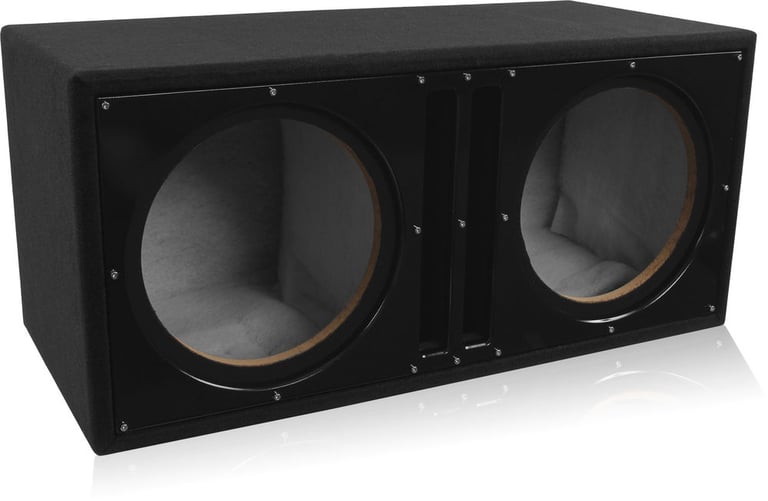

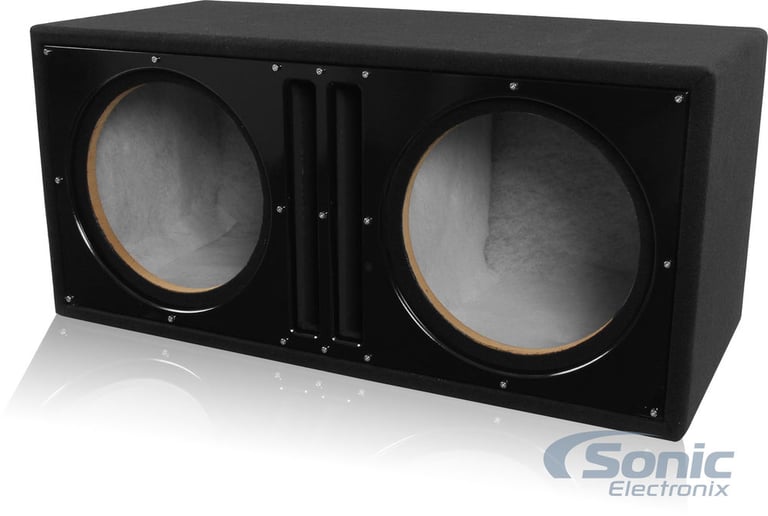

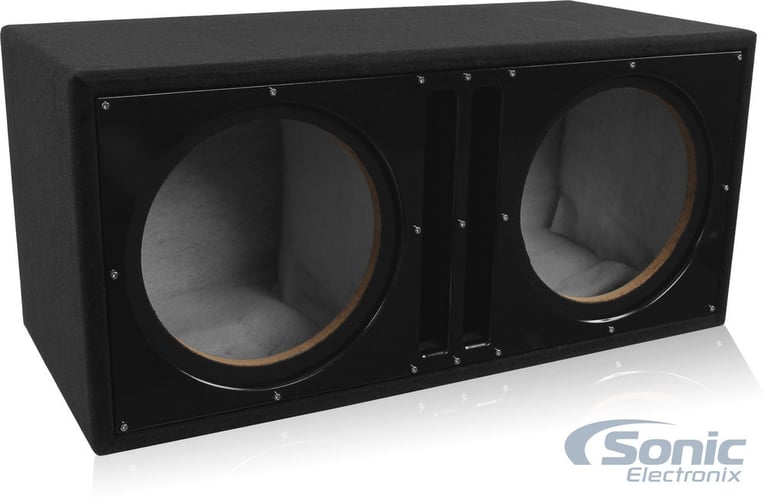

Belva BBX212BK (BLACK)

3.70 Total Cu Ft - Dual 12" 3/4" MDF Ported Subwoofer Box Enclosure with Custom Black Baffle
Quantity: 1

General Features:

  • 12" Dual Ported Subwoofer Enclosure
  • Black satin finish front face board
  • Covered in black carpet
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Subwoofer mounting depth: 14 1/2"
  • Subwoofer cutout diameter: 11 1/4"
  • Box volume: 1.85 cubic feet (per chamber)
  • Total box volume: 3.7 cubic feet
  • Dimensions: 16"D x 35"W x 16.25"H
  • Also available in Blue and Red
  • Authorized Internet Dealer
  • 30-Day Return Policy

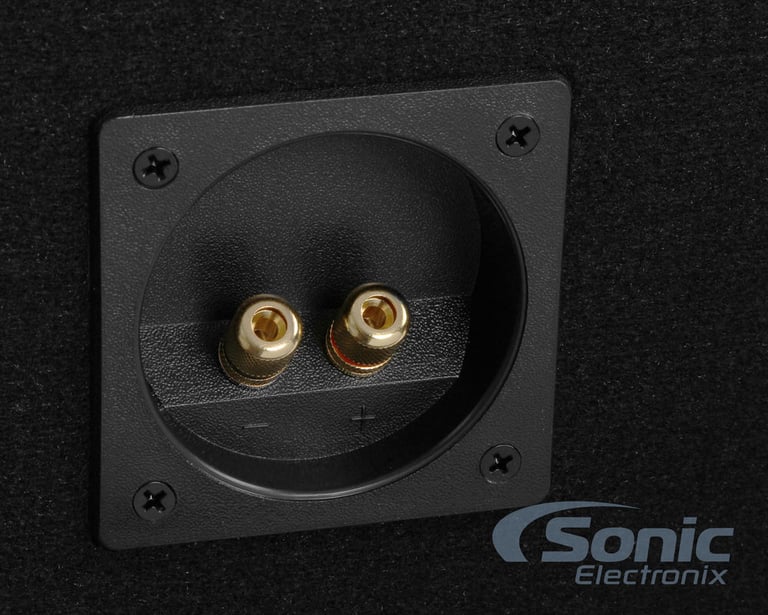

Port Specifications:

  • Rectangular Slot Port
  • Number of ports: 2
  • Port volume: 0.18 cubic feet (per port)
  • Total port volume: 0.36 cubic feet
  • Estimated port tuned frequency (fb): 35 Hz
  • Port dimensions: 1.5"Width 12.5"Depth

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

R2S-1X10 small

Rockford Fosgate Prime R2S-1X10

• Sealed truck enclosure with 1 10" Prime R2 Series Subwoofer
• 200 watts RMS (400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 19" L x 13.5" H x 5.25" W x 3.25" W2

(17)

$239.99

List price $239.99

TNE212D small

MTX Audio TNE212D

• Sealed enclosure with 2 12" Terminator Series Subwoofer
• 200 watts RMS each
• Final Impedance: 2-ohm
• Dimensions: 29.63" L x 14" H x 13.5" W

(32)

$219.95

List price $249.95

49L7TDF122 small

Kicker L7TDF122 (49L7TDF122)

• Sealed truck enclosure with 1 12" Solo-Baric L7 Series Subwoofer
• 300-600 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 23 7/8" L x 6 1/2" H x 15" W

(5)

$399.99

List price $429.99

CLS113RG-W7AE small

JL Audio CLS113RG-W7AE

• ProWedge 13" W7AE Loaded Sealed Subwoofer Enclosure
• 3000W Peak
• 1500W RMS
• 3 Ohm Final Impedance
• High Grade Black Carpet Finish
• Engraved JL Audio and W7 Logos
• Rear Firing Design
• 10th Anniversary Edition W7 Subwoofer

(8)

$2299.99

List price $2299.99

TL7T122 small

Kicker TL7T122 (46TL7T122)

• Sealed truck enclosure with 1 12" Solo-Baric L7T Series Subwoofer
• 600 watts RMS power handling
• Final Impedance: 2-ohm
• Dimensions: 21.5" L x 13.75" H x 7.75" W x 4.375" W2

(9)

$295.96

List price $399.99

BE-TSLAY-G1P small

NVX Loaded BOOST Box - 2020-2023 Tesla Model Y - BE-TSLAY-G1P (Passenger's Side)

• Sealed BOOST enclosure with 1 10" N Series Subwoofer (Passenger Side)
• Fits select 2020-2023 Model Y (5-seat models only)
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$279.99

List price $562.99

BE-TOYHIG3-VS102 small

NVX Loaded BOOST Box - 2014-2019 Toyota Highlander - BE-TOYHIG3-VS102

• Sealed BOOST enclosure with 1 10" N Series Subwoofer
• Fits select 2014-2019 Highlander and Highlander Hybrid
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$349.99

List price $437.99

49DL7TDF122 small

Kicker DL7TDF122 (49DL7TDF122)

• Sealed enclosure with 2 12" Solo-Baric L7T Series Subwoofer
• 1200 watts RMS Power
• Final Impedance: 2-ohm
• Dimensions: 38-3/16" L x 8-1/4" H x 17-1/8" W

(1)

$749.99

List price $849.99

BE-TSLAY-G1D small

NVX Loaded BOOST Box - 2020-2023 Tesla Model Y - BE-TSLAY-G1D (Driver's Side)

• Sealed BOOST enclosure with 1 10" N Series Subwoofer (Driver Side)
• Fits select 2020-2023 Model Y (5-seat models only)
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(1)

$279.99

List price $562.99

BXSQ112 small

NVX BXSQ112

• Sealed enclosure with 1 12" SQ Series Subwoofer
• 600 watts RMS (1200 watts Peak)
• Final Impedance: 2-ohm

$349.99

List price $479.99

Specifications & Details


Subwoofer Specifications
Series
Y-Series
Subwoofer Size
12"
RMS Power Handling
800 watts
Peak Power Handling
1600 watts
Woofer Composition
Pressed Paper
Woofer Surround
High Roll Foam
Sensitivity
85 dB
Frequency Response
20 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Spring posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

YSW124_BBX212BK

Weight:

108.86lbs

Internal SKU:

ysw124_bbx212bk

Internal Product ID:

205278

Customer Ratings & Reviews


NVX YSW124 with Ported Enclosure (BBX212BK) thumbnail image

5 star
71%
4 star
18%
3 star
11%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.7
Design
4.9
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

sounds great

The following review is for BBX212BK, which is a part of the bundle you are viewing.

Box sounds great. Only problem is the trim ring on the Hifonics subs wouldn't fit without a little grinding.

By JP on October 10, 2013

90 found this helpful


Great price

The following review is for BBX212BK, which is a part of the bundle you are viewing.

Speaker box is very nice the only problem I had was the face plate was to small for my speakers I had to cut a bigger hole so they can fit.So watch out for the size,dimension on this product. I would recommend this product

By Kave on March 25, 2014

87 found this helpful


Solid Box

The following review is for BBX212BK, which is a part of the bundle you are viewing.

this box is pretty solid. i have had it for around 2 months now and its workikng great with my two alpine type s. it feels well bilt and looks nice with the shiny front part.

By Clayton on September 27, 2013

87 found this helpful


yes

The following review is for BBX212BK, which is a part of the bundle you are viewing.

This box is nice and heavy. It looks sexy and my nvx 12s fit in it. I would recomend this box. I dont like the terminals but thats not a big deal.

By matt on March 8, 2015

83 found this helpful


Bargain Package Deal

The following review is for BBX212BK, which is a part of the bundle you are viewing.

Looks & Sounds Great...Box is put together well & Speakers sound Amazing

By ronnie on January 12, 2015

84 found this helpful


awsome value an great look

The following review is for BBX212BK, which is a part of the bundle you are viewing.

I just got one Belva BB212BK BOX ,pretty big for two 12" NVX the sound was smooth and had just the right amount of bass

By Lenole on June 10, 2014

82 found this helpful


Great looks with great construction.

The following review is for BBX212BK, which is a part of the bundle you are viewing.

It's simple and straightforward. The construction is great, and it came securely in another box. Separate ports for each sub. The is the best you're going to get without paying an arm and a leg for a custom enclosure.

By Nicholas Lemarr on March 23, 2015

75 found this helpful


Ok..

The following review is for BBX212BK, which is a part of the bundle you are viewing.

Not even a couple days after bumping two gto jbl in it the carpet started to split... But overall I like the bezel- but only because I paid close attention to diameters and measurements of subs I bought compared to this box's measurements. Would be better if they made it to where you could wire in a series the correct way.

By Matthew on April 4, 2015

67 found this helpful


Another GREAT PRODUCT!!

The following review is for BBX212BK, which is a part of the bundle you are viewing.

I usually build my boxes but with winter coming I don't have time. So I purchase this one and it is awesome.

By Anonymous on November 7, 2019 Checkmark Icon Verified purchase

51 found this helpful


Nice box

The following review is for BBX212BK, which is a part of the bundle you are viewing.

Nice box but once I put the speakers in it the front fence of the speaker box wouldn’t fit over the speakers the holes were to small so I had to pay to get the face trimmed

By Lorenzo on March 9, 2018

46 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Mitsubishi Eclipse Spyder

1996 Isuzu Oasis

2005 Toyota Solara

1970 Dodge B Series

1983 GMC K3500 Pickup

1977 Mercury Bobcat

1983 Ford F-250

Vehicle
Store
Delete

2007 Harley Davidson FXST Softail Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
