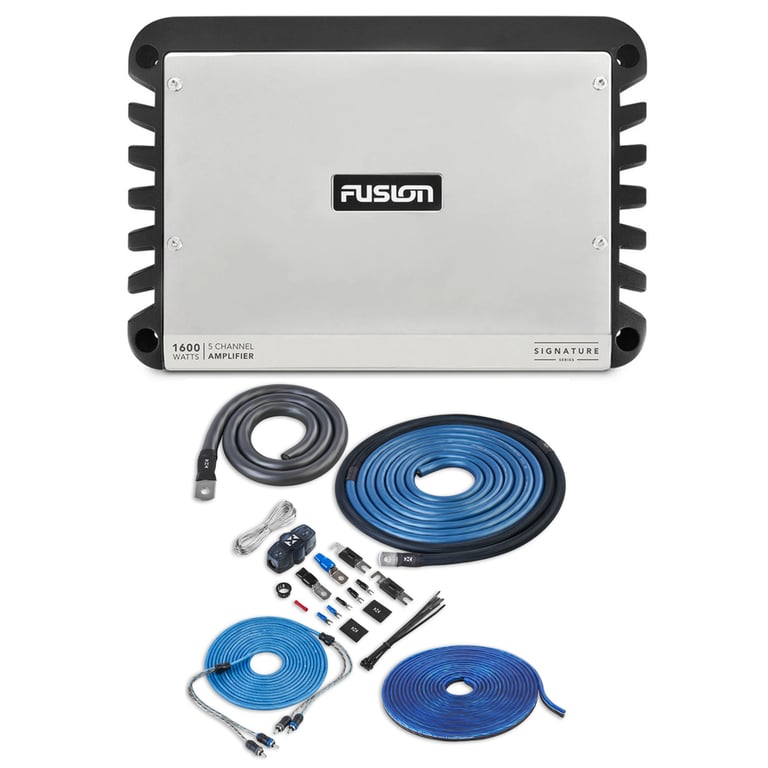

Fusion SG-DA51600 850W RMS Class-D 5-Channel Marine Amplifier with Amp Kit

Description

Authorized dealer

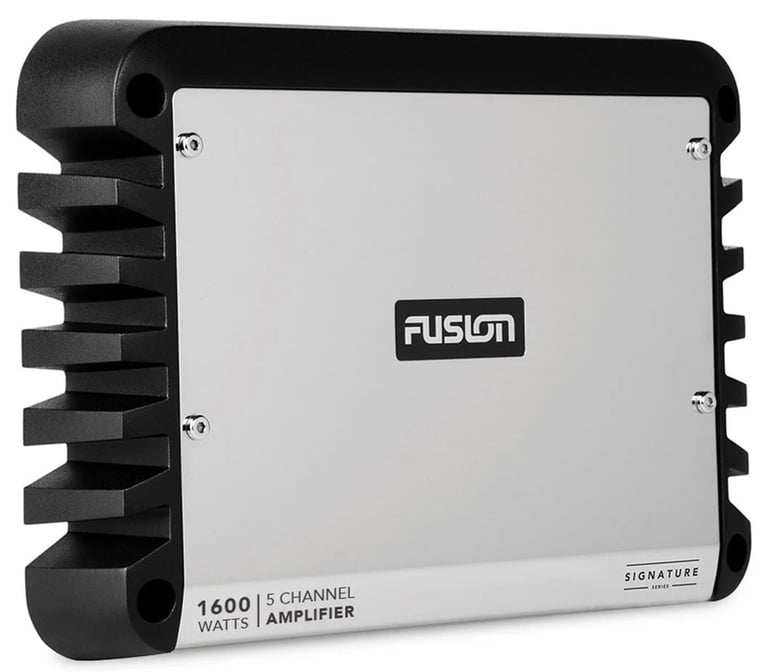

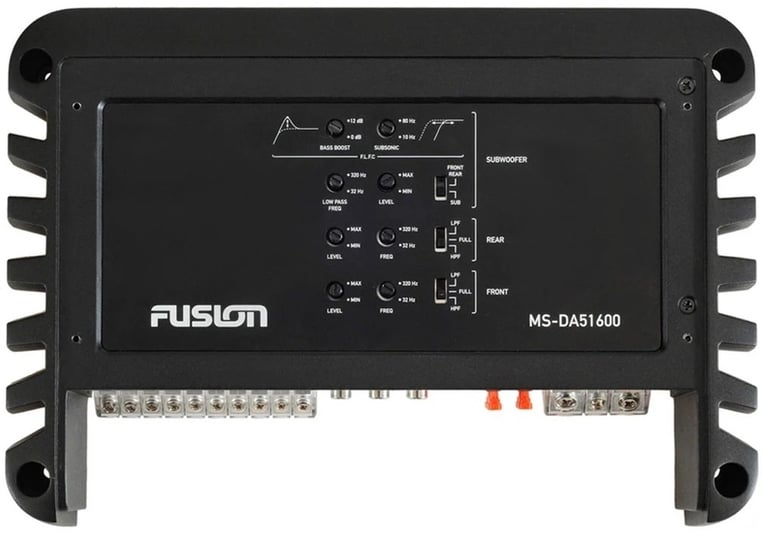

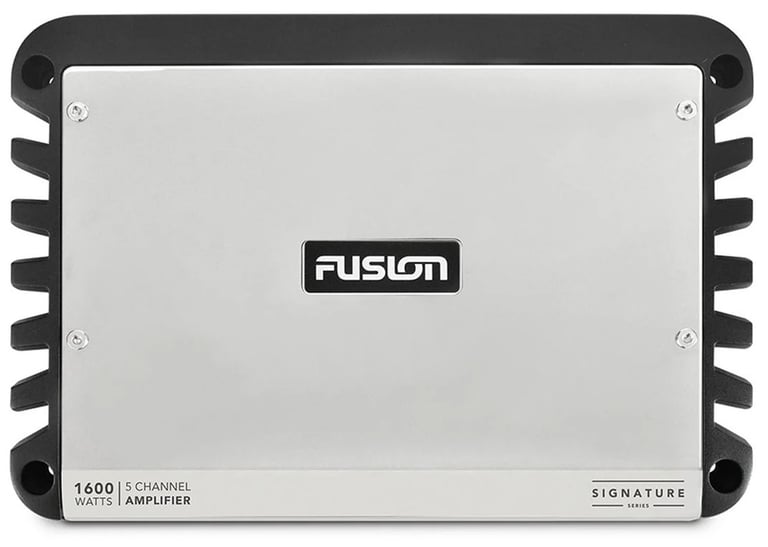

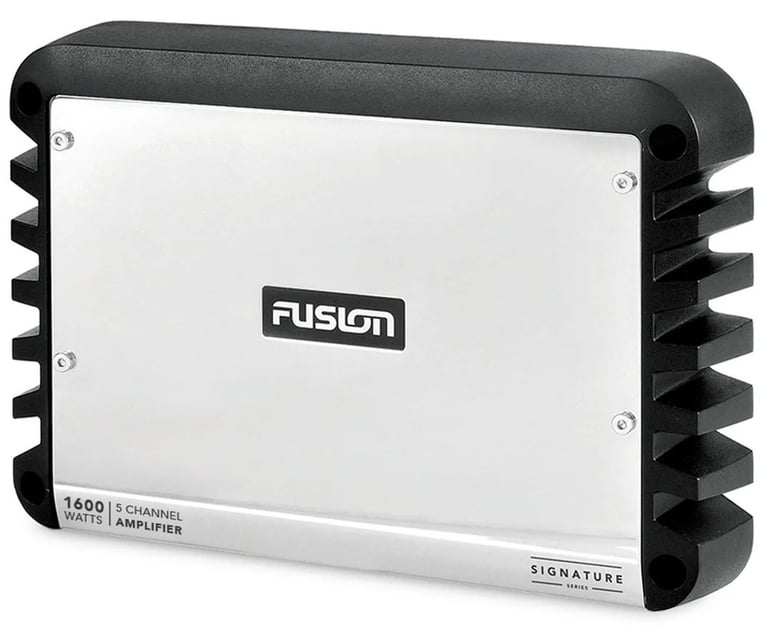

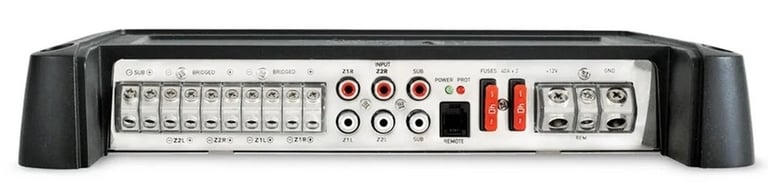

Fusion SG-DA51600

1600W Peak (850W RMS) Signature Series Class-D 5-Channel Marine Amplifier with Bass Remote
Quantity: 1

Product Details:

Signature Series Class D 2 ohm Stable 5-Channel Amplifier
RMS Power Rating:

4 ohm: 80 watts x 4 channel + 250 watts x 1 channel
2 ohm: 130 watts x 4 channel + 330 watts x 1 channel
Bridged: 250 watts x 2 channel @ 4 ohm + 330 watts x 1 channel @ 2 ohm

Total power output: 850 watts
LED Power/Protect Light
Wired bass level remote control included
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Weather-resistant construction
Conformal coated PCBs
Rigid aluminum alloy heat sink
Stainless steel mirror finish
Multiple configurations to suit all your audio needs
Input sensitivity:

Low level: 0.3mV - 8 volts

Frequency Response: 10 - 50000 Hz
Total Harmonic Distortion (THD): 1%
Variable high-pass filter: 32 - 320 Hz
Variable low-pass filter: 32 - 320 Hz
Variable Bass Boost: 0 - 12 dB
Fuse Rating: 80A
Dimensions: 11-13/16" L x 8-1/4" W x 2" H
Authorized Internet Dealer
3 Year Manufacturer's Warranty
MFR #: 010-01968-00

Fusion 010-01968-00 owner’s manual

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

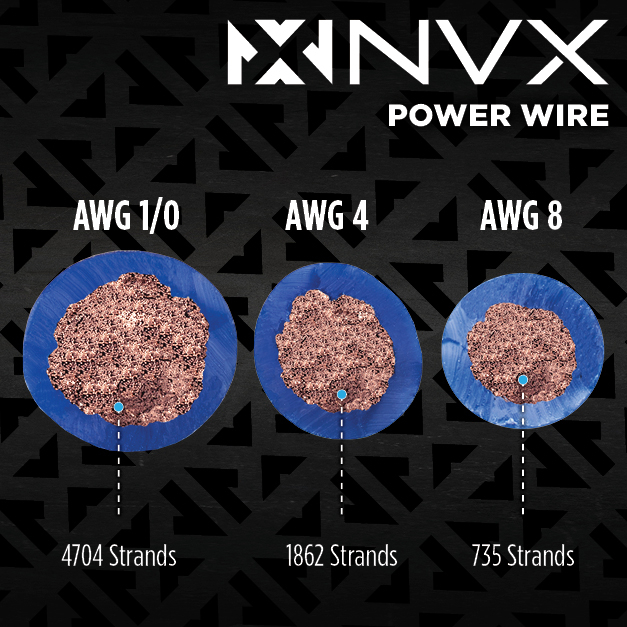

1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
Designed for car audio systems up to 3000 watts RMS
Made from 100% Oxygen-Free Copper (OFC)
Tinned conductors for corrosion resistance
Pre-installed black nylon mesh covering protects the power wire from damage
Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
Pre-terminated seamless power and ground ring terminals provide reliable performance
Full spec power and speaker wire meet or exceed American Wire Gauge standards
CEA-2015 and BC5W2 compliant

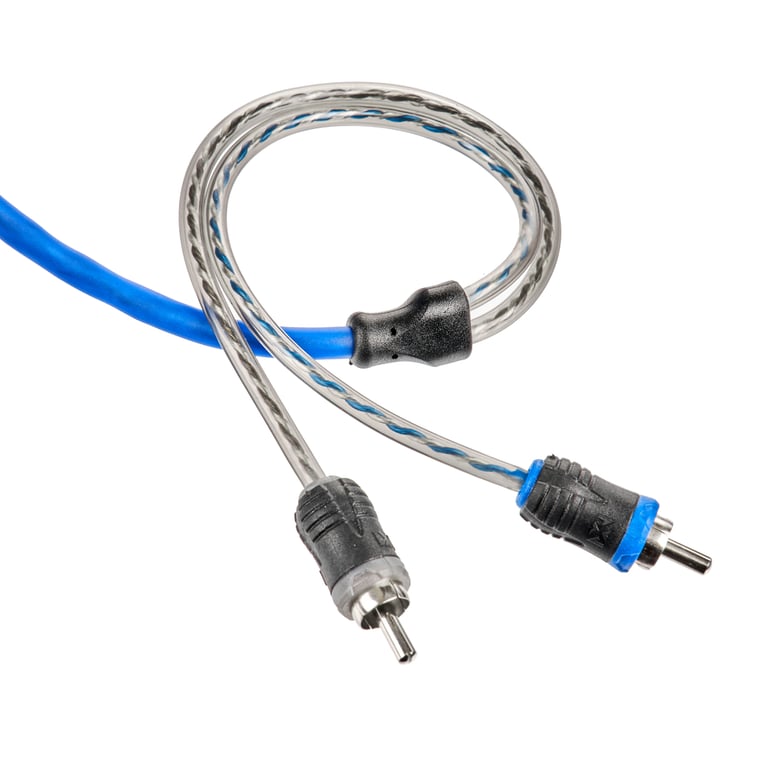

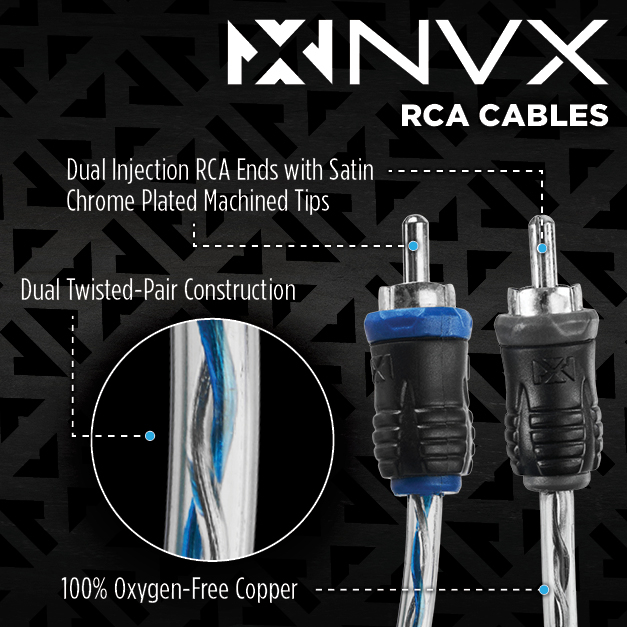

V-Series RCA Interconnect Cable
Shielded noise-rejecting coaxial construction provides protection against interference
Split-tip silver-plated ends offer high-quality performance
Molded ends equipped with colored channel identifiers for easy recognition
Twisted-pair construction featuring two conductors per channel
Includes an assortment of wire termination hardware and cable ties
Authorized Internet Dealer
1-year Manufacturer's Warranty

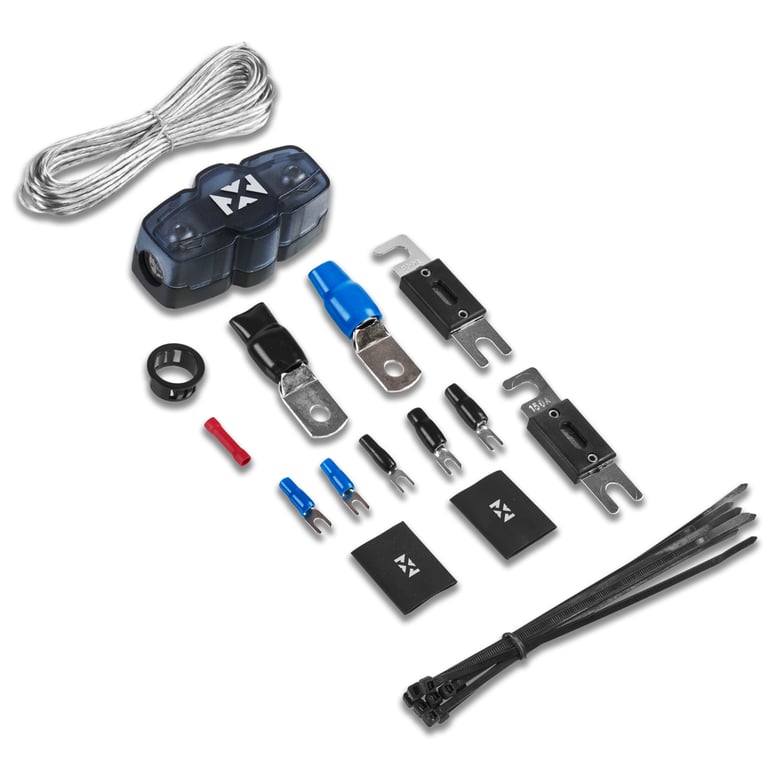

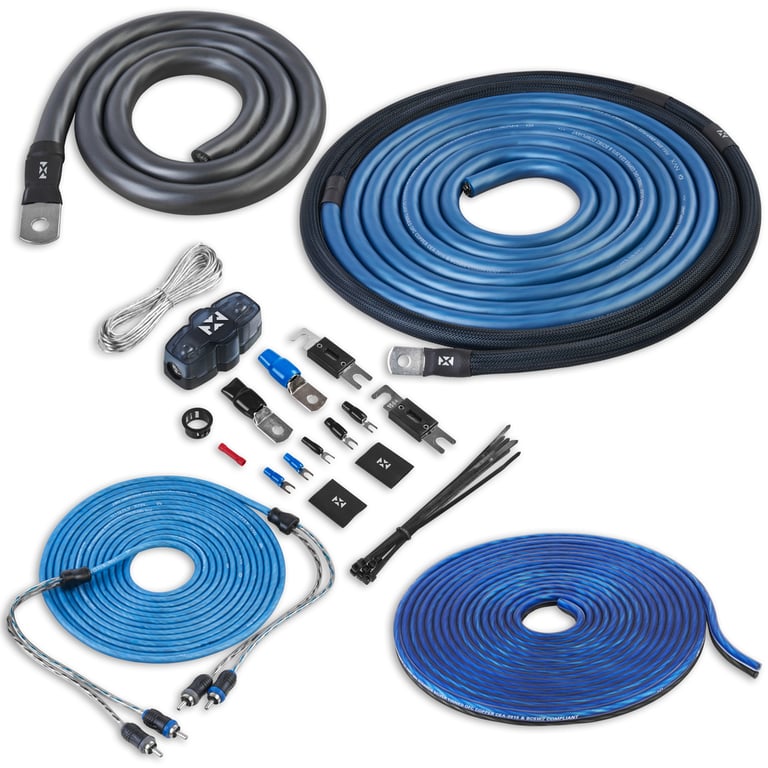

Kit includes:

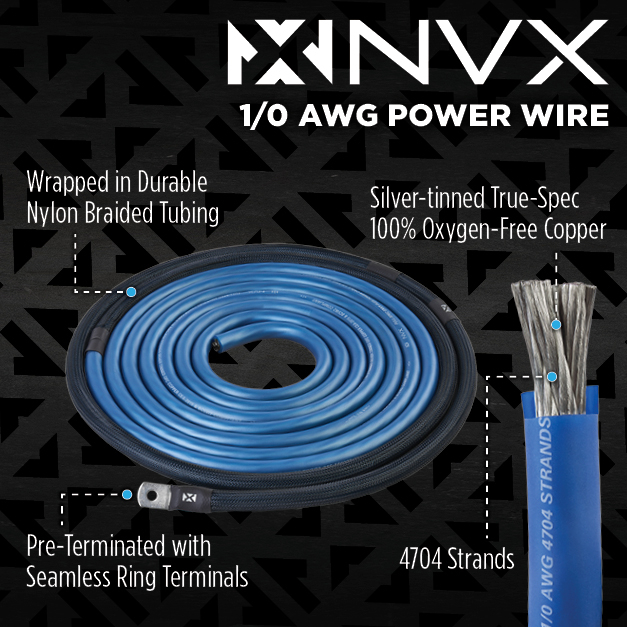

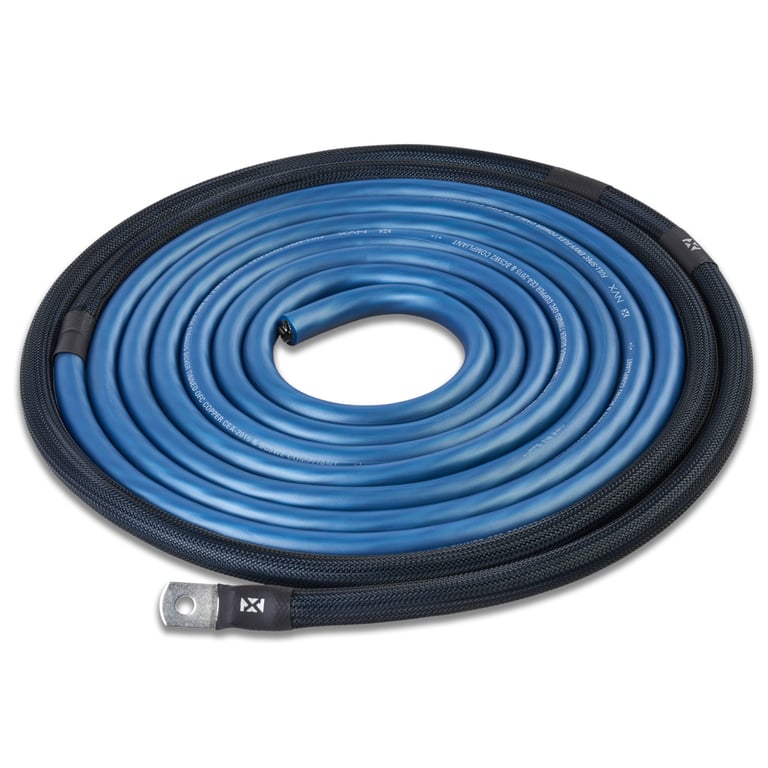

17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

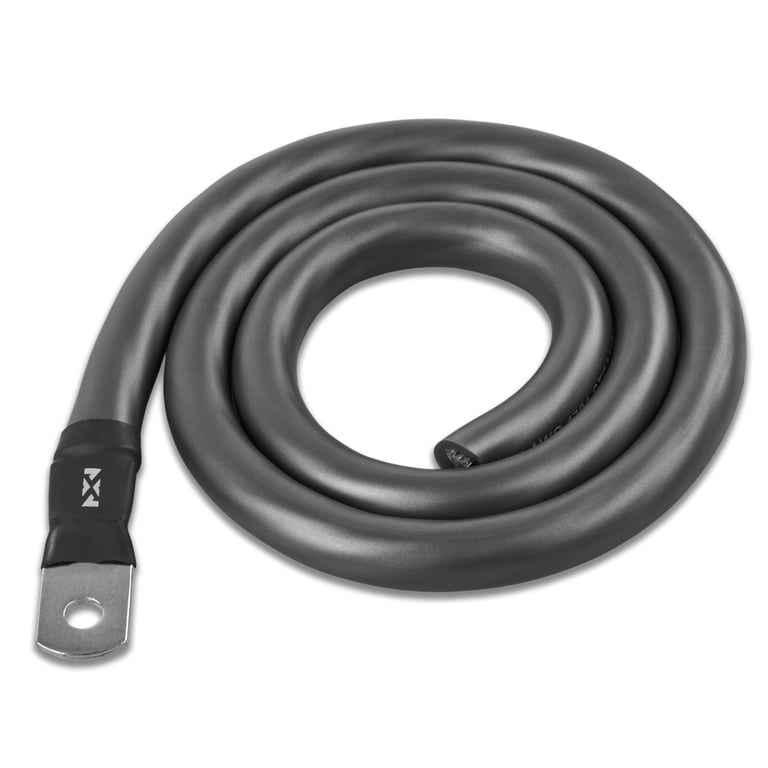

3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
17 ft. Clear 18 gauge remote lead wire

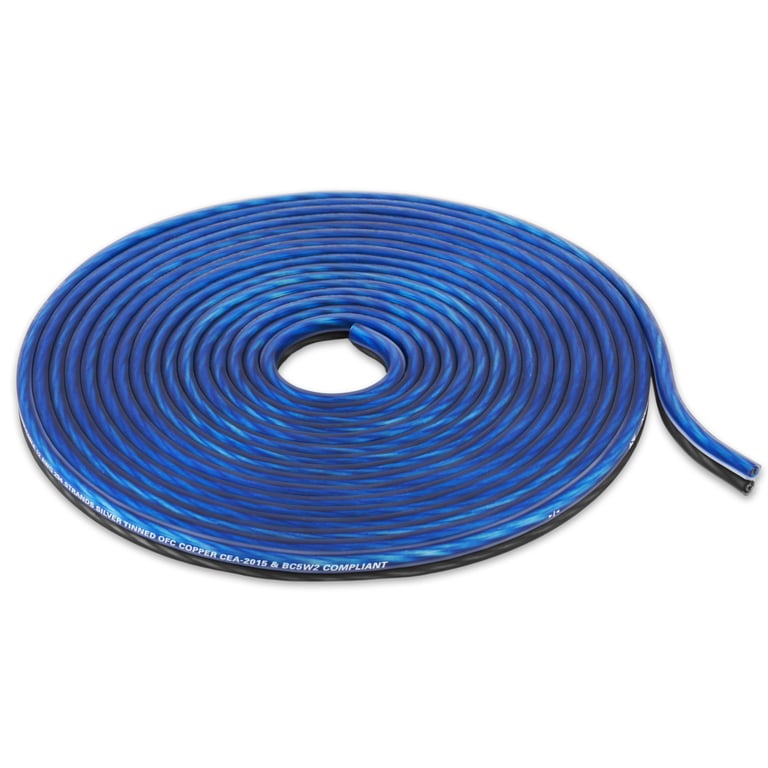

20 ft. Frosted Black/Blue 12 gauge speaker wire

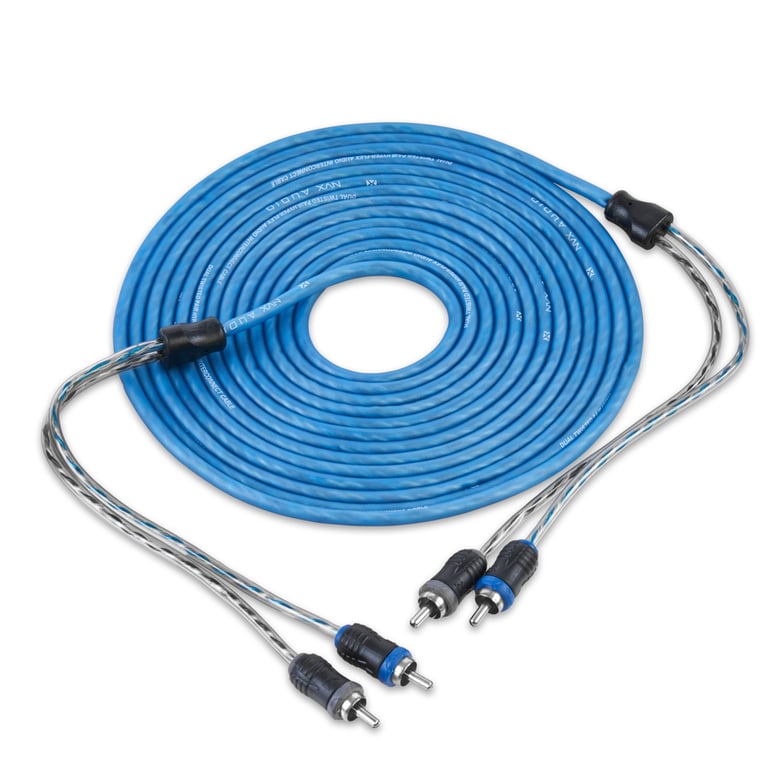

One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

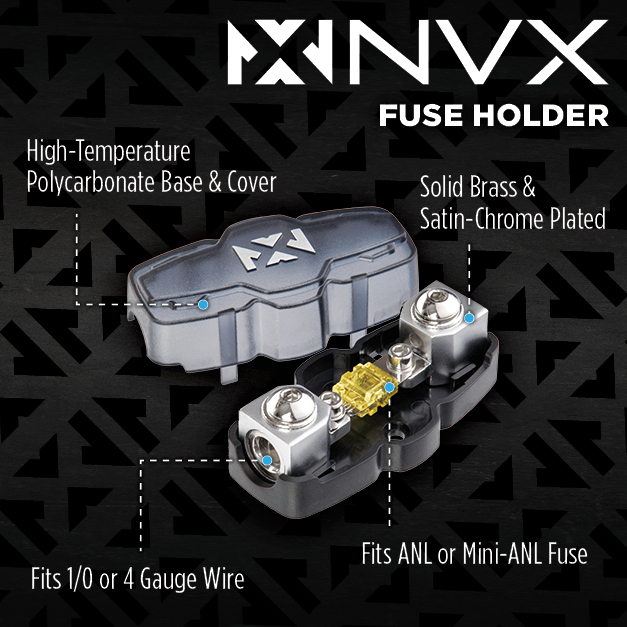

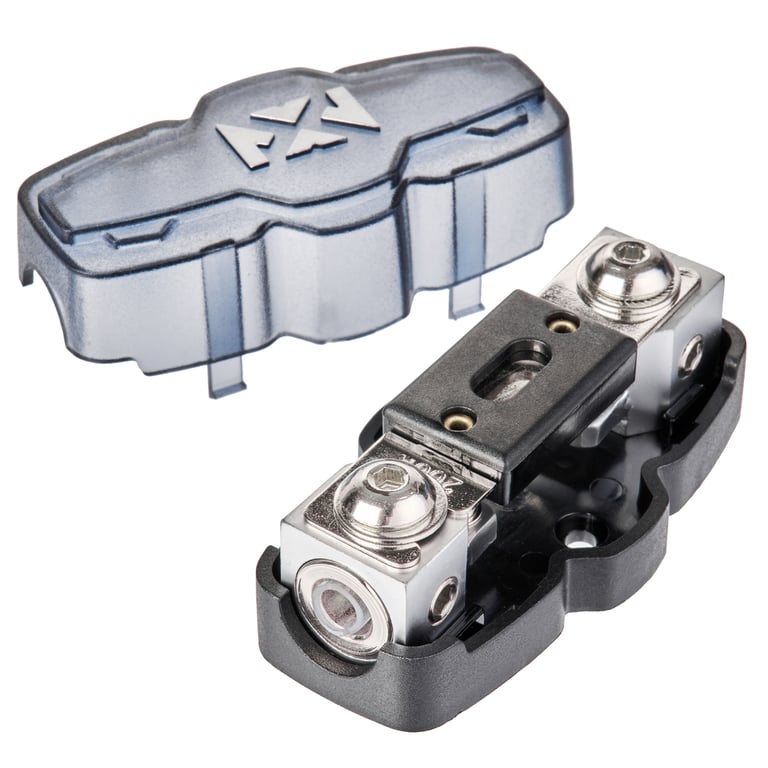

One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
One Black rubber firewall grommet
Two 1/0 Gauge Nickel Plated ring terminals
Four 12 Gauge Spade terminal
Two 18 Gauge Red butt connectors
Two Heat Shrink tubes with the NVX logo
Ten 6" Black zip ties

NVX XIV45

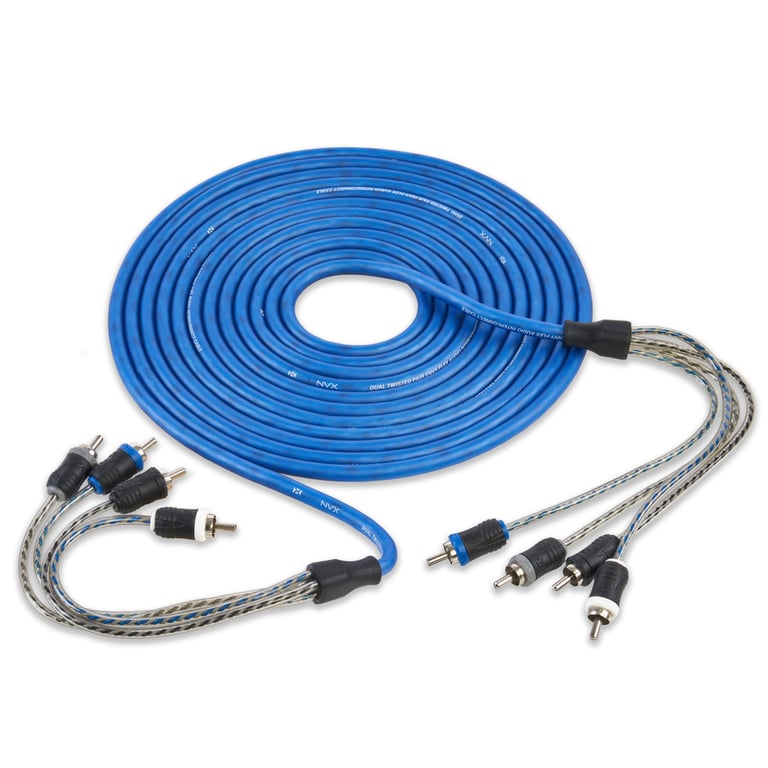

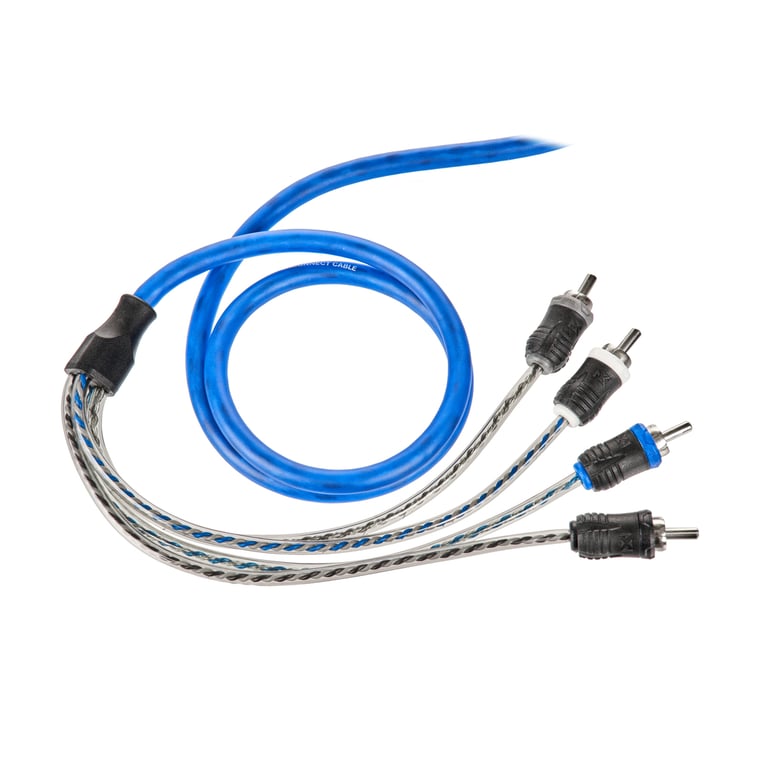

16.4 ft (5 meter) 4-Channel V-Series RCA Audio Interconnect Cable
Quantity: 1

Product Features:

16.4 feet (5 meters) 4-Channel V-Series Interconnect Cable
Shielded noise-rejecting coaxial construction provides protection against interference
Heavy gauge OFC conductors ensure superior sound quality and unmatched signal transfer
Split-tip Silver-Plated ends offer high-quality performance, best in class signal transfer and resist corrosion
High-strength molded strain reliefs enhance durability
Molded ends equipped with colored channel identifiers for easy recognition
Twisted-pair construction featuring two conductors per channel
Authorized Internet Dealer
1-year Manufacturer's warranty

Similar Products

Best selling similar products

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

(267)

$495.93

List price $688.43

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

Kicker 46CXA4001 with Amplifier Wiring Kit

• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

80 watts x 4 channel

RMS Power @ 2 ohms

130 watts x 4 channel

Bridged RMS Power

250 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

250 watts x 1 channel

RMS Power @ 2 ohms

330 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

5-Channel

Total Peak Power Output

1600 watts

Total RMS Power Output

850 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Frequency Response

10 - 50000 Hz

THD at Rated RMS Power

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

32 - 320 Hz

Low-Pass Crossover Frequency

32 - 320 Hz

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

40A x 2

Total Fuse Rating

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

Low-Level Input Sensitivity

0.3mV - 8 volts

Amplifier Kit Specifications

Number of Amplifiers Supported

Power/Ground Wire Size

1/0 gauge

Power Wire Length

20 feet

Ground Wire Length

3 feet

Speaker Wire Included

Yes

Speaker Wire Length

20 feet

Remote Wire Length

20 feet

Interconnect (RCA) Signal Cables Included

6 Channel / 5 Channel

Fuse Holder

ANL/MINI ANL

Fuse Size

300A

Distribution Block Included

Warranty and Return Policy

Parts Warranty Duration

3 years

Labor Warranty Duration

3 years

Warranty Provider

Manufacturer
