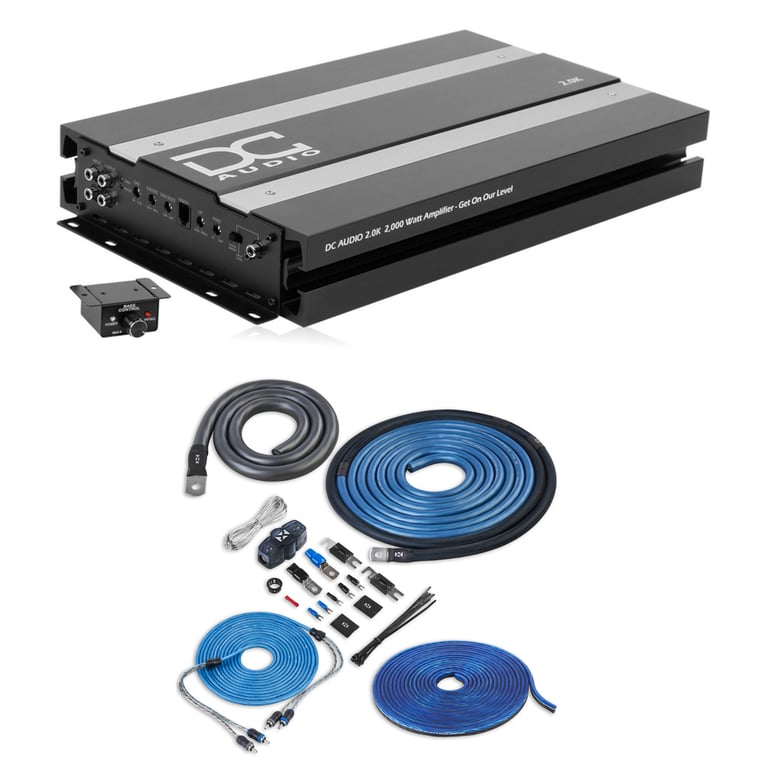

DC Audio 2.0k with NVX 1/0 Gauge Amp Kit

2000W Competition Series Class D Monoblock Amplifier

DC Audio
Shop all DC Audio
highlight-star-icon

• RMS Power: 600W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm, 2000W x 1 @ 1 ohm
• Strappable for Up to 4,000W of Power
• Variable Low Pass Filter
• Dimensions: 9.38" W x 17.72" L x 2.35" H
• Includes Amplifier Wiring Kit

Learn more about the 20k_xkit02

We apologize

This item has been discontinued

Description


DC Audio brand icon

Authorized dealer

POWER SYSTEM WARNING: This amplifier requires a charging system capable of at least 160 amps. If your vehicle's charging system isn't powerful enough, it will damage or destroy this amplifier and possibly damage your vehicle, as well as void your warranty on the amp. You must perform electrical system upgrades such as a high-output amplifier to provide the power this kind of amp demands.

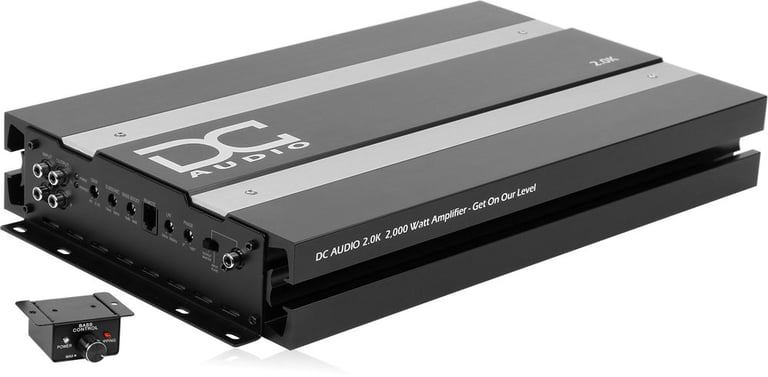

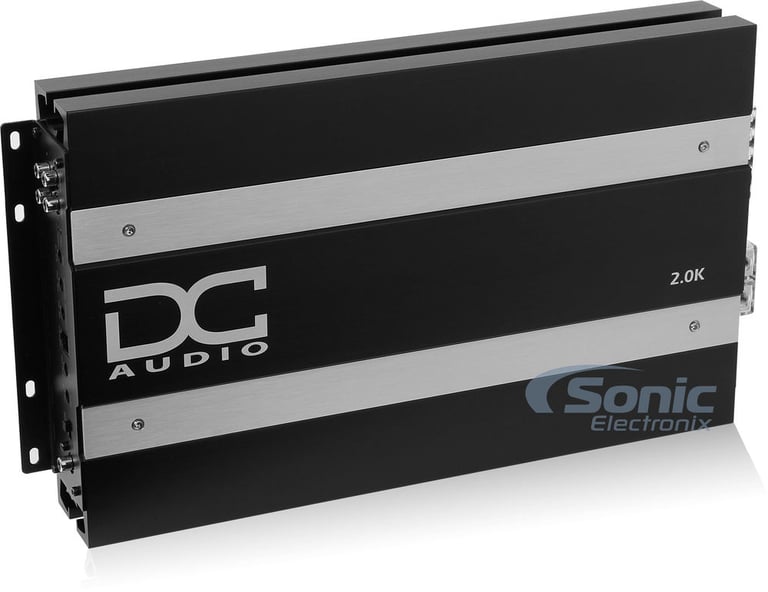

DC Audio 2.0k

2000W RMS Class D Competition Series Monoblock Car Amplifier (with Bass Remote)
Quantity: 1

Product Details:

  • Competition Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 channel
    • 2 ohm: 1200 watts x 1 channel
    • 1 ohm: 2000 watts x 1 channel
  • Total RMS power output: 2000 watts

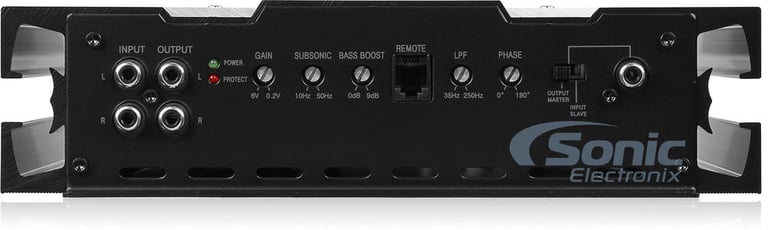

  • LED Power/Protect Light

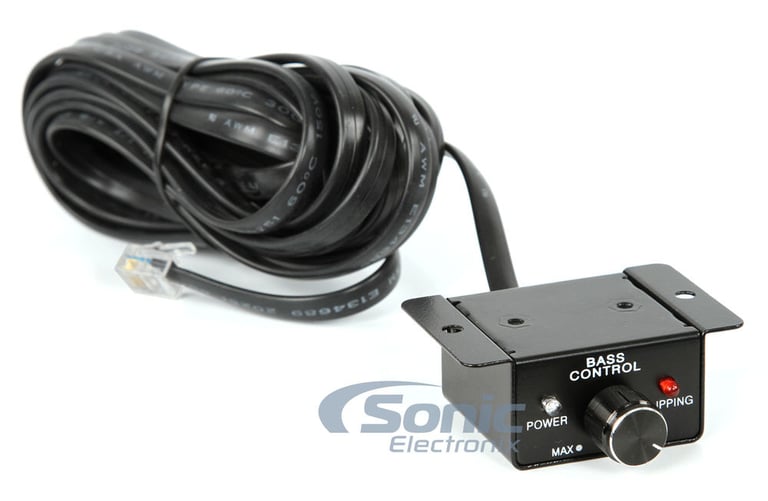

  • Wired bass level remote control included
  • 1 pair of pre-amp outputs
  • Strappable connections allowed
  • Input sensitivity: 0.2 - 6 volts
  • Frequency Response: 20 - 250 Hz
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ratio: 100 dB
  • Variable low-pass filter: 35 - 250 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 9 dB
  • Fuse Rating: 200A
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 17.72" L x 9.38" W x 2.35" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: 2.0k

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 3000 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance

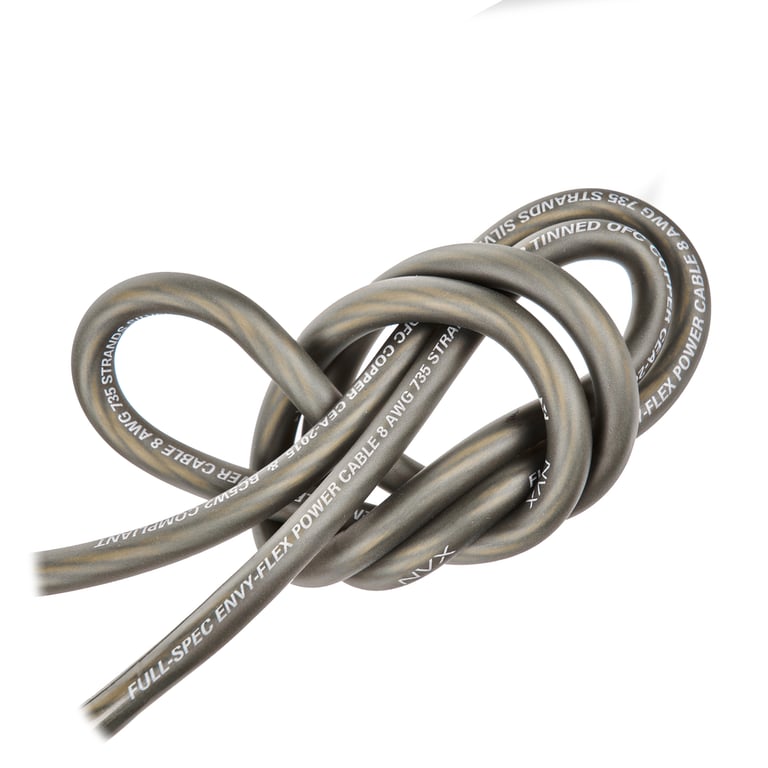

  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

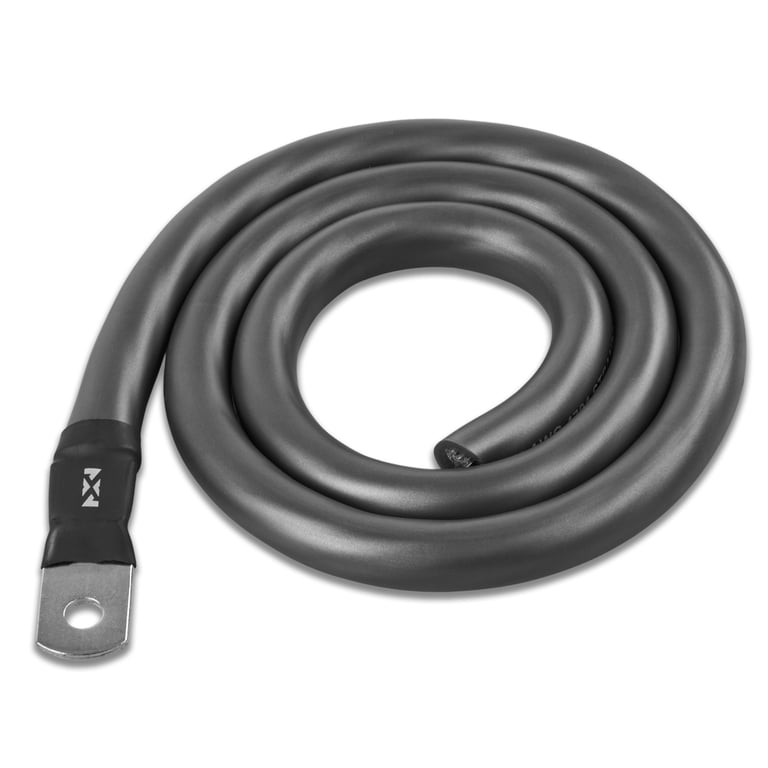

  2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

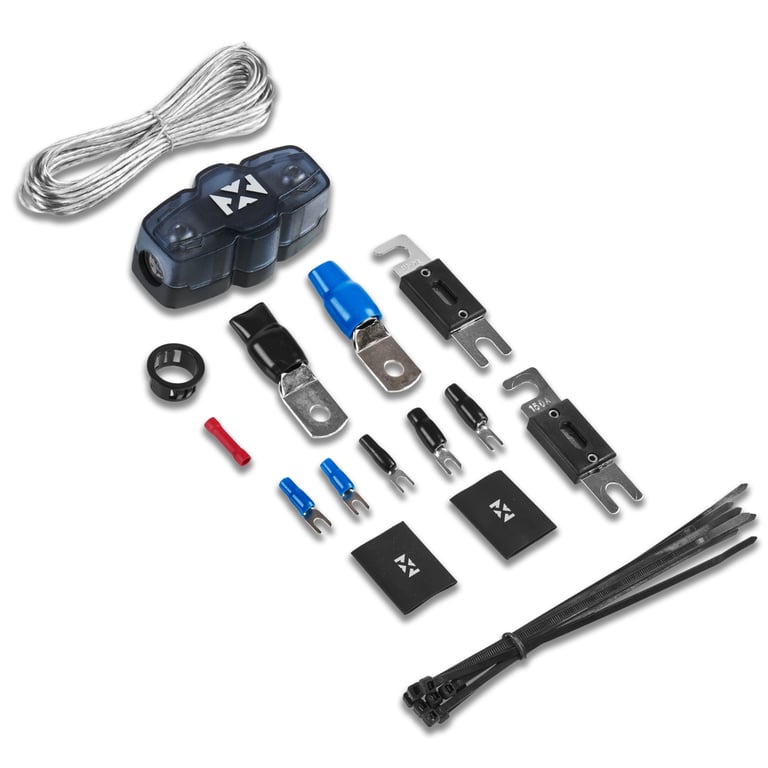

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Two Heat Shrink tubes with the NVX logo
  12. Ten 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(260)

$491.43

List price $682.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$309.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
2000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
2000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
1/0 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
300A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

20K_XKIT02

Weight:

32.48lbs

Internal SKU:

20k_xkit02

Internal Product ID:

206001
