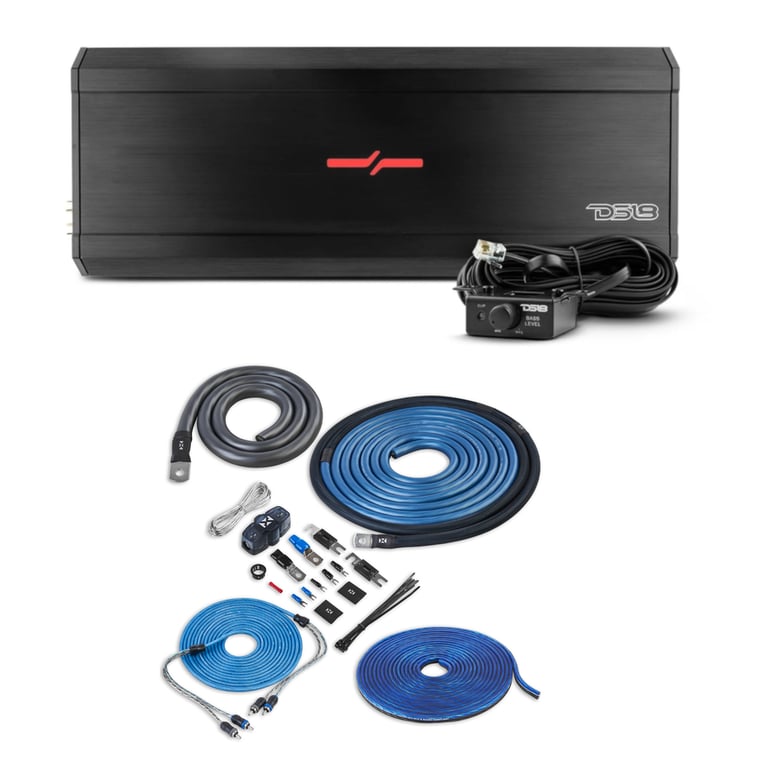

DS18 ZXI.1XXL Class D ZXI Series Monoblock Channel Car Amplifier with Amp Kit

Shop all DS18

by DS18

About
Similar Products
Specs & Details
Reviews
Related Searches

Lowest price in 30 days

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 1 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 2 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 3 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 4 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 5 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 6 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 7 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 8 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 9 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 10 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 11 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 12 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 13 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 14 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 15 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 16 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 17 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 18 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 19 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit Image 20 — DS18 ZXI.1XXL with NVX 1/0 Gauge Amp Kit

Product highlights

• 1500W watts x 1 channel @ 4 ohm
• 2400 watts x 1 channel @ 2 ohm
• 3000 watts x 1 channel @ 1 ohm
• Total RMS Power: 3000 watts
• Class D 1 ohm Stable Monoblock Amplifier
• Includes Amplifier Wiring Kit

Learn more about the zxi1xxl_xkit02

Description

Authorized dealer

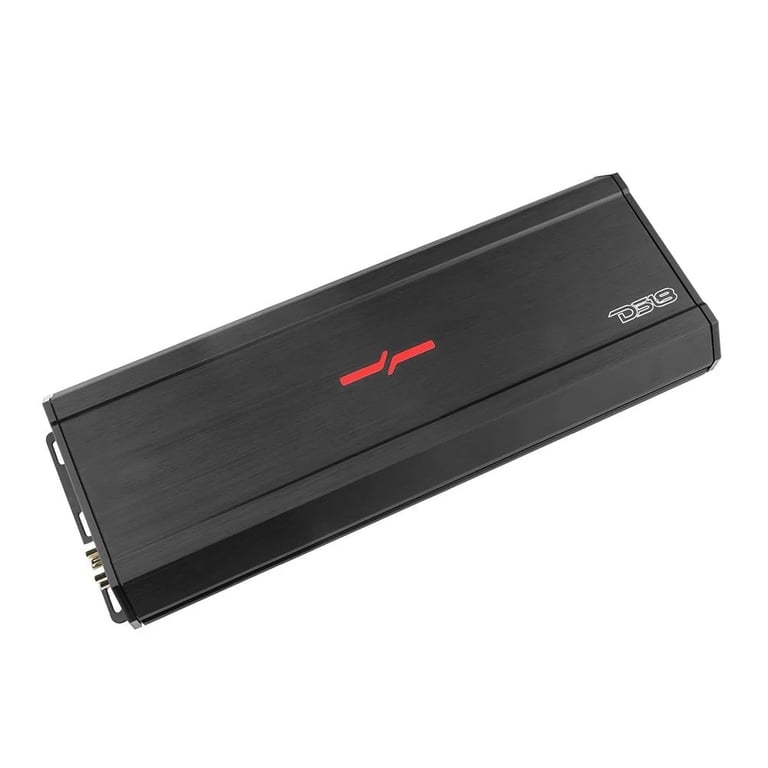

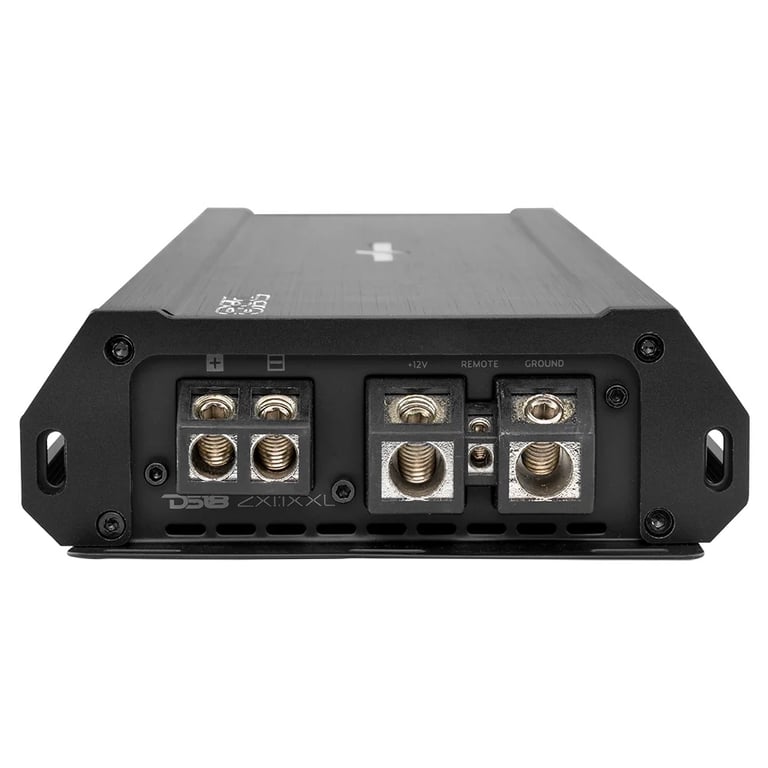

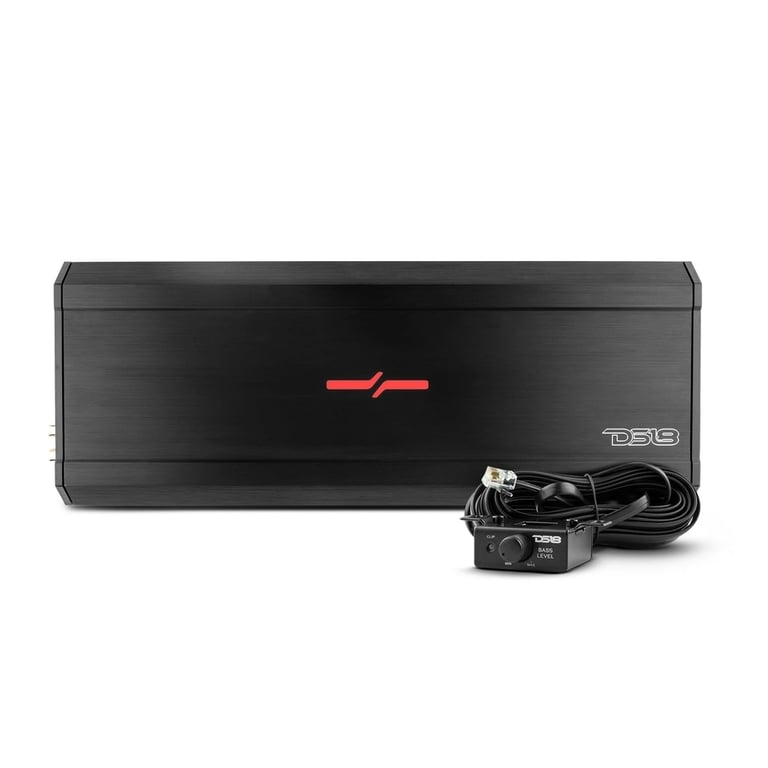

DS18 ZXI.1XXL

In the world of car audio, evolution is inevitable, and DS18 understands this better than anyone else. DS18 presents the ZXI.1XXL, a new echelon of audio excellence for our legendary Z series amplifiers.

DS18’s ZXI.1XXL is more than just an amplifier; it's an elegantly designed powerhouse that effortlessly blends power with space saving efficiency. The Monoblock design of the ZXI.1XXL packs colossal power into a compact package, making it an ideal choice for those who demand big sound without sacrificing space.

Elevate your car audio to legendary status with DS18’s ZXI.1XXL. Your ears deserve nothing less.

DS18 ZXI.1XXL

9000W Peak (3000W RMS) Class D ZXI Series Monoblock Car Amplifier with Bass Remote
Quantity: 1

Product Details:

ZXI Series Class D 1 ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 1500 watts x 1 channel
2 ohm: 2400 watts x 1 channel
1 ohm: 3000 watts x 1 channel

Total RMS power output: 3000 watts
LED Power/Protect Light

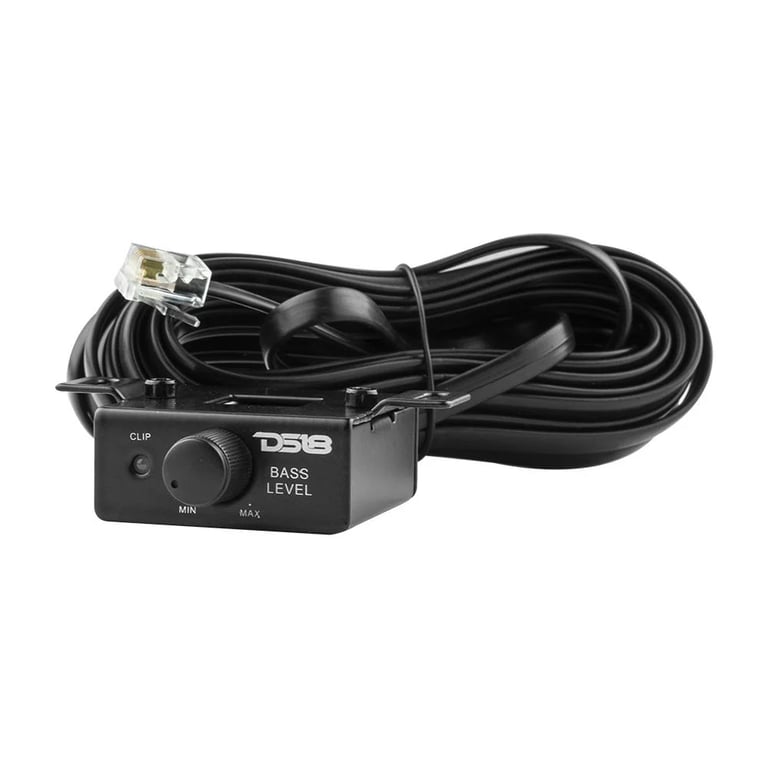

Wired bass level remote control included

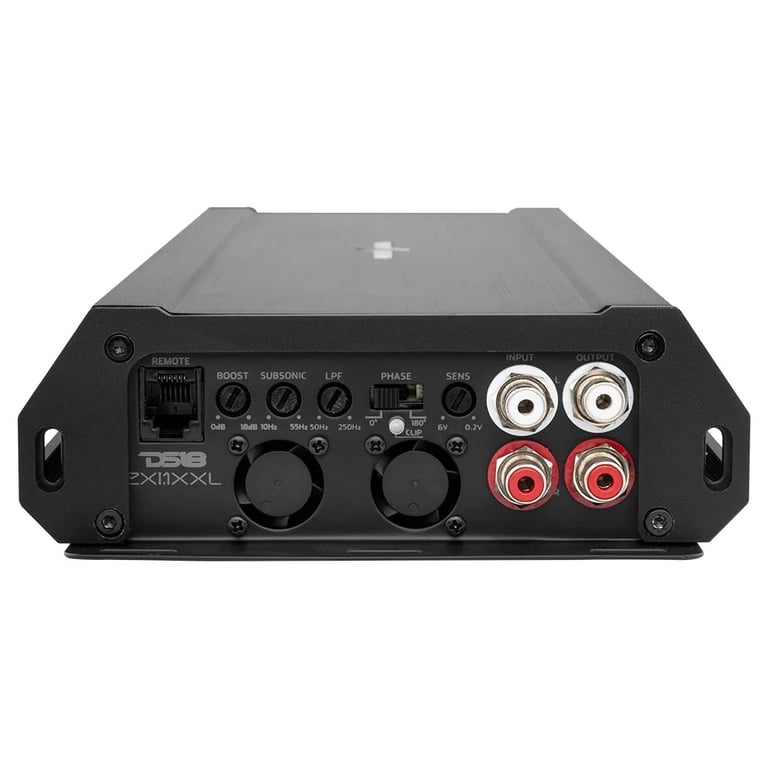

Speaker-level (high-level) inputs
1 pair of pre-amp outputs
Thermal, overload, DC, short circuit, voltage, clipping protection

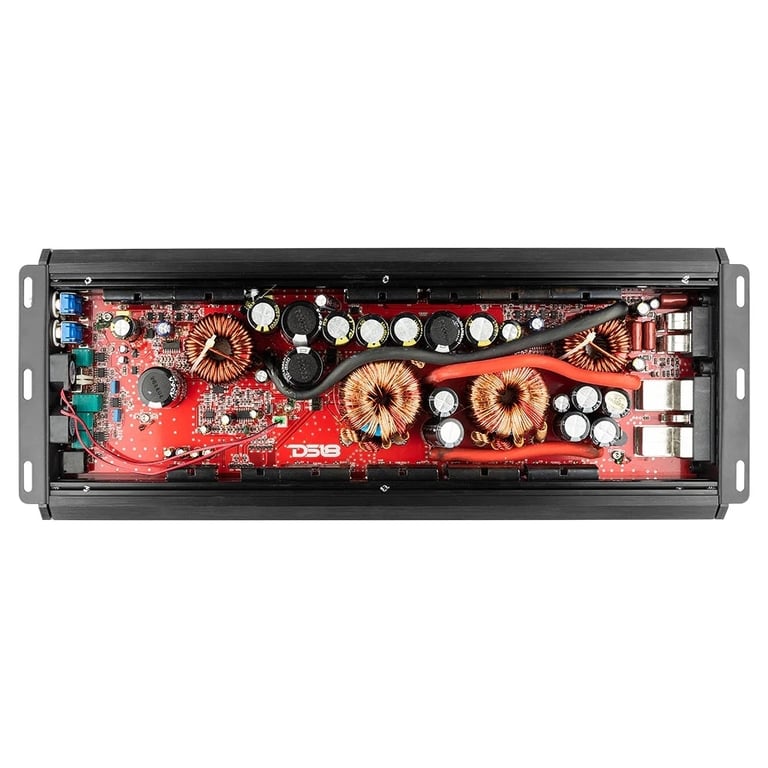

Surface mount component technology
Audio precision quality control verification
Stable/reliable four layers traces PCB layout design
Tiffany RCA jack and directed insert terminals
Black Aluminum Brush Finish
Input sensitivity: 0.2 - 6 volts
Frequency Response: 20 - 500 Hz
Total Harmonic Distortion (THD): 0.1%
Signal to Noise Ratio: 87 dB
Variable low-pass filter: 50 - 250 Hz
Subsonic filter: 10 - 55 Hz
Variable Bass Boost: 0 - 18 dB
Fuse Rating: 300
1/0 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 15.4" L x 5.7" W x 1.9" H
Authorized Internet Dealer
1-year Manufacturer's Warranty
MFR #: ZXI.1XXL

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
Designed for car audio systems up to 3000 watts RMS
Made from 100% Oxygen-Free Copper (OFC)
Tinned conductors for corrosion resistance
Pre-installed black nylon mesh covering protects the power wire from damage
Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
Pre-terminated seamless power and ground ring terminals provide reliable performance
Full spec power and speaker wire meet or exceed American Wire Gauge standards
CEA-2015 and BC5W2 compliant
V-Series RCA Interconnect Cable
Shielded noise-rejecting coaxial construction provides protection against interference
Split-tip silver-plated ends offer high-quality performance
Molded ends equipped with colored channel identifiers for easy recognition
Twisted-pair construction featuring two conductors per channel
Includes an assortment of wire termination hardware and cable ties
Authorized Internet Dealer
1-year Manufacturer's Warranty

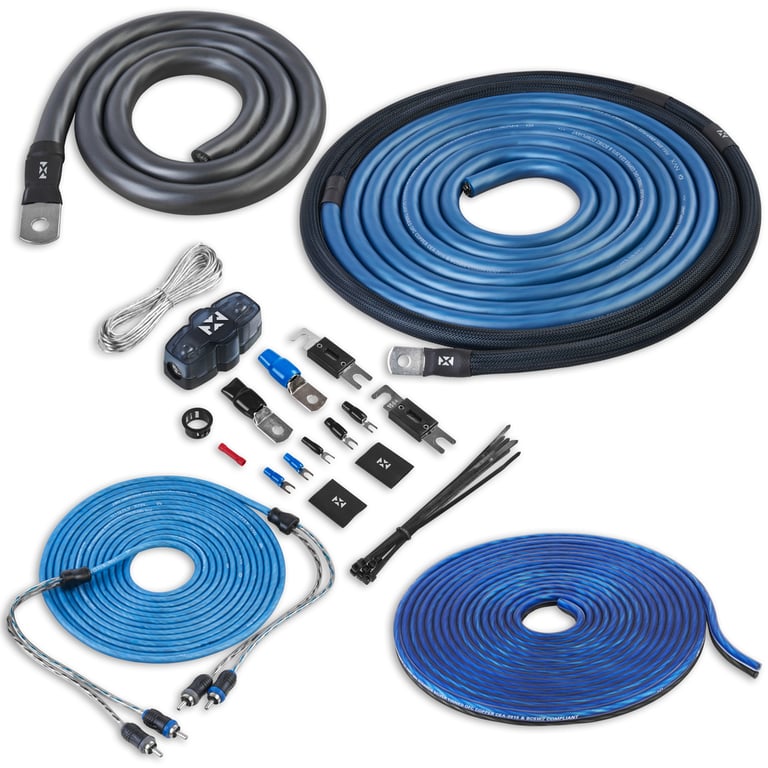

Kit includes:

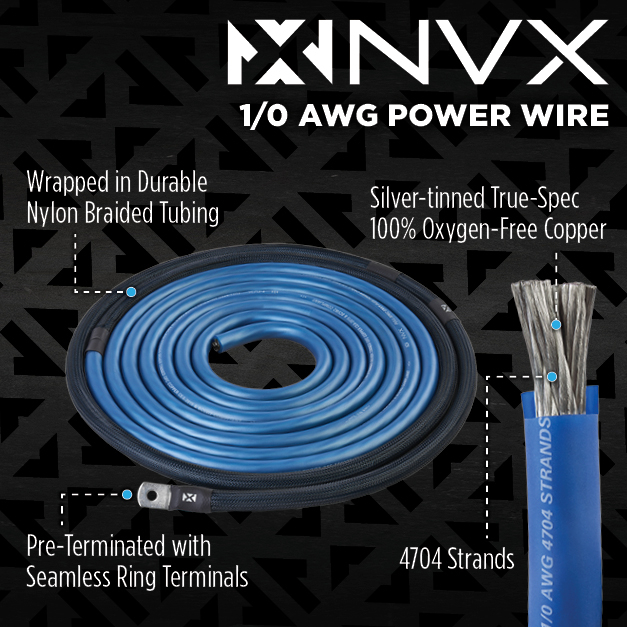

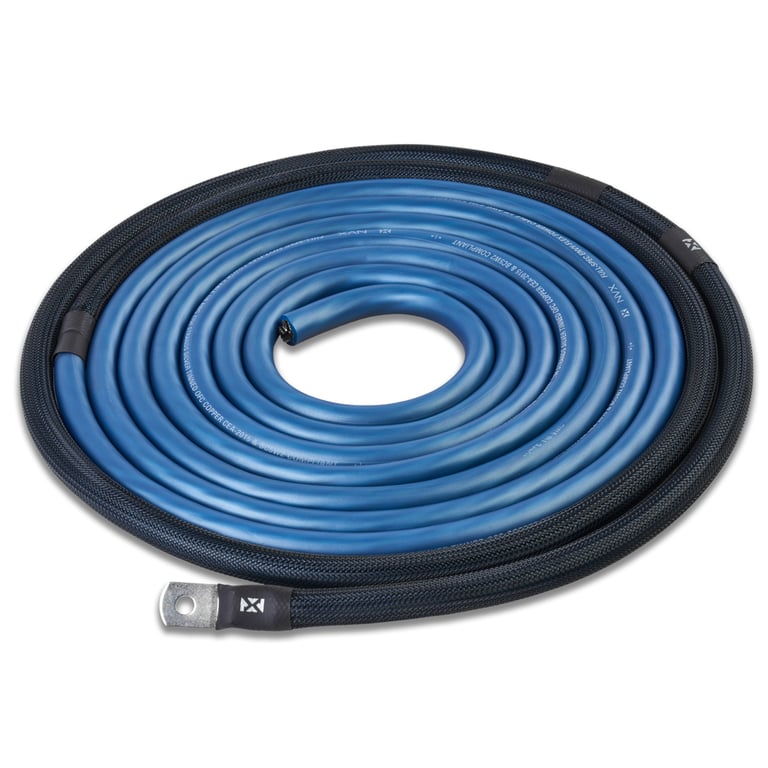

17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

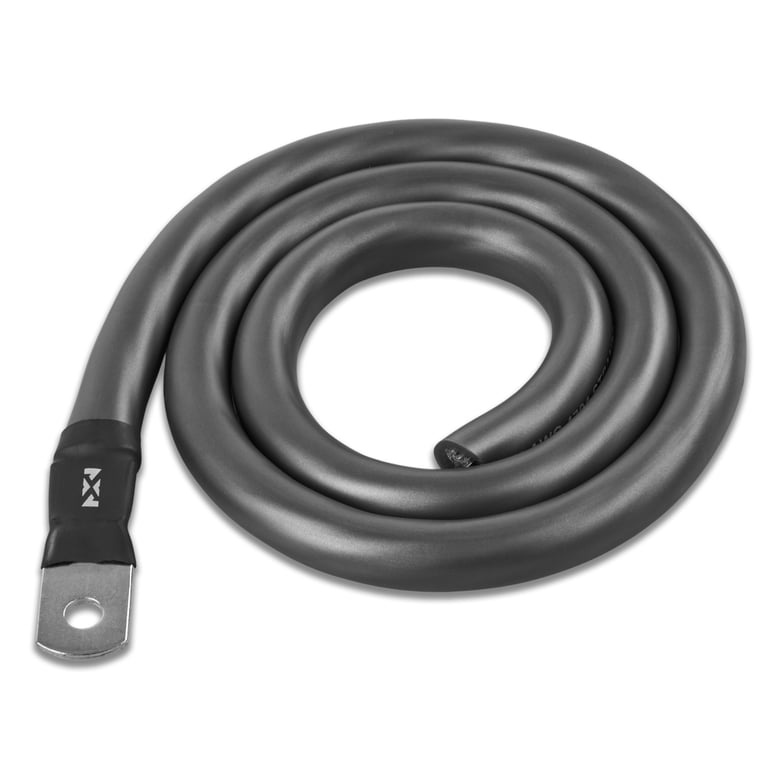

3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
17 ft. Clear 18 gauge remote lead wire
20 ft. Frosted Black/Blue 12 gauge speaker wire
One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

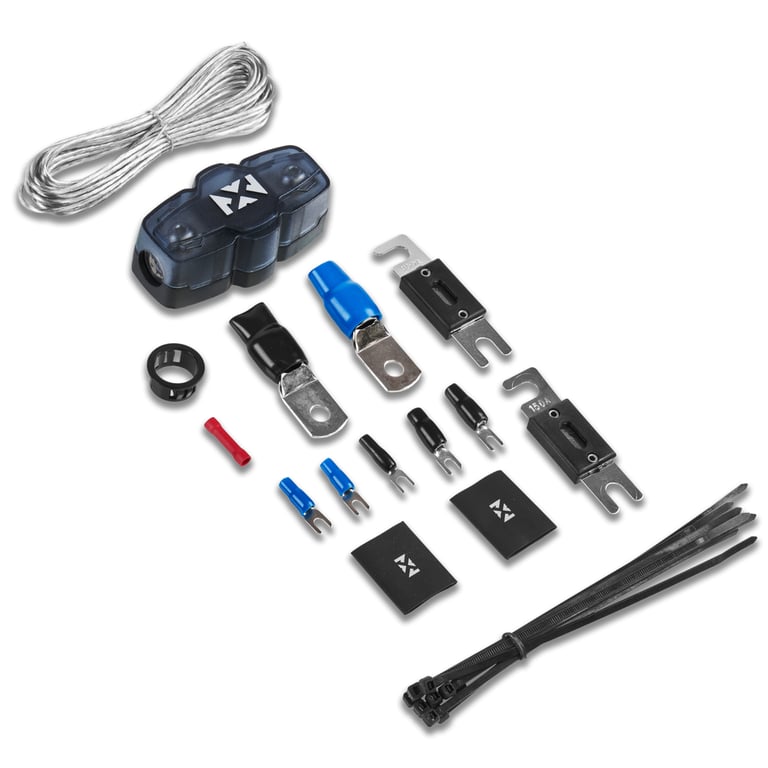

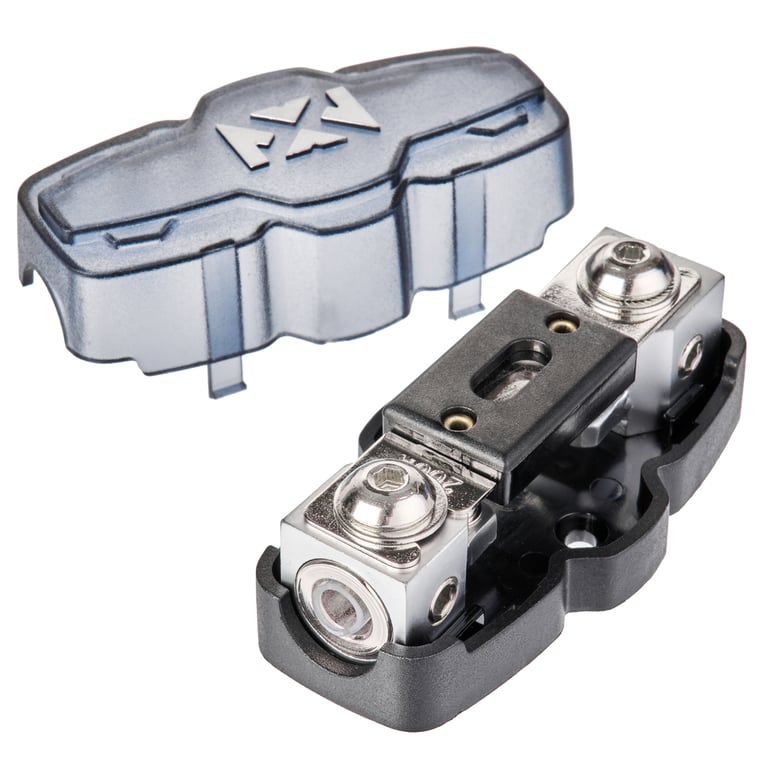

One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
One Black rubber firewall grommet
Two 1/0 Gauge Nickel Plated ring terminals
Four 12 Gauge Spade terminal
Two 18 Gauge Red butt connectors
Two Heat Shrink tubes with the NVX logo
Ten 6" Black zip ties

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1500W watts x 1 channel

RMS Power @ 2 ohms

2400 watts x 1 channel

RMS Power @ 1 ohm

3000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

9000 watts

Total RMS Power Output

3000 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Frequency Response

20 - 500 Hz

THD at Rated RMS Power

0.10%

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

10 - 55 Hz

Signal-to-Noise Ratio

>90 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Total Fuse Rating

300A

Amp Bluetooth Connectivity

Hi-Res Certified

High-Level Input Sensitivity

0.2 - 6 volts

Amplifier Kit Specifications

Number of Amplifiers Supported

Power/Ground Wire Size

1/0 gauge

Power Wire Length

20 feet

Ground Wire Length

3 feet

Speaker Wire Included

Yes

Speaker Wire Length

20 feet

Remote Wire Length

20 feet

Interconnect (RCA) Signal Cables Included

2 Channel

Fuse Holder

ANL/MINI ANL

Fuse Size

300A

Distribution Block Included
