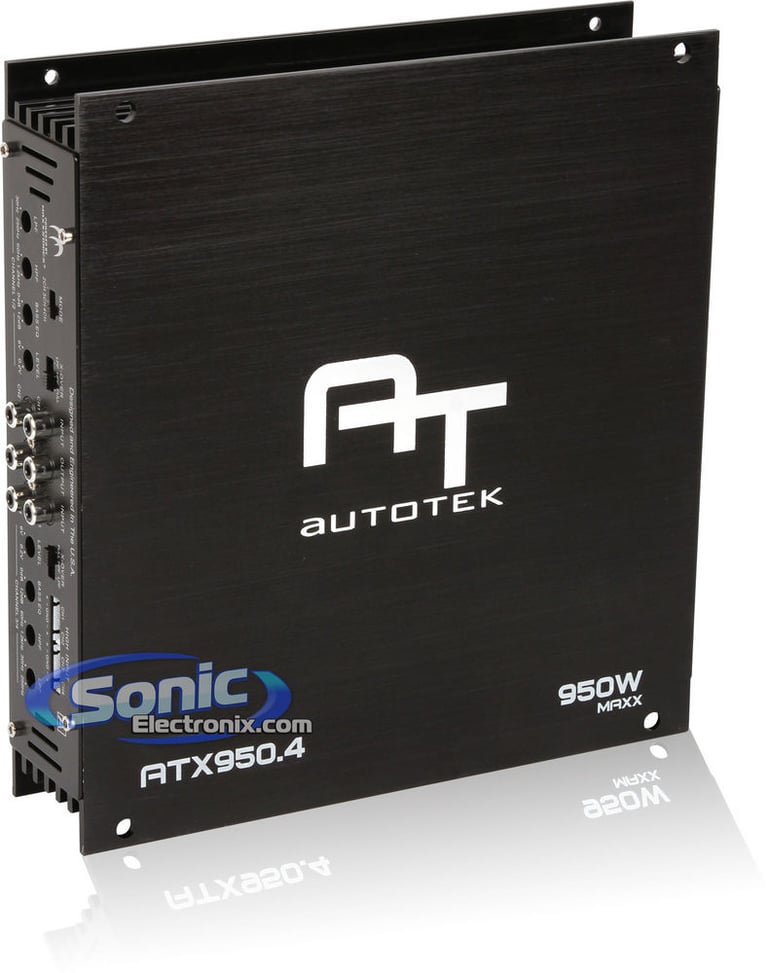

Autotek ATX950.4

950W Max 4-Channel Class AB ATX Series Amplifier

Autotek
Shop all Autotek
Product videos
highlight-star-icon

ATX Series 4-Channel Class A/B Car Amplifier • 950 Watts Max • 240 Watts x 4 Chan @ 2 Ohm • Military Grade PCB Design • 0 to +12 dB Bass Boost • Speaker-Level Inputs • Preamp RCA Outputs

Learn more about the atx9504

We apologize

This item has been discontinued


Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

82-5600 main

Metra 82-5600

5-1/4" / 6-1/2" Speaker to 6" x 8" Adapters for select 1981-2017 vehicles from Mercury, Mazda, Lincoln

3
-11.12%

$15.99

List price $17.99

99-7422 main

Metra 99-7422 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2004-2012 3 and Sentra

2
-12.50%

$27.99

List price $31.99

70-7903 main

Metra 70-7903 Wiring Harness

Install a new car stereo in select 2001-2021 vehicles from Mazda, Fiat

18
MazK844 main

American International MazK844

Single DIN or Double DIN Stereo Dash Kit for select 2004-2009 3 (Satin Black)

1
-72.24%

$14.99

List price $54.00

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

Product Highlights


ATX Series 4-Channel Class A/B Car Amplifier • 950 Watts Max • 240 Watts x 4 Chan @ 2 Ohm • Military Grade PCB Design • 0 to +12 dB Bass Boost • Speaker-Level Inputs • Preamp RCA Outputs

Description


Autotek brand icon

Authorized dealer

  • ATX Series 4-Channel Class A/B Car Amplifier
  • MAXX Power Rating:
    • 4 ohm: 120 watts x 4 chan.
    • 2 ohm: 240 watts x 4 chan.
    • Bridged, 4 ohm: 475 watts x 2 chan.
  • Max power output: 950 watts
  • Pulse Width Modulated MOSFET power supply
  • Military grade PCB design

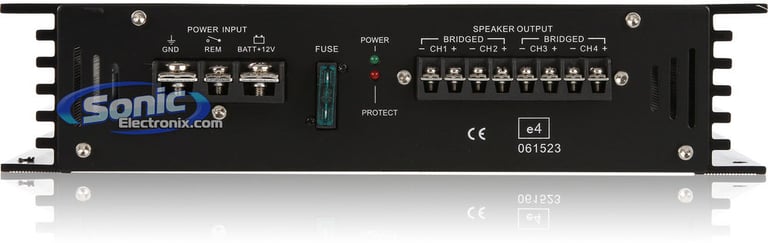

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals

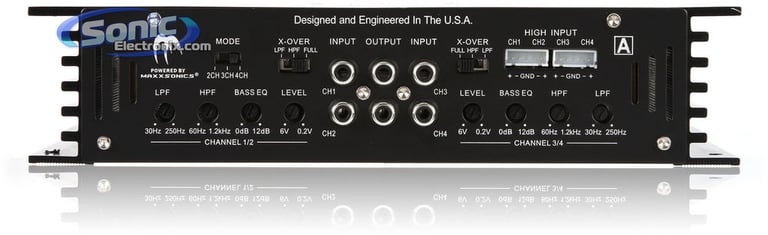

  • Input sensitivity:
    • Low level: 200mV-5V
  • Variable high-pass filter (60-1,200 Hz, 12 dB/octave)
  • Variable low-pass filter (30-250 Hz, 12 dB/octave)
  • Frequency response: 30-45,000 Hz
  • Dimensions: 9-1/16"L x 9-3/4"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
120 watts x 4 channel
RMS Power @ 2 ohms
240 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
475 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
950 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATX950.4

Weight:

6.00lbs

Internal SKU:

atx9504

Internal Product ID:

33186

Product and How-to Videos


Customer Ratings & Reviews


Autotek ATX950.4 thumbnail image

5 star
60%
4 star
20%
3 star
0%
2 star
20%
1 star
0%



Durability
4.4
Value
4.6
Features
4.8
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

great amp!

This amp works very well. I have it hooked up to 51/4 infinitys up front and 6x9 infinitys in the back and it pushes them very well. The only problem i ran into was hearing engine noise through the speakers. After long hours of trying to figure out what was causing it, it was the high input wires they give you to connect to your head unit. They are only to be used if you dont have RCA's coming out of the back of your head unit. I kept my factory head unit becuase it looks nice. a simple fix to this however is to get a 4channel line out converter and just run it with RCA's instead of speaker wire. Now i hear very clear sound from my speakers (no engine noise or electrical interference can be heard) and i am extremley happy with the deal i got on this amp and the quality. It does get very warm like every other amp, but i think i will buy a fan and hook it up to the power to keep the amp running cooler. Just remember not to use the high input wires they give you with the amp, they admit electrical noise.

By Zob on August 15, 2011

8 found this helpful


Great Sound at an exceptional price

This is an awesome amp that has many features and a price that offers much more than what you pay pro. The audio quality is great so if you are looking for a solid amp at a great price, look no further.

By Alex on November 30, 2012

6 found this helpful


Deceivingly Weak. Disappointed

I bought this amp in hopes of more power to my door speakers than my head unit could offer. This thing has no more power than any after market head unit. I should've known when the RMS rating wasn't listed. If you're going to spend money an a 4 channel amp. Buy a reputable one. I own an autotek Mean Machine series amp and am way more pleased with it.
The only reason i kept this amp was because of the high pass filter. Other than that i am totally disappointed.

By Dal on September 4, 2012

5 found this helpful


Good value

I have had this for six months now and so far so good, the sound is worlds better than the stock system in my Kia Soul.

I am powering a pair of Alpine 6-1/2" separates and a pair of 6-1/2" Kenwood coax speakers.

It drives my speakers fine and reliably.

By Chris on May 25, 2012

5 found this helpful


Great Value

I am using this amp to power Selenium PA horns on the outside of my car. Im running 8 horns @ 4ohms per channel. Sound is excelent. Plenty of power for my application. I would reccomend this amp for anyone looking for powering interior or exterior full range speakers.

By Wade on December 13, 2011

6 found this helpful




M135C-4 small

MobileVision M135C-4

7" Color LCD Safety Quad Camera Monitor with 4 Camera Input

$79.95

List price $299.95

CD400A small

Clif Designs CD400A

2-Channel Car Amplifier

$149.99

List price $349.99

BASS1400 small

Boss BASS1400

1400W 10" Low Profile Amplified Subwoofer With Remote Subwoofer Level Control

(24)

$134.99

List price $299.99

2750427501 small

Shoptek Tools 2750427501

Mini Tube & Pipe Cutter

$2.00

List price $4.00

XQWE112S small

NVX XQWE112S

Single 12” Sealed 3/4" (0.94 cubic ft) MDF Black Carpeted Subwoofer Enclosure

(1)

$59.99

List price $119.99

i640.5 small

Precision Power (PPI) i640.5

670W RMS Class D iON Series 5-Channel Car Amplifier

(5)

$200.99

List price $219.99

IBS12FP small

Metra IBS12FP

Single 12" Ported Subwoofer Box (Flat Pack Enclosure - Requires Assembly)

$49.99

List price $69.99

TK30 small

Motorola TK30

Universal Hands-free Bluetooth and Streaming Music Car Adapter

(5)

$89.99

List price $259.99

CCU-iPOD3 small

Clarion CCU-iPOD3

iPod Interface Adapter Cable for Select Clarion Receivers

(3)

$46.99

List price $79.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Mazda 3

2017 Ford Taurus

2019 Subaru Forester

2002 Chevrolet Blazer

2003 Dodge Sprinter 2500

2001 Suzuki Esteem

2000 Chevrolet Blazer

2012 Honda Insight

2009 Lexus RX350

2017 Kia Optima

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
