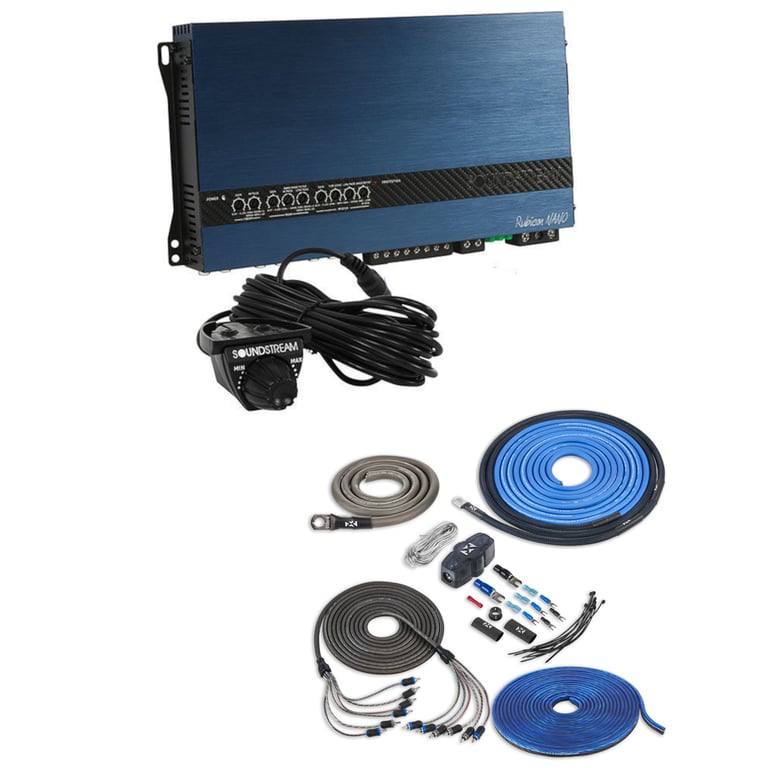

Soundstream RN5.2000D with NVX 4 Gauge Amp Kit

2000 Watt Peak (900W RMS) Rubicon Nano Series Class D 5-Channel Amplifier

highlight-star-icon

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 2 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier
• Includes Amplifier Wiring Kit

Learn more about the rn52000d_xkit46

We apologize

This item has been discontinued

Description


Soundstream brand icon

Authorized dealer

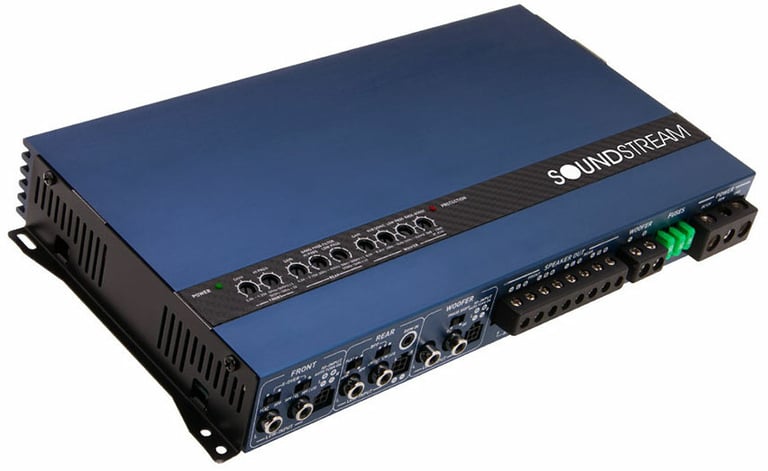

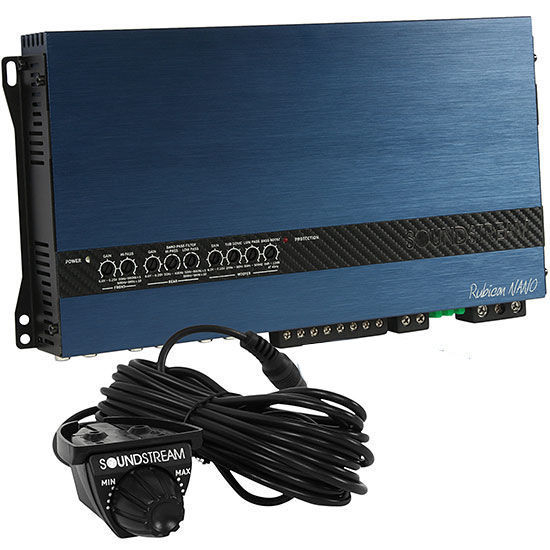

Soundstream RN5.2000D

2000W Peak (900W RMS) Class D Rubicon Nano Series 5-Channel Car Amplifier
Quantity: 1

Product Details:

  • Rubicon Nano Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 channel + 300 watts x 1 channel
    • 2 ohm: 100 watts x 4 channel + 500 watts x 1 channel
    • Bridged: 200 watts x 2 channel @ 2 ohm + 500 watts x 1 channel @ 2 ohm
  • Total power output: 900 watts
  • LED Power/Protect Light

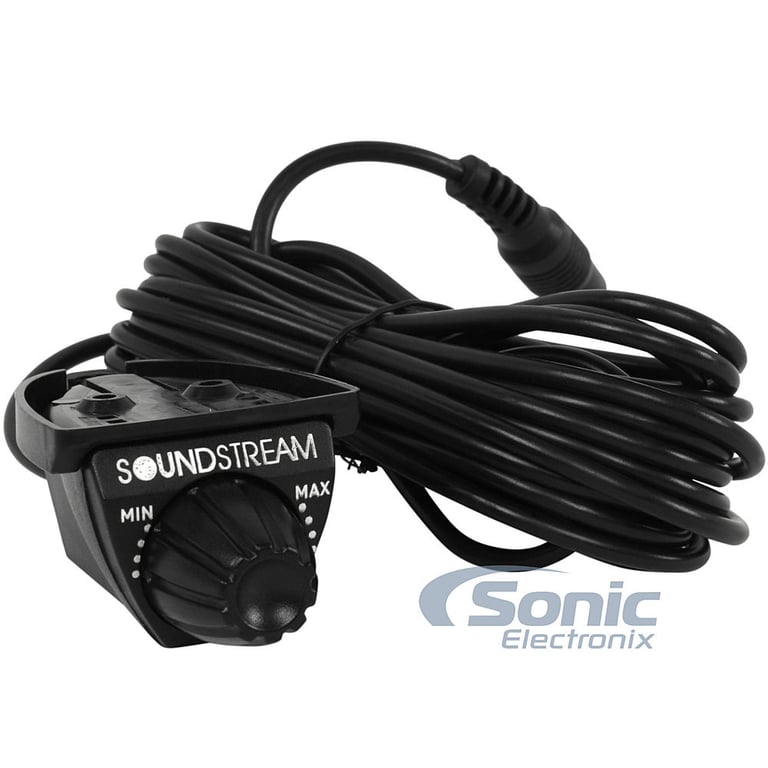

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • 2 pairs of pre-amp outputs
  • Hybrid aluminum alloy heatsink for optimum dissipation
  • MOSFET power supply with audiophile grade IRTM transistors
  • Military grade SMT PCB
  • 3-way protection circuitry (Direct short, thermal and overload circuit protection)
  • Quick disconnect high level input wire harness

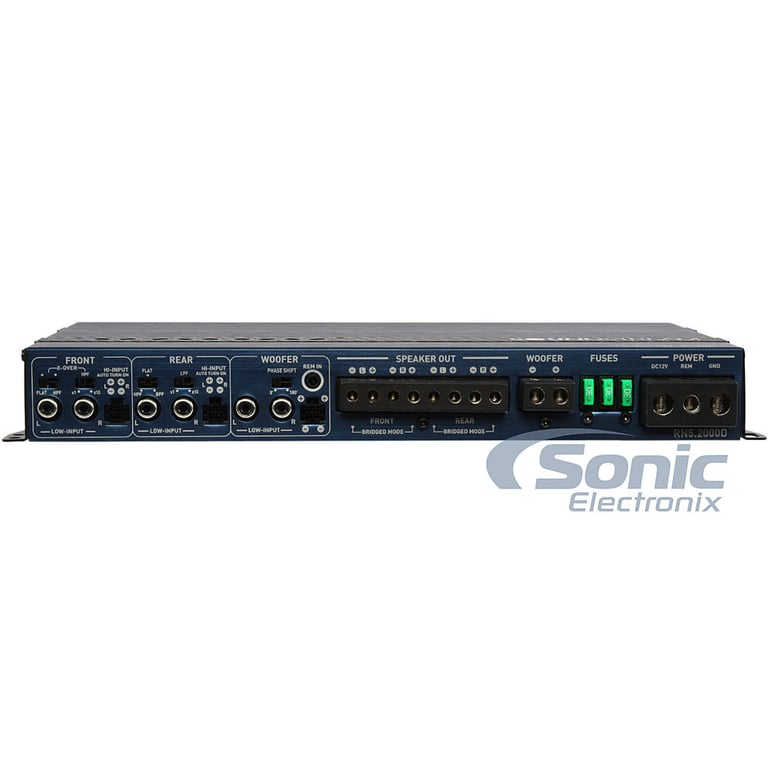

  • Easy-install single-sided terminals and pre-amp controls
  • Input sensitivity: 200 mv - 6 volts
  • Frequency Response: 10 - 50000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 104 dB
  • Variable high-pass filter: 500 - 5000 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Variable bandpass filter: 20 - 400 Hz high-pass filter / 50 - 500 Hz low-pass filter
  • Subsonic filter: 20 - 50 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 90A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 12" L x 8.25" W x 2.75" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

NVX XKIT46

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

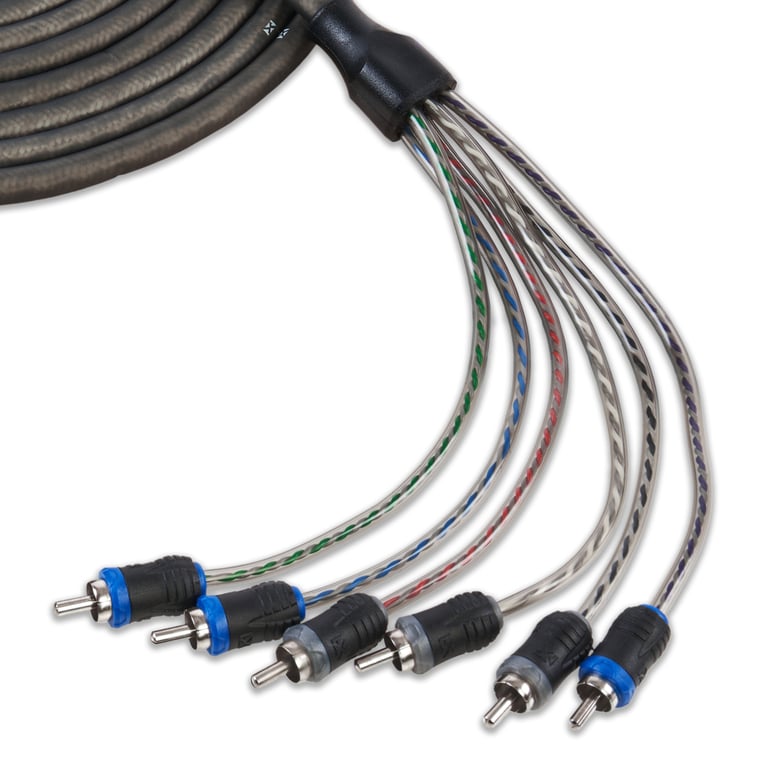

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 60 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
  6. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
  7. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  8. One Black rubber firewall grommet
  9. Two 4 Gauge Nickel Plated spade terminals
  10. Four 18 Gauge Spade terminal
  11. Two 18 Gauge Red butt connectors
  12. Four 16 Gauge quick disconnect
  13. Five 16 Gauge Nickel Plated spade terminals
  14. Two Heat Shrink tubes with the NVX logo
  15. Ten 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(260)

$491.43

List price $682.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$309.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
900 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
2 ohms
Frequency Response
10 - 50k Hz
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
High-Pass Crossover Frequency
500 - 5000 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 3
Amp Bluetooth Connectivity
No
Low-Level Input Sensitivity
200mv - 6 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
6 Channel / 5 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RN52000D_XKIT46

Weight:

15.88lbs

Internal SKU:

rn52000d_xkit46

Internal Product ID:

206321

Customer Ratings & Reviews


Soundstream RN5.2000D with NVX 4 Gauge Amp Kit thumbnail image

5 star
94%
4 star
4%
3 star
2%
2 star
0%
1 star
0%



Durability
4.9
Value
4.8
Features
4.8
Design
4.9
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great buy

The following review is for XKIT46, which is a part of the bundle you are viewing.

The kit would work great in a car but in a boat the kit needs to have alot more speaker wire and a longer ground wire

By Cory on March 10, 2015

101 found this helpful


Good stuff

The following review is for XKIT46, which is a part of the bundle you are viewing.

I got this kit for 50% off with my NVX amp. The power wires are very nice, the 6channel RCA cable is fantastic and the speaker wire is great quality too. The assortment of connectors they give you didn't really help. I ended up purchasing my own nicer ones.

By Nathanael on April 22, 2020 Checkmark Icon Verified purchase

62 found this helpful


Awesome Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This kit was free with an amp purchase. I definitely like it, but I used 9 conductor speedwire for remote wire and 4 speakers. Worked out very well overall, great quality.

By Justin on March 30, 2018

57 found this helpful


Very complete! High Quality

The following review is for XKIT46, which is a part of the bundle you are viewing.

What a great kit. Far exceeded expectations. Nice touches like, mesh loom for the engine compartment on the 4GA power cable, heat shrinked where the you cut to install the fuse. Speaker wire is heavy gauge. The power and ground are come with the end connectors installed. My only complaint is there are no instructions so I had to reconfigure the fuse to add the rubber connectors. At least I assume thats where they go as it didnt have waterproof bushings.

By Ron on March 16, 2018 Checkmark Icon Verified purchase

57 found this helpful


Great kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

I was impressed with this kit. Their claim of a "true gauge" wire seems to be true because wires are thicker compared to other wires I have used claiming to be the same gauge. Overall the wires seem to be of great quality. Patch cables are good. They aren't super high end, but they do the job well. I'd recommend it to anyone looking for an amp kit.

By Kenneth on August 13, 2015 Checkmark Icon Verified purchase

61 found this helpful


Awesome kit!

The following review is for XKIT46, which is a part of the bundle you are viewing.

Nice flexible, durable, strong wires! Everything you need! Makes for easy connections/install! Thanks again NVX and Sonic!!!

By Anonymous on September 21, 2018

57 found this helpful


NVX XKIT46 (5- or 6-Channel Amp Kit)

The following review is for XKIT46, which is a part of the bundle you are viewing.

This Amp wiring kit was perfect for my 5-Channel amp. Wire is good quality and so far I have had no issues. Would not hesitate to recommend.

By Anonymous on June 13, 2018 Checkmark Icon Verified purchase

56 found this helpful


Great Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This is a great amp kit. The actual wire is much thicker than other 4 gauge amp kits. It's also a very affordable price. I'm happy with the kit.

By Anonymous on April 1, 2019 Checkmark Icon Verified purchase

53 found this helpful


Everything you need

The following review is for XKIT46, which is a part of the bundle you are viewing.

I live by these and FREE with an infinity amp. You can't complain.

By Kev on March 8, 2018

53 found this helpful


Awesome kit!

The following review is for XKIT46, which is a part of the bundle you are viewing.

Nice flexible, durable, strong wires! Everything you need! Makes for easy connections/install! Thanks again NVX and Sonic!!!

By Anonymous on September 21, 2018

53 found this helpful



JiMS-60 small

Jensen JiMS-60 (Black)

Alarm Clock Radio with iPod/iPhone Speaker Dock

$37.95

List price $49.99

APPT7050 small

Presto APPT7050 Cool Touch Foldaway Griddle

Presto 07050 Cool Touch Foldaway Griddle

$46.99

List price $78.00

Related Searches


Save up to 10 different vehicles in your garage

Add vehicle
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
