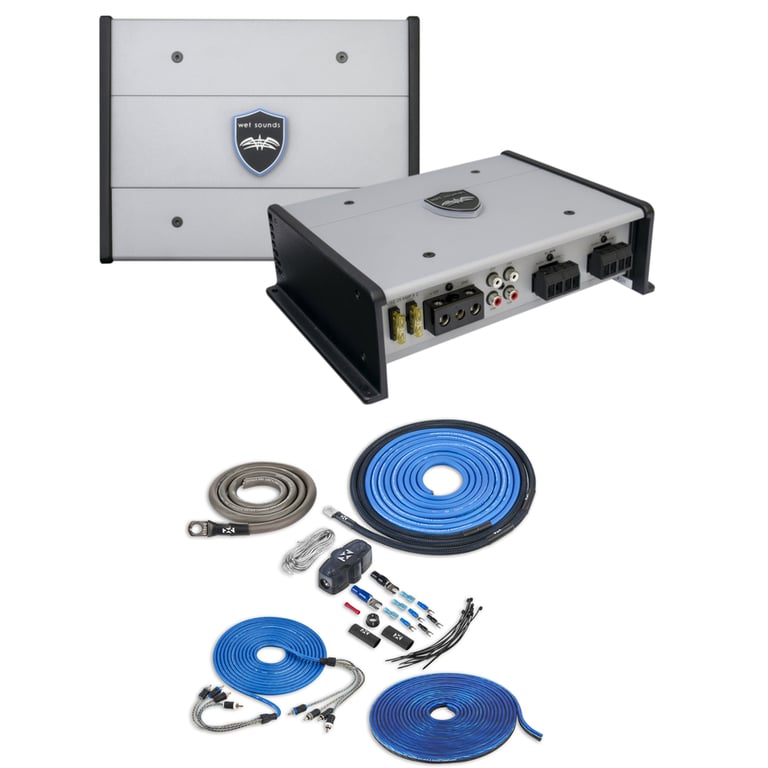

Wet Sounds HTX-4 with NVX 4 Gauge Amp Kit

600W RMS 4-Channel HTX Series Class D Full-Range Marine Amplifier (WetSounds)

highlight-star-icon

• 100 Watts RMS x 4 @ 4 ohm
• 150 Watts RMS x 4 @ 2 ohm
• 300 Watts RMS x 2 @ 4 ohm, Bridged
• Total Peak Power: 600 Watts RMS
• CEA-2006 Compliant
• Removable crossover/level control cover
• Conformal coated PCB boards
• 4, 3 or 2 channel operation
• Includes Amplifier Wiring Kit

Learn more about the htx4_xkit44

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

DKGM-C2D main

Crux DKGM-C2D Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2000-2012 vehicles from Chevrolet, GMC, Pontiac

2
-35.71%

$81.00

List price $126.00

82-3021 main

Metra 82-3021

6-6.75 inch speakers - Front door for select 2002-2009 vehicles from Chevrolet, GMC, Buick

5
-42.87%

$15.99

List price $27.99

DKGM-48D main

Crux DKGM-48D Stereo Replacement Interface

Stereo Replacement Interface with Steering Wheel Control Retention and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

1
-35.71%

$132.30

List price $205.80

82-3022 main

Metra 82-3022

6-6.75 inch speaker adapters for select 1998-2009 Envoy and TrailBlazer and Bravada

-10.00%

$26.99

List price $29.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Description


Wet Sounds brand icon

Authorized dealer

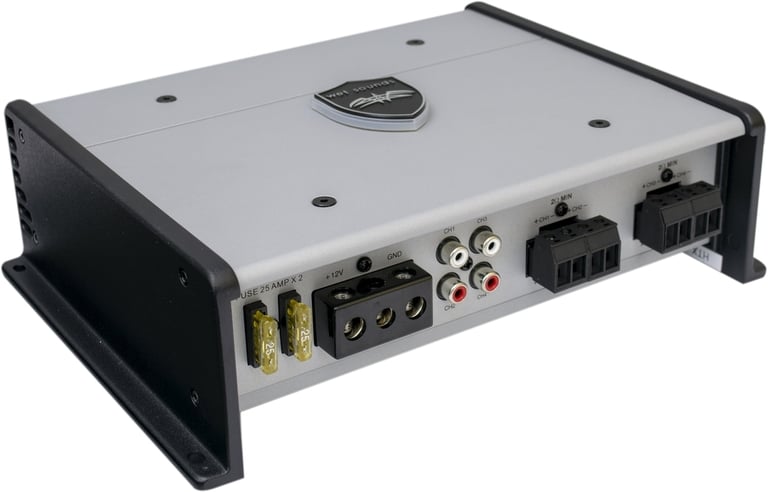

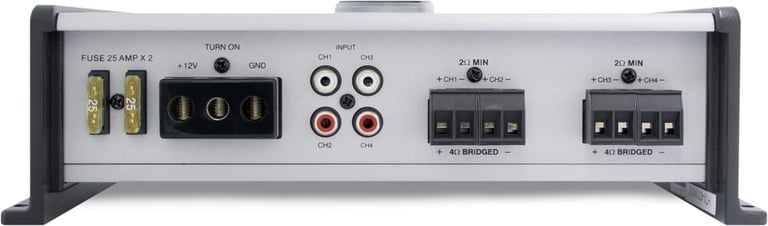

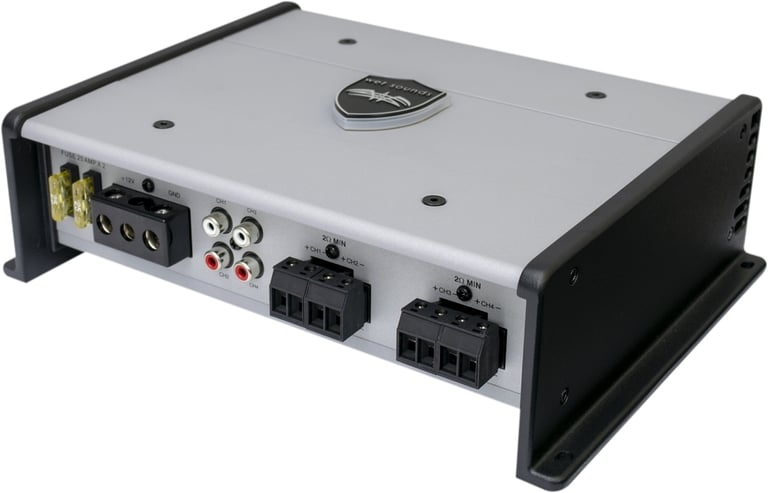

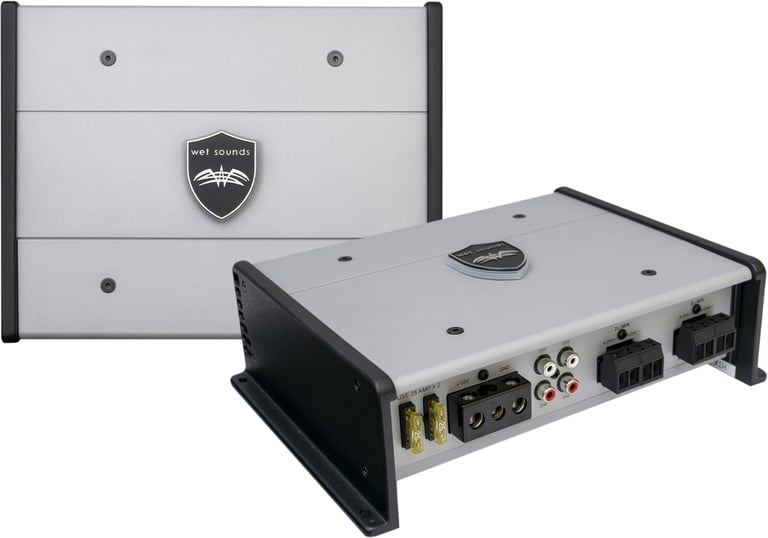

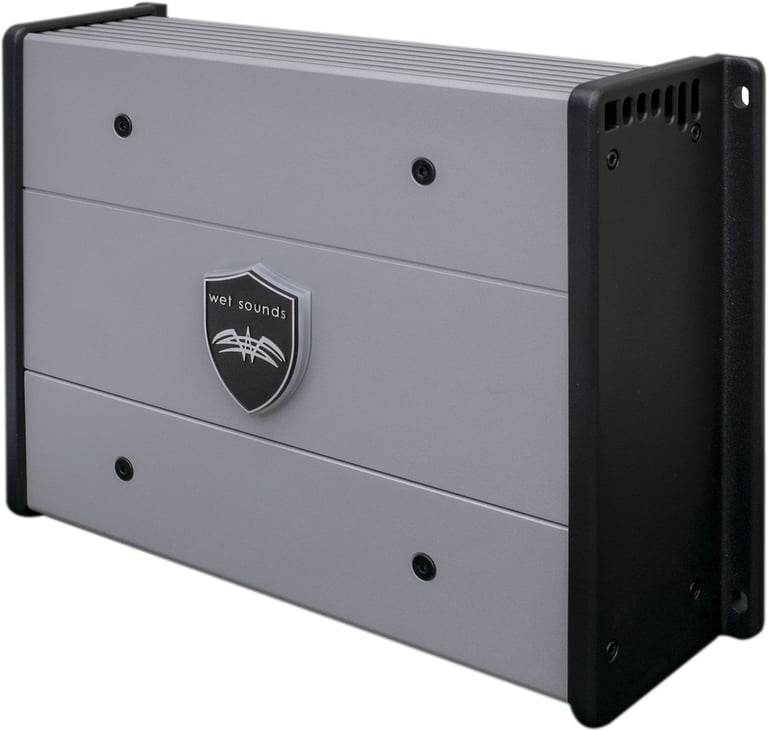

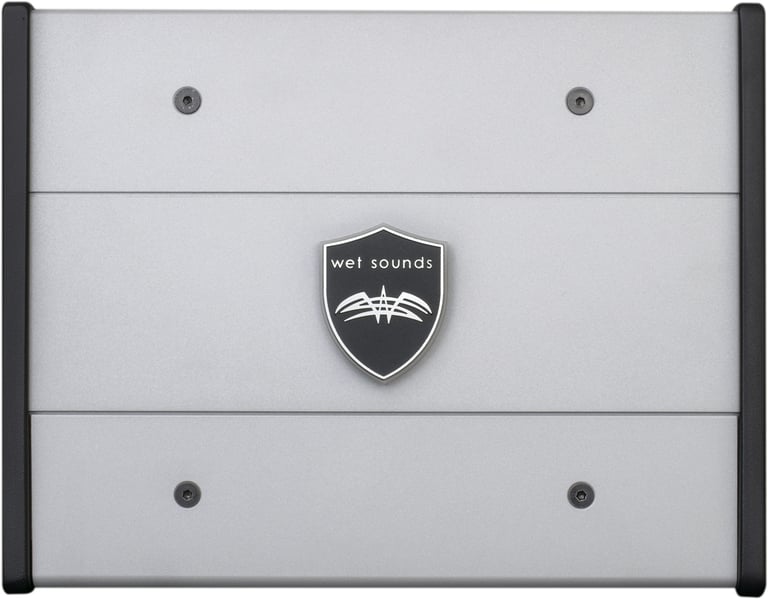

Wet Sounds HTX-4

600W RMS Class D Hydro-Tech X Series 4 Channel Marine Amplifier
Quantity: 1

Product Details:

  • HTX Series Class D 2 ohm Stable 4-Channel Marine Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 channel
    • 2 ohm: 150 watts x 4 channel
    • Bridged: 300 watts x 2 channel @ 4 ohm
  • Total power output: 600 watts
  • LED power and protect light
  • Optimized performance with Class D circuitry
  • Extreme power output packed inside a small chassis
  • Thermal, overvoltage, undervoltage, DC and speaker short protection
  • Flexible crossovers and extended inputs
  • High-mass heat sink
  • Smart microprocessor for great electronic performance
  • Supports Wet Sounds’ extensive CrossOver network
  • CEA-2006 compliant
  • Input sensitivity: 0.2 - 6.1 volts
  • Frequency Response: 7 - 33000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 85 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 50A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: HTX-4

NVX XKIT44

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

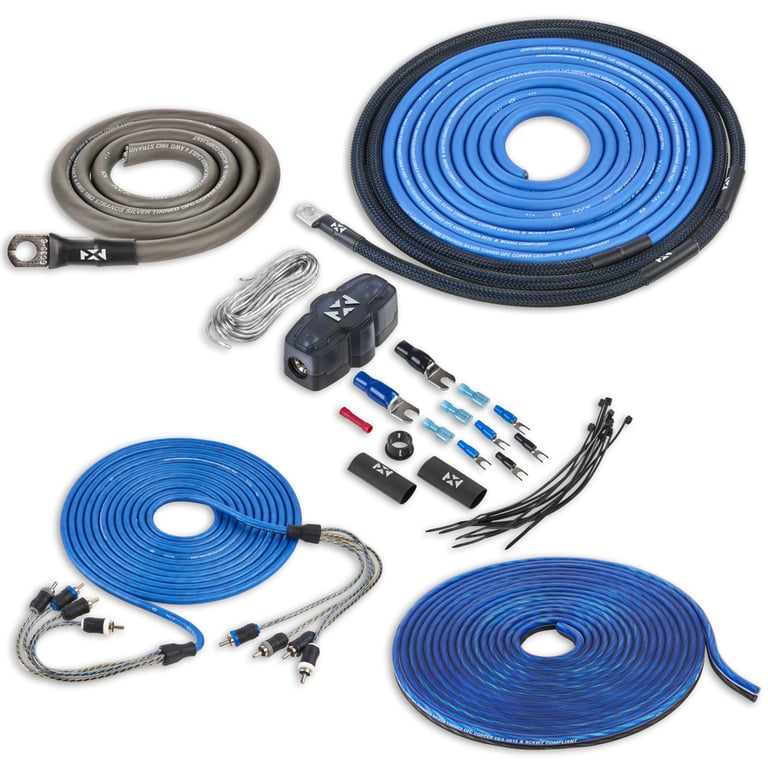

Kit includes:

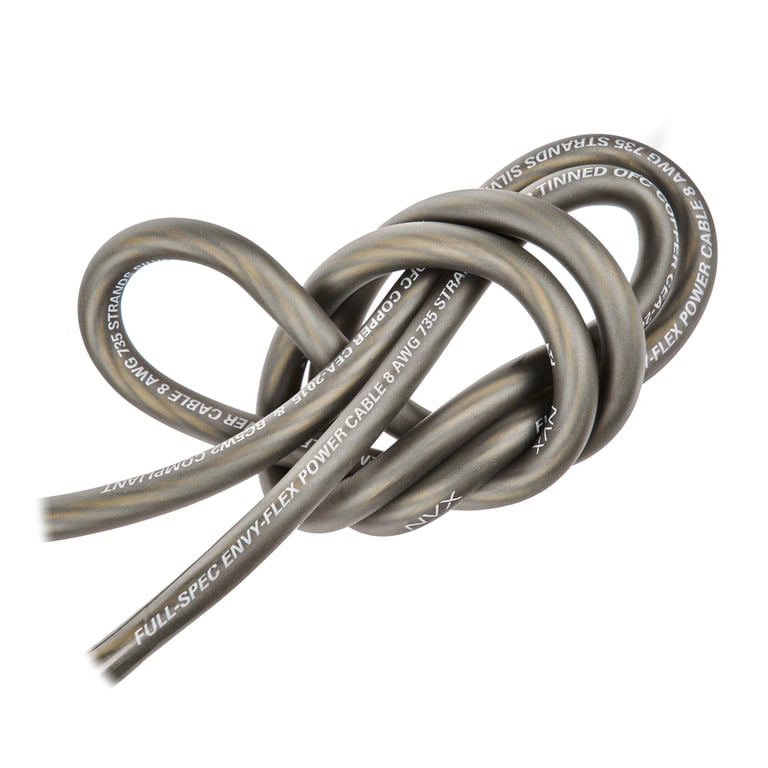

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties
