Name: Soundstream PCX1000D (PCX-1000D) R/B
Brand: Soundstream
SKU: LS-pcx1000d-RB
Price: 179.99 USD
Availability: Discontinued

by Soundstream

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

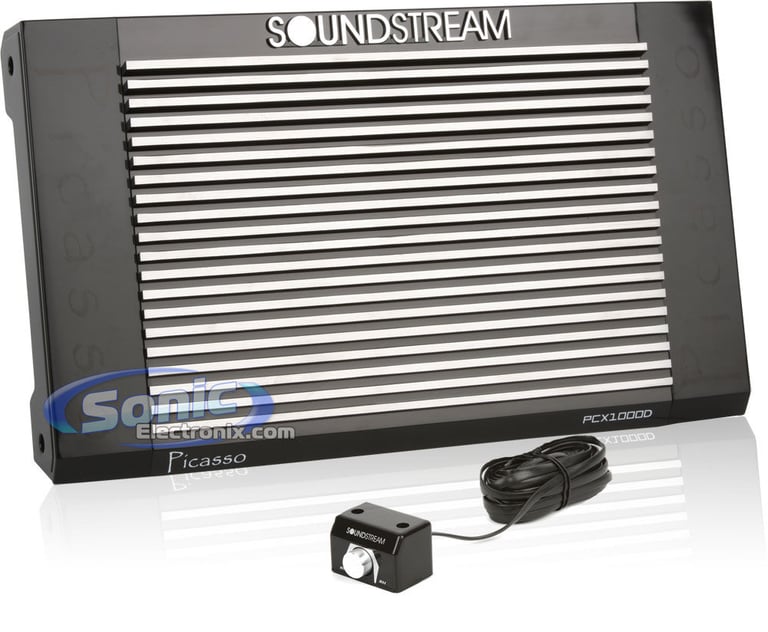

Soundstream PCX1000D (PCX-1000D) R/B Image 1 — Soundstream PCX1000D (PCX-1000D) R/B

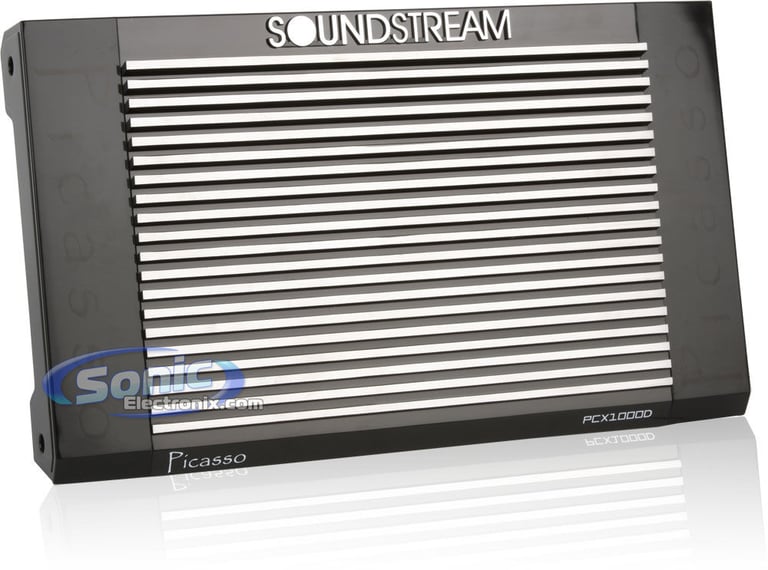

Soundstream PCX1000D (PCX-1000D) R/B Image 2 — Soundstream PCX1000D (PCX-1000D) R/B

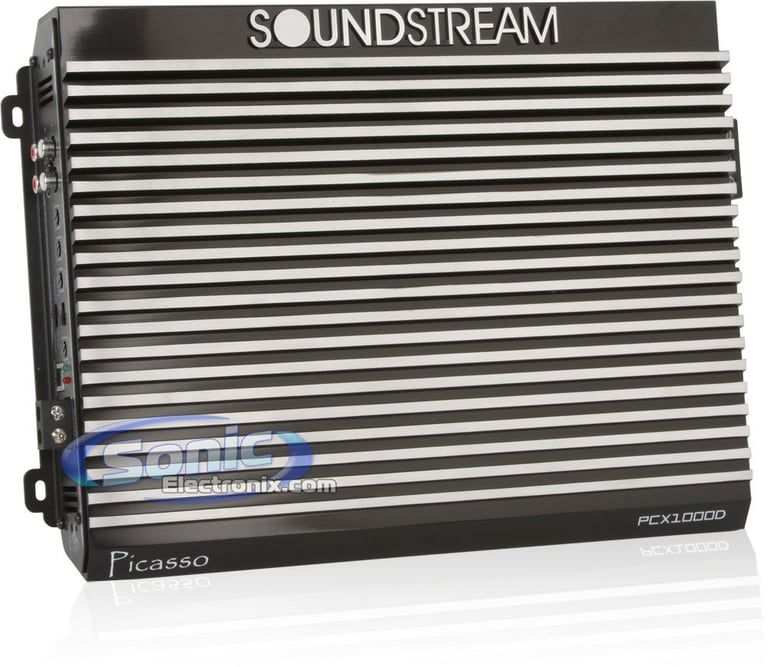

Soundstream PCX1000D (PCX-1000D) R/B Image 3 — Soundstream PCX1000D (PCX-1000D) R/B

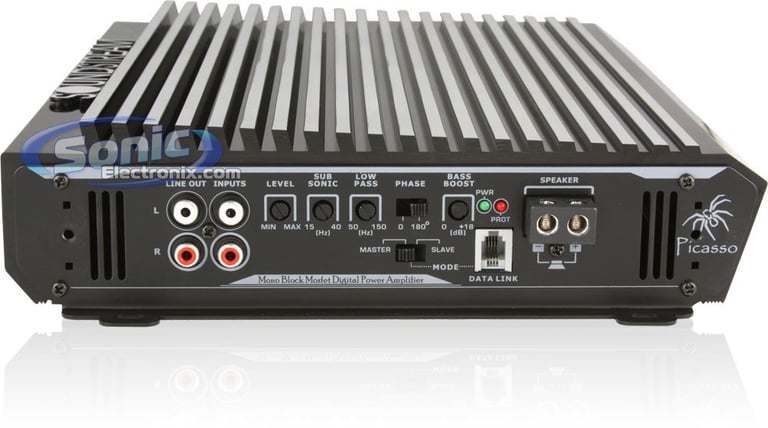

Soundstream PCX1000D (PCX-1000D) R/B Image 4 — Soundstream PCX1000D (PCX-1000D) R/B

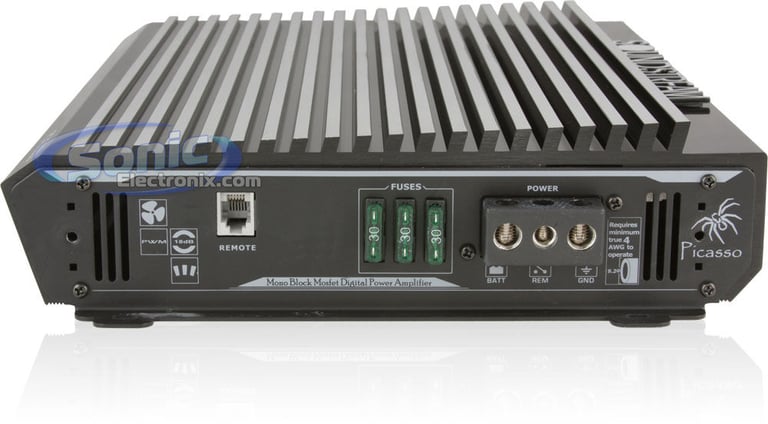

Soundstream PCX1000D (PCX-1000D) R/B Image 5 — Soundstream PCX1000D (PCX-1000D) R/B

Soundstream PCX1000D (PCX-1000D) R/B Image 6 — Soundstream PCX1000D (PCX-1000D) R/B

Soundstream PCX1000D (PCX-1000D) R/B Image 7 — Soundstream PCX1000D (PCX-1000D) R/B

Soundstream PCX1000D (PCX-1000D) R/B Image 8 — Soundstream PCX1000D (PCX-1000D) R/B

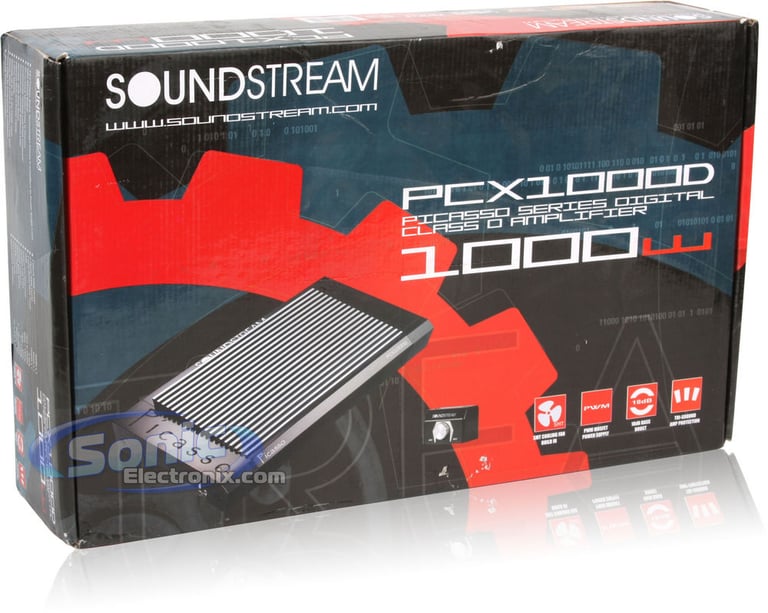

Soundstream PCX1000D (PCX-1000D) R/B Image 9 — Soundstream PCX1000D (PCX-1000D) R/B

Soundstream PCX1000D (PCX-1000D) R/B-video

Product videos

Product highlights

Picasso Series Single-Channel Class D Car Amplifier • 500W x 1 Chan. @ 4 ohm • 800W x 1 Chan. @ 2 ohm • 1000W x 1 Chan. @ 1 ohm • MOSFET power supply • Amp Stacking Technology • Platinum Connections

Learn more about the LS-pcx1000d-RB

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Picasso Series Single-Channel Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 500 watts x 1 chan.
- 2 ohm: 800 watts x 1 chan.
- 1 ohm: 1000 watts x 1 chan.
Total RMS power output: 1000 watts
MOSFET power supply

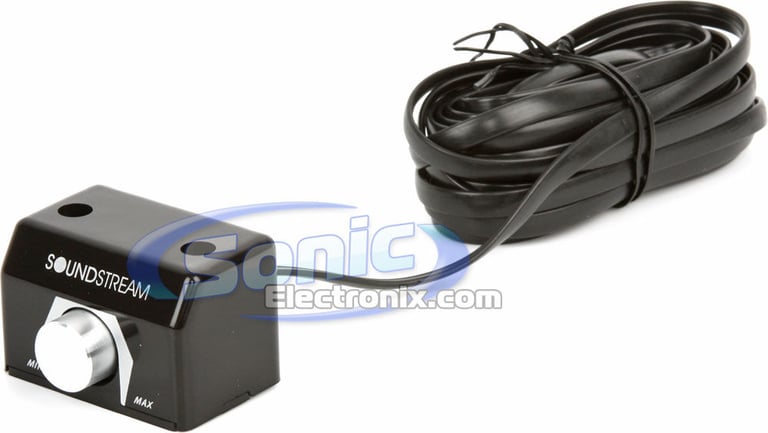

Wired remote bass level control included
Power and protection LED indicators
Tuned Bass EQ (0-12 dB bass boost at 50 Hz)
FTSTTM (Twin Stacking Technology) enables 2 separate amplifiers to be joined together to power single load
Single-channel operation
1 Pair of preamp RCA outputs
Advanced FR4 Circuit Board
Glossy black hairline anodized aluminum alloy heatsink for excellent heat dissipation
Platinum RCA level inputs
Platinum screw terminals
Variable high-pass filter (50-150 Hz, 24 dB/octave)
Subsonic Filter (15-40 Hz at 24 dB)
Frequency response: 10-35,000 Hz
Dimensions: 17"L x 10"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
Item Condition: Factory Refurbished
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

800 watts x 1 channel

RMS Power @ 1 ohm

1000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.50%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Signal-to-Noise Ratio

85 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
