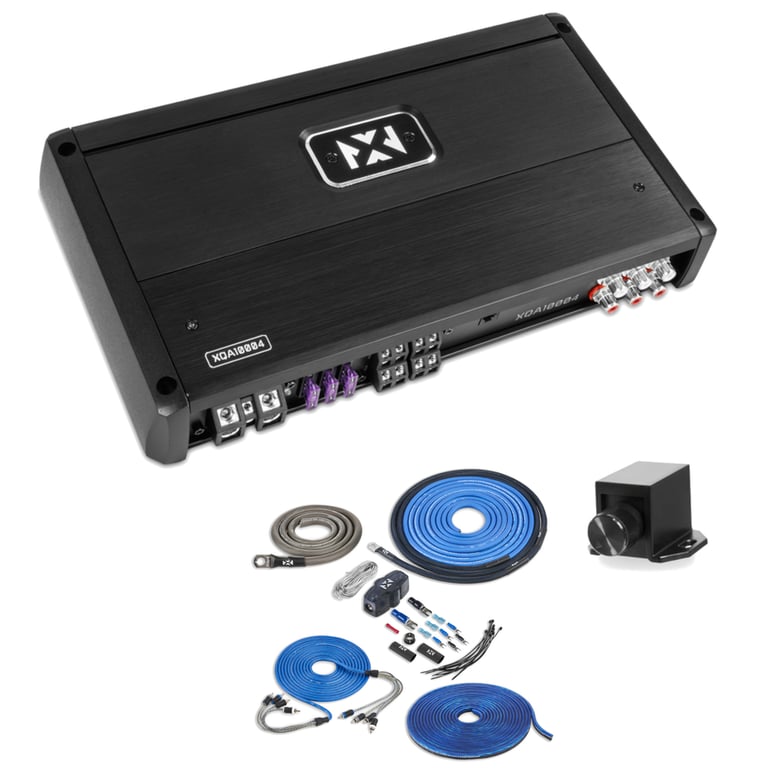

NVX XQA10004 with NVX 4 Gauge Amp Kit

1000W RMS XQ-Series SQ Hi-Res Class D 4-Channel Amplifier with X-Boost

NVX
Shop all NVX
highlight-star-icon

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel-Channel Amplifier
• Includes Amplifier Wiring Kit

Learn more about the xqa10004_xkit44

We apologize

This item has been discontinued


Loading...
LEX4VT2 main

GROM Audio LEX4VT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2004-2007 vehicles from Lexus, Toyota

$549.95

List price $559.95

Description


NVX brand icon

Authorized dealer

High-Res Class D Full-Range 4-Channel Amplifier
Top Mount Controls Audiophile Grade Components X-Boost Circuitry
High-Speed Mosfet Power Supply

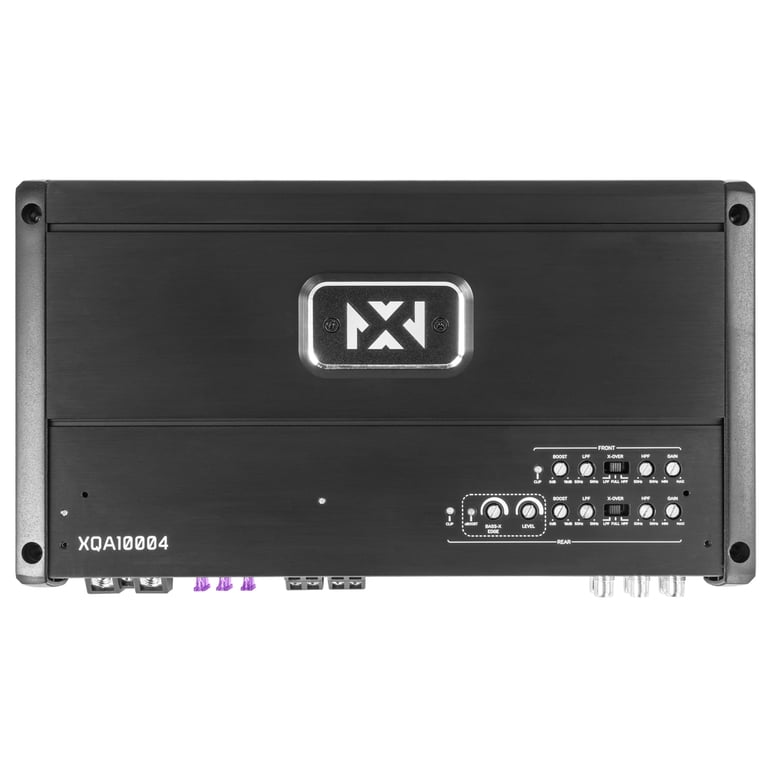

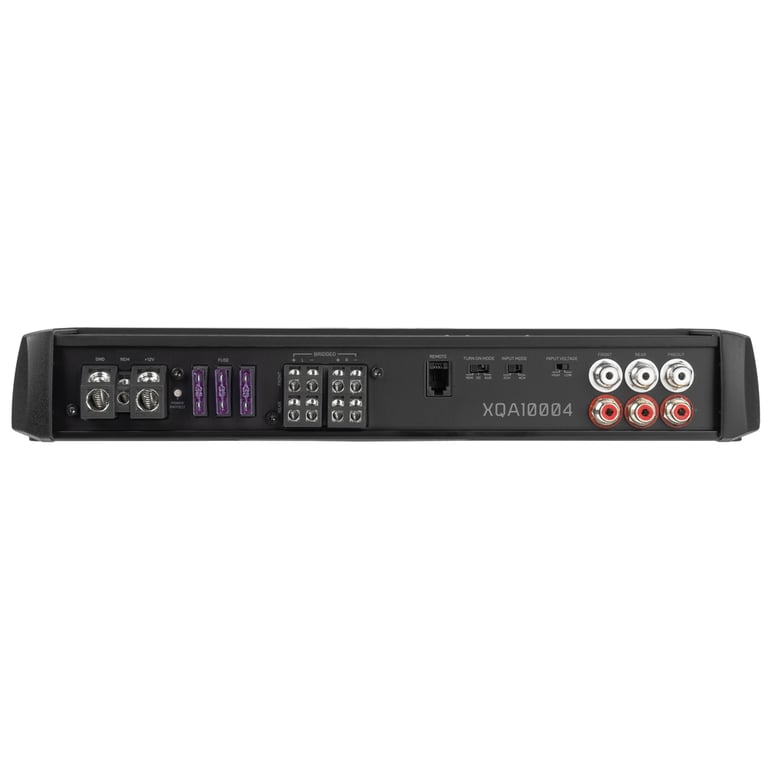

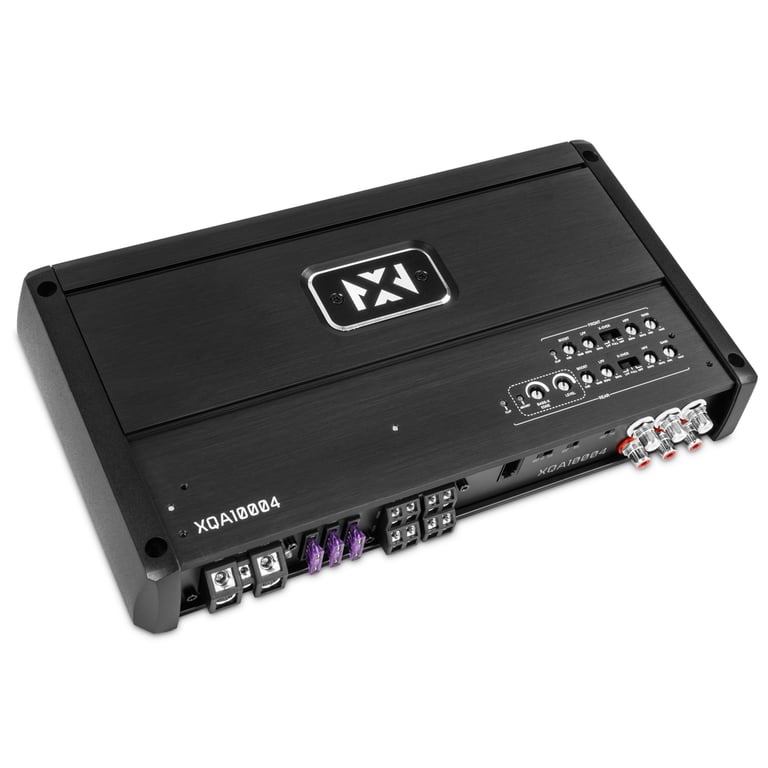

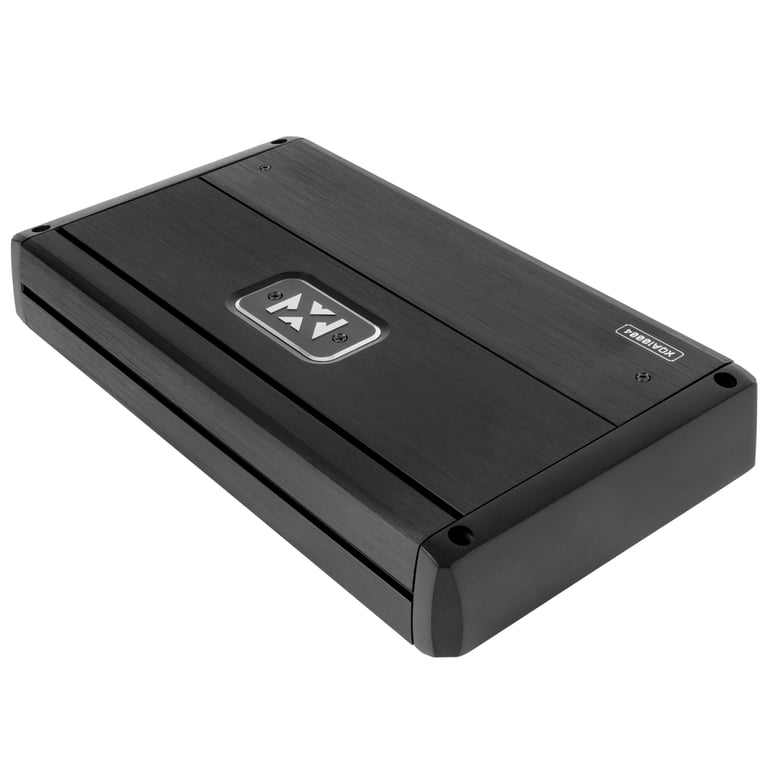

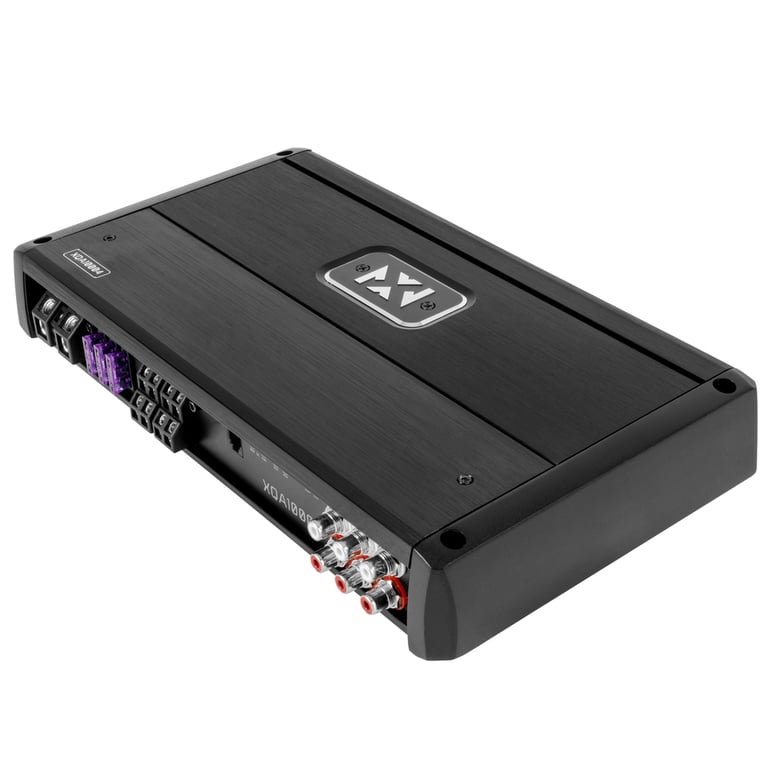

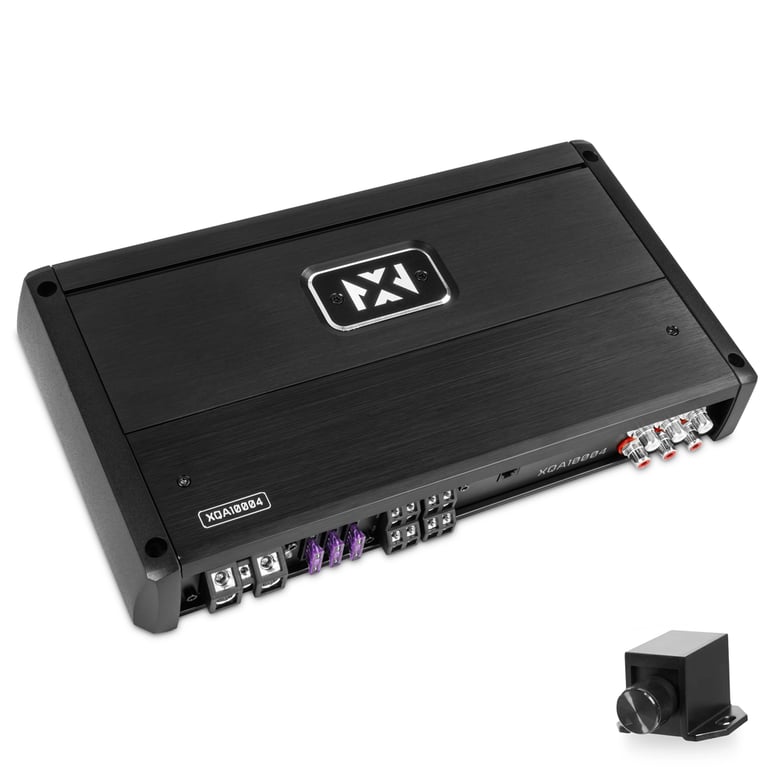

NVX XQA10004

1000W RMS XQ-Series SQ Hi-Res Class D 4-Channel Amplifier with X-Boost
Quantity: 1

Product Details:

  • XQ Series SQ Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 channel
    • 2 ohm: 250 watts x 4 channel
    • Bridged: 500 watts x 2 channel @ 4 ohm
  • Hi-Res Capable
  • Total RMS power output: 1000 watts
  • LED Indicators: Power, Protect, Clip, and X-Boost lights

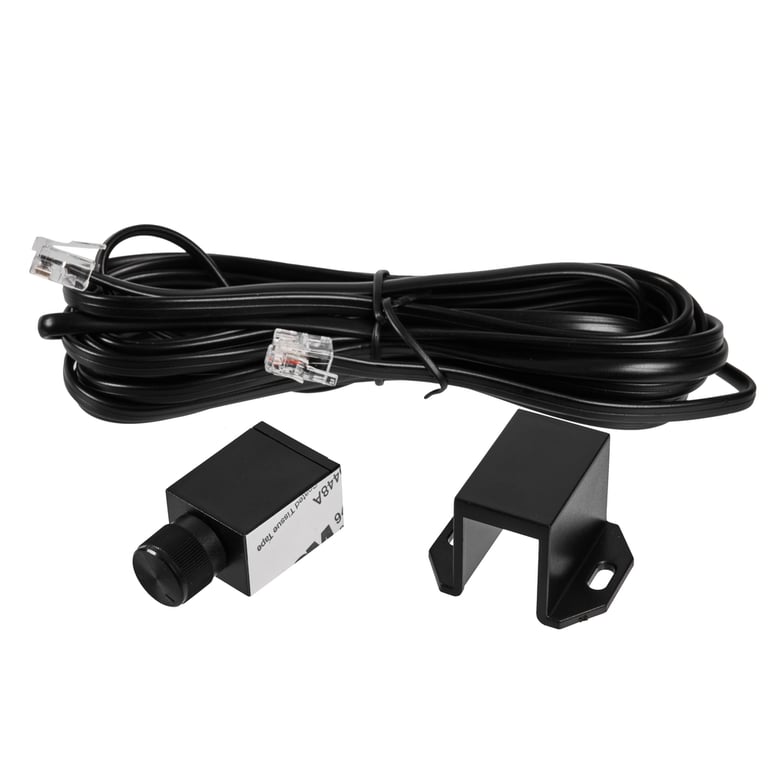

  • Includes a Wired Bass Level Remote Control
  • Speaker-Level (High-Level) Inputs (Requires adapter like the Kicker KISL)
  • Tiffany-Style RCA Pre-Amp Inputs and Outputs
  • Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
  • 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
  • X-Boost Circuitry: Enhances bass response and compensates for bass roll-off (Rear Channels)
  • Maximum Input Level Control: Features LED optimization and clip indicators
  • Input sensitivity: 0.2 - 10 volts
  • Frequency Response: 10 - 40000 Hz
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ratio: >96 dB
  • Variable high-pass filter: 50 - 5000 Hz, 24 dB/octave (Metal Shaft with 41 Click Positions)
  • Variable low-pass filter: 50 - 5000 Hz, 24 dB/octave (Metal Shaft with 41 Click Positions)
  • Variable Bass Boost: 0 - 18 dB @ 45 Hz
  • Fuse Rating: 120A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 12.37" L x 6.85" W x 1.89" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: XQA10004

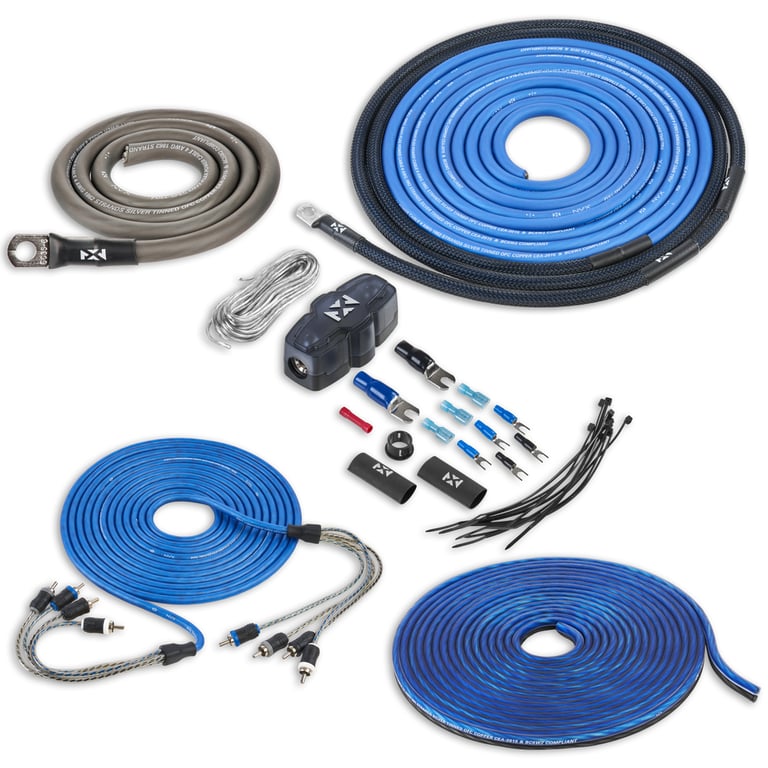

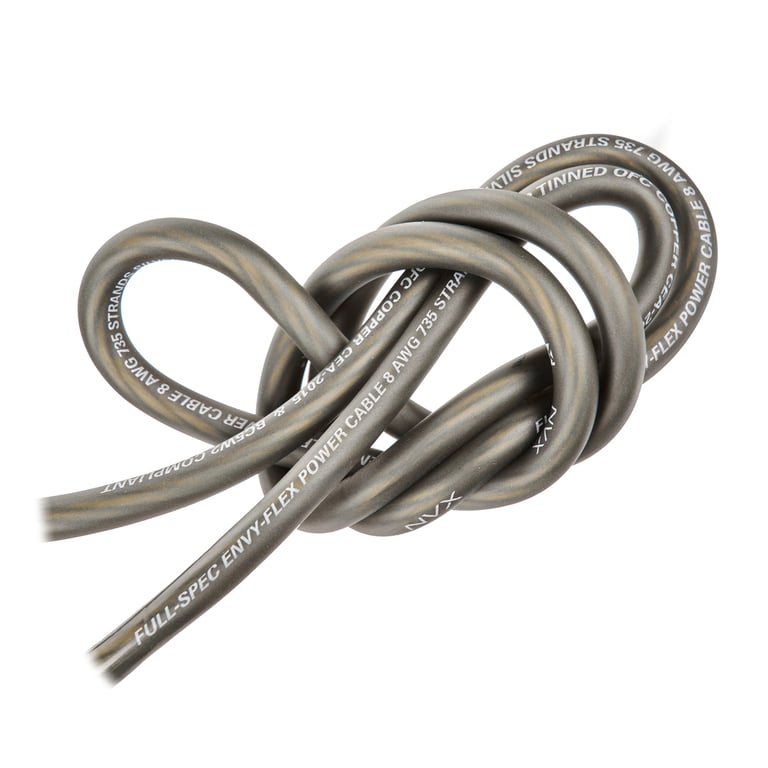

NVX XKIT44

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-15.39%

$109.99

List price $129.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

Limited time!
P1V2-675 main

Rockford Fosgate Punch P1V2-675

300W Peak (150W RMS) 6.75" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.00%

$179.99

List price $239.99

H672 main

Cerwin-Vega H672

540W Peak (180W RMS) 6.75" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$159.99

List price $191.99

DMDX675 main

Diamond Audio DMDX675

300W Peak (100W RMS) 6.75" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

CK 165 main

Hertz CK 165

570W Peak (190W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

1
-16.67%

$399.99

List price $480.00

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(255)

$486.93

List price $677.43

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

46CS65_46CS69_VA4_XK84_SK small

Pair Kicker 6.5" and 6x9" Speakers + NVX Amp w/ Free Amp Install Kit

  • Kicker CSC65 600W Peak 6.5-inch 2-Way Coaxial 4-Ohm Speakers
  • CSC693 900W Peak 6x9-inch 3-Way Coaxial 4-Ohm Speakers with Integrated Midrange
  • NVX VADM4 v2 500W RMS Micro Full-Range Class D 4-Channel Amplifier
  • XKIT84 Full Spec 8 Gauge 100% OFC Complete 4-Channel Wiring Kit with RCA
  • Sonic Electronix Premium Polyurethane Foam Can Insulator Sleeve Koozie

(243)

$401.94

List price $637.94

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(244)

$311.43

List price $533.42

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Compact Design
Hi-Res Audio Certified
Speaker Level Inputs
Weather-Resistant
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
250 watts x 4 channel
Bridged RMS Power
500 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 40000 Hz
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 5000 Hz
Low-Pass Crossover Frequency
50 - 5000 Hz
Signal-to-Noise Ratio
>96 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
Total Fuse Rating
120
Sonic Certified Amplifier
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
Yes
Low-Level Input Sensitivity
0.2 - 10 volts
High-Level Input Sensitivity
0.2 - 10 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XQA10004_XKIT44

Weight:

18.90lbs

Internal SKU:

xqa10004_xkit44

Internal Product ID:

208499

Customer Ratings & Reviews

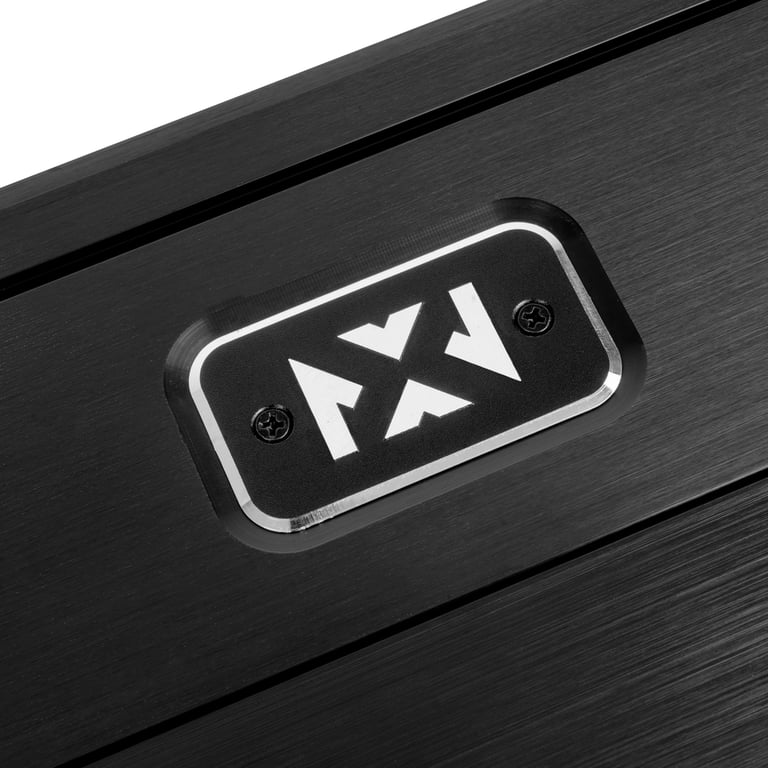

NVX XQA10004 with NVX 4 Gauge Amp Kit thumbnail image

5 star
90%
4 star
8%
3 star
1%
2 star
0%
1 star
1%



Durability
4.8
Value
4.8
Features
4.8
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Good value

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit is true 4 gauge copper wire. Worked great for what I needed it for. Not much else to say besides it is also very flexible!

By Adam on March 14, 2014

121 found this helpful


Honda civic 2010 lx big 3

The following review is for XKIT44, which is a part of the bundle you are viewing.

This big 3 is a very nice setup and I haven't installed it just yet. Great quality wire and you can never go wrong with this product. The price is ok just a little over my budget lol

By Brandon on June 5, 2014

115 found this helpful


Honda civic 2010 lx big 3

The following review is for XKIT44, which is a part of the bundle you are viewing.

This big 3 is a very nice setup and I haven't installed it just yet. Great quality wire and you can never go wrong with this product. The price is ok just a little over my budget lol

By Brandon on June 5, 2014

108 found this helpful


Best kit money can buy

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit includes everything I needed for my 4-channel JL Audio amp. I love it. The look of the fuse holder is awesome and the braided cable protector is great under the hood too. The RCAs worked like a charm and I had plenty of speaker wire included. No complaints.

By Hamid on August 16, 2012

109 found this helpful


great

The following review is for XKIT44, which is a part of the bundle you are viewing.

Have not installed yet but it seems to be everything it claims to be. Did recomend itnto a friend but he didn't listen and spent way to much for a kitat a local best buy. Did a lot of research before I bought this kit and it looked like the best value for my hard earned money. Having not yet installed is why I didn't go all five stars. Soon it will be going into my 89 olds custom cruiser with 4 12s....

By Tyler on August 24, 2014

110 found this helpful


Great Amp Kit

The following review is for XKIT44, which is a part of the bundle you are viewing.

This is a high quality 4g amp kit for a great price .... nice 100 amp fuse box

By Kyle on June 13, 2014

108 found this helpful


Awesome kit!!!

The following review is for XKIT44, which is a part of the bundle you are viewing.

This wiring kit is the best I've used so far. It bends very easy in tight places and this is the size wire that I actually paid for. Don't waste $ on cheaper brands...NVX is AWESOME!!!

By jeremy on September 1, 2014

104 found this helpful


Great Complete Package

The following review is for XKIT44, which is a part of the bundle you are viewing.

I replaced all speaker wiring in my car with this kit. The quality of all the wires is very good. NVX is nice quality!

By detekk on June 29, 2013

105 found this helpful


great product

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit is very good and great quality. I would recommend this product for basic and some advanced systems.

By Brandon on December 30, 2014

108 found this helpful


Top of the line kit at decent price

The following review is for XKIT44, which is a part of the bundle you are viewing.

This kit has everything and is as good as you can buy. Better than jl, Rockford, stinger, and kicker. At a price less than or equal to those mentioned. True spec, silver tinned ofc

By Donnie on March 30, 2013

102 found this helpful



KFC-C1739ie_SSSK small

Kenwood KFC-C1739ie + Sound Dampening

6-3/4 / 7" 3-way Image Enhancer Series Speakers w/ Included Sound Dampening

(12)

$61.06

List price $107.98

No picture

Kenwood XR-1800P (Open Box, Complete)

7" 2-Way eXcelon XR-Series Component Car Speakers

$179.99

List price $399.99

08KS25 small

Kicker 08KS25

KS25 - 25mm (1-inch) KS Series Aluminum Dome Tweeters

(11)

$87.45

List price $169.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Lexus LX470

2014 Lexus IS-F

2020 Kia Rio

1978 Buick Century

1979 Buick Opel

2005 Mazda B Series

2018 BMW 2 Series

1989 Jeep Comanche

2007 Suzuki XL-7

2010 Dodge Avenger

Vehicle
Store
Delete

2008 Harley Davidson FXSTC Softail Custom

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
