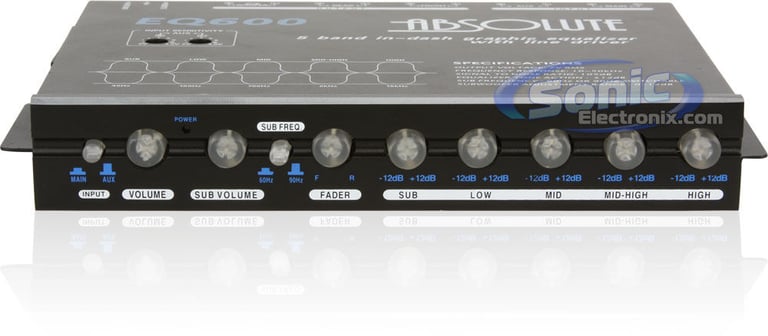

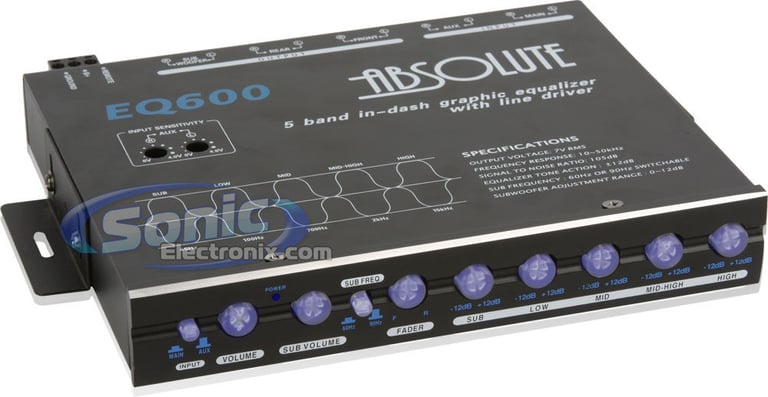

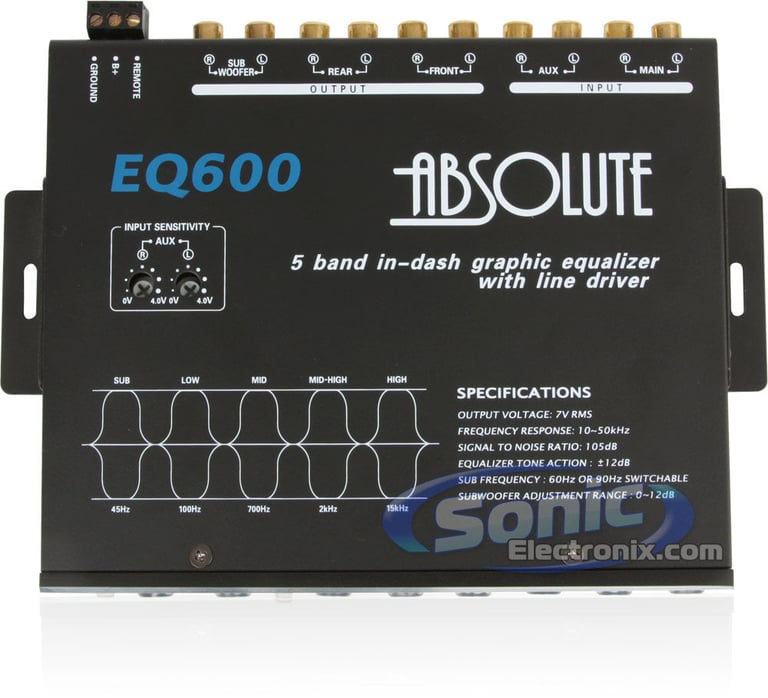

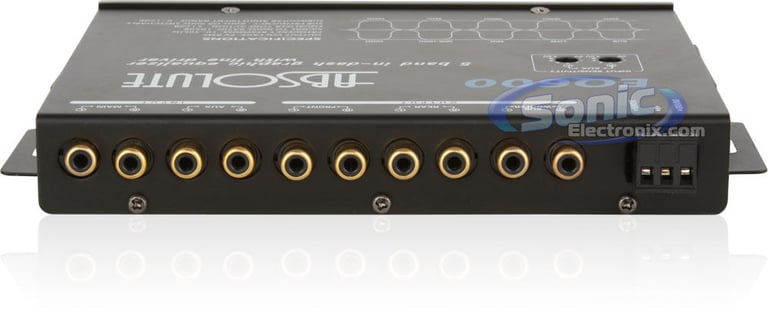

Absolute EQ600

5 Band In-Dash Graphic Equalizer with Line Driver

Absolute
Shop all Absolute
Product videos
highlight-star-icon

5 Band In-Dash Graphic Equalizer with Line Driver • Equalization Boost/Cut • 105 dB S/N Ratio • Frequency Response: 10-50,000 Hz • half DIN • 7 Volt Line Driver

Learn more about the abs-eq600

We apologize

This item has been discontinued


Loading...
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Product Highlights


5 Band In-Dash Graphic Equalizer with Line Driver • Equalization Boost/Cut • 105 dB S/N Ratio • Frequency Response: 10-50,000 Hz • half DIN • 7 Volt Line Driver

Description


Absolute brand icon

Authorized dealer

  • 5 Band In-Dash Graphic Equalizer with Line Driver
  • Equalizer center frequencies: 45, 100, 700, 2000, and 15000 Hz
  • Equalization boost/cut: +/- 12 dB
  • Signal to noise ratio: 105 dB
  • Frequency response: 10-50,000 Hz
  • Maximum output voltage: 7 Volts RMS
  • THD: 0.5%
  • Input sensitivity: 50mV - 3V
  • Head room: 20 dB
  • Input impedance: 10,000 ohm
  • Output impedance: 50,000 ohm
  • Stereo separation: 82 dB
  • Operating voltage: 11-15V
  • Requires a negative ground connection
  • Fits a half DIN slot
  • Dimensions: 6-1/4"D x 7-1/8"W x 1-1/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

HFEQ-2 small

Hifonics HFEQ-2

• 4 band-Band Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$59.99

List price $99.99

EQL7 small

Memphis EQL7

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 8 volts max preamp outputs
• Subwoofer frequency and level control

(1)

$99.99

List price $159.95

EQP850 small

Cerwin-Vega EQP850

• 5-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Nickel-plated RCA level inputs

$139.99

List price $139.99

EQ-4000BT v2 small

Earthquake Sound EQ-4000BT v2

• 4 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$179.99

List price $199.99

EQ-770 small

Cerwin-Vega EQ-770

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 7 volts max preamp outputs
• Subwoofer frequency and level control

(2)

$99.99

List price $115.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

EQX7 small

DS18 EQX7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$95.95

List price $95.95

Specifications & Details


Equalizer Specifications
Equalizer Bands
5 band
Equalizer Frequencies
45 - 15,000 Hz
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Built-in Bass Reconstruction
No
Line Driver
Yes
Signal Boost/Cut
12 dB
Max Output Level
7 volts
Frequency Response
10 - 50,000 Hz
THD (Total Harmonic Distortion)
0.05%
Signal-to-Noise Ratio
105 dB
Width
7-1/8"
Height
1-1/16"
Depth
6-1/4"
Warranty and Return Policy
Parts Warranty Duration
Not warranted
Labor Warranty Duration
Not warranted
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

EQ600

Weight:

3.00lbs

Internal SKU:

abs-eq600

Internal Product ID:

21086

Product and How-to Videos
