Focal Solid 1 Red

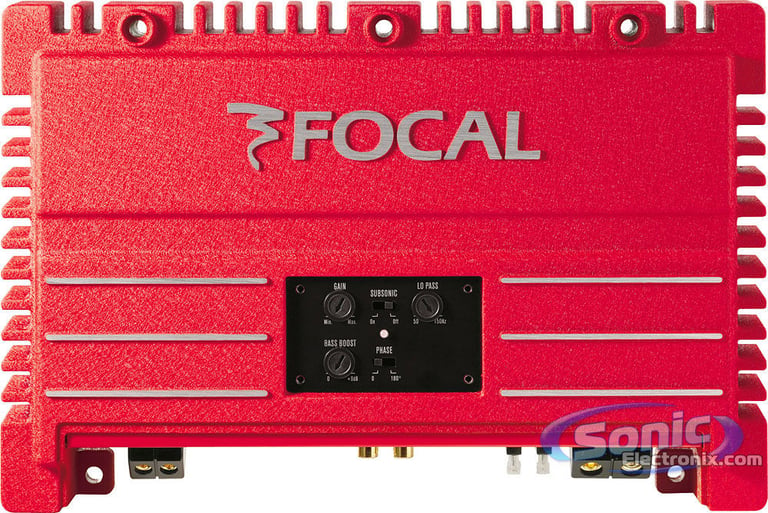

Focal Solid Series Class AB Single-Channel Monoblock Amplifier (Red)

Focal
Shop all Focal
Product videos
highlight-star-icon

Solid Series Monoblock Class A/B Car Amplifier • 470W x 1 Chan @ 2 Ohm • 300W x 2 Chan @ 2 Ohm • Variable Bass Boost • Speaker-Level Inputs • Bass Remote Level • Preamp RCA Outputs • 4-Way System Protection Circuitry

Learn more about the solid1red

We apologize

This item has been discontinued

Product Highlights


Solid Series Monoblock Class A/B Car Amplifier • 470W x 1 Chan @ 2 Ohm • 300W x 2 Chan @ 2 Ohm • Variable Bass Boost • Speaker-Level Inputs • Bass Remote Level • Preamp RCA Outputs • 4-Way System Protection Circuitry

Description


Focal brand icon

Authorized dealer

  • Solid Series Monoblock Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 470 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +9 dB bass boost at 50 Hz)
  • Soft Start Turn-on
  • Mono channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Bass remote level input and control included
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (polarity reversal, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-5V
    • High level: 400mV-9V
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Subsonic filter (24 dB at 35 Hz)
  • Phase Shift: 0-180°
  • Damping factor: 50-50 Hz @ 4 Ohm
  • CEA-2006 compliant amplifier
  • Frequency response: 10-150 Hz
  • Dimensions: 11-13/16"L x 7-7/8"W x 1-3/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Sonic Electronix warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
470 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total RMS Power Output
470 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
35 Hz
Signal-to-Noise Ratio
>85 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SOLID 1 RED

Weight:

10.00lbs

Internal SKU:

solid1red

Internal Product ID:

21584
