DS18 EXCL-JTBASS1.LDPKG

Loaded Quad 8" Sealed Enclosure and Amplifier Package for select 2020-2023 Gladiator

DS18
Shop all DS18
highlight-star-icon

• 8" Amplified Loaded Subwoofer System
• 1800 watts RMS
• Includes four DS18 ZR8.2D subwoofers
• Includes DS18 ZR2000.1D amplifier
• Variable bass boost
• 3/4" MDF construction with leather-carpet finish

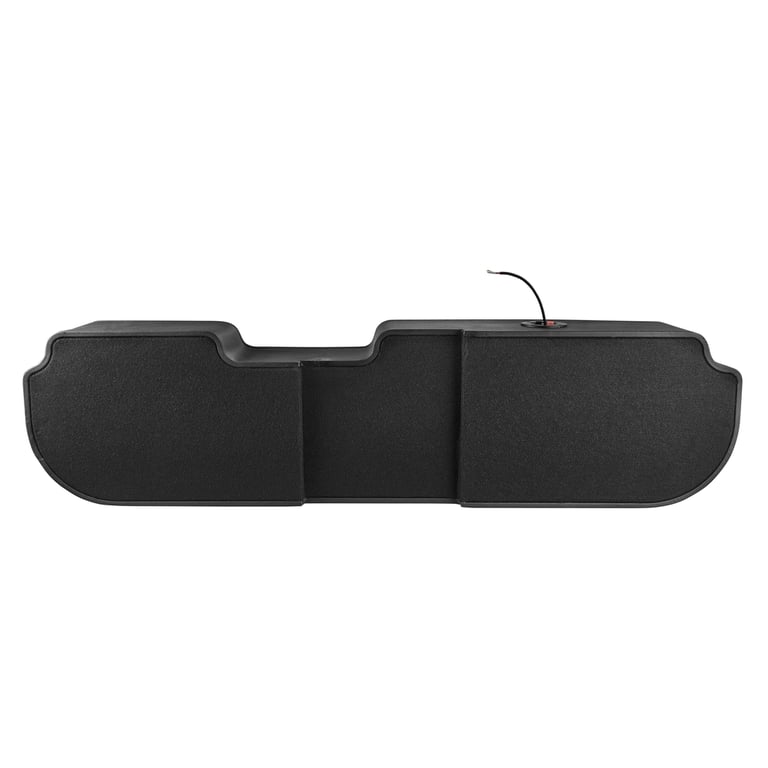

• Under seat enclosure design

See compatible vehicles Learn more about the excljtbass1ld

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

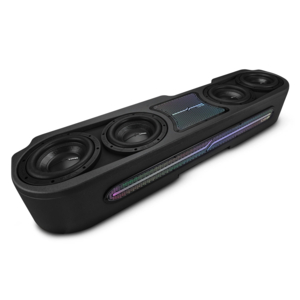

jts84ld thumbnail

DS18 JT-S84LD

OUR PRICE: $1249.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Description


DS18 brand icon

Authorized dealer


DS18 EXCL-JTBASS1.LDPKG

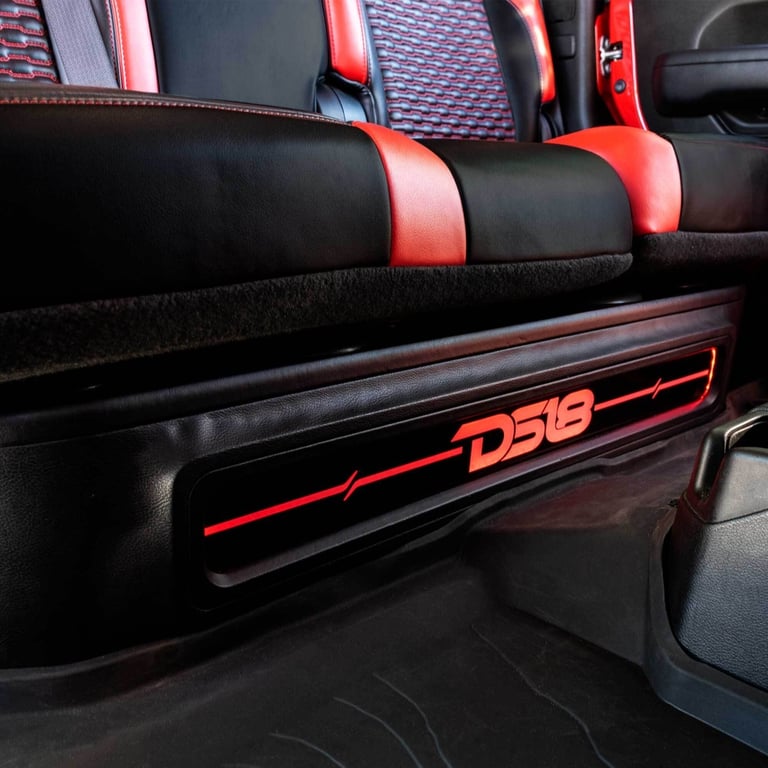

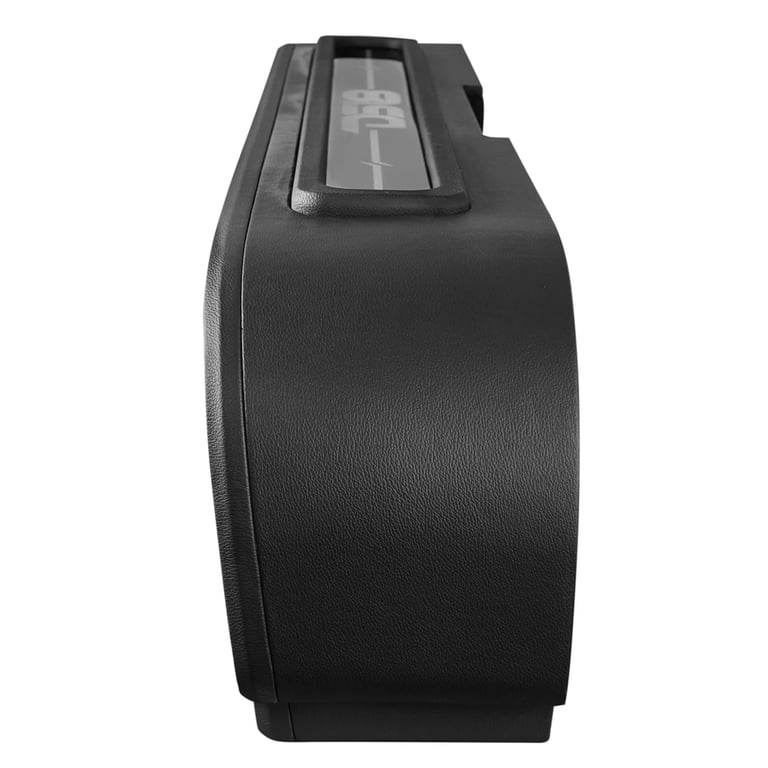

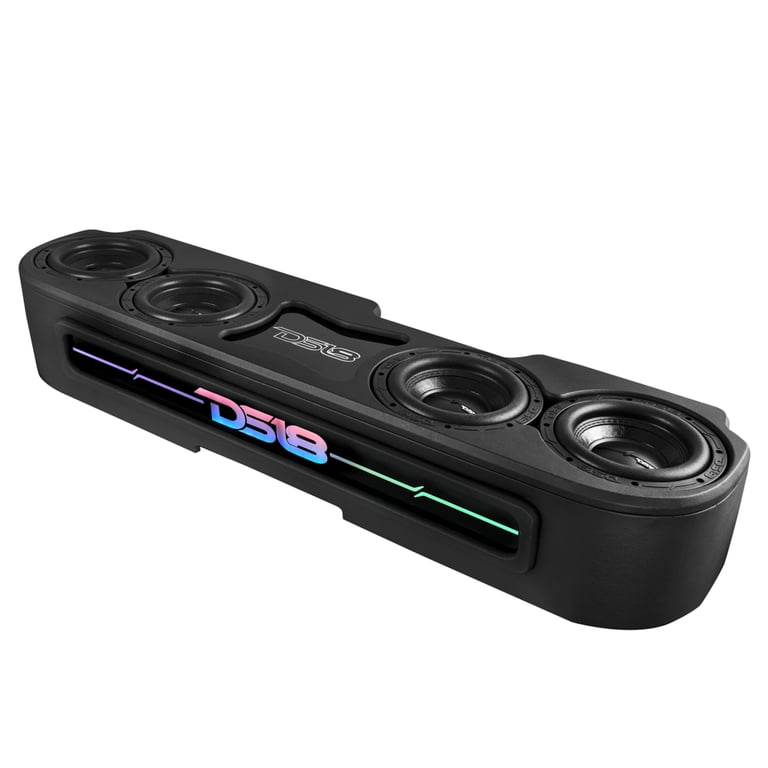

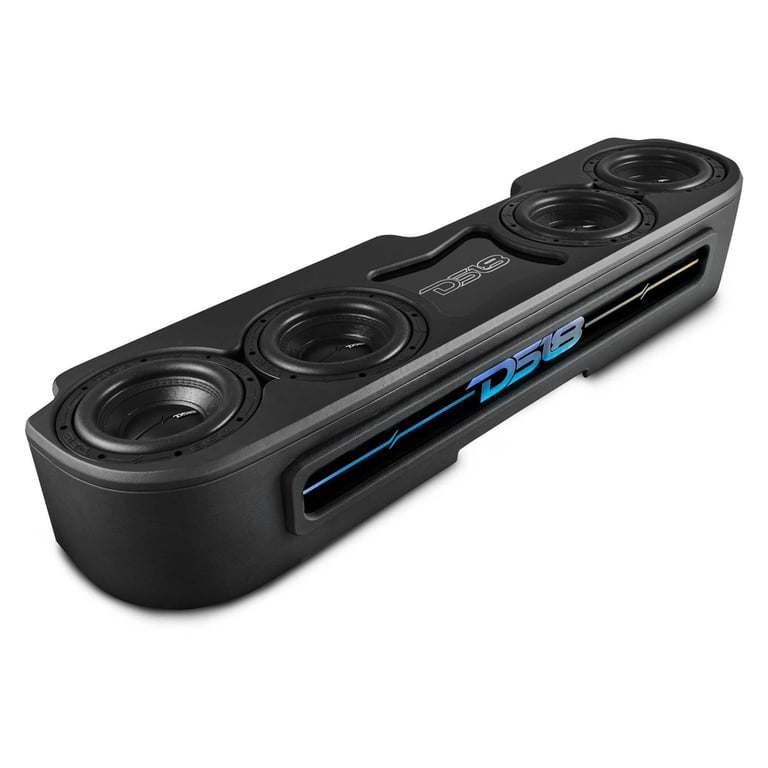

Take your Jeep Gladiator to elite sound pressure levels with DS18’s EXCL-JTBASS1.LDPKG. Designed for a perfect fit in Gladiators from 2020 onwards, this sealed quad 8" subwoofer enclosure delivers deep, thunderous bass without taking up extra space. Wrapped in a sleek combination of leather and carpeting, it blends perfectly with your interior for a polished, high-end look.

Equipped with four ZR8.2D subwoofers, this package is built for BOOM. With 450W RMS and 900W MAX per sub, these handpicked subs have a frequency response ranging from 33Hz to 200Hz and use a 2" high-strength aluminum voice coil for LOUD and clear bass that’ll shake the streets. Its 2+2 ohm dual voice coil configuration allows you to match your amplifier's optimal impedance, providing maximum power transfer and efficiency.

Upgrade your Gladiator with the exclusive JT Jeep package and experience the perfect blend of power, style, and sound.


General Features:

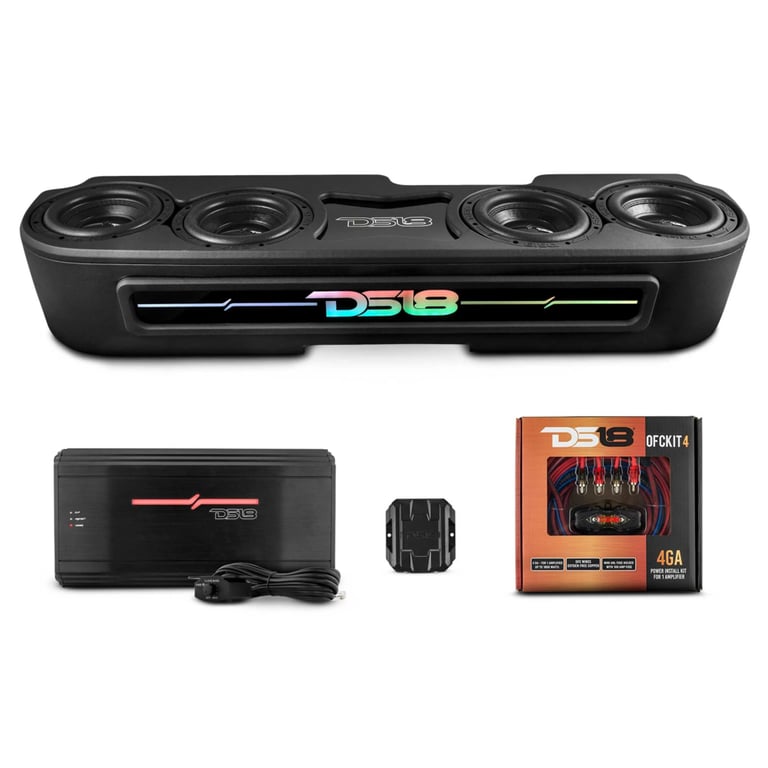

  • Quad 8" Sealed Loaded Subwoofer Enclosure and Amplifier Kit
  • Power Handling:
    • Peak: 3600 watts
    • RMS: 1800 watts
  • Includes four DS18 ZR8.2D subwoofers
  • 3/4" medium density fiberboard construction with leather-carpet finish
  • Under seat enclosure design

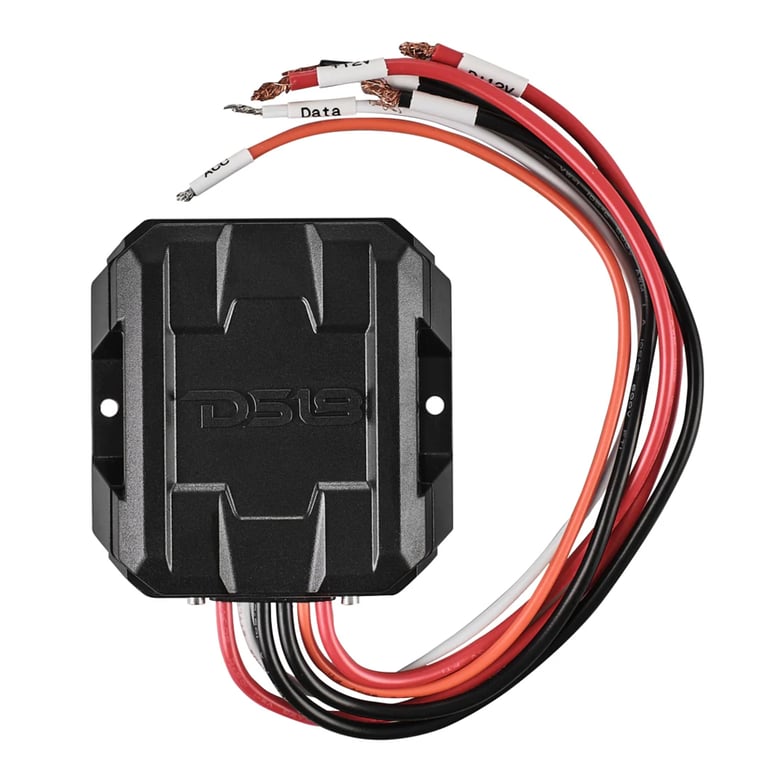

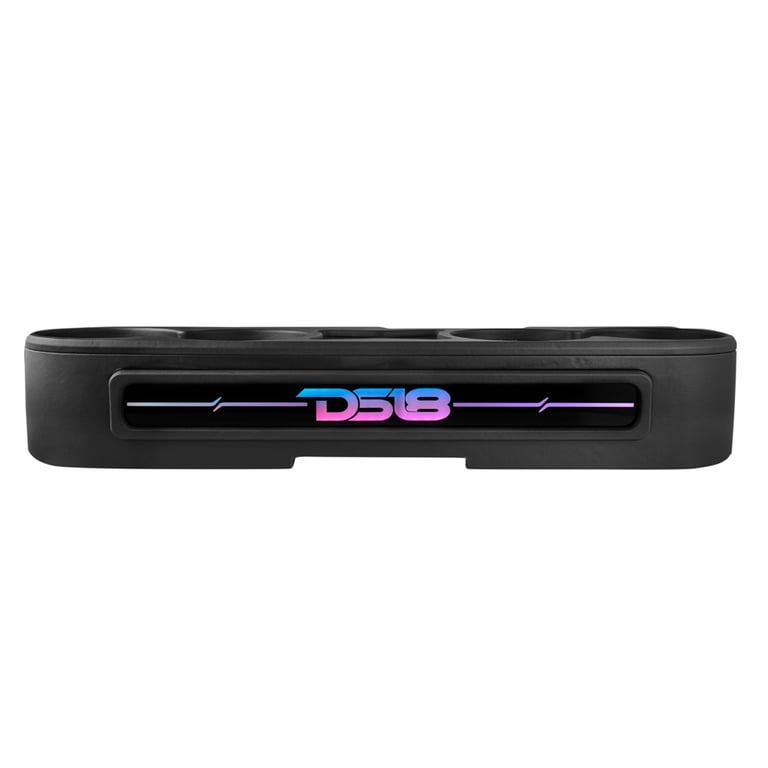

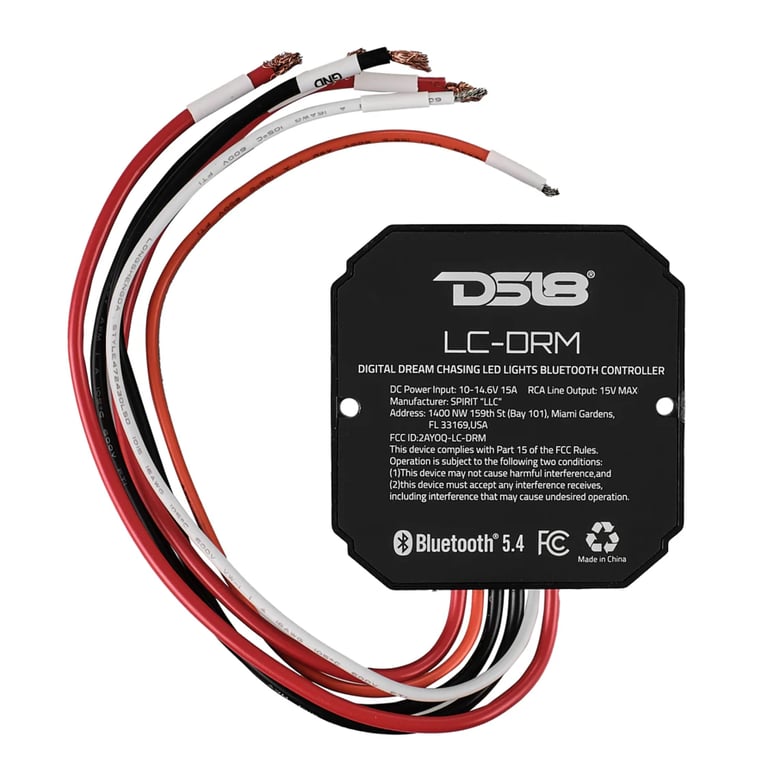

  • Digital LED lights with included LC-DRM controller included

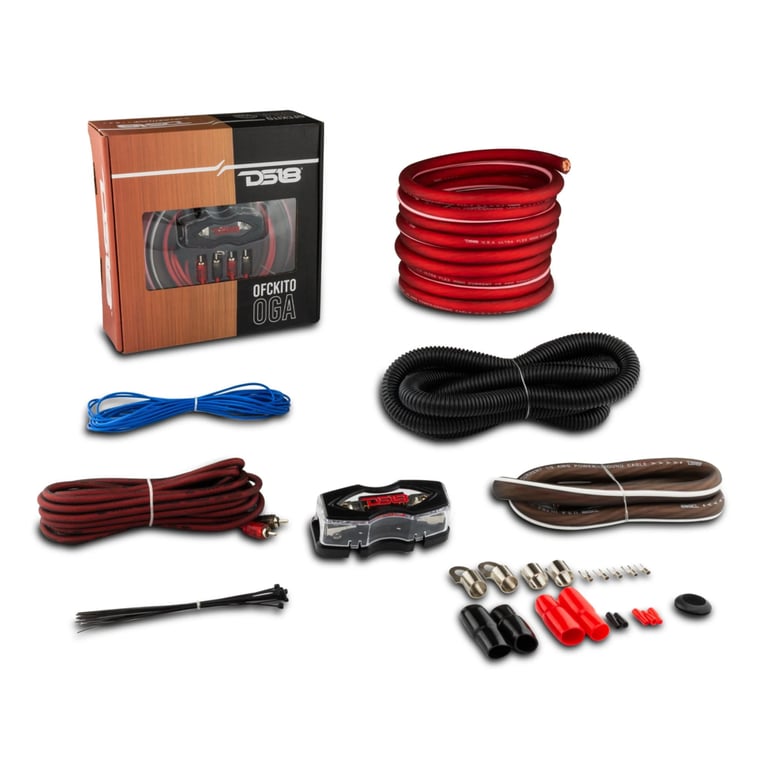

  • 1/0 gauge amplifier installation kit (OFCKIT0) included for installation
  • Compatible with select 2020-2023 Gladiator
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

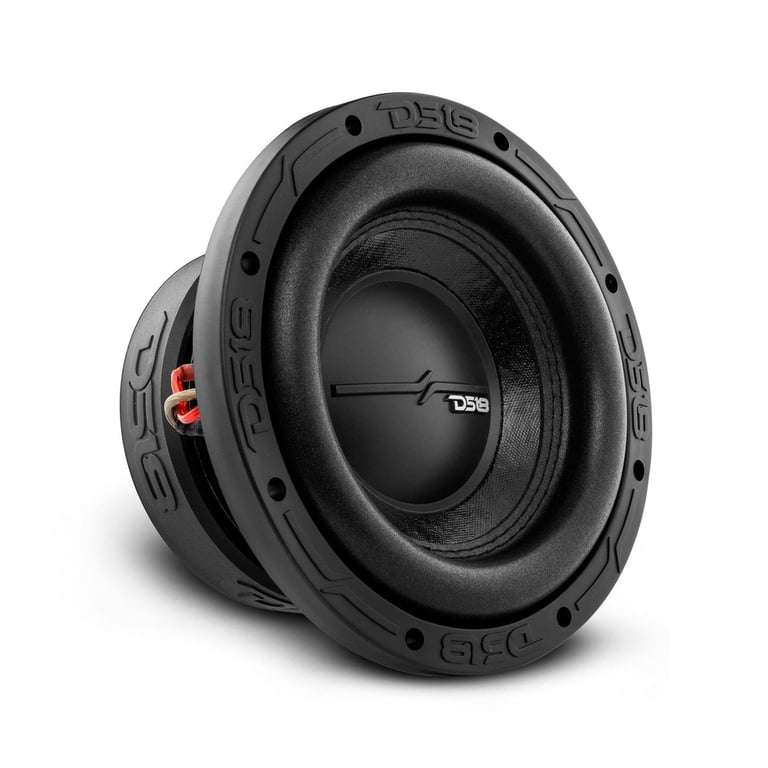

DS18 ZR8.2D 8" Dual 2-ohm Subwoofer

  • Power Handling:
    • Peak: 900 watts
    • RMS: 450 watts
  • Non-Pressed paper cone
  • Foam surround
  • 2" high temperature Aluminum voice coil
  • 18mm Xmax
  • 55 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 33 - 200 Hz
  • Resonance Frequency (Fs): 40 Hz
  • Sensitivity: 82 dB
  • MFR #: ZR8.2D

DS18 ZR2000.1D 4-Channel Amplifier Specifications

  • ZR Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 800 watts x 1 channel
    • 2 ohm: 1300 watts x 1 channel
    • 1 ohm: 2000 watts x 1 channel
  • Total RMS power output: 2000 watts
  • LED power and protect light
  • Wired bass level remote control included
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • Thermal, overload, and speaker short protection
  • Black Aluminum Brush Body Color Finish
  • Input sensitivity: 0.2 - 6 volts
  • Frequency Response: 10 - 220 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: 95 dB
  • Variable low-pass filter: 40 - 180 Hz
  • Subsonic filter: 0 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 200A
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • MFR #: ZR2000.1D

Enclosure Features:

  • 8" Sealed Enclosure
  • Final Impedance: 2-ohm
  • Box Finish: Black Leather and Carpet

Product history:

DS18 JT-S84LD thumbnail
(newest, current model)
DS18 EXCL-JTBASS1.LD thumbnail
(previous model, replaced by DS18 JT-S84LD)

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features


Best selling similar products

MBQJL-302 small

MB Quart MBQJL-302

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
• Includes one MB Quart NA2-400.1 amplifier
• Variable bass boost
• Speaker-level inputs
• Wired remote bass level control

$679.15

List price $829.99

51KGMDL7T122 small

Kicker KGMDL7T12 (51KGMDL7T122)

• Sealed enclosure with 2 12" Solo-Baric L7T Series Subwoofer
• Compatible with select 2008-2021 Silverado 1500 / 2500 HD / 3500 HD / 1500 LD and Sierra 1500 / 2500 HD / 3500 HD / 1500 Denali and Sierra Denali
• 1200 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 15-1/2" L x 7-7/16" H x 52" W

$949.99

List price $1049.99

UBE-GM-VETC6 small

NVX Empty BOOST Box - 2006-2013 Chevrolet Corvette - UBE-GM-VETC6

• Custom Fit Empty Single 10" BOOST Sealed Enclosure
• Compatible with select 2006-2013 Corvette
• Made with hand-laid fiberglass shell covered in Carpet
• Total box volume: .60 cubic feet

$249.99

List price $275.99

A152-10 small

Atrend A152-10

• 10" Dual Sealed Subwoofer Enclosure
• Built for select 1997-2007 vehicles from GMC, Chevrolet
• 3/4" Medium Density Fiberboard (MDF) construction
• Custom down-firing fit under rear driver side seat
• Premium, ultra-tough coat spray-liner finish
• Constructed using specially formulated aliphatic wood glue
• Total box volume: 2.44 cubic feet

(2)

$225.99

List price $319.99

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

51KRDL7T102 small

Kicker KRDL7T10 (51KRDL7T102)

• Ported enclosure with 2 10" Solo-Baric L7T Series Subwoofer
• select 2002-2024 vehicles from Ram, Dodge
• 1000 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 16-7/16" L x 7-9/16" H x 58-7/16" W

(1)

$849.99

List price $949.99

BE-TOY-PRIG3 small

NVX Loaded BOOST Box - 2010-2015 Toyota Prius - BE-TOY-PRIG3

• Custom-Fit Sealed BOOST enclosure with 1 10" S Series Subwoofer
• Fits select 2010-2015 Prius
• 350 watts RMS (700 watts Peak)
• Final Impedance: 2-ohm

(5)

$349.99

List price $437.99

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

A341-10CP small

Atrend A341-10CP

• 10" Single Sealed Subwoofer Enclosure
• 5/8" Medium Density Fiberboard (MDF) construction
• Total box volume: 0.8 cubic feet
• Compatible with select 2009-2020 vehicles from Ford

(2)

$99.95

List price $119.99

A181-12CPV small

Atrend A181-12CPV

• 12" Single Ported Subwoofer Enclosure
• 3/4" Medium Density Fiberboard (MDF) construction
• Total box volume: 0.83 cubic feet
• Compatible with select 2007-2021 Silverado 1500 / 2500 HD / 3500 HD / 1500 HD / 1500 LD and Sierra 3500 HD / 2500 HD / 1500 / 1500 Denali / 1500 HD and Sierra Denali

(1)

$129.95

List price $164.99

Specifications & Details


Subwoofer Specifications
Series
ZR Series
Subwoofer Size
8"
Subwoofer Design
Round / Circle
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
450 watts
Total RMS Power Handling
1800 watts
Peak Power Handling
900 watts
Total Peak Power Handling
3600 watts
Woofer Surround
Foam
Woofer Composition
Non-Pressed Paper
Sensitivity
82 dB
Frequency Response
33 - 200 Hz
Magnet Type
Ferrite
Xmax (millimeters)
18 mm
Enclosure Specifications
Final Wired Impedance
2-ohm
Number of Subwoofers
4
Box Style/Shape
Underseat
Wood Thickness
3/4"

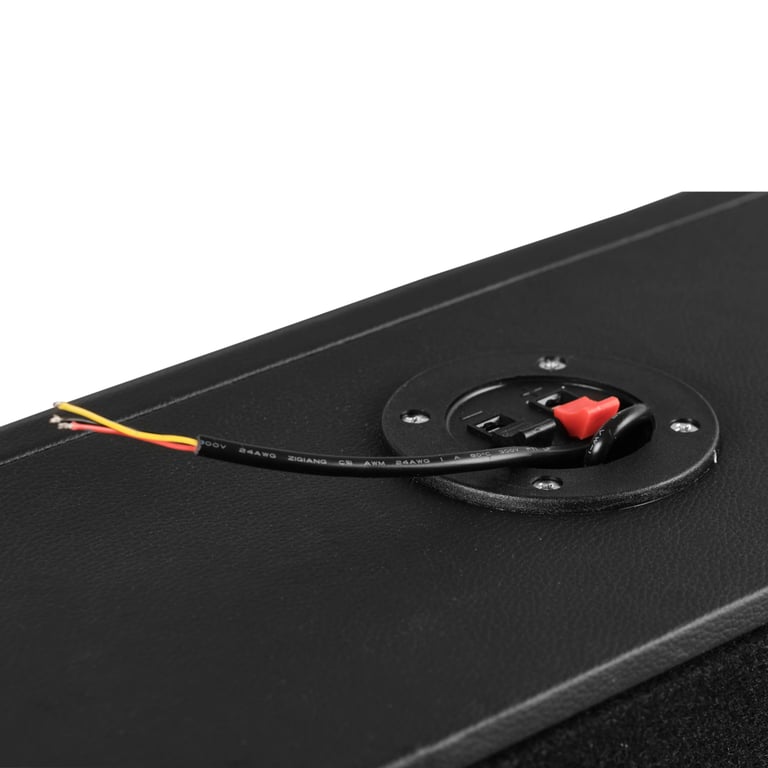

Number of Terminals
1
Terminal Type
Spring clips
Box Exterior Color
Black
Box Finish
Leather and Carpet
Box Type
Sealed
Subwoofer Amplifier Power Specifications
RMS Power @ 1 ohm
2000 watts x 1 channel
RMS Power @ 2 ohms
1300 watts x 1 channel
RMS Power @ 4 ohms
800 watts x 1 channel
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EXCL-JTBASS1.LD

Weight:

100.00lbs

Internal SKU:

excljtbass1ld

Internal Product ID:

216186
