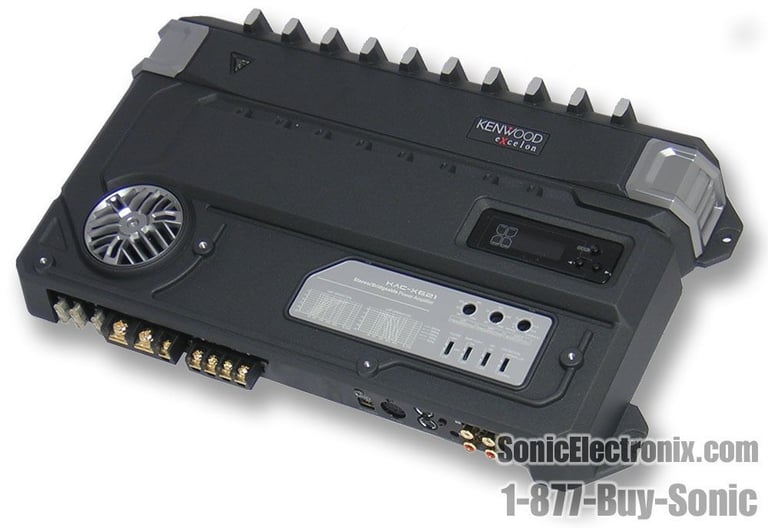

Kenwood eXcelon KAC-X621

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

2-Channel Amplifier • 1200 watts and CEA-2006 Compliant • 2-Ohm Stereo Stable • Built-in Infrasonic Filter • 3 (2-speed) fans • MOSFET power supply • Large secondary capacitors

Learn more about the kacx621

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

Product Highlights


2-Channel Amplifier • 1200 watts and CEA-2006 Compliant • 2-Ohm Stereo Stable • Built-in Infrasonic Filter • 3 (2-speed) fans • MOSFET power supply • Large secondary capacitors

Description


Kenwood brand icon

Authorized dealer

  • 2 Ohm Stereo Stable / 4 Ohm Mono (Bridged) Stable
  • LCD Display of Voltage, Current, Temperature, Cooling Fan Speed, and A.M.S. Adjustment Values
  • 3 Cooling Fans (2-Speed)
  • A.M.S. (Amplifier Management System) -- with compatible eXcelon head unit
    • 5-Line Input for A.M.S. Control
    • A.M.S. In-Dash Receiver Interface
    • S-Video Input and Output for Amp to Amp controls
  • Quiet Turn-On ("Soft Turn-On")
  • Gold-Plated RCA Audio Inputs and Outputs
  • Gold-Plated, Large Screw-Type Speaker Connectors & Power Input Terminals
  • Balanced Isolation Circuit
  • Selectable Infrasonic Filter
  • Speaker Relay Protection
  • Stereo, Mono, or Tri-Mode operation
  • CEA-2006 Compliant (Industry Standard)
  • Variable High-Pass Crossover: 50 -200Hz
  • Variable Low-Pass Crossover: 50 - 200Hz
  • Bass Equalizer Features:
    • Bass EQ Frequency Control: 60Hz / 80Hz / 100Hz / 200Hz
    • Bass EQ Level Control: -15dB - +15dB
    • Bass Extension
    • Bass Q Factor Control: 1.0 - 2.0
  • Treble Equalizer Features:
    • Treble EQ Frequency Control: 10kHz / 12.5kHz / 15kHz / 17.5kHz
    • Treble EQ Level Control: -15dB - +15dB
  • Copper-Shielded EE Core Transformer
  • Large Secondary Capacitors
  • Large Toroidal Noise Suppression Filter
  • Microprocessor-Controlled Operation
  • MOSFET Switching Power Supply
  • Power Supply Primary Stage Buss Bars
  • Dimensions: 17-5/8" x 2-3/8" x 10-3/8"

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
179 watts x 2 channel
RMS Power @ 2 ohms
305 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
612 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
612 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1.0%
Speaker Level Inputs
No
Preamp Outputs
Yes - 1 Pair & S-Video AMS Output
Signal-to-Noise Ratio
83 dB
Bass Boost
-15 -- +15 dB
Fuse Rating
25A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KAC-X621

Weight:

16.00lbs

Internal SKU:

kacx621

Internal Product ID:

2178
