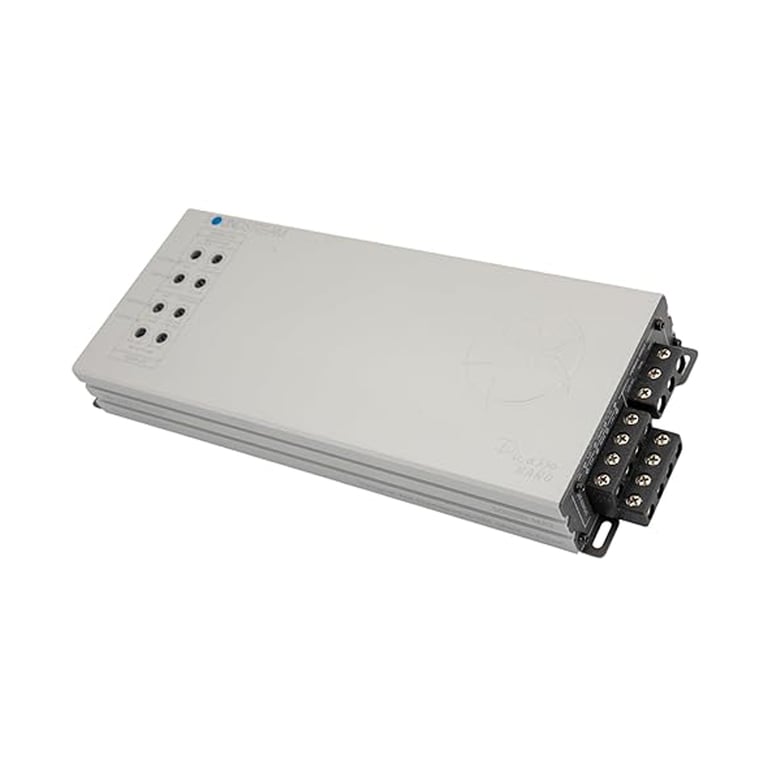

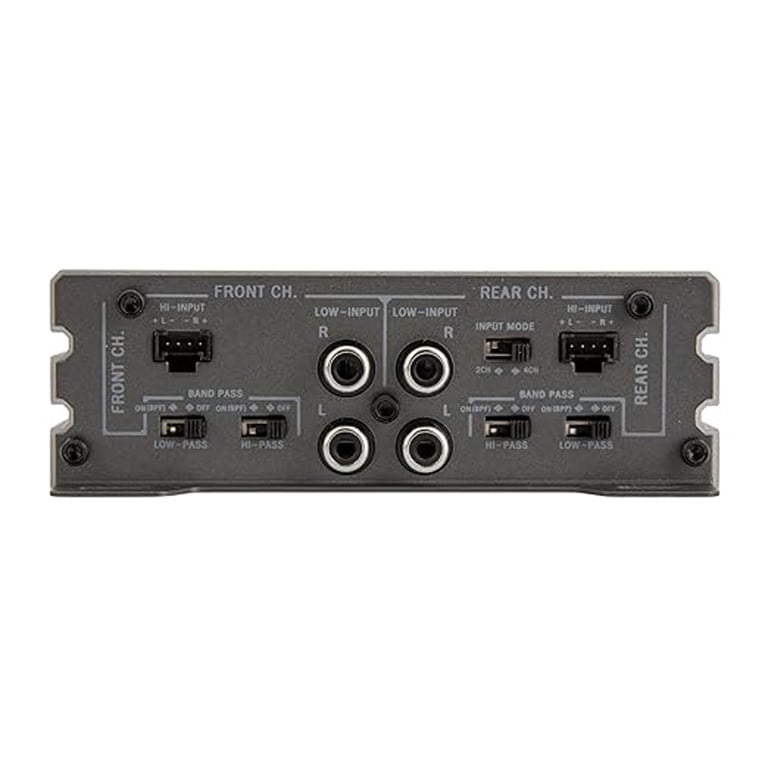

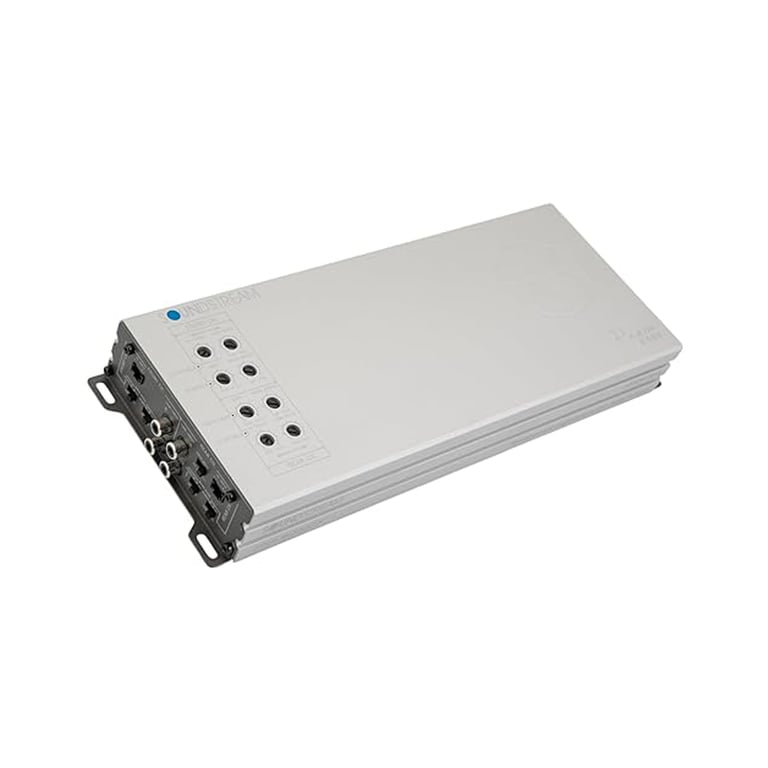

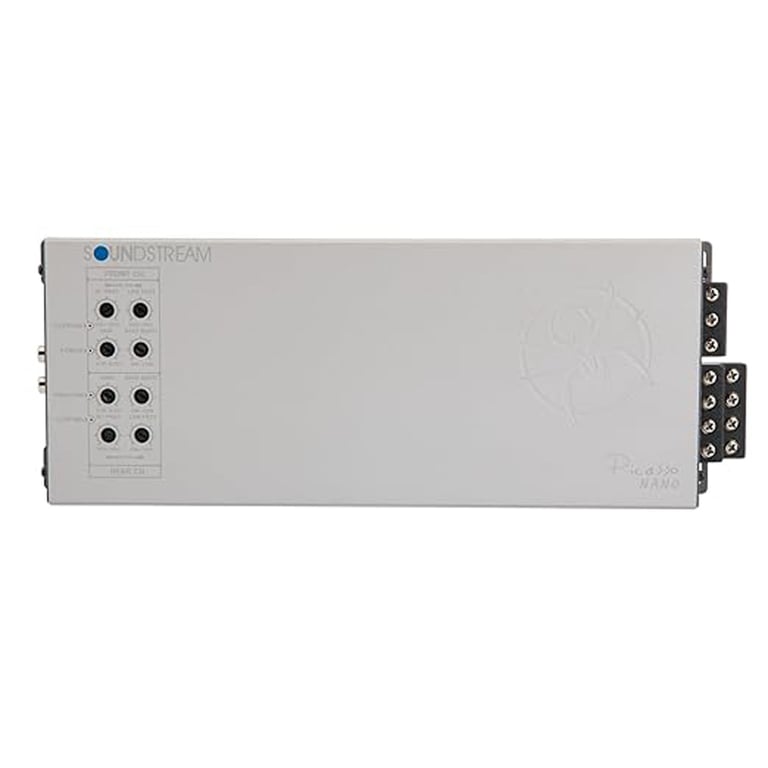

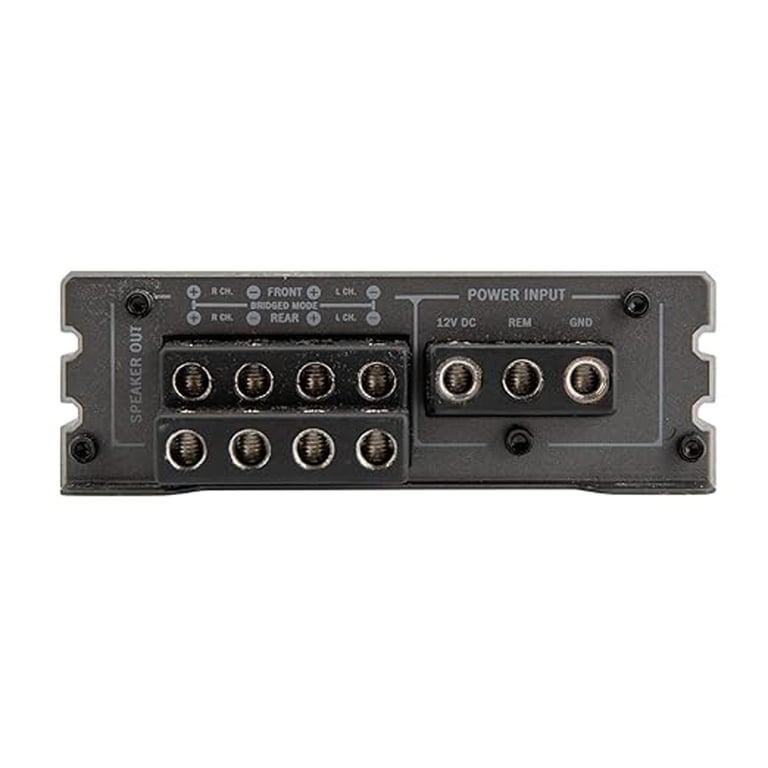

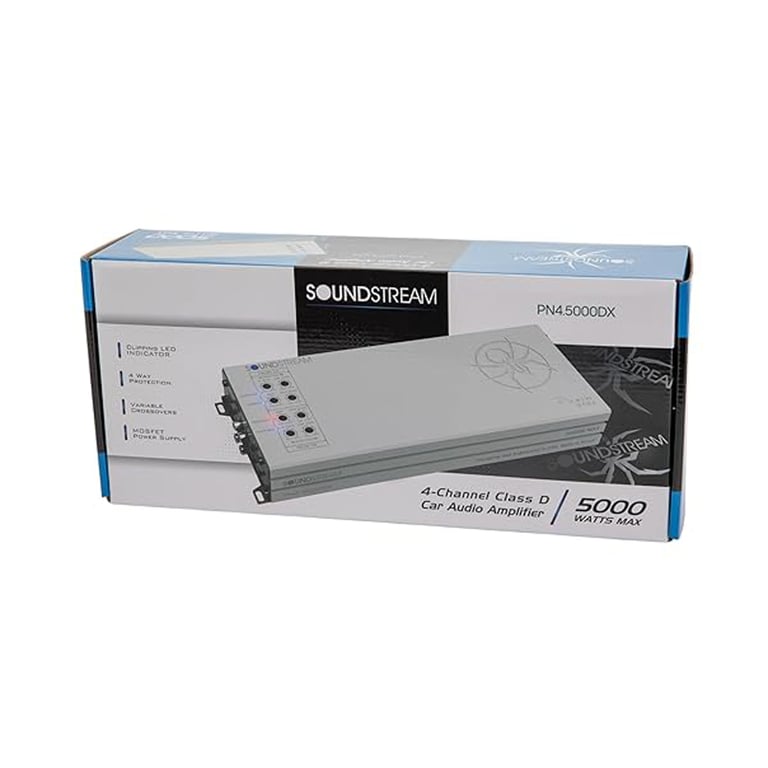

Soundstream PN4.5000DX

5000W Peak (1800W RMS) Class D Picasso Nano Series 4-Channel Car Amplifier

Soundstream
Shop all Soundstream
highlight-star-icon

• 250 watts x 4 channel @ 4 ohm
• 450 watts x 4 channel @ 2 ohm
• Bridged: 900 watts x 2 channel @ 4 ohm
• Total RMS Power: 1800 watts
• Class D 2 ohm Stable 4-Channel Amplifier

Learn more about the pn45000dx

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-10.00%

$899.99

List price $999.99

Description


Soundstream brand icon

Authorized dealer


Soundstream PN4.5000DX

Equipped with an intelligent Clipping LED Indicator, the PN4.5000DX helps protect your speakers by signaling distortion in real time during tuning. Its robust 4-Way Protection Circuitry defends against thermal overload, short circuits, over-voltage, and DC offset—ensuring long-term reliability. Fine-tune your system using fully variable 12dB crossovers, including high-pass, low-pass, and band-pass configurations. A high-efficiency MOSFET power supply keeps output clean, stable, and distortion-free even under demanding loads.


Product Details:

  • Picasso-Nano Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 4 channel
    • 2 ohm: 450 watts x 4 channel
    • Bridged: 900 watts x 2 channel @ 4 ohm
  • Total power output: 1800 watts
  • Clipping LED indicator for safe, accurate tuning
  • Speaker-level (high-level) inputs
  • Signal sensing remote turn-on
  • Short, thermal, overload and DC offset protection
  • Direct connect power, ground, and speaker terminals
  • MOSFET power supply for consistent, efficient power
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 80 dB
  • Variable Crossovers: HPF/LPF/Band-Pass (12dB/Octave)
  • Variable Bass Boost: 0 - 12 dB
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 11.5" L x 5.9" W x 1.5" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: PN4.5000DX
