JVC KW-AVX830 Open Box

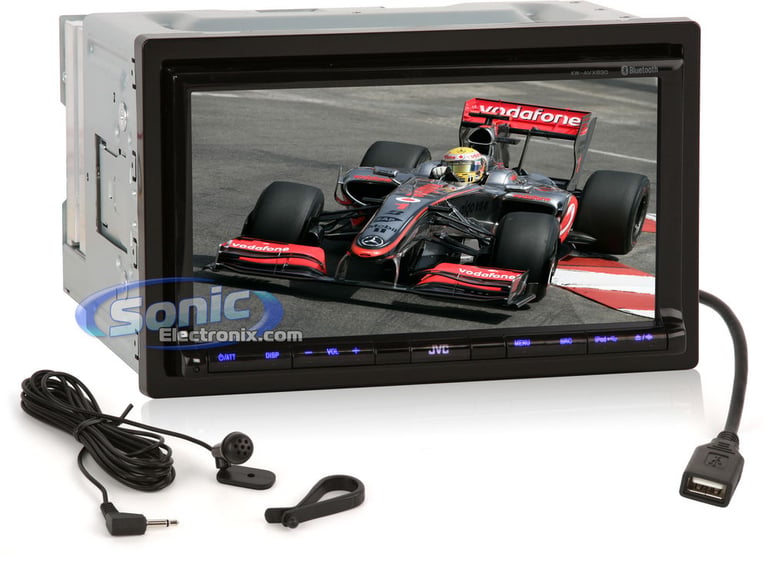

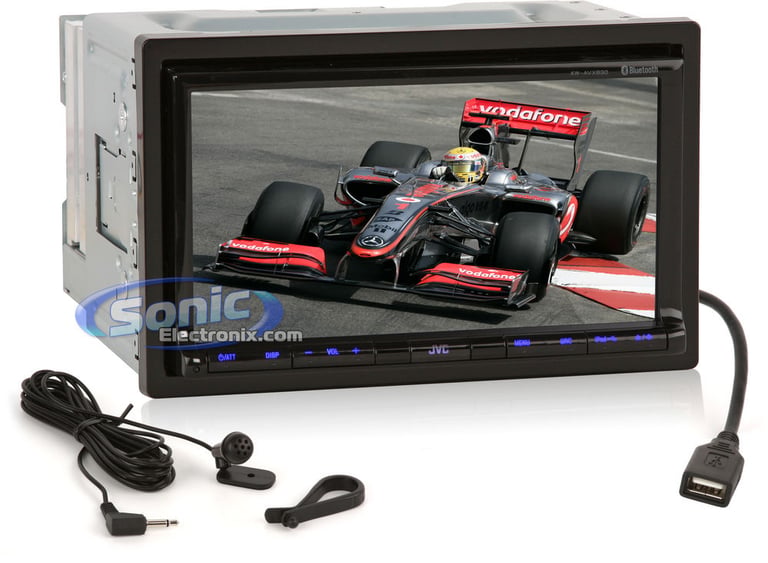

The JVC KW-AVX830 is a full 7” TFT-LCD Double DIN Touchscreen CD/DVD Receiver. Now its not just a CD/DVD Player, it can also playback DVD-VR, MPEG1, MPEG2 and JPEG Pictures. By being compatible with so many different types of media, it gives you the ability to play just about anything. This unit comes with the proximity sensor. This sensor will allow you to hide the on-screen menu when your hand is away from the screen and then reveal the menu when your hand approaches it. This is helpful when you don’t want a bright screen in your car while driving at night.

The unit comes with built-in Bluetooth making your life easy without having to fumble around with a cell phone while driving. Integrated Bluetooth allows you to pair phones, headsets and other portable devices for audio streaming and hands-free calling. Not only does it have built-in bluetooth, it does allow you to play your iPod via the USB Input. All you need is the standard USB-to-iPod cable and you are set for iPod audio playback.

If you were looking to have Sirius or XM Satellite radio, there are two packages available so you can receive these services. Not only does it offer the chance to receive satellite radio, but HD Radio is also an option. The KW-AVX830 gives you the option to retain your steering wheel controls with an optional adapter. This will give you more control of the unit while keeping your eyes on the road. This receiver has many different features with many options to suit your needs.

General Features:

• In-dash Double DIN AM/FM, DVD, CD, MP3, WMA Multimedia Receiver
• Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
• 2-Way control for iPod and iPhone allows user to control the device from the headunit or from the device itself

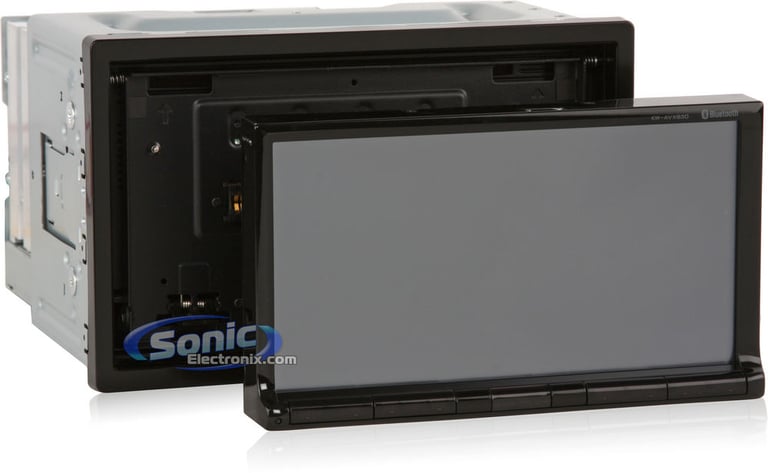

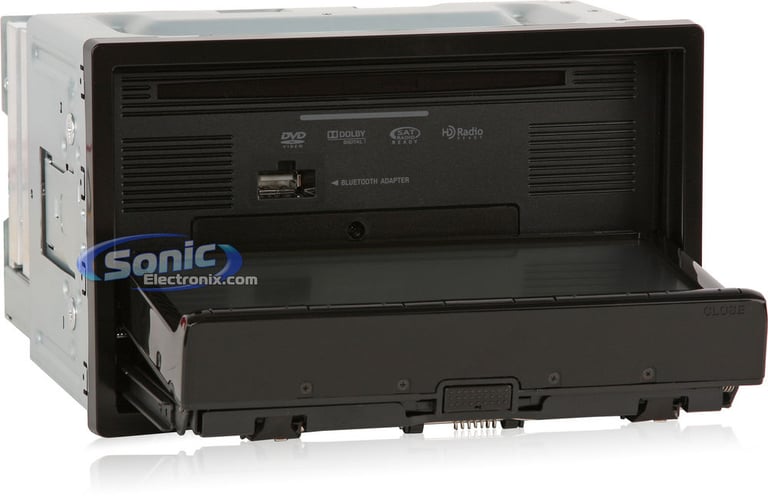

• Motorized faceplate with tilt

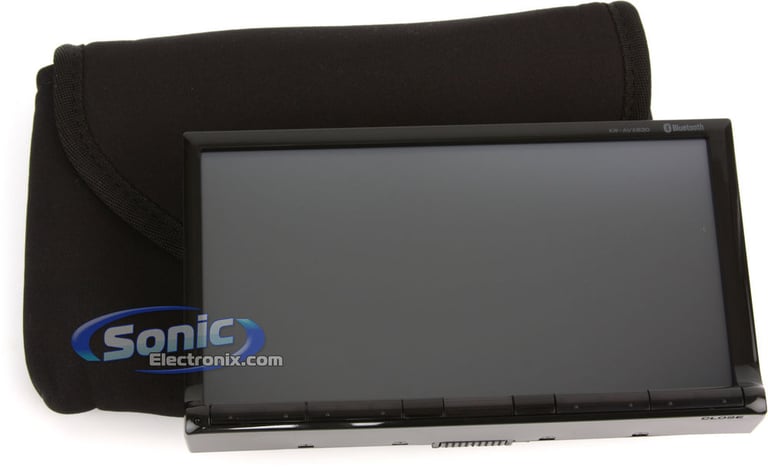

• Slide-down detachable face
• 7" TFT-LCD Full-color touchscreen display
• Four personalized wallpaper backgrounds lets you choose between Ambient, 3D Space, Ecology, and Plain themes
• 12 different colored themes for your wallpaper (Blue, Light-Blue, Red, Orange, Yellow, Green, Purple, Dark-Blue, Dark-Green, Brown, and Black)
• Switchable 4:3 or 16:9 aspect ratio
• Blue button lighting
• CEA-2006 compliant amplifier
• Power Output:
  • Peak: 50 watts x 4 channels
  • RMS: 20 watts x 4 channels
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• Proximity sensor hides the on screen menu when your hand is away from the unit and reveals the menu when your hand approaches the unit
• Blackout feature turns off key illumination

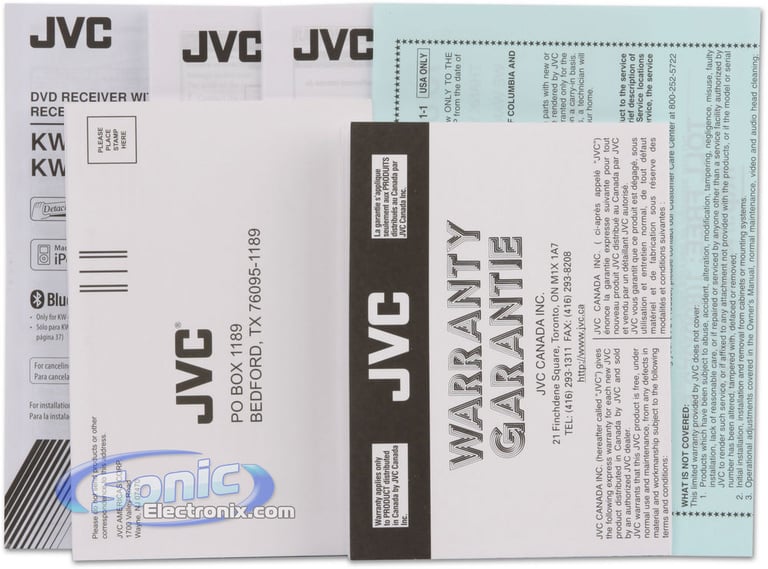

• 1-year Manufacturer's warranty

Playback and Audio Features:

• Playback of DVD, DVD-VR, MPEG1, MPEG2, VCD, CD, CD-R, CD-RW, CD-DA, MP3, WMA, WAV, AAC, JPEG
• Compatible with region 1 DVDs

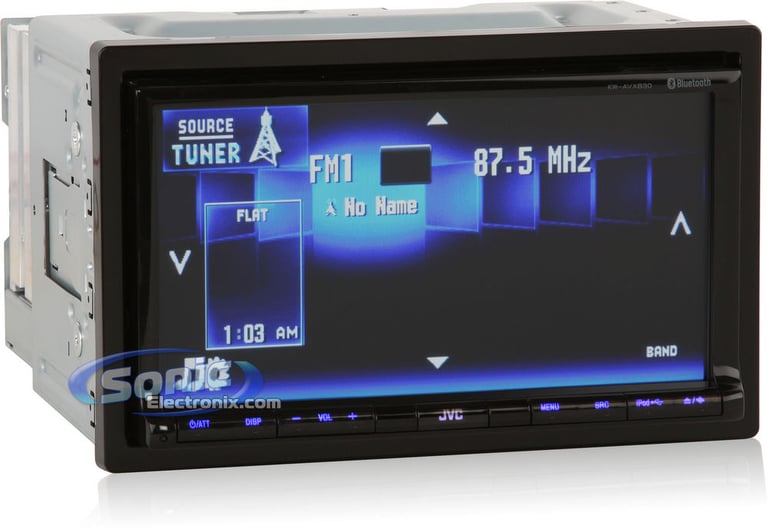

• HS-IVi tuner with 18FM/6AM presets
• GIGA MP3 MULTI
• 3-Band parametric iEQ with 9 presets and 2 custom user EQ settings
• High-Pass Filter (On or Through)
• Low-Pass Filter (55, 85, 120 Hz)
• Dolby digital audio technology
• PAL/NTSC Compatible
• Adjustable subwoofer output level
• 24-bit digital-to-analog converter
• Dual zone capable

Expandability Options:

• 3 Sets of 5V preamp outputs (front, rear and mono-subwoofer)

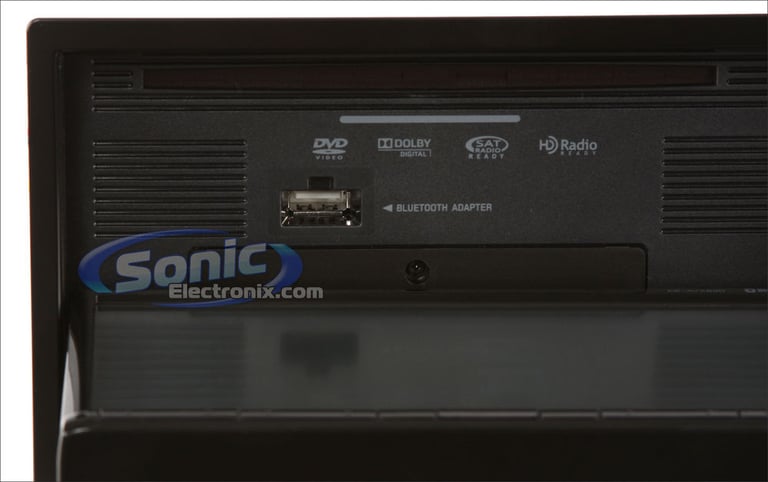

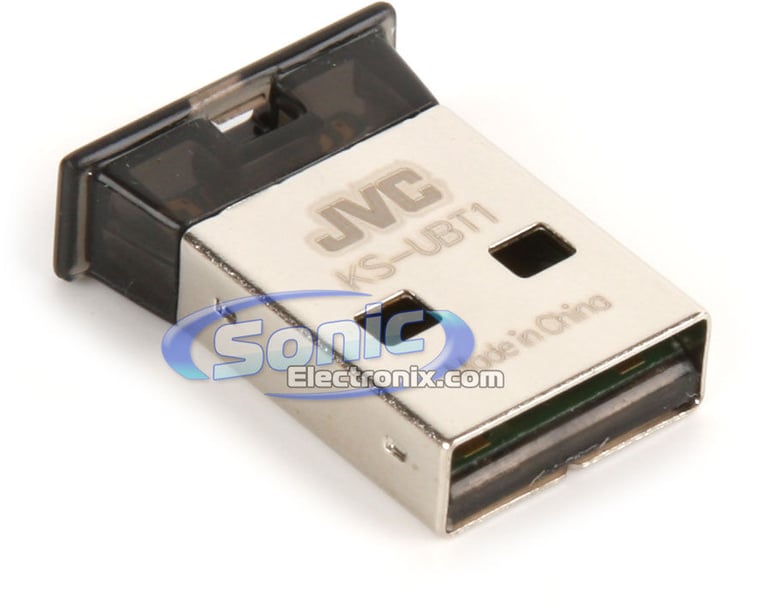

• Integrated Bluetooth: Enables phones, headsets, and portable devices to be paired for audio streaming and hands free calling with included voice microphone
• SIRIUS or XM Satellite Radio Ready: SIRIUS Satellite Radio Package or XM Radio Package required and sold separately, as well as a subscription to the respective satellite radio service
• HD Radio Ready: JVC KT-HD300 required and sold separately
• iPod/iPhone Ready:
  • Audio playback Only: Standard USB-to-iPod cable will work with most iPods/iPhones
  • Audio & Video Playback: JVC KS-U30 required and sold separately
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC is sold separately and may be required

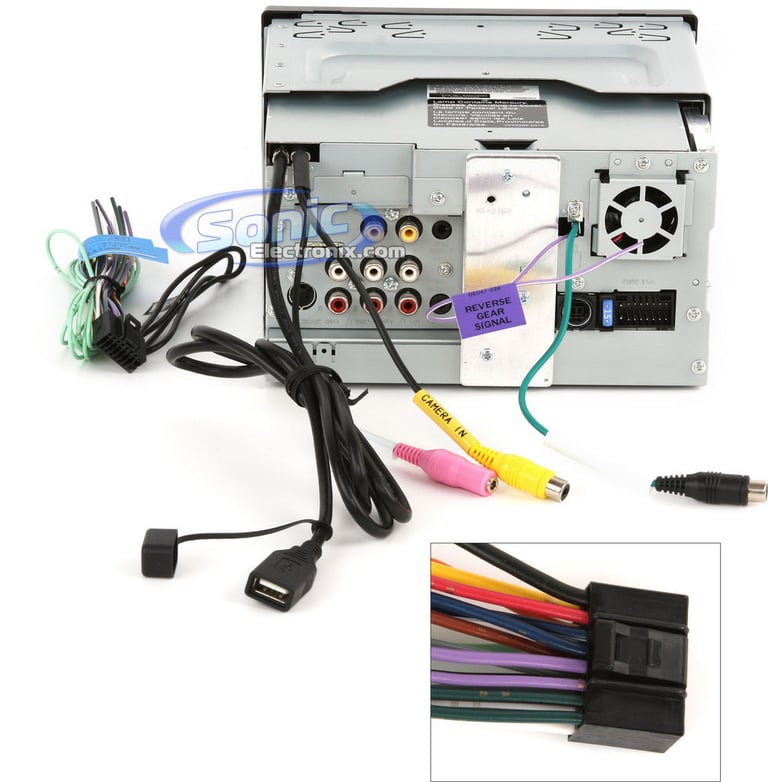

• Rear 3.5mm mini-jack audio output for dual zone audio
• 1 Rear RCA composite video output
• 1 Rear RCA composite video input
• Dedicated video input for rear view camera. JVC KV-CM1 recommended and sold separately, although any camera with a RCA composite video output will work

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth version 2.0 certified
• Bluetooth range up to 32.8 ft.
• Supports SMS message notifications and A2DP audio streaming
• Bluetooth profiles supported:
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
• Works with most Bluetooth enabled cell phones
• Supports hands free calling with audio streaming
• Enables the receipt notification of SMS (Short Message Service)
• Voice recognition dialing with compatible cell phones
• Manual phonebook transfer up to a maximum of 400

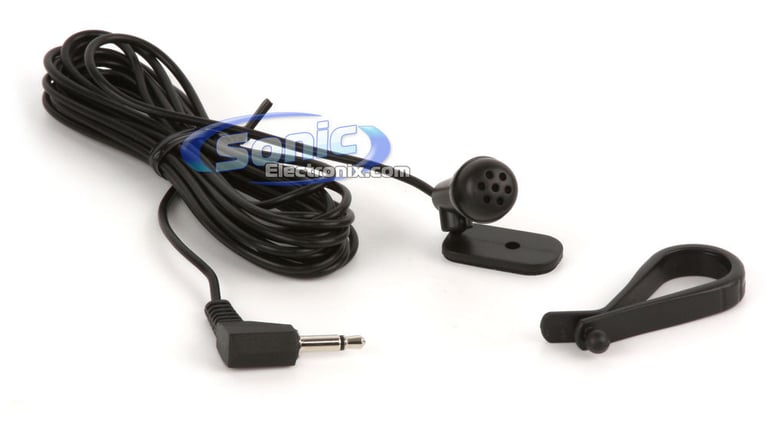

• Microphone (with mounting bracket) included
