JVC KW-XR810 Open Box

Incredible Double DIN Receiver

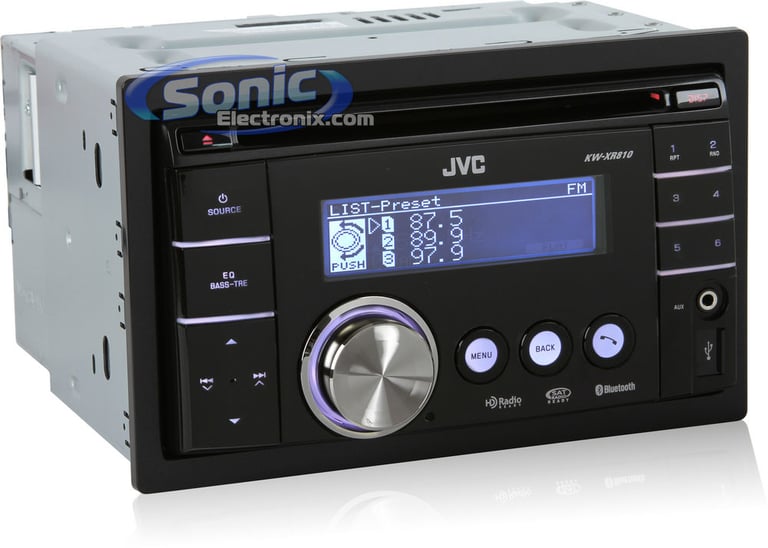

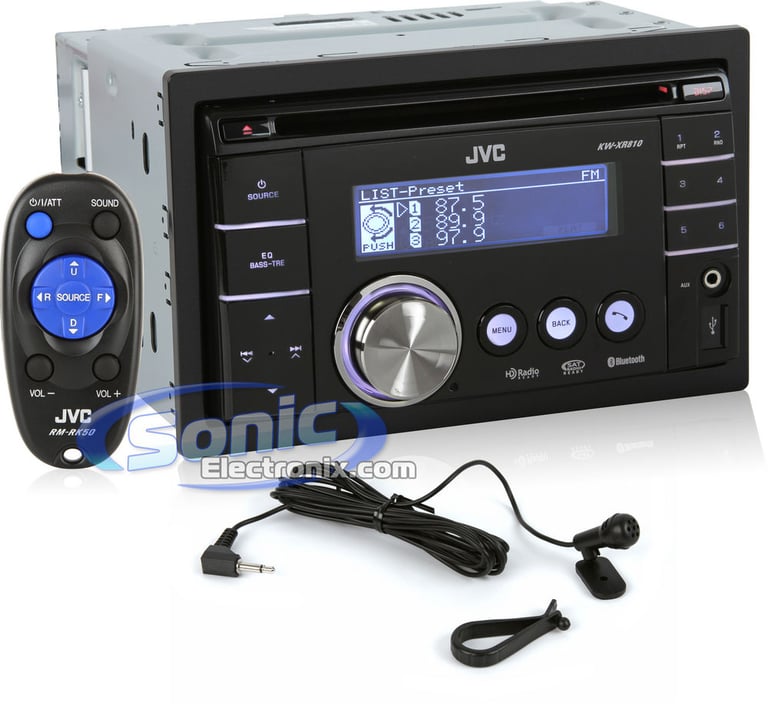

The JVC KW-XR810 is an In-Dash Double DIN CD/MP3/WMA/WAV Receiver with a Wireless Remote Control included. Built-in Bluetooth technology supports hands-free calling, audio streaming, voice recognition dialing, text message display and much more. The front and rear USB ports allow you to have full control with the latest iPods and iPhones, giving you even more playback options. The Dual Zone Color feature allows the buttons and the display to have different colors simultaneously, giving you a very personalized display. 30,000+ Variable illumination color display and the full dot LCD display with LED backlit illumination provide an easy-to-read menu. MP3 ID3 Tag Display will illustrate the Title, Artist, and Album when playing an MP3 device. This JVC Player is equipped with a built-in HS-IVi Tuner with 18 FM presets and 12 AM presets, 3-band iEQ with selectable tone curves, and the on-board High and Low-Pass filters all enhance sound quality.

The JVC KWXR810 has plenty of expandability options to suit your needs. First, HD Radio provides you with a digital radio signal for a high-definition, high-quality radio signal that is almost as perfect as CD music. CD changer controls and full compatibility with your steering wheel controls are some other cool expandability options. Sirius Satellite radio can be added on using the optional adapters. The front panel auxiliary input allows portable media devices such as DVD player, gaming systems, and MP3 player to be connected. The combination of the price and features make this JVC receiver a great buy.

General Features:

• In-dash Double DIN AM/FM, CD, MP3, WMA player with Remote
• Open Box Item for greater discount
• Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
• External Mode for iPod and iPhone plays audio and charges the device, perfect for internet surfing, GPS navigation, games and other apps

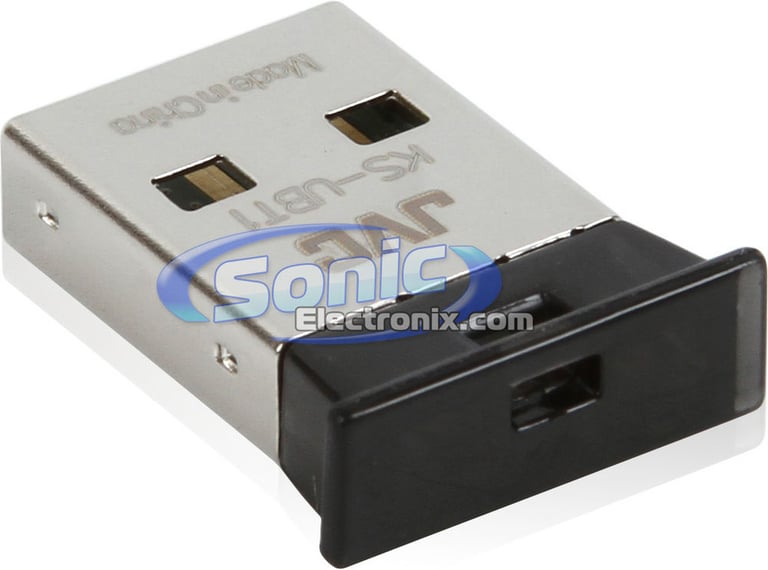

• Dual full speed USB connection for iPod, iPhone, USB drives, Bluetooth dongles, and other digital audio players
• Fixed double-DIN face
• Full Dot LCD display with LED backlit illumination

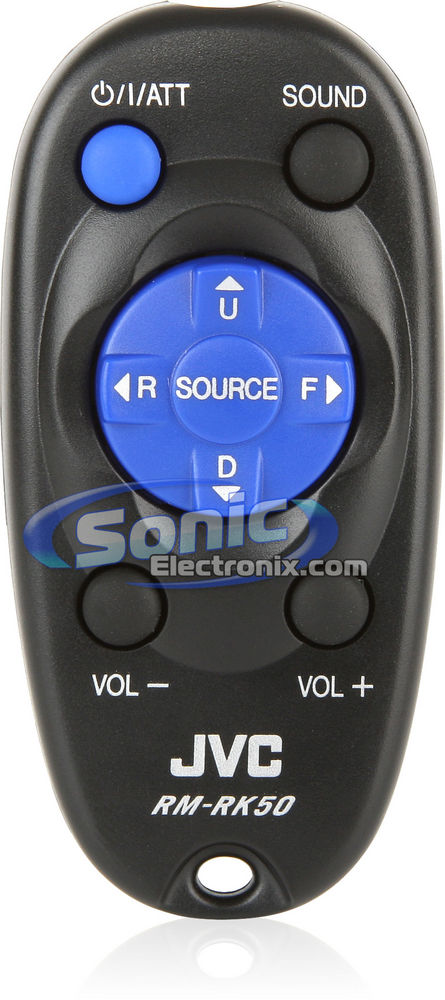

• Wireless remote control included
• 30,000+ Variable illumination color display for seamless integration into any vehicle
• Dual zone separated color display allows different colors to be set for the buttons and the display
• CEA-2006 compliant amplifier
• Power Output:
  • Peak: 50 watts x 4 channels
  • RMS: 20 watts x 4 channels
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Playback and Audio Features:

• Playback of CD, CD-R, CD-RW, MP3, WMA, and WAV
• HS-IVi tuner with 18FM/12AM presets
• Ti/Burr-Brown 24-bit DAC
• 3-Band Parametric iEQ equalizer with selectable tone curves
• Level, Frequency, and Q Control
• Loudness control with 3 different stages
• On-board High-Pass filter (HPF) @ 62, 95, 135 Hz, and off
• On-board Low-Pass filter (LPF) @ 55, 85, 120 Hz, and off

Expandability Options:

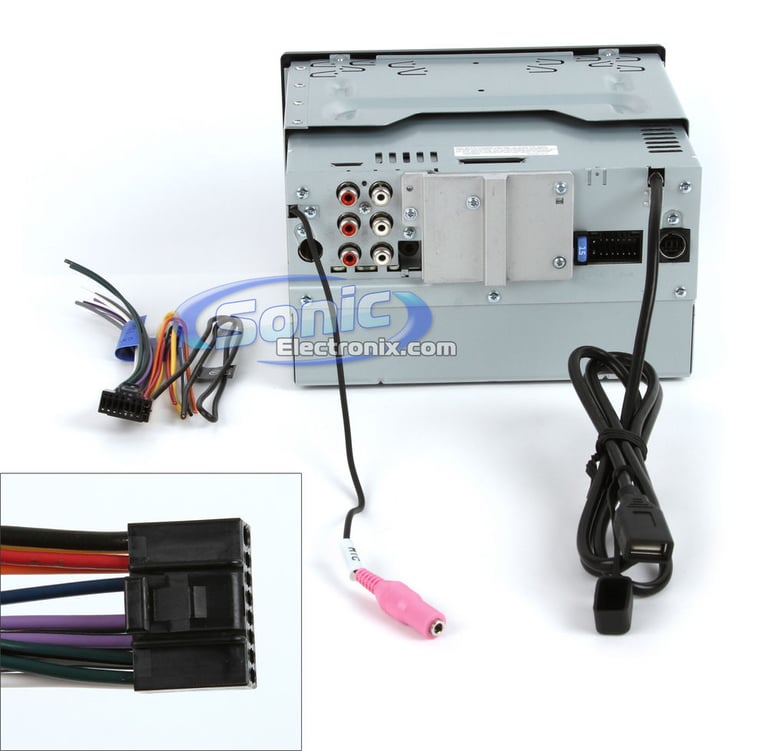

• 3 Sets of 2.5V preamp outputs (front, rear and subwoofer)
• SIRIUS Satellite Radio Ready: SIRIUS Radio Package required and sold separately, along with a subscription to the SIRIUS service
• HD Radio Ready: JVC KT-HD300 required and sold separately

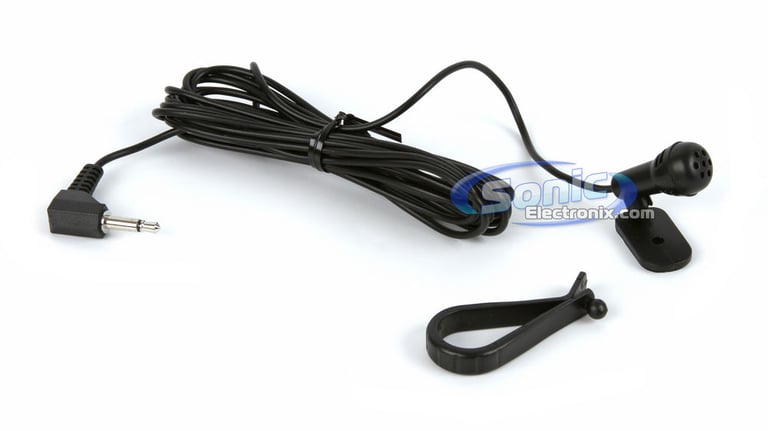

• Integrated Bluetooth: Enables phones, headsets, and portable devices can be paired for audio streaming and hands free calling with included voice microphone
• iPod/iPhone Ready: Standard USB-to-iPod cable inlcuded with most iPods will work.

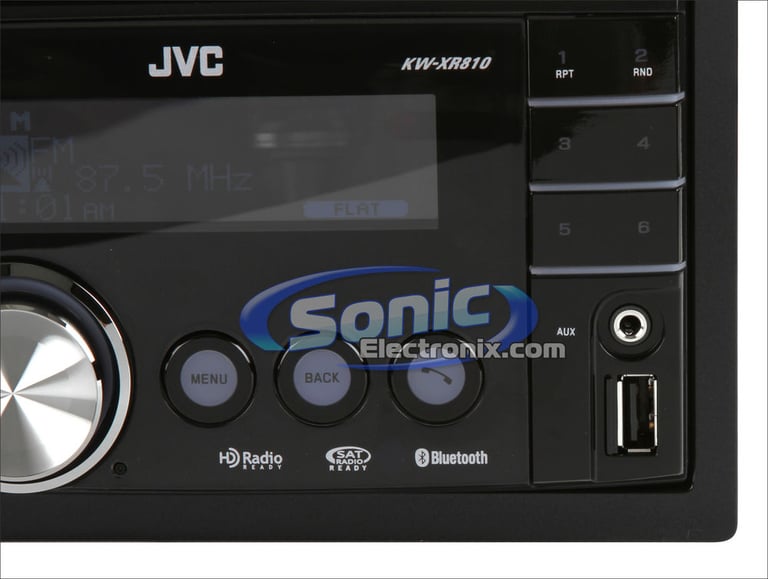

• Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Front-panel USB Input: Allows connection to portable media devices such as MP3 players, etc.
• Rear USB input
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately
• CD Changer controls

Bluetooth Features:

• Supports the pairing and switching of 2 mobile phones
• Hands free call
• Audio streaming
• Voice recognition dialing
• Text message display (Receipt notification only)
• Phonebook transfer (300 max.)
• Play/Pause/Skip/Search
• Battery charge
• Supports Bluetooth profiles HFP 1.5, OPP 1.1, PBAP 1.0, A2DP 1.2, and AVRCP 1.3

---

Key Features And Comparison Chart

	KD-R820BT	KD-R720	KD-R620	KD-R520	KD-R320	KD-HDR70	KD-HDR44	KW-HDR720	KW-XR810
Display	3-Line Full Dot LCD	2-Line LCD	2-Line LCD	2-Line LCD	1-Line LCD	2-Line LCD	1-Line LCD	2-Line LCD	3-Line Full Dot LCD
Variable Color Illumination
Pre-amp Outputs	3 Sets (2.5 Volts)	2 Sets (2.5 Volts)	2 Sets (2.5 Volts)	2 Sets (2.5 Volts)	1 Set (2.5 Volts)	3 Sets (2.5 Volts)	2 Sets (2.5 Volts)	3 Sets (2.5 Volts)	3 Sets (2.5 Volts)
Media Playback	MP3 WMA WAV	MP3 WMA WAV	MP3 WMA	MP3 WMA	MP3 WMA	MP3 WMA	MP3 WMA	MP3 WMA	MP3 WMA WAV
Digital-to-Analog Converter	24-Bit TI/Burr-Brown	24-Bit TI/Burr-Brown	24-Bit	24-Bit	24-Bit	24-Bit	24-Bit	24-Bit	24-Bit TI/Burr-Brown
Equalizer	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric	3-Band Parametric
AUX Input (Mini-Jack)	FRONT	FRONT	FRONT REAR	FRONT REAR	FRONT REAR	FRONT REAR	FRONT REAR	FRONT REAR	FRONT
USB Interface	FRONT REAR	FRONT REAR	FRONT	FRONT		FRONT		FRONT	FRONT REAR
USB Control for iPod/iPhone
2-Way iPod Control
iPhone Pandora App Control
External Mode for iPod/iPhone
iTunes Tagging
AM/FM Tuner	HS-IVI	HS-IVI	HS-IVI	HS-IVI	HS-IVI	DIAS II	DIAS II	DIAS II	HS-IVI
Bluetooth Built-In		Requires KS-BTA50	Requires KS-BTA100	Requires KS-BTA100	Requires KS-BTA100	Requires KS-BTA100	Requires KS-BTA100	Requires KS-BTA50
Satellite Radio Ready
HD Radio	Requires KT-HD300	Requires KT-HD300							Requires KT-HD300

Read more about the JVC KW-XR810 in our blog!

Note: The factory steering wheel adapter input port on the back of the receiver. Because most manufacturers use a right-angle adapter plug to connect to the receiver, a mini-jack extension cable might be required for proper installation. We recommend the House Brand 35MFS144 or the StreetWires ZN5XF35 as a reliable adapter cable.
