NVX 4-Channel & Mono Amp with Amp Kit + Cable

Product Details:

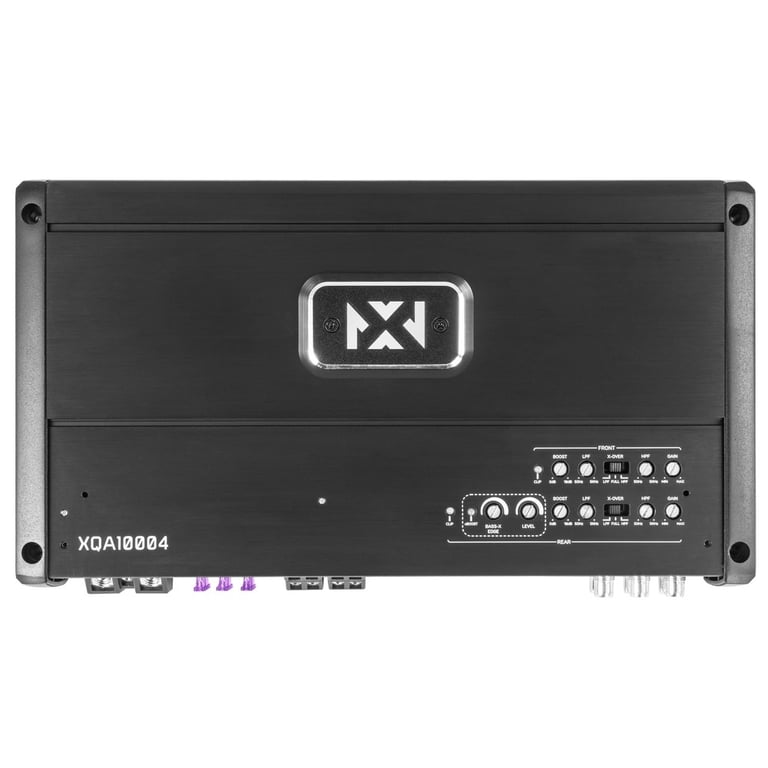

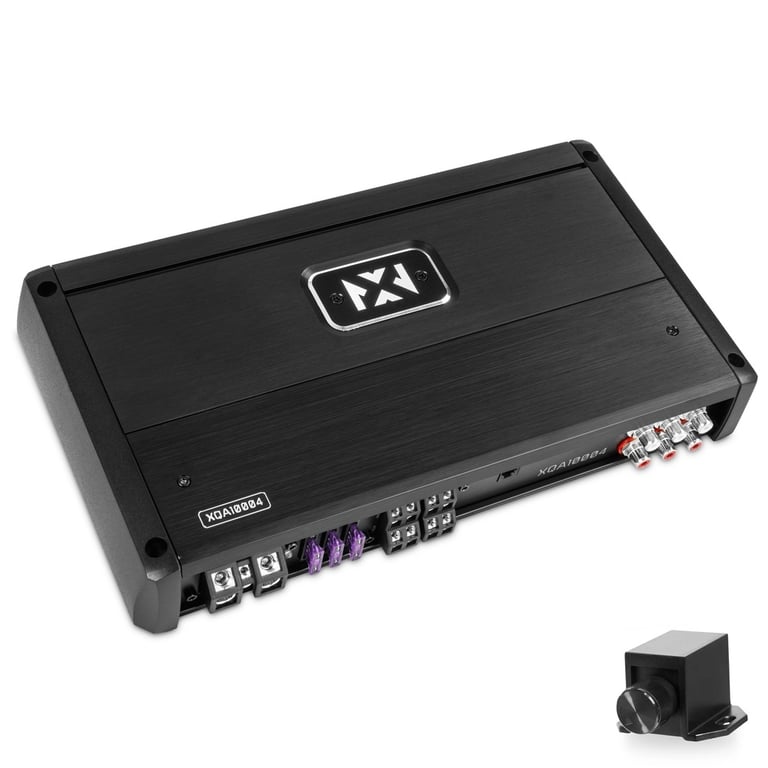

• XQ Series SQ Class D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 4 channel
• 2 ohm: 250 watts x 4 channel
• Bridged: 500 watts x 2 channel @ 4 ohm
• Hi-Res Capable
• Total RMS power output: 1000 watts
• LED Indicators: Power, Protect, Clip, and X-Boost lights

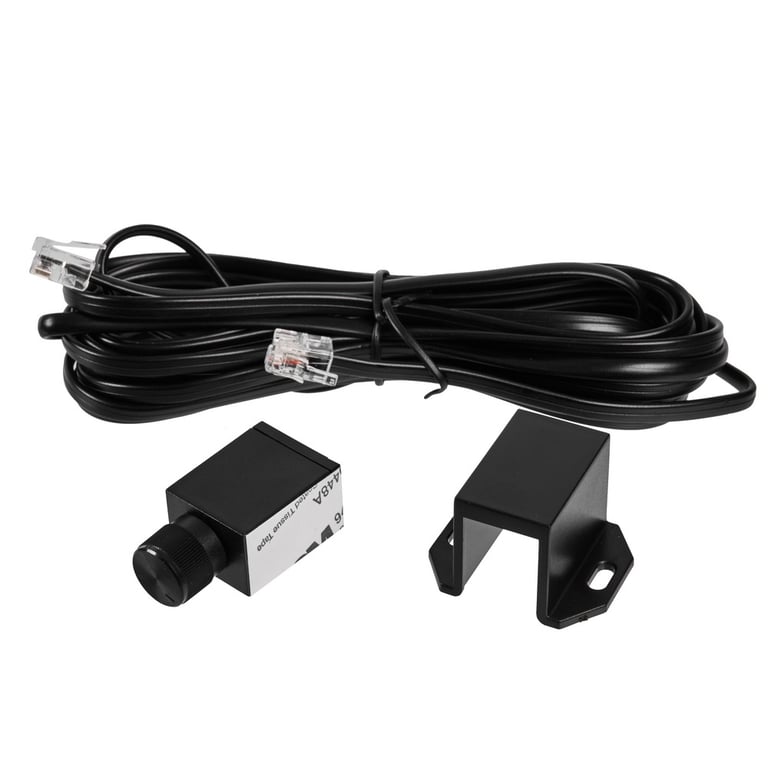

• Includes a Wired Bass Level Remote Control
• Speaker-Level (High-Level) Inputs (Requires adapter like the Kicker KISL)
• Tiffany-Style RCA Pre-Amp Inputs and Outputs
• Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
• 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
• X-Boost Circuitry: Enhances bass response and compensates for bass roll-off (Rear Channels)
• Maximum Input Level Control: Features LED optimization and clip indicators
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 10 - 40000 Hz
• Total Harmonic Distortion (THD): <0.1%
• Signal to Noise Ratio: >96 dB
• Variable high-pass filter: 50 - 5000 Hz, 24 dB/octave (Metal Shaft with 41 Click Positions)
• Variable low-pass filter: 50 - 5000 Hz, 24 dB/octave (Metal Shaft with 41 Click Positions)
• Variable Bass Boost: 0 - 18 dB @ 45 Hz
• Fuse Rating: 120A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 12.37" L x 6.85" W x 1.89" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: XQA10004

Product Details:

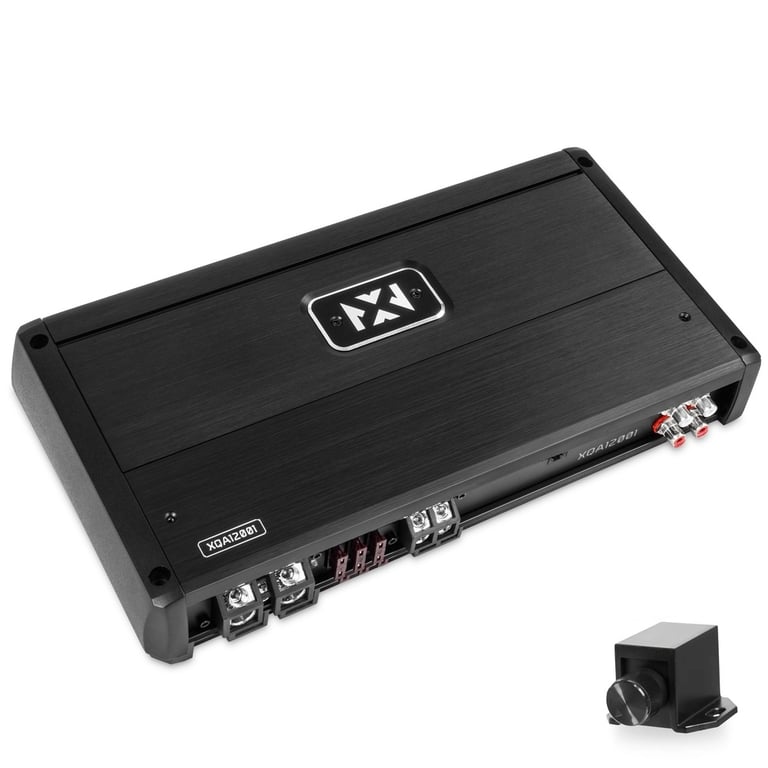

• XQ Series SQ Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 500 watts x 1 channel
• 2 ohm: 800 watts x 1 channel
• 1 ohm: 1200 watts x 1 channel
• Total RMS power output: 1200 watts
• LED Indicators: Power, Protect, Clip, and X-Boost lights
• Includes a Wired Bass Level Remote Control
• Speaker-Level (High-Level) Inputs (Requires adapter like the Kicker KISL)
• Tiffany-Style RCA Pre-Amp Inputs and Outputs
• Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
• 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
• X-Boost Circuitry: Enhances bass response and compensates for bass roll-off
• Maximum Input Level Control: Features LED optimization and clip indicators
• Input sensitivity: 0.2 - 10 volts
• Frequency Response: 10 - 400 Hz
• Total Harmonic Distortion (THD): 0.1%
• Signal to Noise Ratio: >96 dB
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave (Metal Shaft with 41 Click Positions)
• Subsonic filter: 10 - 55 Hz, 24 dB/octave
• Variable Bass Boost: 0 - 18 dB @ 45 Hz
• Adjustable Phase Control: 0° to 180°
• Fuse Rating: 120A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 13.16" L x 6.85" W x 1.89" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: XQA12001

Product Details:

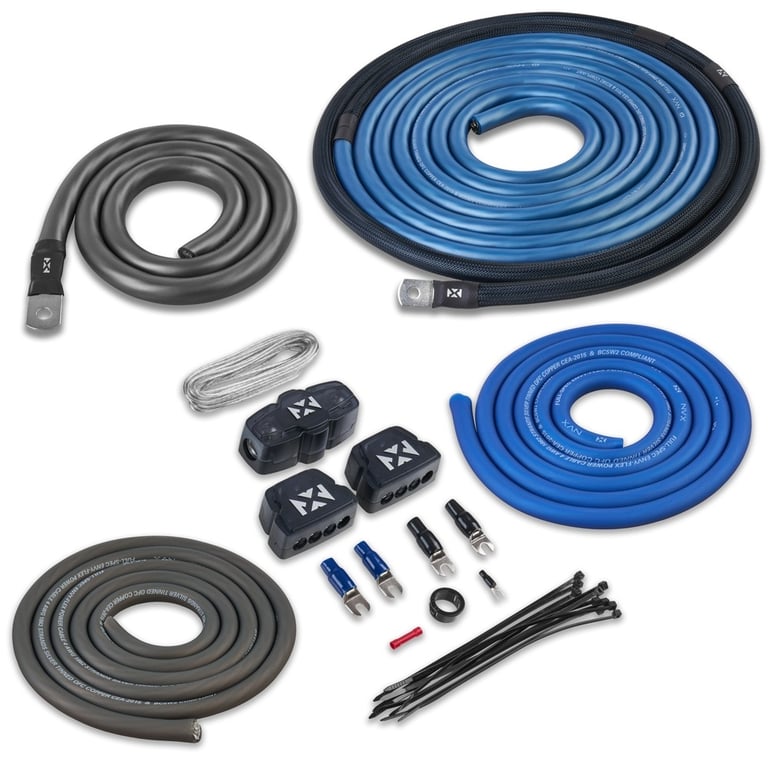

• 1/0 Gauge X-Series Dual Amplifier Power Installation Kit
• Designed for car audio systems up to 3000 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Two Solid brass and satin chromed distribution blocks
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

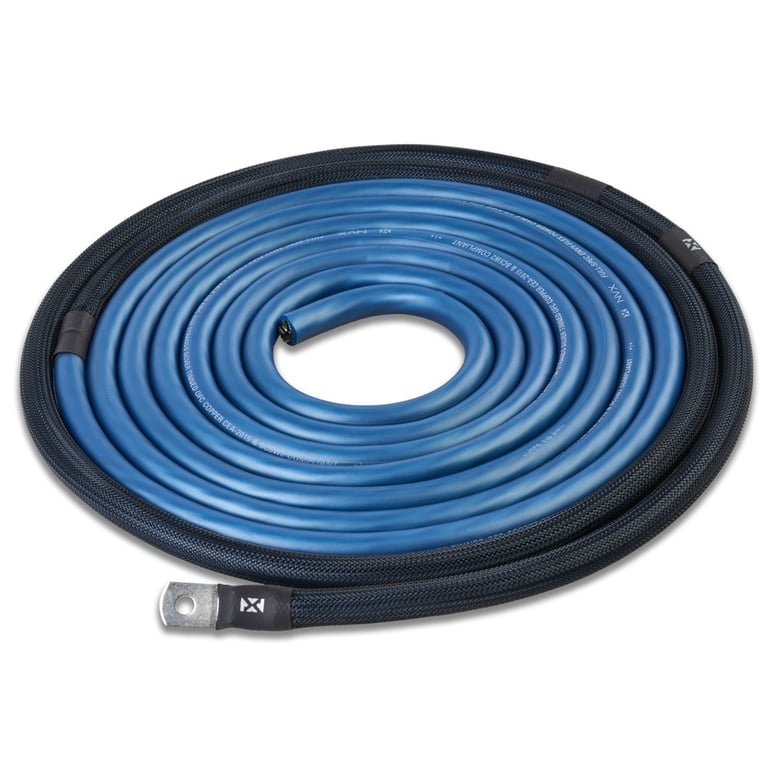

1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 5 ft. Frosted Blue 4 gauge power wire
4. 5 ft. Frosted Black 4 gauge ground wire
5. 17 ft. Clear 18 gauge remote lead wire

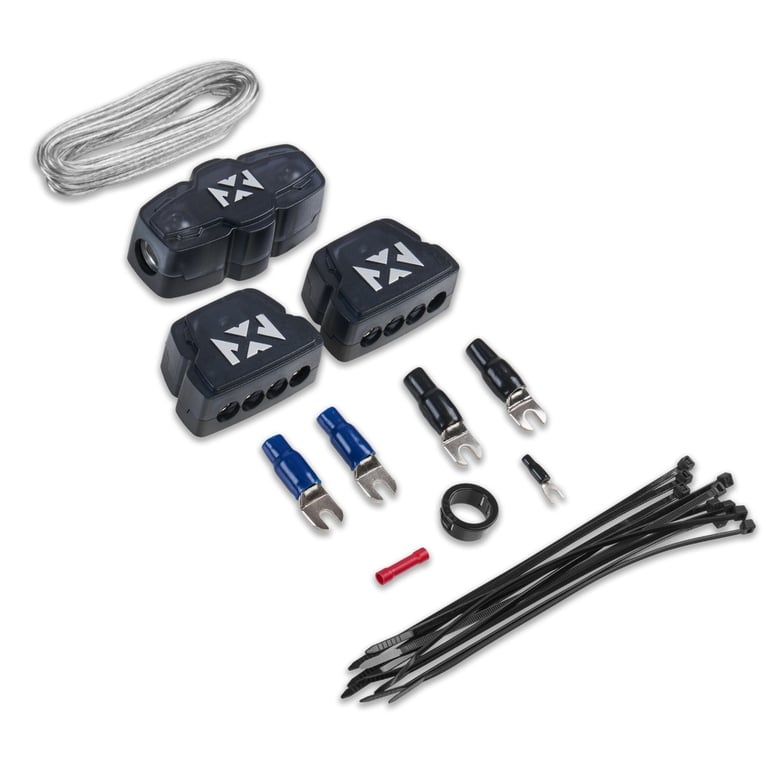

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
7. Two NVX XDBU4 1/0 gauge input and four 4/8 gauge outputs distribution blocks
8. One Black rubber firewall grommet
9. Two black 4 gauge nickel-plated spade terminals
10. Two blue 4 gauge nickel-plated spade terminals
11. One black 18 gauge spade terminal
12. One 18 Gauge Red butt connector
13. Ten 6" Black zip ties

Product Features:

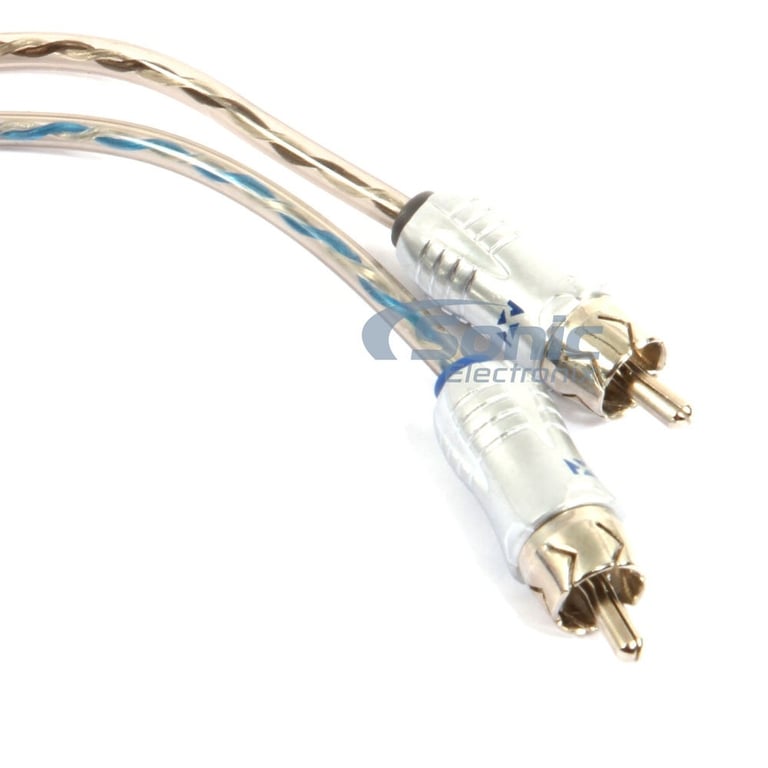

• 19.69 feet (6 meters) 2-Channel X-Series Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Heavy gauge OFC conductors ensure superior sound quality and unmatched signal transfer
• Split-tip Silver-Plated ends offer high-quality performance, best in class signal transfer and resist corrosion
• High-strength molded strain reliefs enhance durability
• Precision Machined “Locking” ends with colored channel identifiers for easy recognition
• Double Twisted-pair construction featuring two conductors per channel
• Black nylon protective jacket minimizes friction and electromagnetic interference
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Product Features:

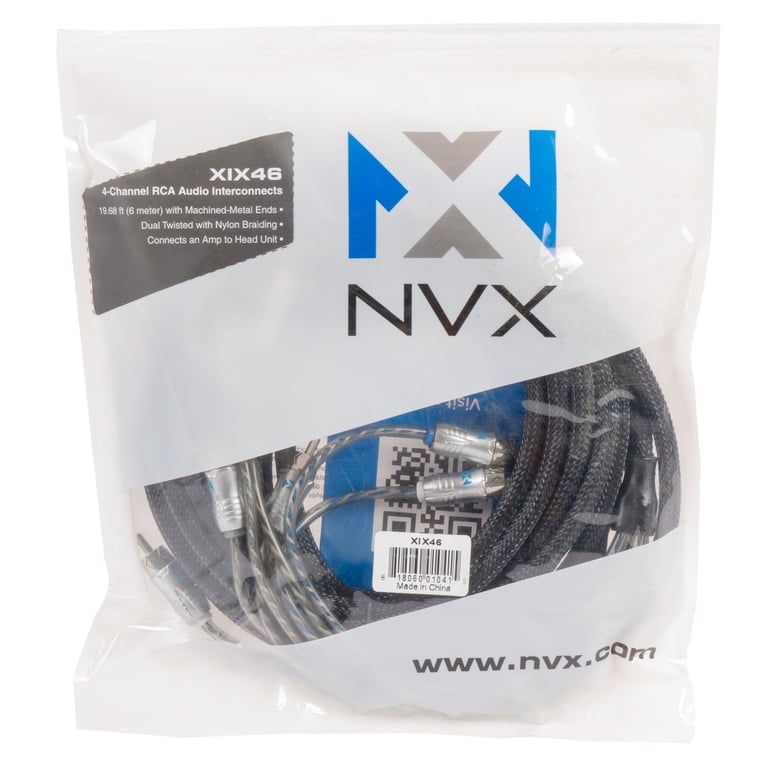

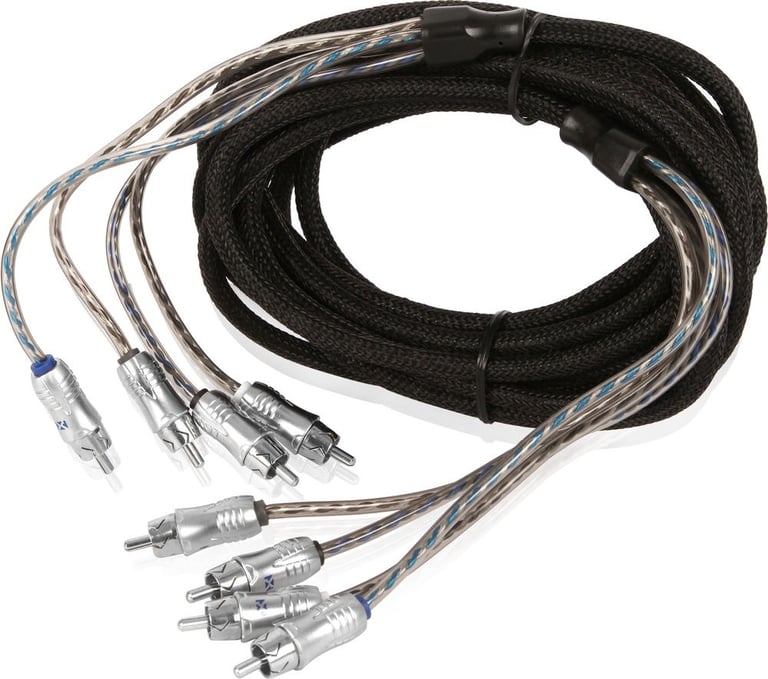

• 19.69 feet (6 meters) 4-Channel X-Series Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Heavy gauge OFC conductors ensure superior sound quality and unmatched signal transfer
• Split-tip Silver-Plated ends offer high-quality performance, best in class signal transfer and resist corrosion
• High-strength molded strain reliefs enhance durability
• Precision Machined “Locking” ends with colored channel identifiers for easy recognition
• Double Twisted-pair construction featuring two conductors per channel
• Black nylon protective jacket minimizes friction and electromagnetic interference
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
