Name: Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)
Brand: Image Dynamics
SKU: ls-cxs64v2-obc4
Price: 215.99 USD
Availability: Discontinued

by Image Dynamics

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 1 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

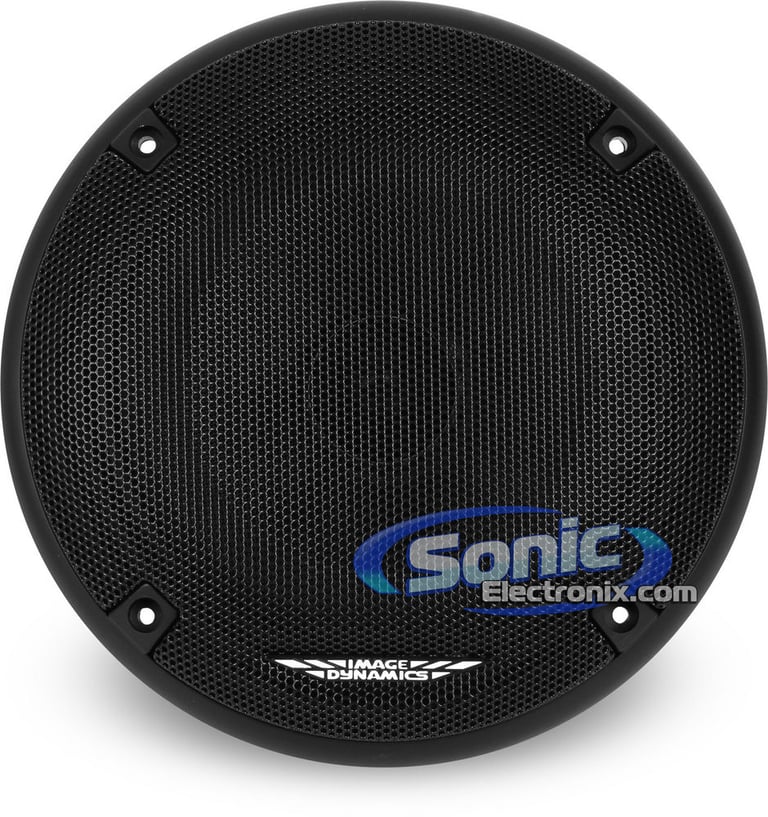

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 2 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

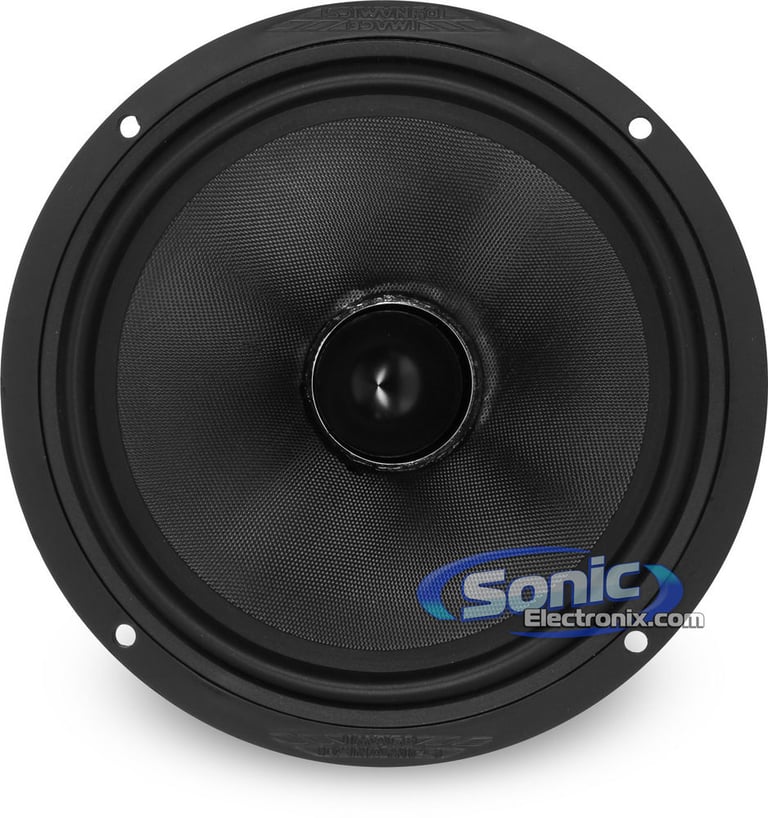

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 3 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 4 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

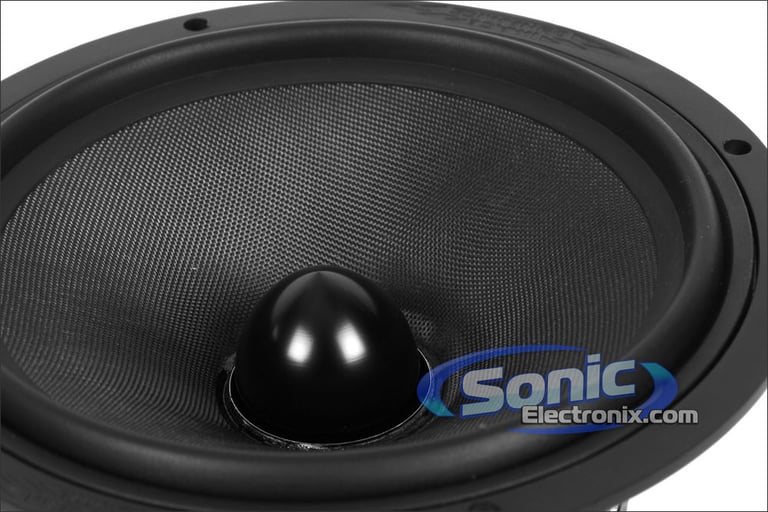

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 5 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 6 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 7 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 8 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 9 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 10 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

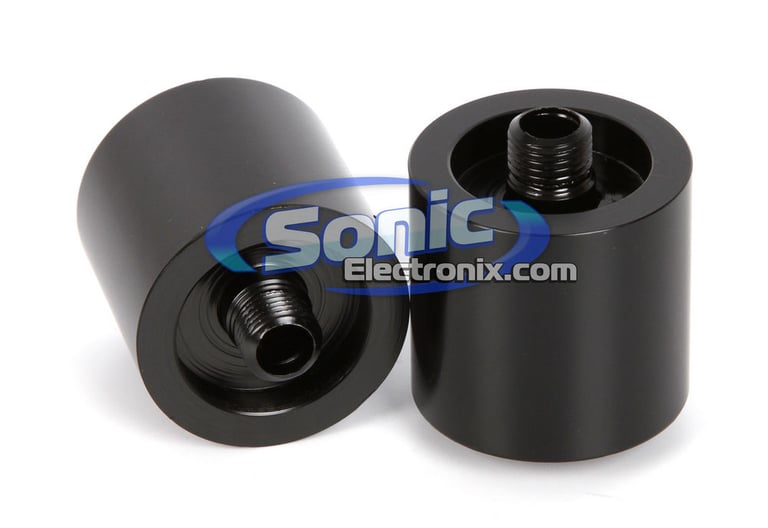

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 11 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 12 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used) Image 13 — Image Dynamics CXS64 v.2 Open Box, Acceptable Condition (Used)

Product highlights

• Peak Power: 250W
• RMS Power: 125W
• 1-1/8" Soft Silk Dome Tweeter
• Mounting Depth: 3"
• Woven Fiberglass Cone
• 4 Ohm Impedance
• Sensitivity: 90dB

Learn more about the ls-cxs64v2-obc4

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Acceptable Condition:
An Acceptable Open Box used product is fairly worn and used, but functions and works. Signs of wear can include aesthetic issues such as scratches, dents, and worn corners or installation marks. The product may have identifying markings on it or show other signs of previous use. Original packaging, paperwork or protective wrapping may be missing or not included. Warranty details, if any, are included in the item description or comments.

General Features:

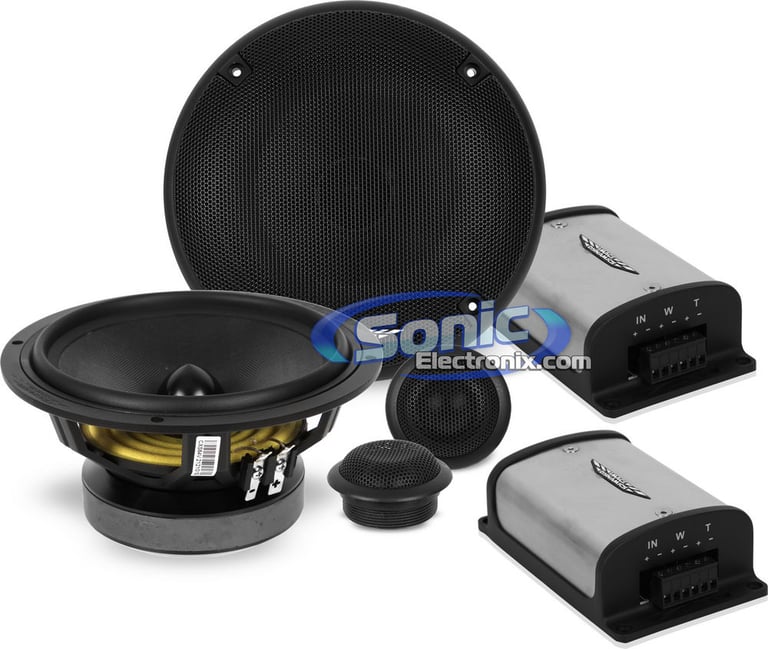

6-1/2" CXS Chameleon Series 2-Way Car Component System
Power Handling:

Peak: 500 watts per set / 250 watts each side
RMS: 250 watts per set / 125 watts each side

Recommended RMS Power Range: 25-125 watts per channel

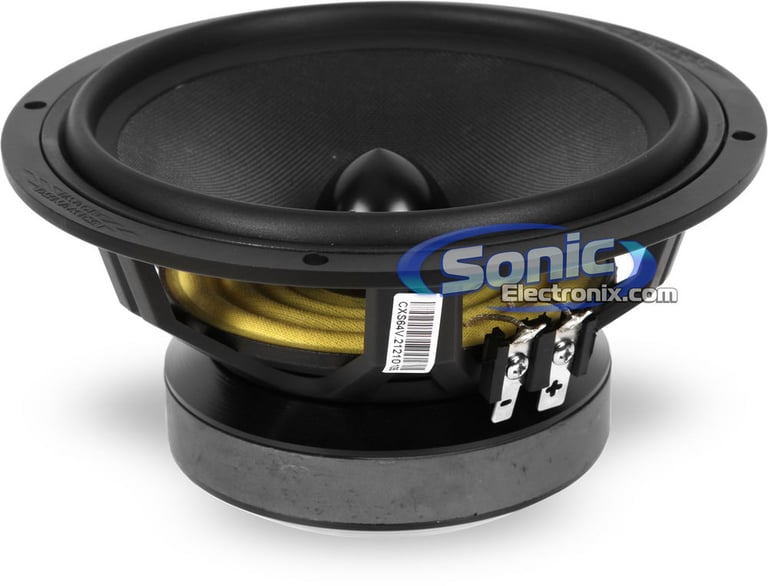

Woven Fiberglass cone material
Parabolic Rubber speaker surround reduces moving mass

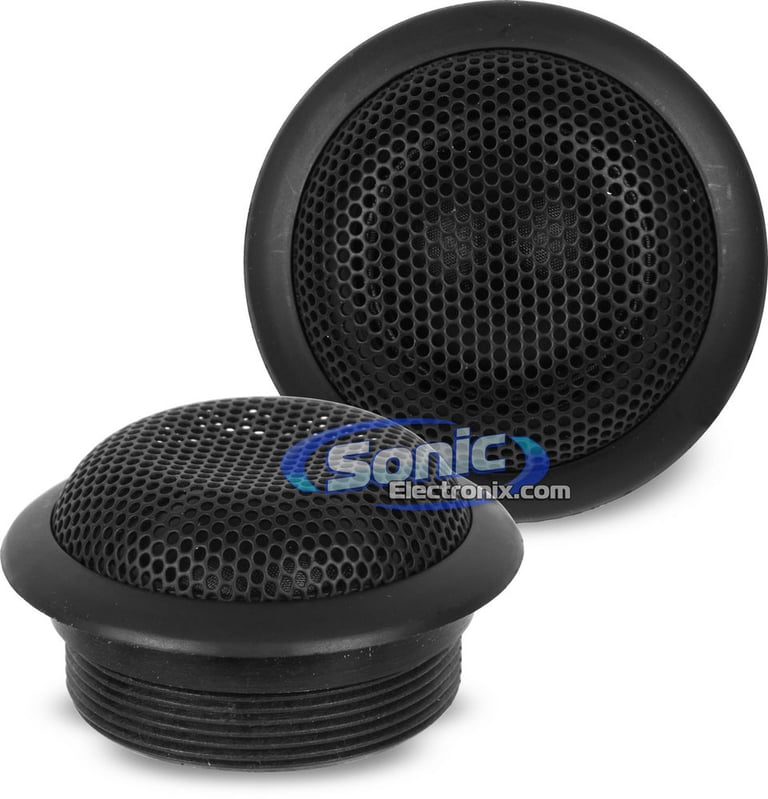

28mm soft Silk Dome tweeters

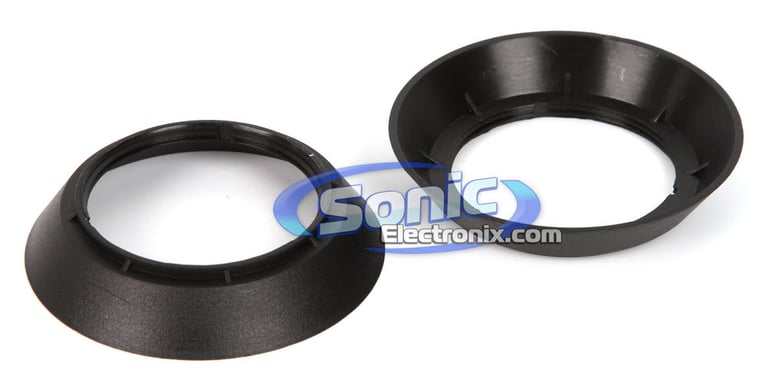

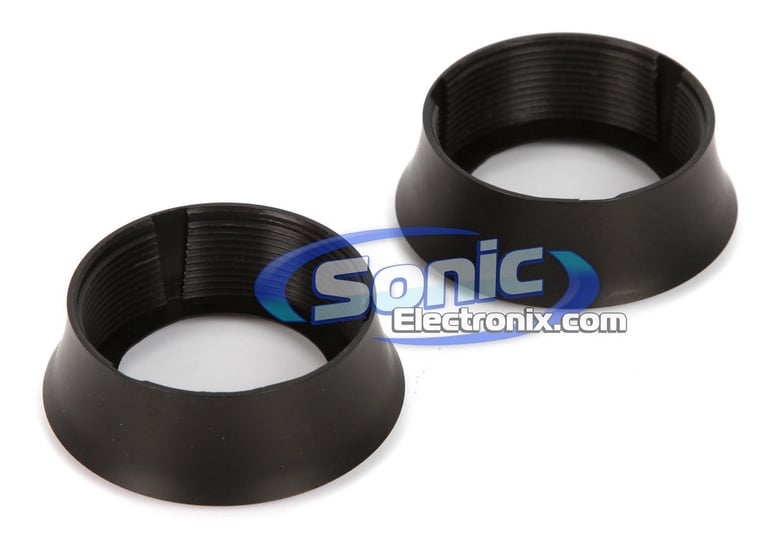

Multiple mounting options for tweeter
Edge wound Aluminum ribbon high-temperature voice coil
Black anodized Aluminum former for high power handling capabilities

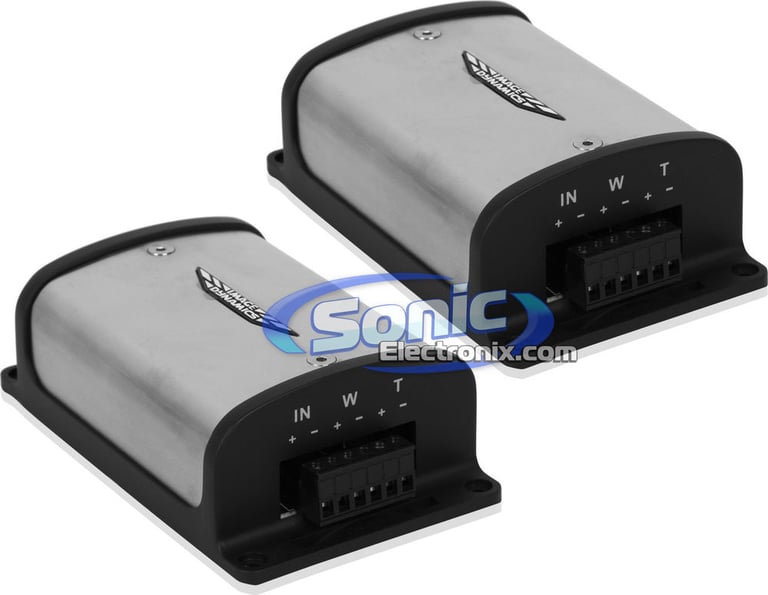

Included crossover filters with metalized Polypropylene capacitors

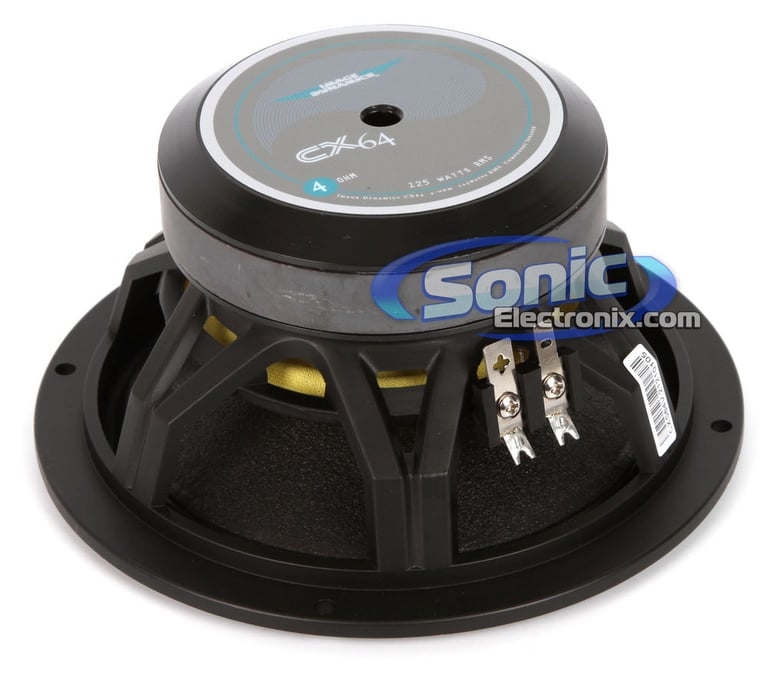

Neodymium magnet motor structure
Nomex spiders with progressive roll design
Composite Glass Fiber non-resonant basket
4 ohm impedance
Sensitivity: 90 dB
Top-mount depth: 3"
Mid-Range Frequency Response: 55-4,000 Hz
Tweeter Frequency Response: 900-25,000 Hz
Authorized Internet Dealer
1-year Manufacturer's Warranty
Also Found As: CXS64V.2, CXS64V2, CXS64

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

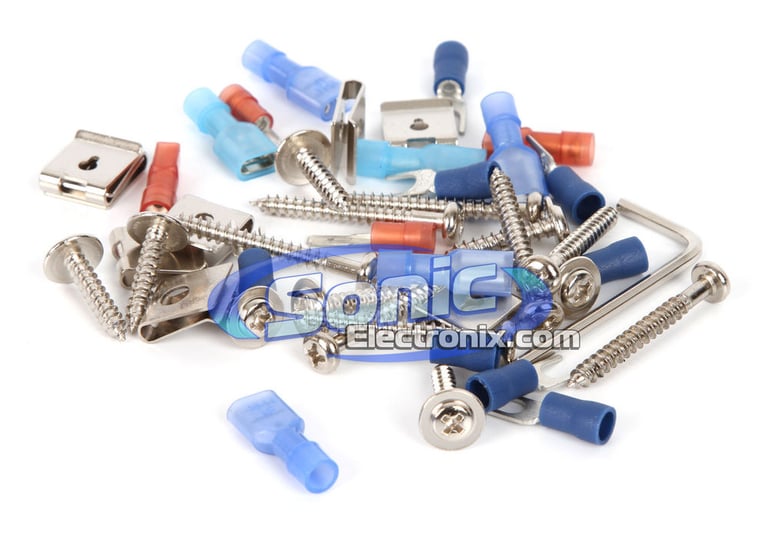

Message from Image Dynamics: As of May 2016 this product will ship with a slight visible glue joint that was done to remedy a possible - yet extremely unlikely - plastic failure. The terminal itself is now up to Image Dynamics standards, but we urge the installer to not force the connector onto the terminal and use the fork style - not quick disconnect female - to make the connection. Thank You.

Specifications & Details

Speaker Specifications

Series

Chameleon / CXS Series

Priced Per

Pair

Number of Speakers

2 Speakers + 2 Tweeters

Speaker Size

6-1/2"

Design

2-way Component System

Tweeter Design

Dome

Tweeter Composition

Silk

Woofer Composition

Carbon Fiber

Woofer Surround

Nitrile Butadiene Rubber NBR

Peak Power Handling

250 watts

RMS Power Handling

125 watts

Sensitivity

90 dB

Frequency Response

55 - 25,000 Hz

Impedance (Per Voice Coil)

4 ohm

Shallow Mount Installation

Top-Mount Depth (Mounting Depth)

Bottom-Mount Depth

3-1/8"

Cutout Dimensions

5-5/8" x 5-5/8"

General specifications

Speaker Grilles

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
