Rockford Fosgate Stage 3 HD24-STG3

Product Details:

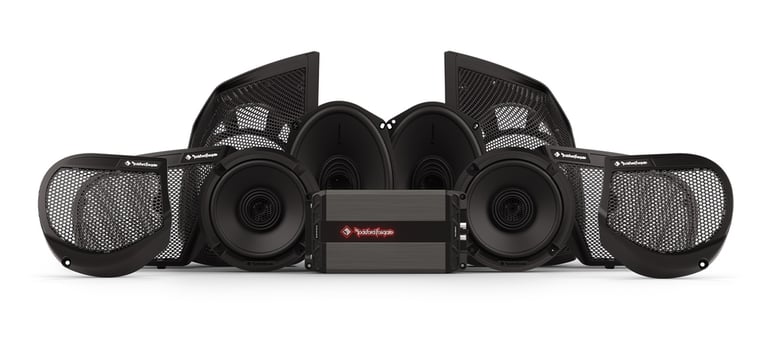

• System includes one pair of 6.5" speakers, one 6x9" saddlebag speaker kit, one 4-channel amplifier and an amp wiring kit
• Also includes amplifier installation kit and mounting hardware
• Designed to match and complement the factory fit and finish of your vehicle
• Plug and Play design for easy installation, no drilling or cutting required
• Eliminates the need to "flash" your radio
• Bluetooth connectivity for easy wireless setup
• Interactive tuning via RF Connect app for iPhone/iOS and Android
• Quick connection to factory wiring with Molex MX150 connectors
• Full Spec Cable meets or exceeds AWG (American Wire Gauge) requirements
• One-time removal of gas tank and fairing streamlines future upgrades
• Estimated Installation Time: (3) Full hours typical
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty

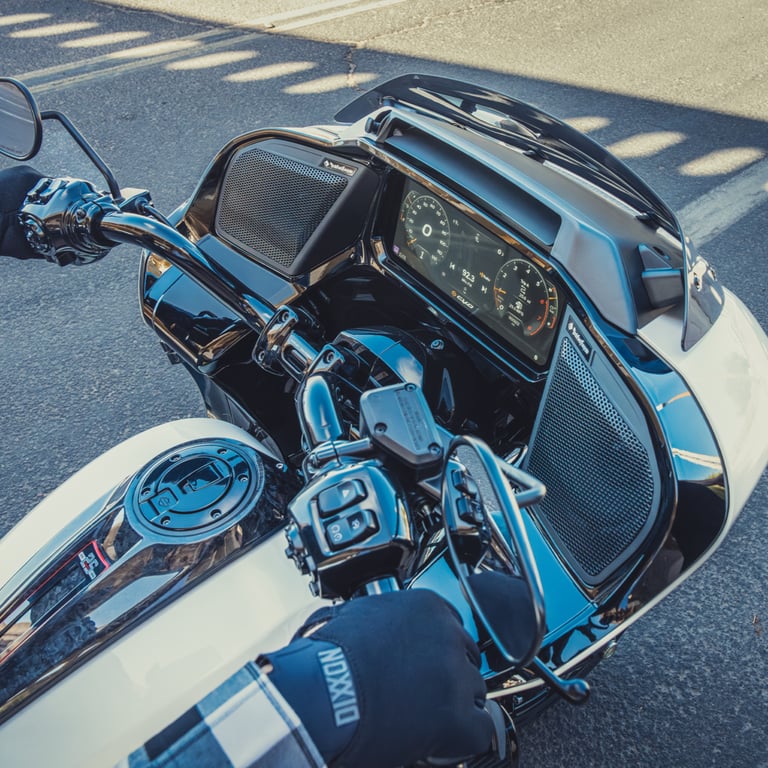

• Compatible with select 2024-2025 vehicles from Harley Davidson

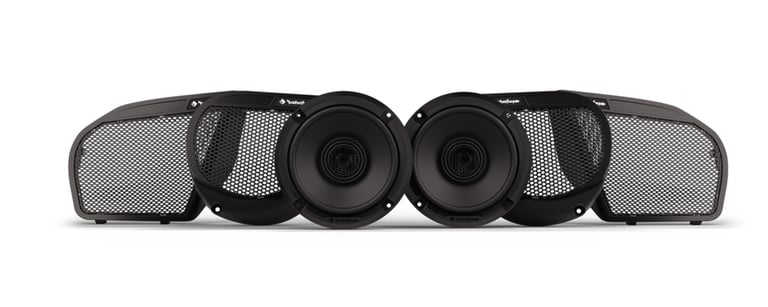

Rockford Fosgate TMS24-65 6.5" Midrange Motorcycle Speaker Details:

• Power Handling:
• Peak: 600 watts per pair / 300 watts each
• RMS: 300 watts per pair / 150 watts each
• CEA-2031 compliant
• Curvilinear Polypropylene cone material
• Santoprene speaker VAST surround
• 1.5" vented voice coil on Kapton former
• Element Ready design to withstand the harsh outdoor environment
• Precision-tuned, long throw, high output design
• Extended frequency range for increased low-end response
• Direct fitment for seamless upgrades in factory mounting locations
• 10% carbon-fill for ideal stiffness and damping
• Breathable, durable Poly-Nomex spider resists moisture and wear
• UV-stable Domamid PA66 composite basket with reinforced 30% glass fiber
• 2nd order crossover for high-frequency clarity, reliability, and listening comfort
• ICC (Integrated Concealed Crossover) eliminates external black boxes
• Braided stitched tinsel leads resist fatigue, corrosion, and breakage
• Corrosion-resistant tin-plated terminals fit Harley-Davidson female spades
• Dual Neodymium magnet motor structure
• Integrated motor cover prevents valuables in saddle bag from heat damage
• Impedance: 4-ohms
• Frequency Response: 50 - 20000 Hz
• Sensitivity: 90.6 dB
• Speaker grilles and trim rings included
• MFR: TMS24-65

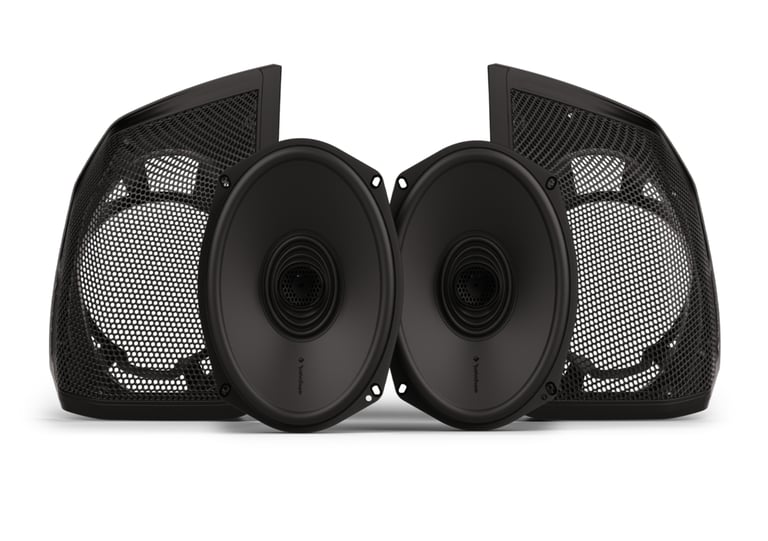

Rockford Fosgate HD24BL69 6x9" Saddlebag Cut-in Speaker Kit Details:

• Includes a pair of Rockford Fosgate TMS24-69 motorcycle speakers
• Power Handling:
• Peak: 600 watts per pair / 300 watts each
• RMS: 300 watts per pair / 150 watts each
• CEA-2031 compliant
• Curvilinear Polypropylene cone material
• Santoprene speaker VAST surround
• 1.5" vented voice coil on Kapton former
• Element Ready design to withstand the harsh outdoor environment
• Precision-tuned, long throw, high output design
• Extended frequency range for increased low-end response
• Direct fitment for seamless upgrades in factory mounting locations
• Precision template with ribbed design for accurate cuts using jig or air saws

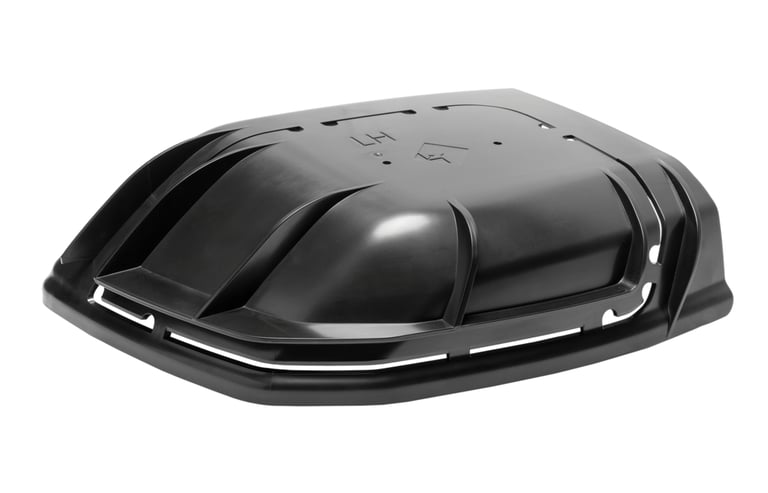

• Top-loading bucket saddlebag speaker-mount with self-centering backer ring
• Top-load design keeps speaker mounted higher to preserve saddlebag space
• Top mount assembly creates a stable foundation to reduce loss of acoustic energy
• U-channel formed by mating top bucket and backer ring fight water intrusion
• Gasketed screws thread into brass inserts for increased seal and rigidity
• Grille with custom side badge finish follows compound bag-lid lines
• Speaker grille secures to bucket using four rubber O-rings for better sealing
• Watertight harness protection using Molex MX150 & Deutsch DT connections
• Integrated motor cover prevents valuables in saddle bag from heat damage
• Impedance: 4-ohms
• Frequency Response: 50 - 20000 Hz
• Sensitivity: 90.6 dB
• Speaker grilles and trim rings included
• MFR: HD24BL69

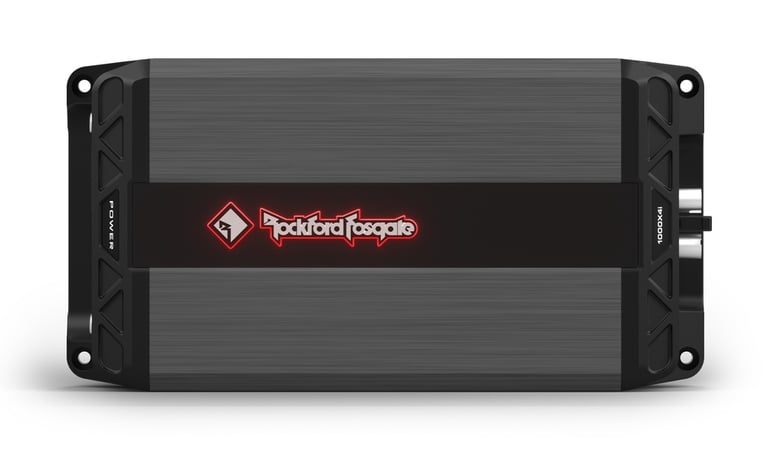

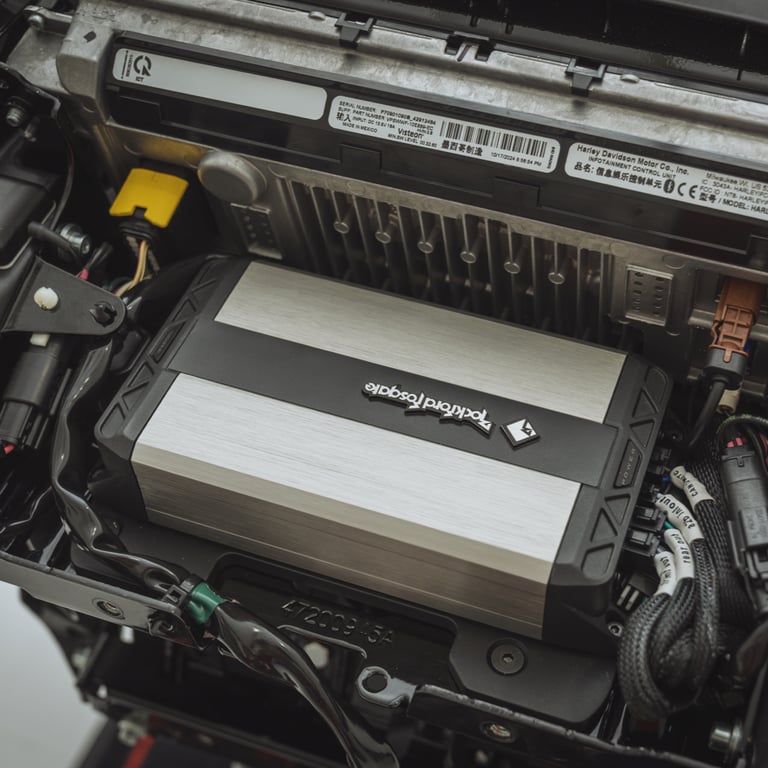

Rockford Fosgate TMA-1000X4i 4-Channel Amplifier:

• Class-D 4-Channel IPX4 Amplifier
• Power Specifications
• 4 ohm: 200 watts x 4 channel
• 2 ohm: 200 watts x 4 channel
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS power output: 800 watts
• Premium audio integration with Skyline OS
• Full-featured digital signal processor
• Bluetooth connectivity for easy wireless setup
• Interactive tuning via RF Connect app for iOS and Android
• Precision digital settings eliminate wear and distortion
• High dynamic power exceeds ratings
• ER5N power connector increases contact area
• Industrial grade O-rings for protection
• RGB top logo offers real-time status display
• Digital A2B 4-pin Molex signal input and signal output
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): 0.10%
• Variable low-pass filter: 50 - 250 Hz
• Variable high-pass filter: 50 - 250 Hz
• MFR #: TMA-1000X4i

Rockford Fosgate RFK-HD24 Amplifier Installation Kit:

• 8-gauge amplifier installation wiring kit
• Plug and play design
• Battery power/ground: 8-gauge
• Amplifier power/ground: 8-gauge
• Fuse Size/Type: 60 amp / Maxi

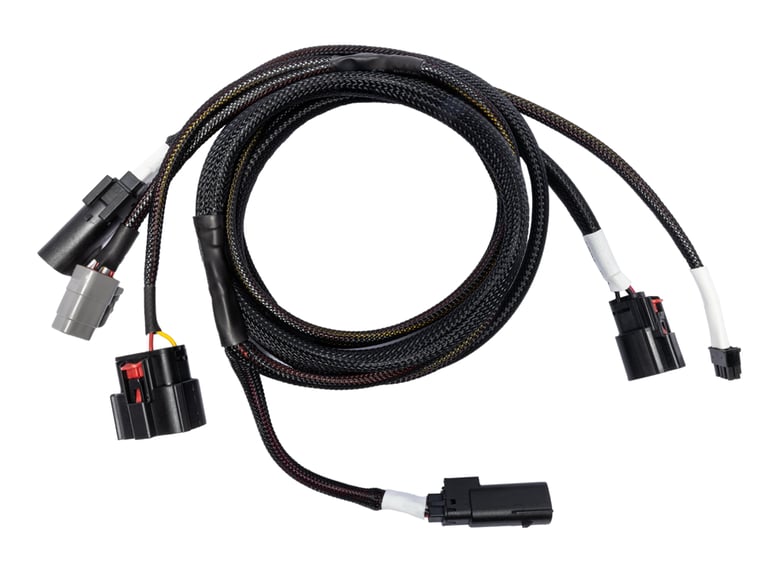

• Includes amplifier mounting plate, rear output harness, power harness
• Includes A2B and speaker harness and AP Pack
• Includes Hex Bolt, 1/4-20 x 0.75, countersink and Steel Bolt, M4 x 14mm, Cable Tie
• MFR #: RFK-HD24
