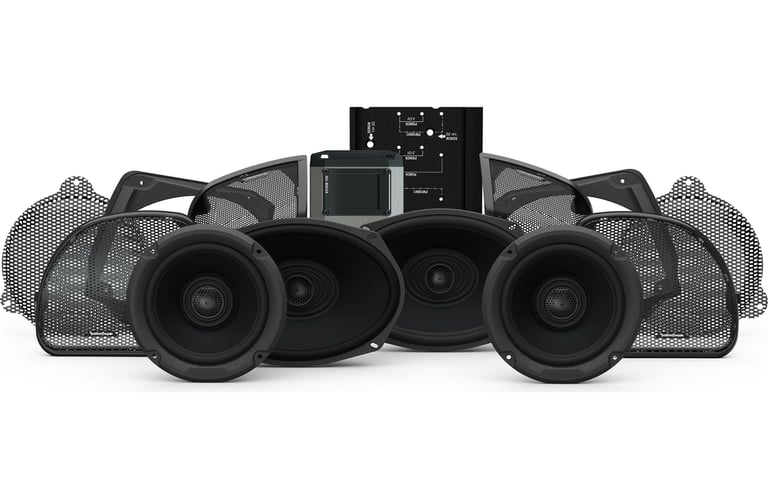

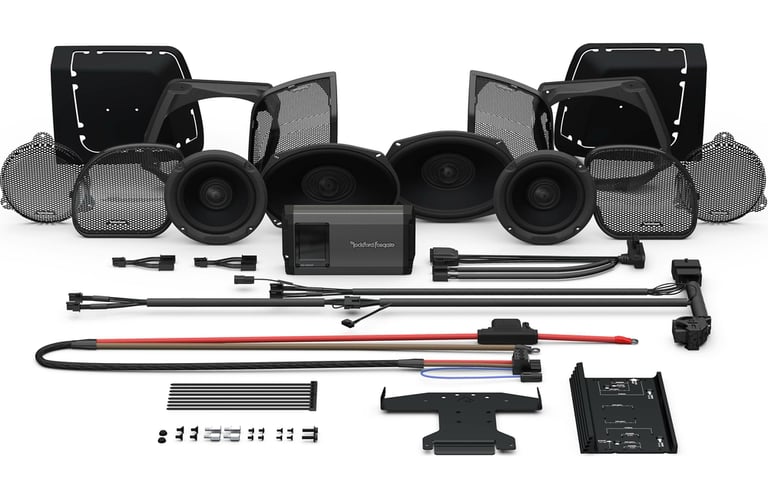

Rockford Fosgate Stage 3 HD14-STG3

Product Details:

• Compatible with select 2014-2024 vehicles from Harley Davidson

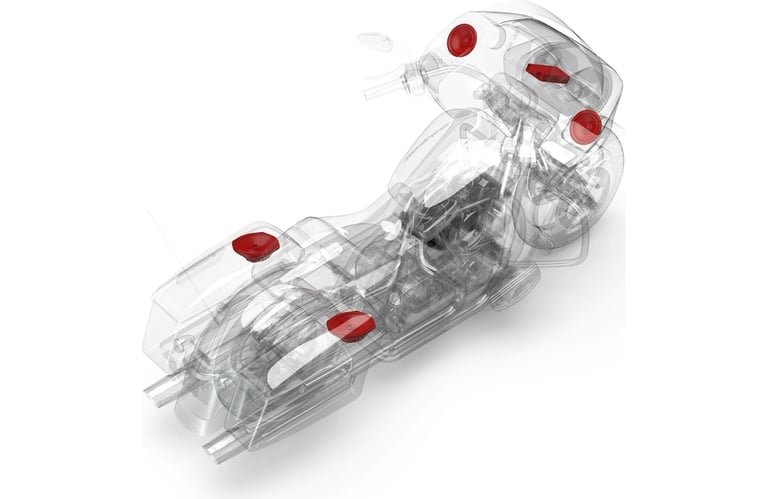

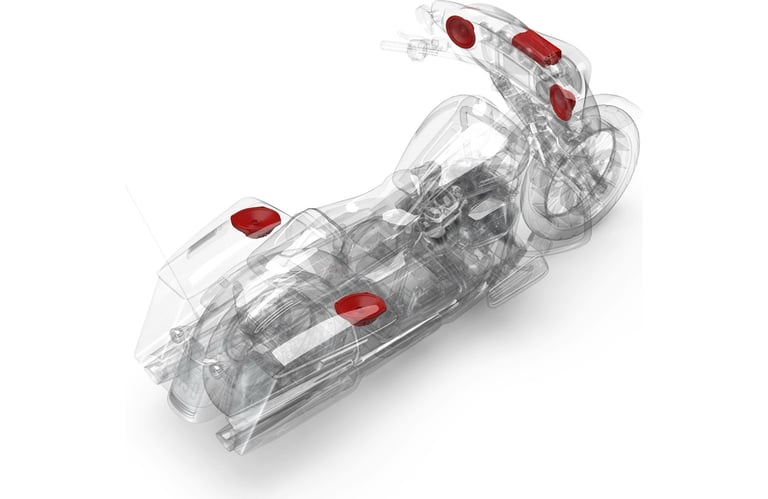

• System includes two 6.5" fairing speakers, two 6x9" saddlebag speakers, and 4-channel amplifier
• Designed and engineered to match and compliment the factory fit and finish of your vehicle
• Plug and Play design for easy installation, no drilling or cutting required
• Direct connect wiring harnesses for Harley-Davidson models
• T-harness supports front/rear fader (requires flash: "Rockford Fosgate 2014+ All Bikes")
• Klippel Verified certification program delivers the best possible loudspeakers
• 90-degree harness included with amp install kit for Road Glide installations
• Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak
• Speakers custom tuned to hear music over wind, road & exhaust noise at highway speed
• Includes wiring harness and mounting hardware
• IPX-6 water resistant, withstands harsh environment
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty

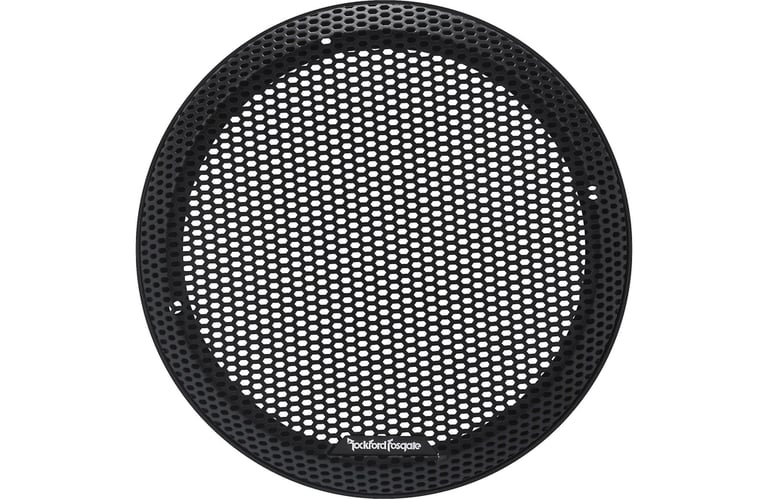

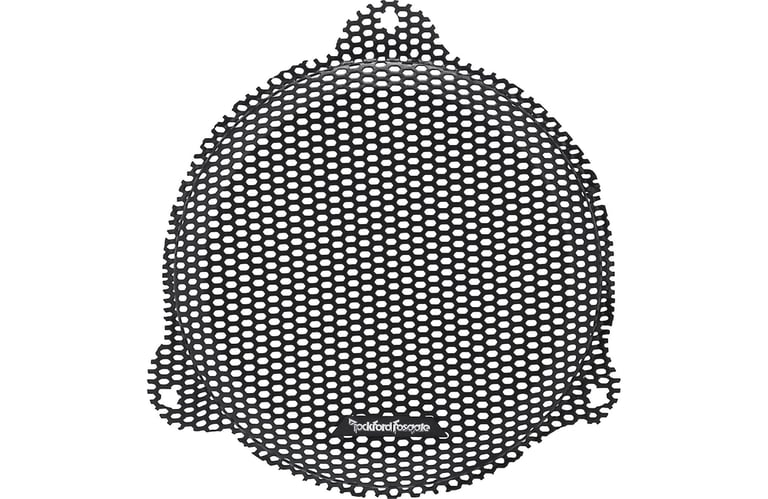

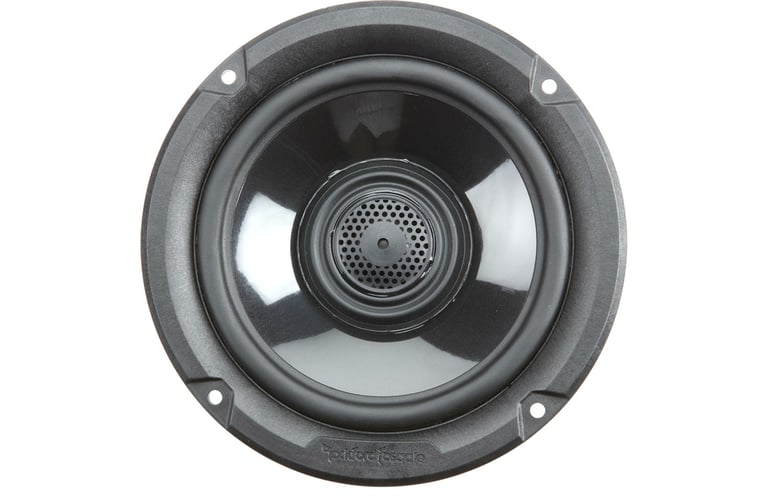

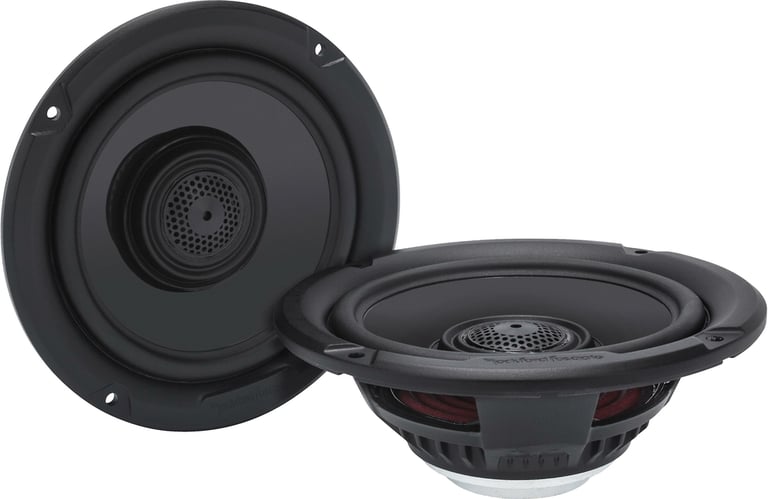

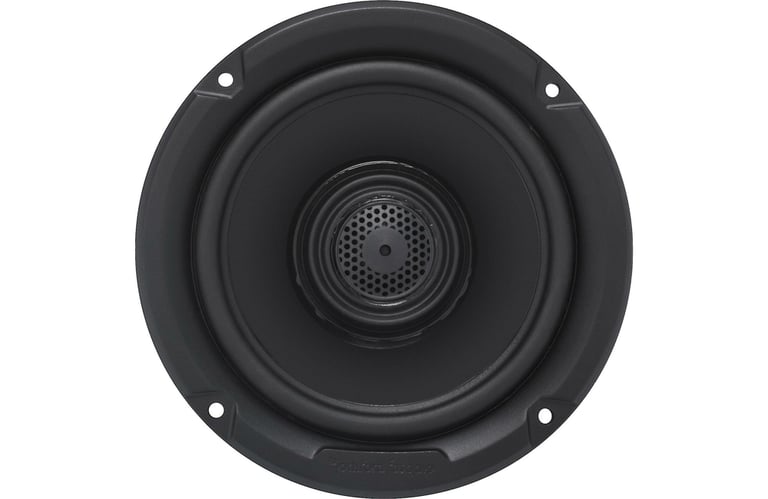

Rockford Fosgate TMS65 6.5" Coaxial Speakers:

• 6.5" Full-range Fairing/Tour-Pak Motorcycle Speakers
• Power Handling:
• Peak: 300 watts per pair / 150 watts each
• RMS: 150 watts per pair / 75 watts each
• Recommended Power Range: 10 - 75 watts RMS per channel
• Carbon fiber reinforced polypropylene cone
• Santoprene speaker surround
• 25mm Film Dome Tweeter
• Neodymium motor structure
• 1.4" aluminum high-temperature voice coil
• Spade terminals for easy speaker connections
• Impedance: 4 ohm
• Frequency Response: 56 - 20000 Hz
• Sensitivity: 91dB
• MFR #: TMS65

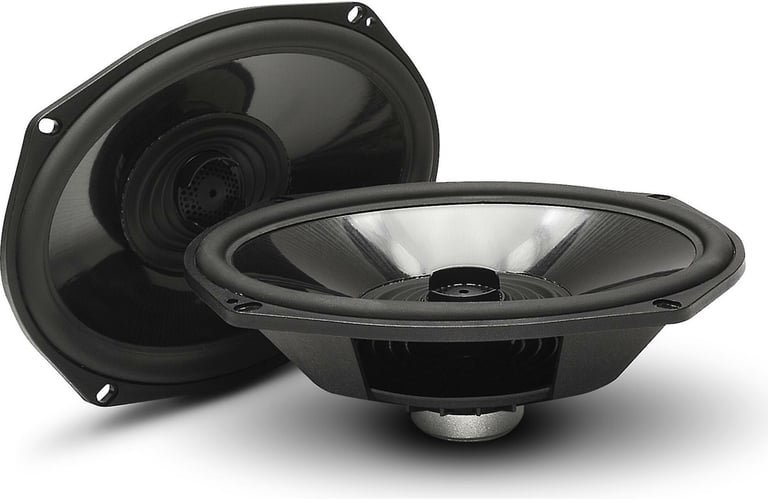

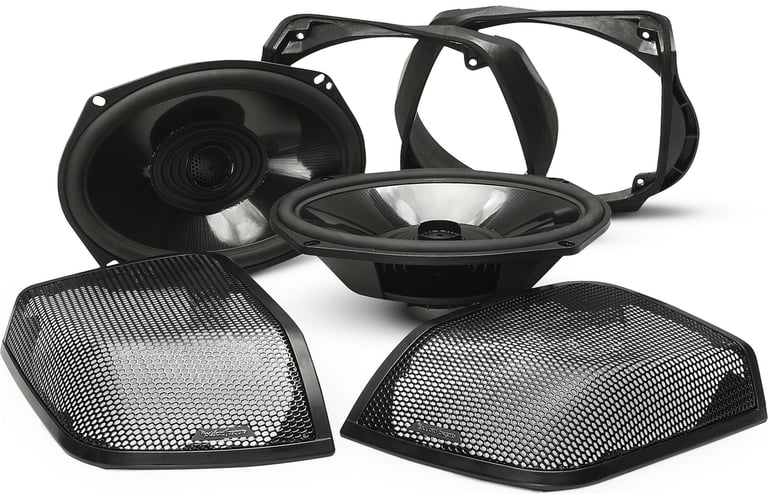

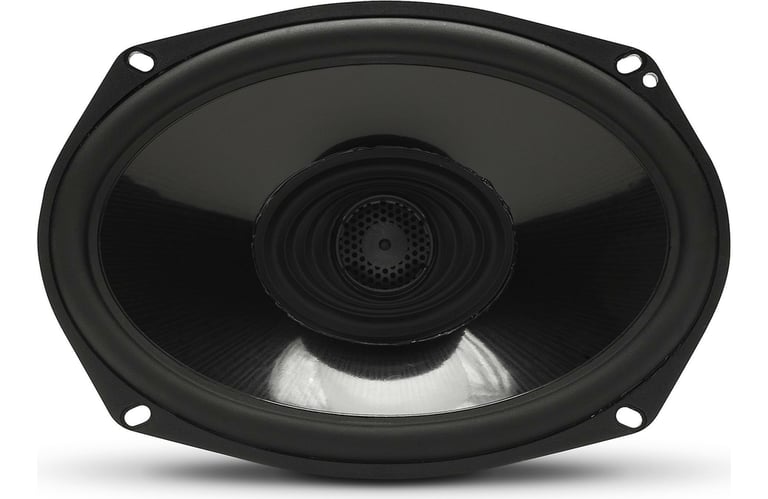

Rockford Fosgate TMS69BL14 6x9" Bag Lid Speakers:

• 6"x9" Full-range Bag Lid Motorcycle Speakers
• Power Handling:
• Peak: 400 watts per pair / 200 watts each
• RMS: 200 watts per pair / 100 watts each
• Includes two Rockford Fosgate TMS69 speakers
• Ultra‐High Temperature Glass Reinforced Polymer Frame

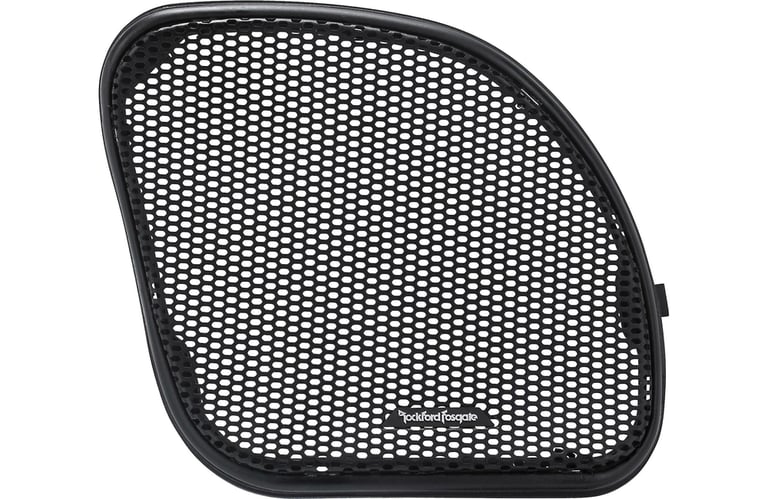

• Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
• Element Ready design that is weather and water resistant
• Sandwich Clamping Gasket Design for Environmental Seal
• Ultra‐Efficient 25mm Proprietary Film Dome Tweeter
• Impedance: 4-Ohm
• Frequency Response: 56 - 20000 Hz
• Sensitivity: 89 dB (1w/1m)
• Midrange Mounting Depth: 2.75" (70 mm)
• MFR #: TMS69BL14

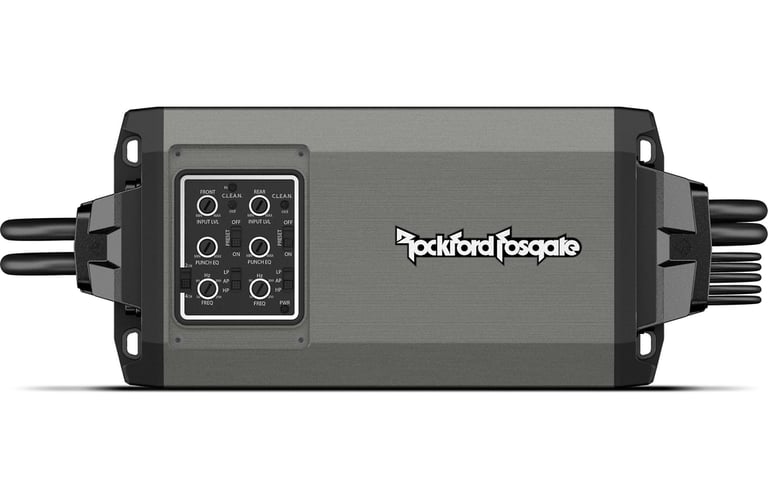

Rockford Fosgate M5-800X4 Class-AD 4-Channel Amplifier:

• M5 Series Class AD 2 ohm Stable 4-Channel Amplifier
• RMS Power Handling:
• 4 ohm: 100 watts x 4 channel
• 2 ohm: 100 watts x 4 channel
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total power output: 400 watts
• LED Power/Protect Light
• C.L.E.A.N. gain setup system includes clip lights
• Heavy-duty molded connectors
• Frequency Response: 10 - 50000 Hz
• Total Harmonic Distortion (THD): 0.25%
• Signal to Noise Ratio: 105 dB
• Variable high-pass filter: 50 - 250 Hz
• Variable low-pass filter: 50 - 250 Hz
• Variable Bass Boost: 0 - 18 dB
• MFR #: M5-800X4

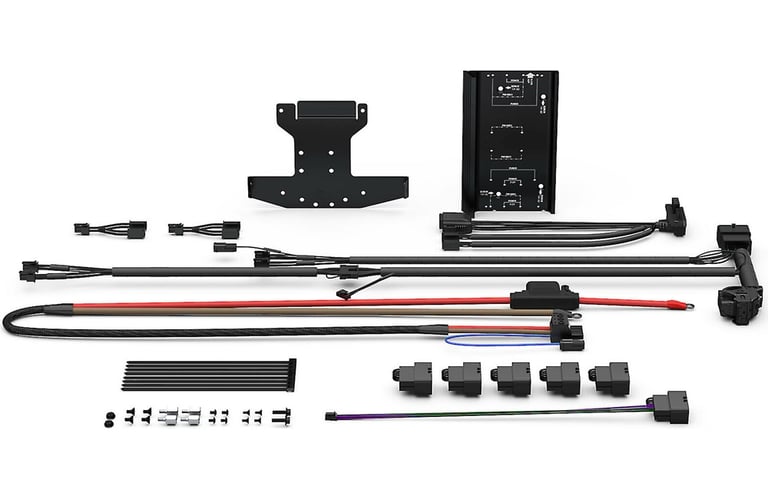

Rockford Fosgate RFK-HD14M5 Amplifier Installation Kit:

• Install a Rockford Fosgate compact-chassis amplifier
• 100% Pure Crystal-Oxygen Free Copper (PC-OFC) wiring
• Comes with 90-degree harness for Road Glide installations
• Includes Y-adapters for expansion to lower fairing, saddlebag, or Tour-Pak speakers
• Consist of Boom! Audio bypass plugs for factory Harmon/Kardon amplified systems
• No cutting or modification of factory wires required
• Designed for powerful, reliable all-weather performance
• Mounting plate, heatsink, hardware, and wiring kit included
• Use the included loop-thru harness with Rockford Fosgate DSR1 (optional and sold separately)
• Factory Harley-Davidson Boom! Box 4.3, 6.5GT, and GTS must be flashed to use this kit
• MFR #: RFK-HD14M5
