NVX XCW122 + XCA3K + XKIT02 + XAPKO

Product Details:

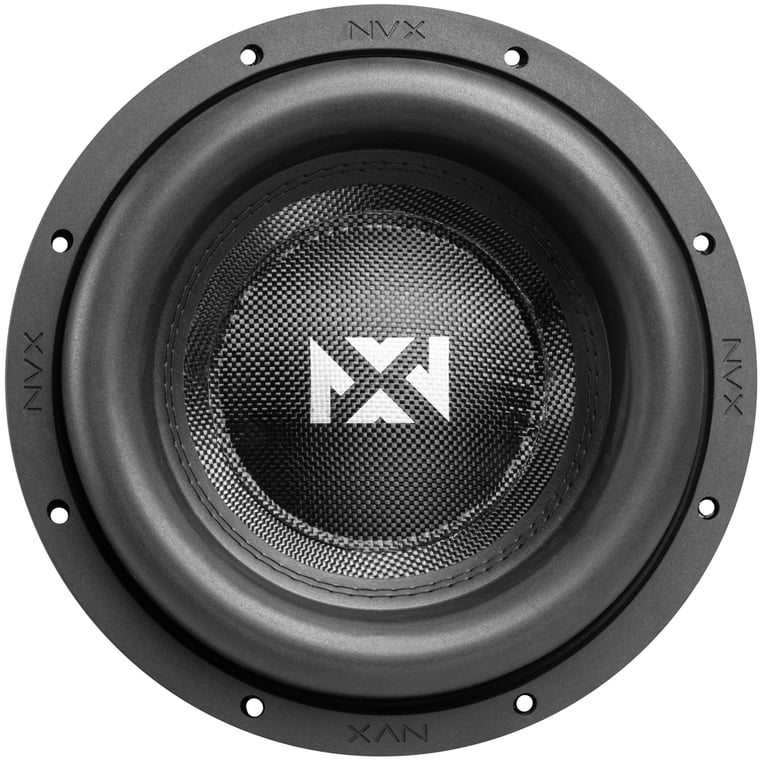

• 12" Dual 2 ohm X Series SPL Subwoofer
• Power Handling:
• Peak: 4000 watts
• RMS: 2000 watts
• Designed for Extremely Low Bass
• 30 mm Xmax (One Way)
• Enhanced Woven Fiber Paper Composite Cone
• Custom High-Roll Foam Surround with Black Nylon Stitching
• Precision-Engineered Die-Cast Aluminum Basket with Reinforced X Bracing for Structural Strength
• Vent Cooling Spacer to Maintain Optimal Airflow and Keep the Voice Coil Cool
• 3.0" High Temperature Flat Wire CCAW Aluminum Voice coil with Black Aluminum Former
• 4-Layer Linear Roll Spider with Integrated Tinsel Leads for Enhanced Linearity and Durability
• Optimized High-Velocity Pole Vent
• One-piece T-yoke with Vented Magnet Gap for Efficient Heat Dissipation
• 409 oz. Triple Stacked Ferrite Magnet with Protective Rubber Boot
• Heavy-Duty 4-Gauge Hex Key Speaker Terminals
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 35.9 Hz
• Sensitivity: 85.6 dB
• Recommended ported box volume: 2.5 cubic feet
• Top-mount depth: 10.35"
• Cutout diameter: 11.22"
• CTA-2031 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

Product Details:

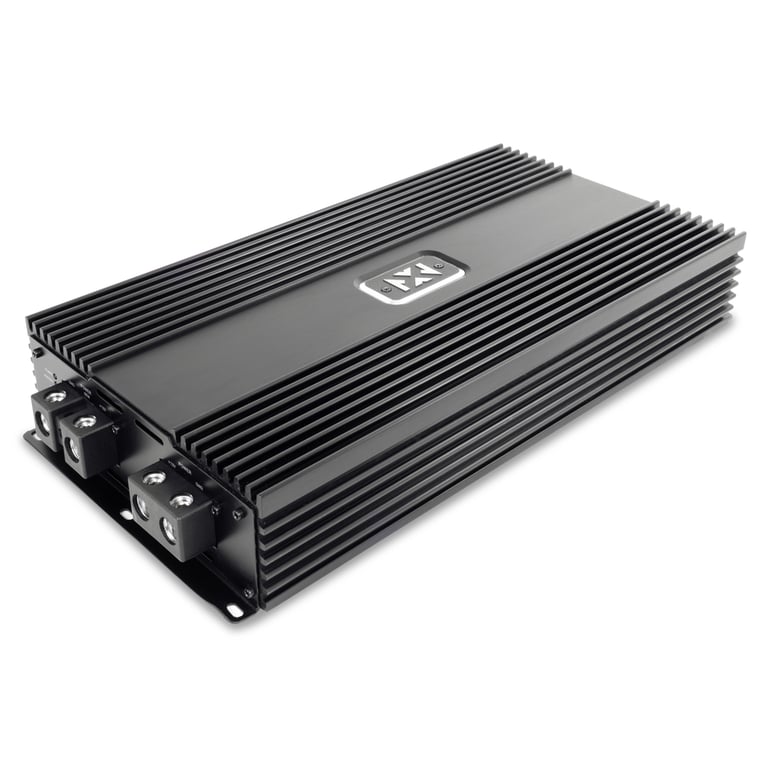

• XC-Series Competition Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 1000 watts x 1 channel
• 2 ohm: 2000 watts x 1 channel
• 1 ohm: 3000 watts x 1 channel
• 1 ohm: 3000 watts x 2 (Linked)
• 2 ohm: 6000 watts x 1 (Strapped)
• 35V/4700µF High-Capacity Capacitors — Deliver enhanced ripple suppression and voltage stability under extreme loads
• IRF1404 High-Efficiency MOSFETs — Used in only the most demanding amplifier designs for superior current handling and heat control
• High-Current FDH45N50F Output Transistors — Distributes power more efficiently across multiple devices, reducing heat and ensuring reliable performance
• Advanced Multi-Amp Strapping and Linking Technology
• Synchronize Two or More Amplifiers Using an RJ11 Cable (Included)
• LED Indicators: Power, Protect, and Clip Lights
• Includes a Wired Bass Level Remote Control with Voltage and Temperature Display, Plus a Clip LED Indicator
• Precision-Machined Tiffany RCA Inputs and Outputs
• 4-Way Protection Circuitry: Thermal, Overload, Speaker Short, and DC Offset Protection
• Input sensitivity: 0.2 - 6 volts
• Frequency Response: 10 - 250 Hz
• Total Harmonic Distortion (THD): <0.1%
• Signal to Noise Ratio: 91 dB
• Dampening Factor: >400
• Variable low-pass filter: 35 - 250 Hz, 24 dB/octave
• Subsonic filter: 10 - 50 Hz, 24 dB/octave
• Operating Voltage: 9.5V - 16V
• Fuse Rating: 300A
• Dual 1/0 AWG Power and Ground Inputs
• 4 AWG Speaker Outputs
• Dimensions: 15-7/8" L x 8-3/8" W x 2-3/4" H
• Made in Korea
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: XCA3K

Product Details:

• 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 3000 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 1/0 Gauge Nickel Plated ring terminals
9. Four 12 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Two Heat Shrink tubes with the NVX logo
12. Ten 6" Black zip ties

Product Details:

• 1/0 Gauge X-Series Amplifier Power Installation Kit
• Designed for car audio systems up to 3000 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
5. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
6. One Black rubber firewall grommet
7. Two 1/0 Gauge Nickel Plated ring terminals
8. Four 12 Gauge Spade terminal
9. Two 18 Gauge Red butt connectors
10. Two Heat Shrink tubes with the NVX logo
11. Ten 6" Black zip ties
