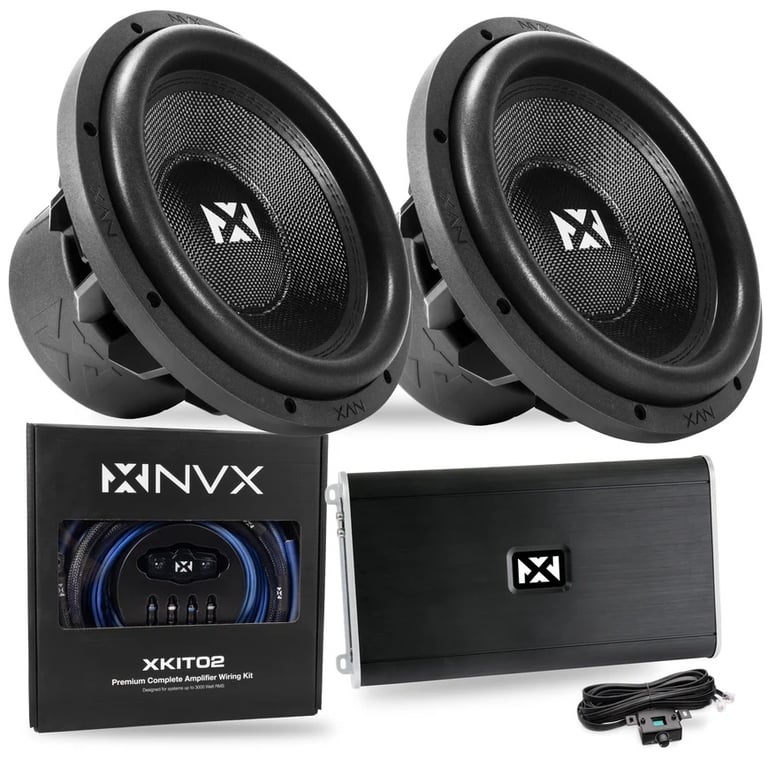

NVX VCW124v3 + VAD27001 + XKIT02

2400 Watt Peak (1200W RMS) 12" VC-Series v3 Subwoofer + Monoblock Car/Marine/Powersports Amplifier w/ Bass Remote with 2-Channel Amplifier Wiring Kit w/ RCA for Amplifiers

NVX
Shop all NVX
highlight-star-icon

• Two 12" VCW124v3 VC-Series v3 2400W RMS Subwoofers
• 5400W Peak (2700W RMS) Class D VAD27001 Monoblock Amplifier
• XKIT02 Complete 0 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

Learn more about the vcw124_vad27001_xkit02

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


NVX brand icon

Authorized dealer

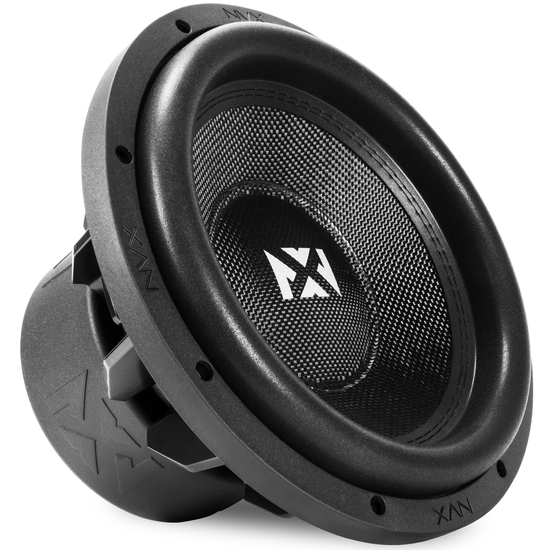

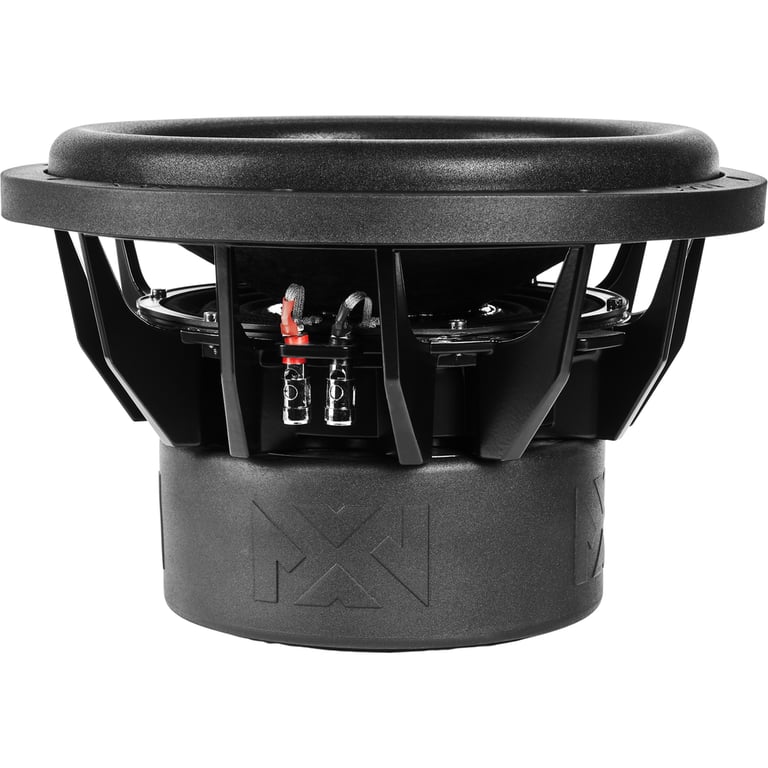

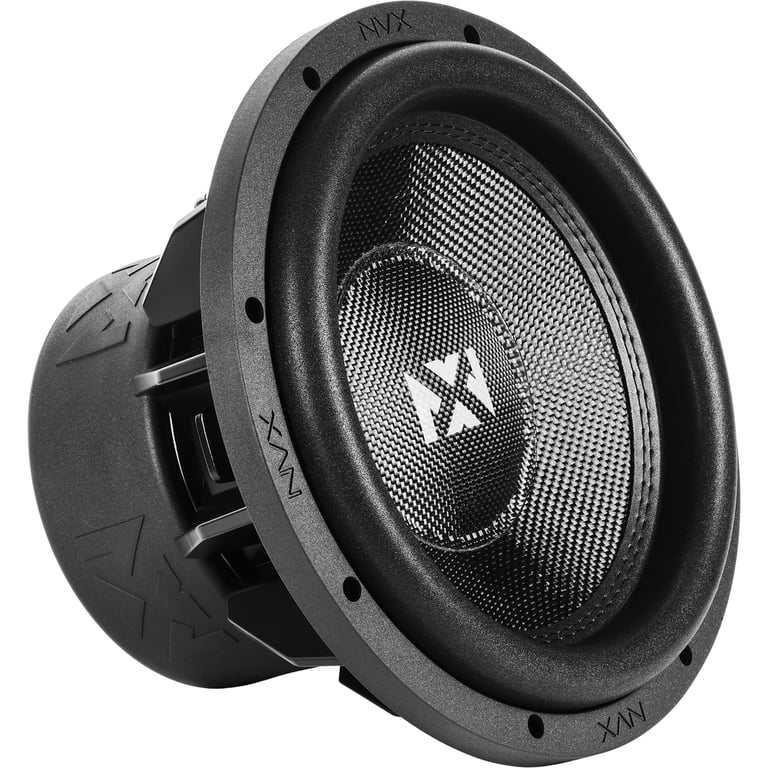

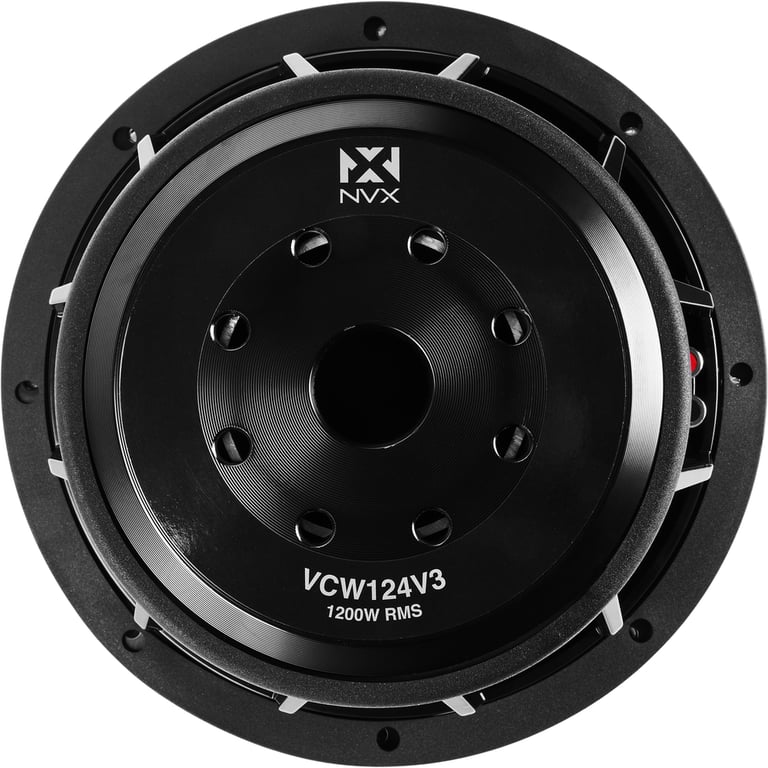

NVX VCW124 Version 3 (VCW124v3)

2400W Peak (1200W RMS) 12" VC-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 2

Product Details:

  • 12" Dual 4 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1200 watts

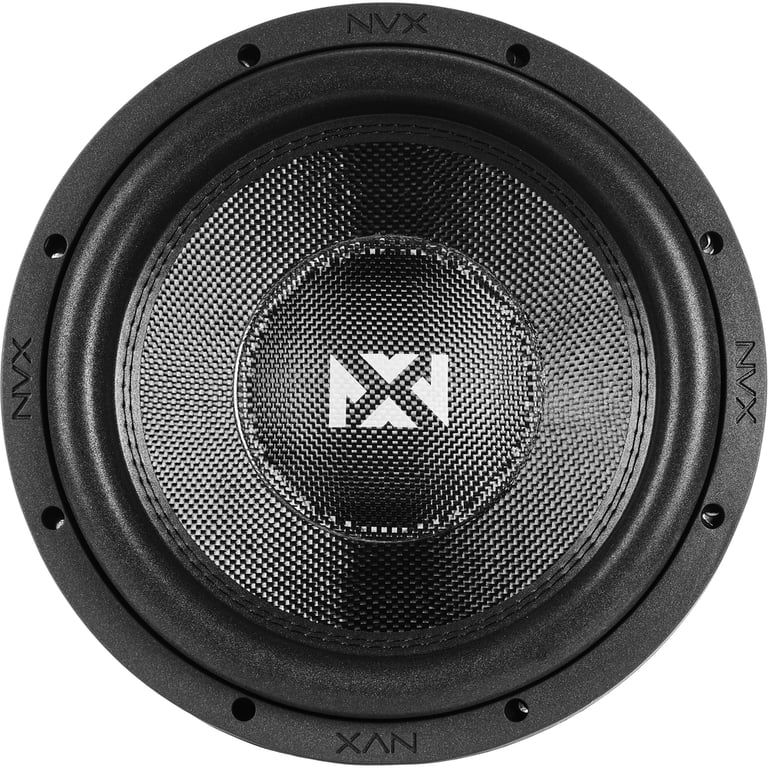

  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket
  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 25 Hz
  • Sensitivity: 85 dB (1W/1m)
  • Optimal sealed box volume: 0.85 cubic feet
  • Optimal ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Cutout diameter: 11.26"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

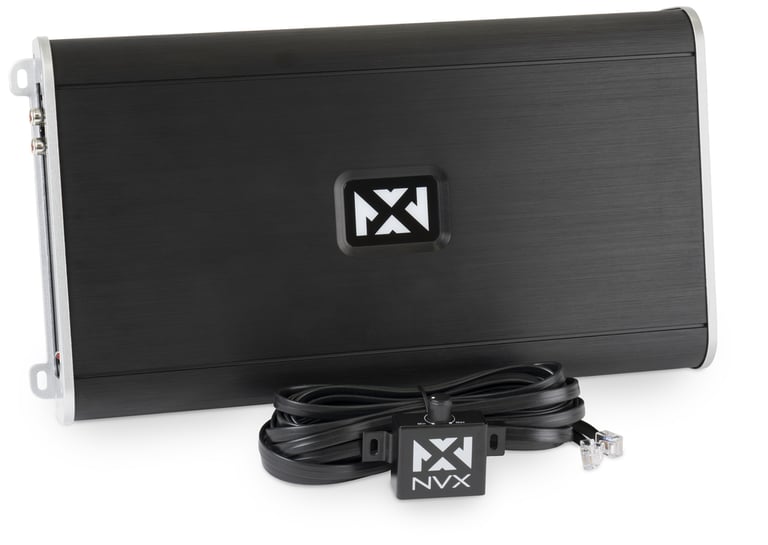

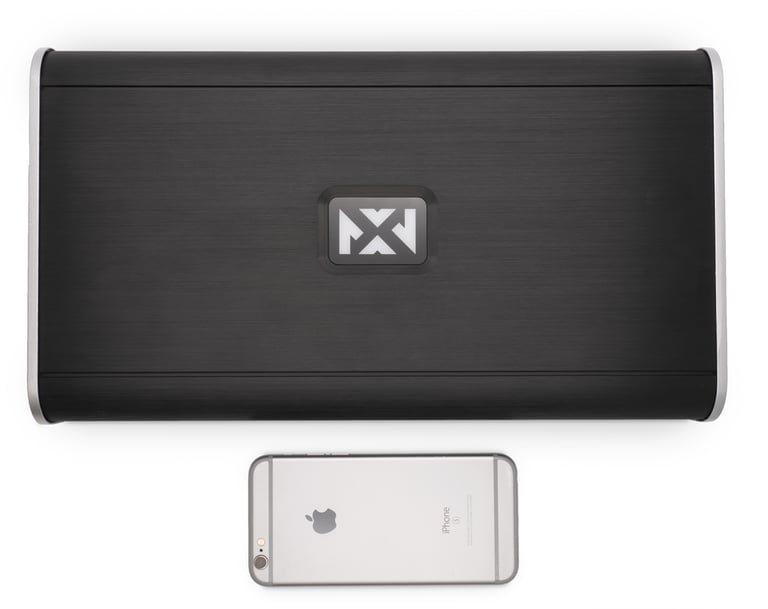

NVX VAD27001

2700W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote (Marine Certified)
Quantity: 1

Product Details:

  • Marine Certified Class D Monoblock Amplifier with Bass Remote
  • CEA-2006 Compliant
  • Peak Power Rating: 5400 Watts
  • RMS Power Rating:
    • 4 ohm: 1250 watts x 1 chan.
    • 2 ohm: 1950 watts x 1 chan.
    • 1 ohm: 2700 watts x 1 chan.
  • LED power (blue) and protect (red) indicators

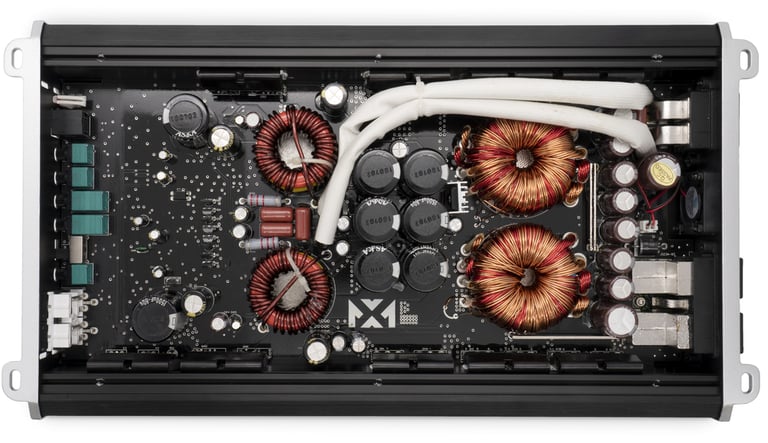

  • Conformal Coated Marine grade circuit board
  • Heavy duty aluminum alloy heat-sink

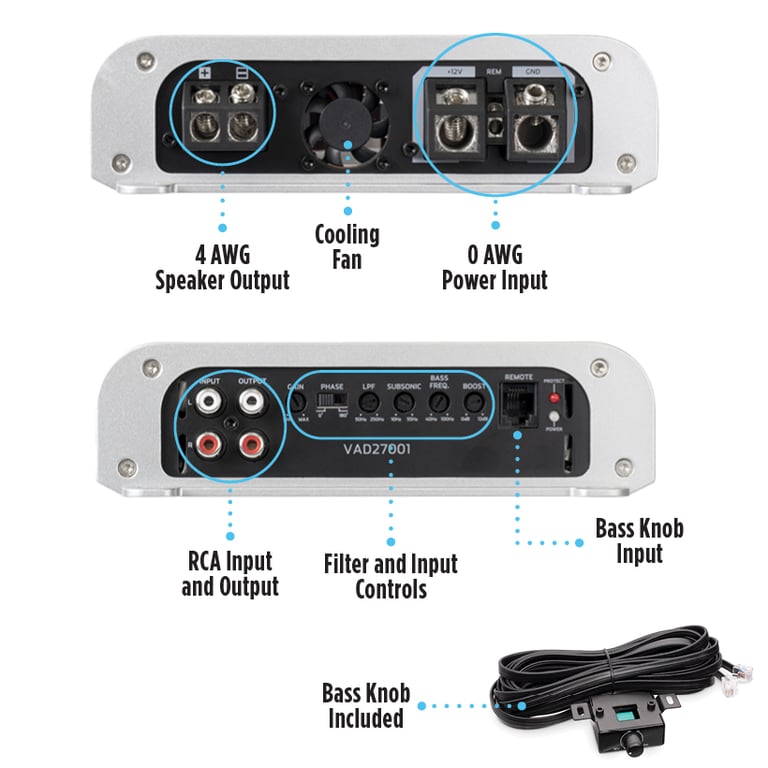

  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Variable subsonic filter: 10 - 55 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Bass Boost: 0 - +12dB boost @ 45Hz
  • Input Sensitivity: 200mV-6V
  • Phase: 0-180 Degree Switch
  • Total Harmonic Distortion: <0.3%
  • Recommended In-line Fuse: 200 - 250A
  • Power Wire Gauge: 0 AWG
  • Speaker Wire Gauge: 4 AWG
  • Dimensions: 12.8"L x 7.2"W x 2.0"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

product manual iconNVX VAD27001 owner’s manual


WARNING: UPGRADE VEHICLE CHARGING SYSTEM

Your warranty is void if you do not have a minimum amp charging system of 200A. Such a charging system can only be achieved with the installation of a High Output Alternator. Failure to upgrade your vehicle's charging system will damage your amplifier due to distortion, short-circuit, or other failure. This may also cause damages to your charging system and/or subwoofer(s).

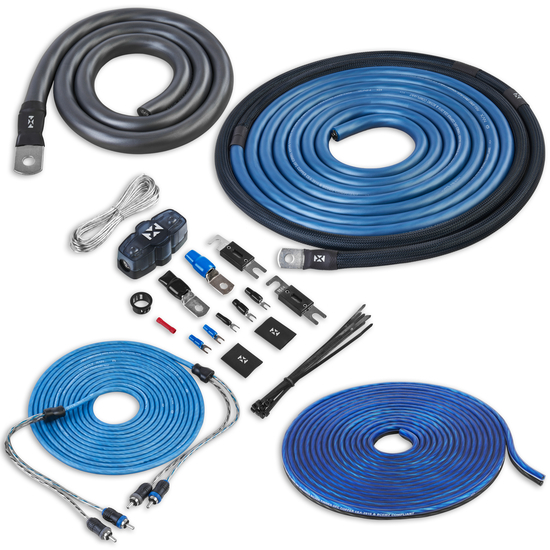

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 3000 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

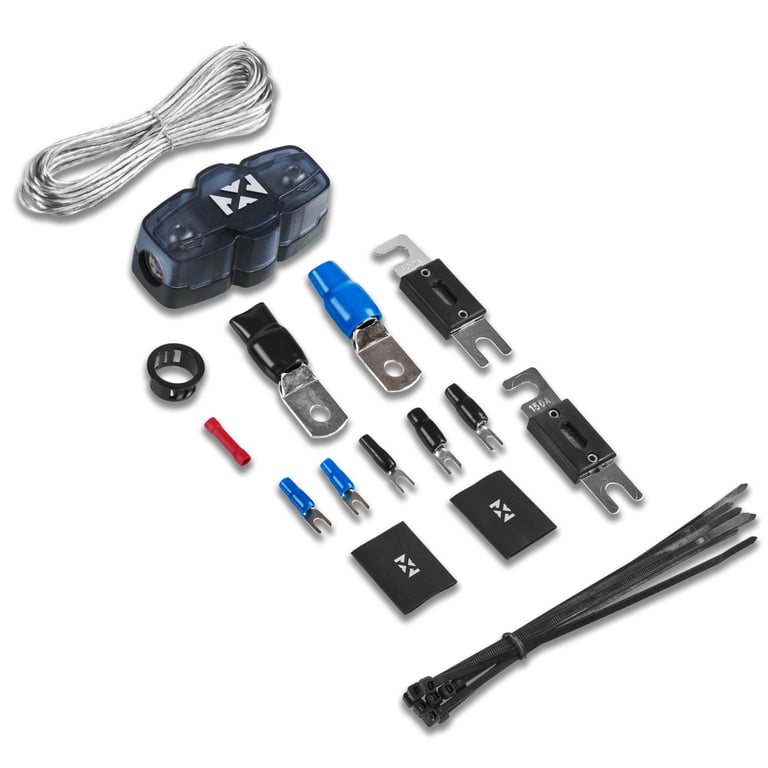

Kit includes:

  1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

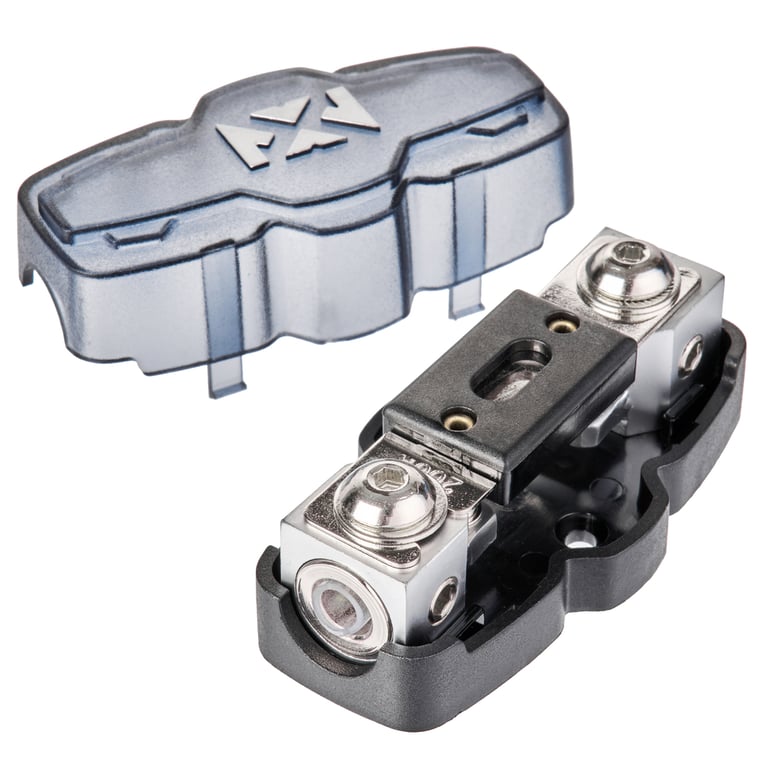

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Two Heat Shrink tubes with the NVX logo
  12. Ten 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
1200 watts
Peak Power Handling
2400 watts
Woofer Surround
High Roll Foam
Woofer Composition
Woven Fiber Pressed Paper
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Sensitivity
85 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
23 mm
Top-Mount Depth (Mounting Depth)
7.02"
Cutout Diameter
11.26"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW124_VAD27001_XKIT02

Weight:

92.88lbs

Internal SKU:

vcw124_vad27001_xkit02

Internal Product ID:

225022

Customer Ratings & Reviews


NVX VCW124v3 + VAD27001 + XKIT02 thumbnail image

5 star
92%
4 star
7%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Extremely Accurate

The following review is for VCW124v3, which is a part of the bundle you are viewing.

For a $200 subwoofer driver, this piece is one of the most accurate in it's price bracket.

What does it do for you? It creates a listening pleasure like no other, whether you listen to classical, rock, pipe organ, or any other genre of music, this speaker delivers.

It's quick response is well appreciated. I would or could go on and on about the different setups and what yielded the most listening pleasure, but that would be highly selective to my ears.

Bottom line is I would recommend this speaker on any given day of the week.

By samuel on May 19, 2014

145 found this helpful


well structured subs

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Great subs, sounds awesome. Just can't get the subwoofers displacement anywhere and I'm having difficulty contacting technical support

By fredy on December 21, 2013

151 found this helpful


POUND POUND POUND!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

That's all these do is POUND! They sound amazing. I have them ran 1 ohm to my Hifonics X2200.1, giving them 1000 watts RMS easily, and they are begging for more. Can't wait to get them in a custom box (going to do 1.9 cubic ft per chamber tuned to 30-34 hz), and have them really perform. NVX is great quality, and sound amazing. Heads turn when you have these in your trunk!!!!

By Matt on August 20, 2014

140 found this helpful


Best subs yet!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

I bought the NVX VCW124s (2) to use in my vehicle with a Hifonics Brutus 2200 RMS Monoblock amp. The subs Voice coils are hooked in parallel giving me roughly a 2 Ohm load per speaker. So these babies are capable of getting 1100 amps RMS each but I don't push them that hard because I really don't need too and I want them to last. They hit harder than any sub I have ever bought and I am a solid NVX believer now. I also just bought the entry level NSW122s at a great deal, 2 for $99! If you are thinking about these, DO IT! You will not be disappointed one bit, and then you will likely not even consider anything else but NVX when it comes to serious performance and value.

By Ja_surplus on June 3, 2014

138 found this helpful


NVX for the win NVX>ALPINE FOR SURE!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Took long to get home but worth the wait out of the box it was just an impressive subwoofer triple stack good looking and made Super tuff loaded them to a ported box and theyre louder than my broken in alpine type R subs i just love them definitely hi def sound thumbs up to nvx thanks sonicelectronix

By ARTILLERY CAR CLUB on January 16, 2014

124 found this helpful


great bass

The following review is for VCW124v3, which is a part of the bundle you are viewing.

The weight of the NVX Sub is nice and the bass is dumping.

By fresh on October 13, 2014

124 found this helpful


awsom powding bass beastly subwoofer

The following review is for VCW124v3, which is a part of the bundle you are viewing.

i recommend this subwoofer to any one who is looking to get big bass for the right money i have three of these in a q power three hole m.d.f box and running them off of a 3000 watt s.p.l amp and all i have to say is holey chees and bees knees i can hear the bass six block's away and feel the bass running on to my chest from three and people have told me when i am washing my car and i have every thing playing start's to knock their china and glass cups out from their place. i plan to un pug one until i get another battery as well as a battery isolator do to my head light's diming and having to jump start my car every now and then i already got a strike Capacitor that is 10 farad so as soon as that all comes in BOOM im back is business ... other than that al i got left to say is that give it a try and i know you will love it... i was a kicker hater i always hated those subwoofer's and when i heard them in my friend's car on a boss amp i was wowd so when i was told that n.v.x was just as good as m.t.x i said to my self i will try one for my self and i loved them so much i bought three as well as a q power 3 hole box

By shaun on August 25, 2014

124 found this helpful


NVX is a great company

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Ok first off let me say my last system was 2 american bass xfl 12 (old style baskets) on a crescendo 2000d at .5ohm..could burp a mid 147db at 35hz.. had that setup for over a year..
anyhow i sold everything and went almost a entire year with NO bass at all..not even a cd player..
so i decided to get back into audio again..I 1st heard of nvx from mazda2284 on youtube.. and after talking to him i decided to order some nvx products..
i have 2 of these vcw 12s on a BELVA 5000d.. wired to 1ohm and gains set and O SCOPED for a CLEAN 2000w.. i have a 180a alternator and 150amp hr of battery bank and 0g wires..
i have these subs in a 3.8 cubic foot NET (meaning each sub really sees 1.9 cubes each) using 14" of port per cubic foot and tuned to 30hz..
i 1st tried the recommended 1.2 cube ported box but the ouput was absolutely HORRIBLE.. the 1.9 cubes REALLY made them come to life
they are JUST as loud as my xfls were and play a good bit lower also (xfls struggled below 25hz these nvx's play 20hz EASILY)
and they take the power all day long.. with my voltage dropping to around 13.2s full tilt i can play for a constant 1hr and the subs are still COOL and so is the amp

By jake on May 9, 2013

119 found this helpful


Buy it NOW before it's doubled in price!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

These subs are the BEST I have ever owned or heard anywhere and the price is way bellow what their competitors are asking for similar subs at NVX specs. I own 3 of these babies and am planning on buyin nothing but these subs for my subwoofer needs. Buy these subs NOW at these prices while you still can because the are definitely going to get more expensive and soon too. My next purchase will be for the VCW15 for another home subwoofer custome build. I only wish they made an 18" subwoofer for my current 18" subwoofer satellite custome built box that is good but could be so much better with an NVX subwoofer at its core. Amazing sound, quality, and value!

By Jlircs on September 30, 2014

120 found this helpful


fuccin aye

The following review is for XKIT02, which is a part of the bundle you are viewing.

Well worth the money, go hard or go home!!! Only mess with the best

By Michael on March 31, 2014

108 found this helpful




MR1004, BAK44 small

Boss MR1004 + 4 Gauge Amp Wiring Kit

400W Max (200W RMS) Riot Series 4 ohm Stable 4-Channel Class-A/B Marine Amplifier w/ Remote Level Control

(28)

$107.48

List price $179.98

HD 558_RD-CE0174N3B_180 Day Exchange small

Sennheiser HD 558 + Sonic Electronix Bonus Pack 3

Over-Ear Professional Open-Back Audiophile Headphones + Extended Warranty & Exchange Policy + 15% off Headphone Amp/DAC Coupon

(2)

$109.95

List price $298.98

KTA-30FW, BAK84 small

Alpine KTA-30FW + Belva 8 Gauge Amp Wiring Kit

600W Max (300W RMS) KTA Series 4 ohm Stable 4-Channel Class-D Tough Power Pack Amplifier

(37)

$499.95

List price $659.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1976 Chevrolet Nova

2015 Cadillac Escalade ESV

2018 Lexus ES300h

2002 Kia Sedona

2015 Lincoln MKZ

1991 Dodge Ram 50

2010 BMW 650i

2022 MINI Cooper

1995 Toyota MR2

2002 Saturn SW2

Vehicle
Store
Delete

2017 Can-Am Defender MAX HD10 DPS

2022 Can-Am Defender MAX HD10 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
