NVX VSW104v3 + NDA15001 + XKIT42

Product Details:

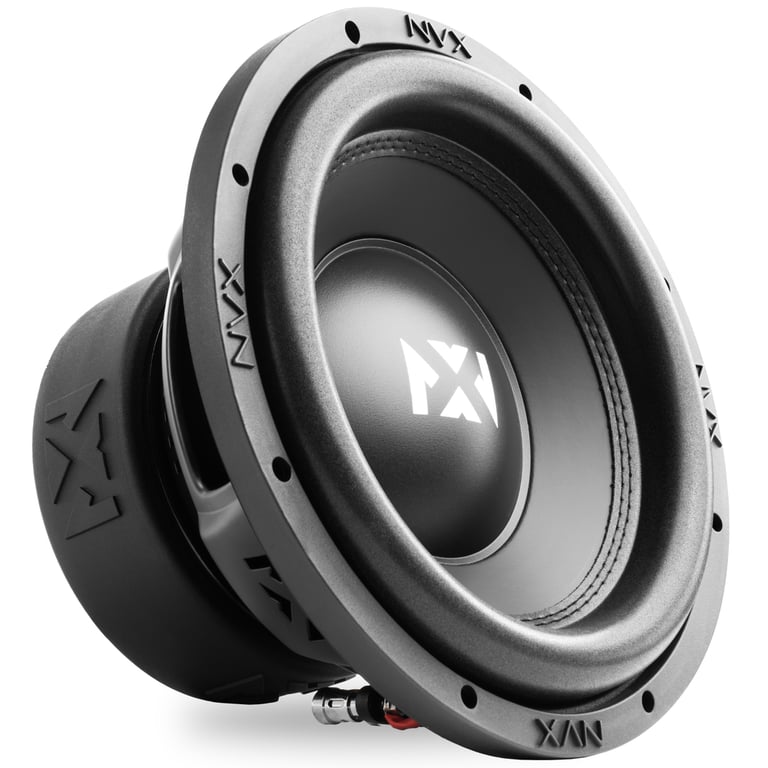

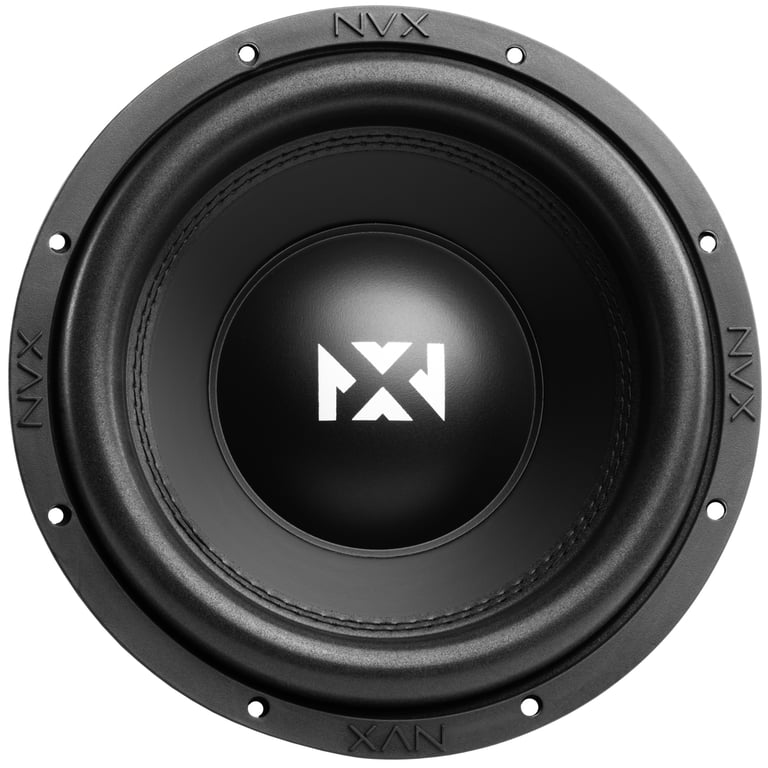

• 10" Dual 4 ohm VS Series Subwoofer
• Power Handling:
• Peak: 1200 watts
• RMS: 600 watts
• 13.5 mm Xmax
• Enhanced Pressed Paper Cone
• High-Roll Foam Surround with Black Nylon Stitching
• Stamped Steel Vented Basket with NVX Punched Logo
• 2.5" High Temperature Copper Voice coil with Aluminum Former
• Progressive Roll Single-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent
• 107 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 32.61 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: 0.5 cubic feet
• Recommended ported box volume: 1.25 cubic feet
• Top-mount depth: 5.80"
• Cutout diameter: 9.01"
• CTA-2031 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

Product Details:

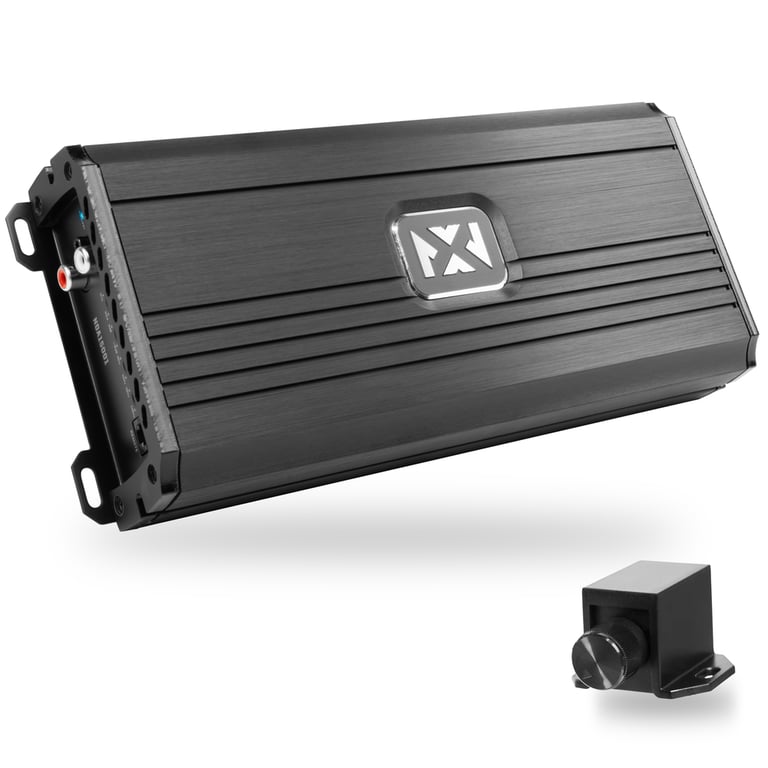

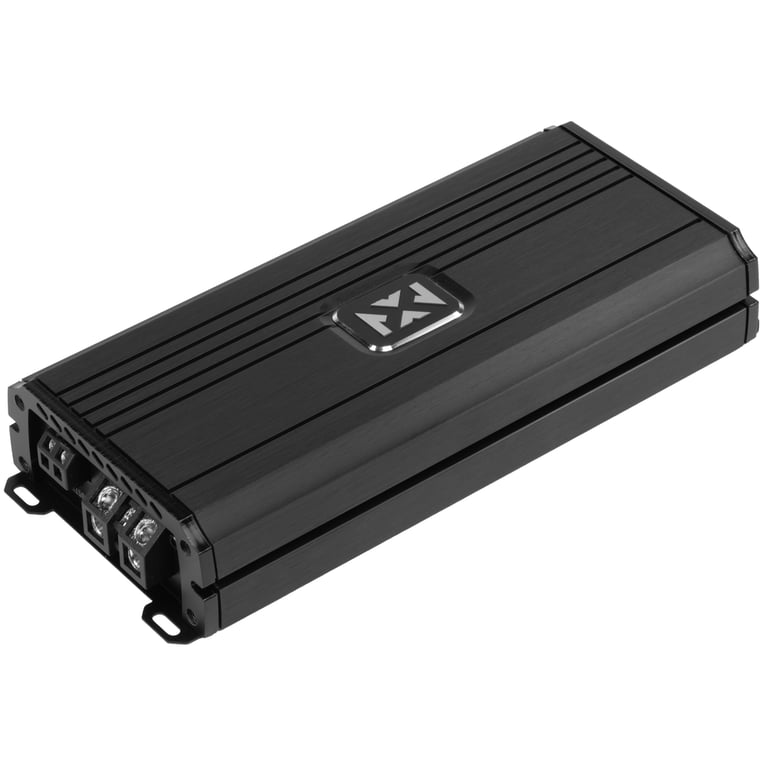

• N-Series Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 670 watts x 1 channel
• 2 ohm: 1100 watts x 1 channel
• 1 ohm: 1500 watts x 1 channel
• Total RMS power output: 1500 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• INFINEON drive chipset full Class D technology
• Designed for car, powersport, and motorcycle applications
• Compact size for easy installation
• Surface mount component technology
• Audio precision quality control verification

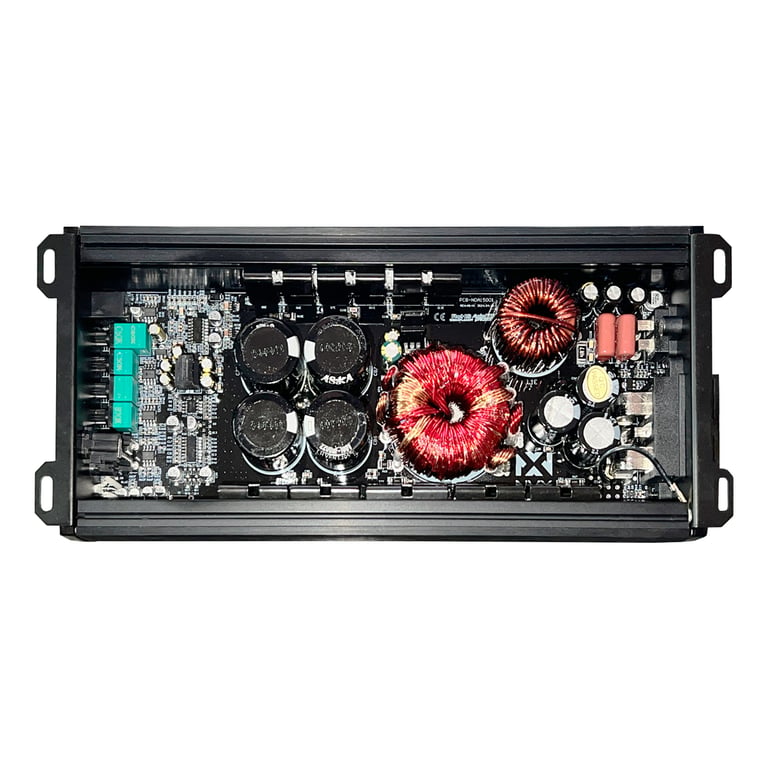

• Stable and reliable four layers PCB traces layout
• Excellent signal-to-noise and FM noise rejection
• Signal sensing remote turn-on
• 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
• Balanced differential inputs eliminate noise picked up by signal cables
• Input sensitivity:
• Low level and High level: 0.2 - 10 volts
• Frequency Response: 20 - 250 Hz
• Total Harmonic Distortion (THD): 0.1%
• Signal to Noise Ratio: >96 dB
• Variable low-pass filter: 50 - 250 Hz
• Subsonic filter: 10 - 55 Hz
• Variable Bass Boost: 0 - 18 dB
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 10.15" L x 4.42" W x 1.73" H
• Authorized Internet Dealer
• 1 Year Manufacturer's Warranty
• MFR #: NDA15001

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
