See all parts that fit your 2017 MDX

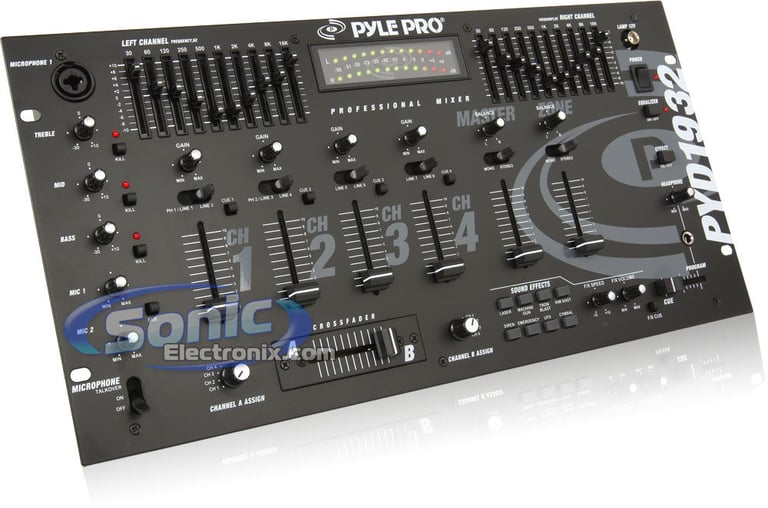

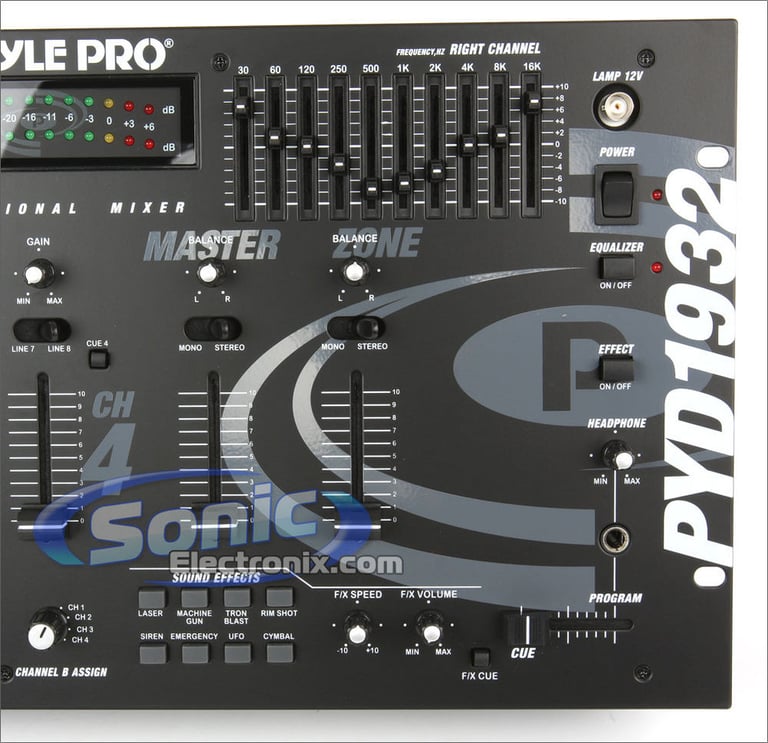

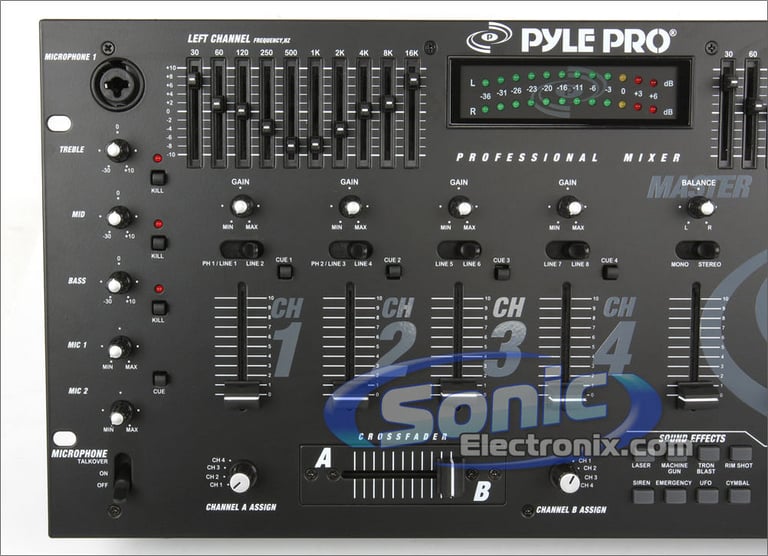

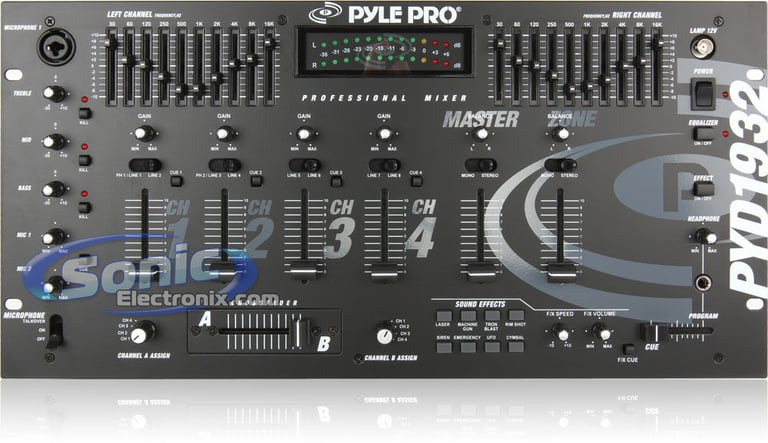

Pyle Pro PYD1932

19" Rack Mount 4-Channel Pro Series DJ Mixer with 10-Band Graphic Equalizer and Sound Effects Que

Pyle
Shop all Pyle
highlight-star-icon

Rack Mount Pro Series DJ Mixer • 10-Band Graphic Equalizer • Crossfader Slider Control • Turntable Compatible • Dual Microphone Connections • Channel CUE • Front Monitoring Headphone Jack • Digital Sound Effects

Learn more about the pyd1932

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
82-7805 main

Metra 82-7805

6" to 6-3/4" Speaker Plate Adapter for select 2004-2023 vehicles from Honda, Acura

12
-47.38%

$19.99

List price $37.99

Add to cart
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

Add to cart
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Add to cart

Description

Pyle brand icon

Authorized dealer

Product Features:
  • Rack Mount Pro Series DJ Mixer
  • Fit in 19" rack mounts
  • 4-Channel professional mixer
  • 10-Band graphic equalizer
  • Effect jacks permits externally generated effects in the mix or to process the mixed sound

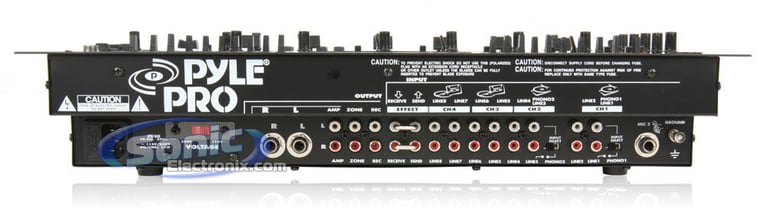

  • Stereo line inputs let you connect high-level audio sources
  • Output jacks connect the mixer to a receiver or amplifier using 1/4" plugs or RCA cables
  • Zone output jacks connect the mixer to a second receiver or amplifier
  • Record output jacks connect the mixer to a tape deck for recording the audio playing through the mixer
  • Dual purpose stereo inputs for using a turntable with a magnetic cartridge
  • Input select switches for choosing a source
  • Rear grounding screw terminal for grounding turntables
  • Second microphone connection for connecting a balanced or unbalanced microphone
  • 10-Band equalizer adjusts the sound output of the mixer
  • Crossfader slider control
  • Digital sound effects control pad
  • Sound effect speed and volume control
  • BNC Lamp adaptor
  • Microphone frequency kill switches
  • Channel CUE switch
  • Channel gain control and input selector
  • Front headphone jack and level control for monitoring
  • 1-year Manufacturer's warranty
Product Specifications:
  • Sensitivity:
    • Mic 1-2: 1.5 mV/600 Ohm
    • Phono 1-2: 3 mV/50,000 Ohm
    • Line 1-8: 150 mV/27,000 Ohm
  • Output Level:
    • Amp: 2V
    • Zone: 2V
    • Record: 150 mW
  • Frequency Response: 20-20,000 Hz
  • Signal-to-Noise Ratio:
    • Mic: 60 dB
    • Phono: 70 dB
    • Line: 80 dB
  • Distortion:
    • Mic: 0.20%
    • Phono: 0.05%
    • Line: 0.03%
  • Equalizer:
    • Control Frequencies: 30, 60, 120, 250, 500, 1000, 2000, 4000, 8000, 16000
    • Boost/Cut Range: +/- 10 dB
  • Microphone Tone Control:
    • Treble: 10,000 Hz
    • Mid: 1,000 Hz
    • Bass: 100 Hz
  • Talkover Attenuation: -16 dB
  • Echo Delay Time: 50mS-120mS
  • Power Source: 120 VAC
  • Dimensions: 9-1/2"L x 19"W x 4-1/4"H
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Add to cart
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Add to cart
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Add to cart
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Add to cart
PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Add to cart
SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Add to cart

Specifications & Details

Specifications
Total number of channels
4
Frequency Response
20 - 20,000 Hz
Signal-to-Noise Ratio
80 dB
Number of Microphone Inputs
2
Built-In Equalizer
10-Band Graphical Equalizer
Digital Key Control
No
Inputs and Outputs
Composite (RCA) Stereo Inputs
10
Composite (RCA) Stereo Outputs
3
Number of XLR Inputs
0
Number of XLR Outputs
0
Number of Stereo 1/4" Phone Inputs
1
Number of Stereo 1/4" Phone Outputs
1
Number of Video Inputs
0
Number of Video Outputs
0
Number of USB Connections
0
General
Primary Color
Black
Rack Mountable
Yes
Width
19"
Height
4-1/4"
Depth
9-1/2"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Pyle

Model Number:

PYD1932

Weight:

11.00lbs

Internal SKU:

pyd1932

Internal Product ID:

22530
