Metra JP-PPKT-8

Product Details:

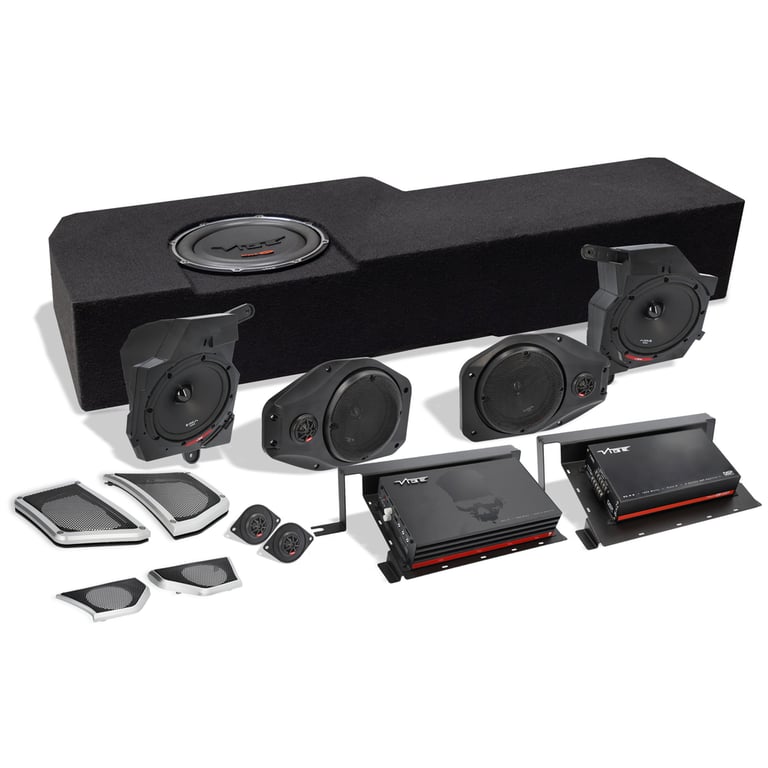

• System includes four 6.5" speakers, four 1" tweeters, one loaded single 12" vented enclosure, two amplifiers, and various Metra harnesses and mounting hardware
• Designed and engineered to match and compliment the factory fit and finish of your vehicle
• Enclosures for subwoofer integrate with no loss of passenger space
• Plug and Play design for easy installation
• No drilling or cutting required
• Speaker harnesses and connectors included
• Vehicle-specific amplifier interface, amplifier installation kit and mounting racks included
• Axxess DSP interface included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• [[!afgDescLink]] (non-amplified models)

Vibe Audio OPTI6-V4 6.5" Front Dash Panel Speakers

• Power Handling:
• Peak: 540 watts per pair / 270 watts each
• RMS: 180 watts per pair / 90 watts each
• Lightweight composite paper cone
• Foam surround
• Single layer spider
• 2" voice coil
• Torsion basket and FEMM motor design for maximum efficiency
• Larger motor for greater motor force that allows a 25% power increase
• Top-mount Depth: 2.4"
• Cutout Dimensions: 5.6"
• Impedance: 4-ohms
• Frequency Response: 55 - 25000 Hz
• Sensitivity: 94 dB
• Metra JP-1020 left and right lower dash speaker grille cut-ins included
• Metra JP-1014 lower dash sealed speaker pods included
• MFR #: OPTI6-V4

Vibe Audio SLICK1-V4 1" Front Dash Panel Tweeters:

• Power Handling:
• Peak: 150 watts each
• RMS: 50 watts each
• Lightweight paper cone
• High-density heat pressed foam surround
• Silk dome tweeter construction
• 4-ohm impedance
• Higher motor force for huge power gains
• Flush and surface mountable
• Sensitivity: 94 dB
• Frequency response: 1500 - 25000
• Top-mount depth: 0.5"
• Cutout Diameter: 1.5"
• Metra JP-1017 injection-molded plastic speaker grilles with silver-painted accents and heavy-duty metal stamped steel grille inserts included
• Metra 82-3016 dash tweeter adapter plates included
• Metra 72-7902 dash tweeter harnesses included
• MFR #: SLICK1-V4

Vibe Audio 6.5" Soundbar Speakers

• Power Handling:
• Peak: 540 watts per pair / 270 watts each
• RMS: 180 watts per pair / 90 watts each
• Lightweight composite paper cone
• Foam surround
• Single layer spider
• 2" voice coil
• Torsion basket and FEMM motor design for maximum efficiency
• Larger motor for greater motor force that allows a 25% power increase
• Top-mount Depth: 2.4"
• Cutout Dimensions: 5.6"
• Impedance: 4-ohms
• Frequency Response: 55 - 25000 Hz
• Sensitivity: 94 dB
• Metra JP-1019 included
• MFR #: OPTI6-V4

Vibe Audio 1" Soundbar Tweeters:

• Power Handling:
• Peak: 150 watts each
• RMS: 50 watts each
• Lightweight paper cone
• High-density heat pressed foam surround
• Silk dome tweeter construction
• 4-ohm impedance
• Higher motor force for huge power gains
• Flush and surface mountable
• Sensitivity: 94 dB
• Frequency response: 1500 - 25000
• Top-mount depth: 0.5"
• Cutout Diameter: 1.5"
• MFR #: SLICK1-V4

Vibe Audio JP-GL1-12 Loaded Single 12" Subwoofer Enclosure

• 3/4" Medium Density Fiberboard (MDF) construction
• Under rear seat mounting
• Speaker terminal cup included
• Black carpet finish
• Power Handling:
• Peak: 900 watts
• RMS: 300 watts
• Impedance: Dual 2-ohms
• Sensitivity: 85 dB
• Tuning Frequency: 36 Hz
• MFR #: GM-SL1-12

Vibe Audio PB650.1D-V4 Class D Monoblock Amplifier

• Power Rating:
• 4 ohm: 325 watts x 1 channel
• 2 ohm: 475 watts x 1 channel
• 1 ohm: 650 watts x 1 channel
• Total peak power output: 1200 watts
• Total RMS power output: 650 watts
• LED power and protect light
• AutoSense remote turn-on
• MOSFET power circuitry
• DeltaBox high level input circuit
• Dimensions: 9.05" L x 5.27" W x 1.85" H
• MFR #: PB650.1D-V4

Vibe Audio PB80.6-8DSP-V3 Mini-Class D 6-Channel Amplifier with DSP

• Pre-tuned EQ curve loaded on the DSP via computer-based software for maximum performance
• Power Specification: 4 ohm: 80 watts x 6 channels @ 4-ohms
• Total peak power output: 1200 watts
• Frequency Response: 20 - 20000 Hz
• Dimensions: 15.4" L x 5.3" W x 1.9" H
• MFR #: PB80.6-8DSP-V3

Metra Amplifier Installation Kit

• Premium power and ground wire provides optimal power transfer
• Made from Oxygen Free Copper material
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• 9.5 ft of 4-gauge power cable
• 8 ft of 8-gauge ground cable
• 12 ft of 12-gauge speaker wire
• T-Spec VMANL water-tight fuse holder with 100A MANL fuse
• Distribution block
• Mounting hardware
