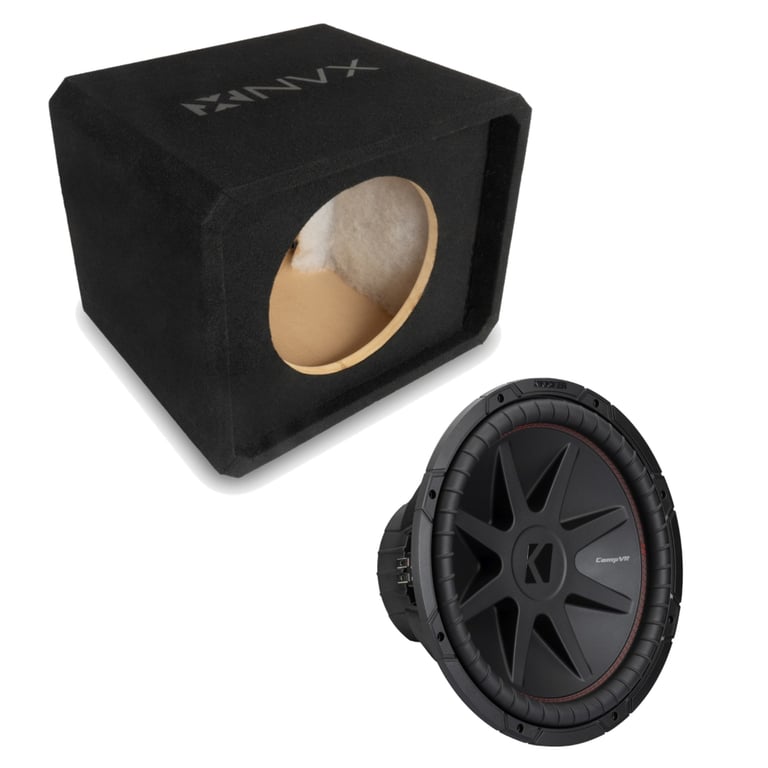

NVX NE121P w/Kicker CVR12 (52CVR124)

Product Details:

• Not compatible with NVX VC-Series Subwoofers

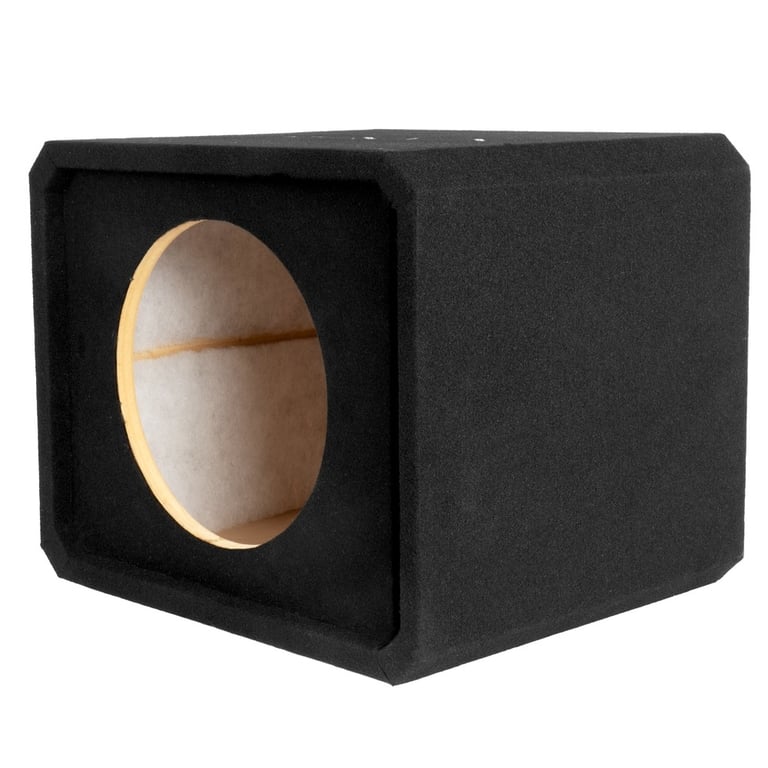

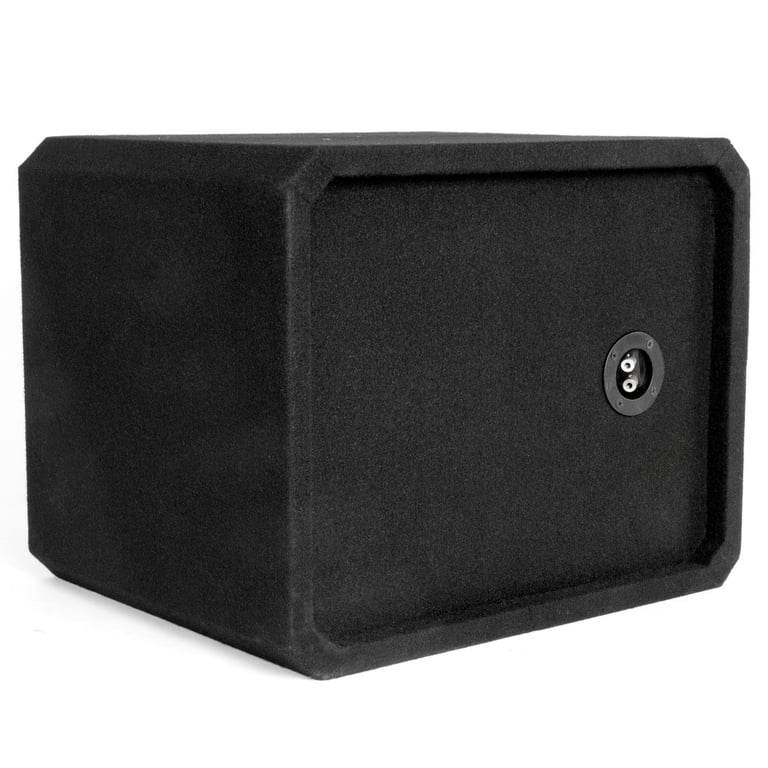

• 12" Single Ported Subwoofer Enclosure
• Made from 3/4" Medium Density Fiberboard (MDF) construction
• Built with precision CNC technology for exceptional accuracy
• Pre-lined with Poly-Fil for improved acoustic response
• Premium Black Carpet with Black NVX Logo

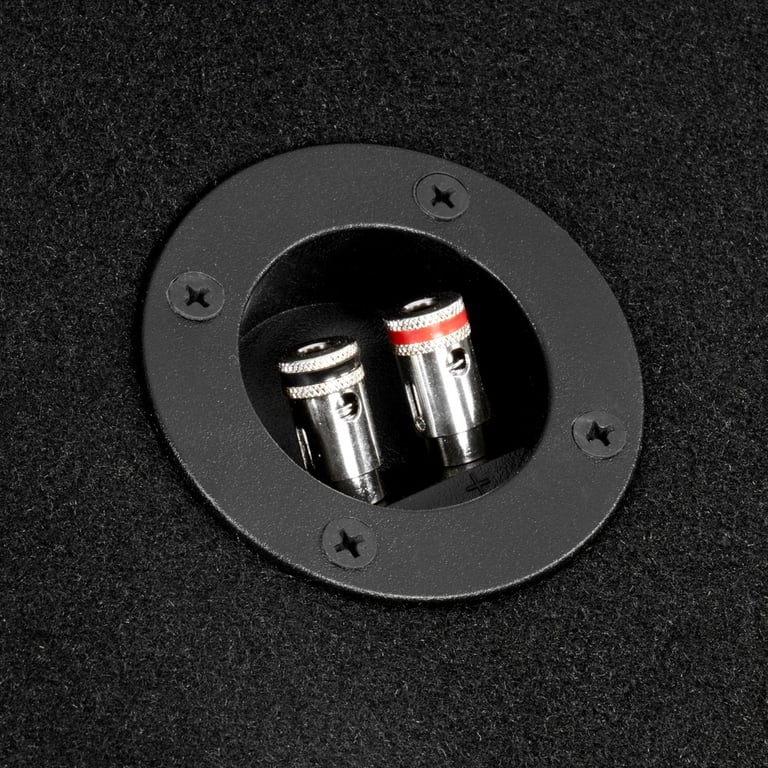

• Spring Loaded Push Terminals
• Maximum subwoofer mounting depth: 13-7/8"
• Subwoofer cutout diameter: 11-7/32"
• Internal box volume: 1.75 cubic feet
• Dimensions: 16.50" D x 20.00" W x 16.00" H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Port Specifications:

• Tuning Frequency: 38 Hz
• Port Width: 1.5"
• Port Height: 14.50"
• Port Length: 17.52"

Product Details:

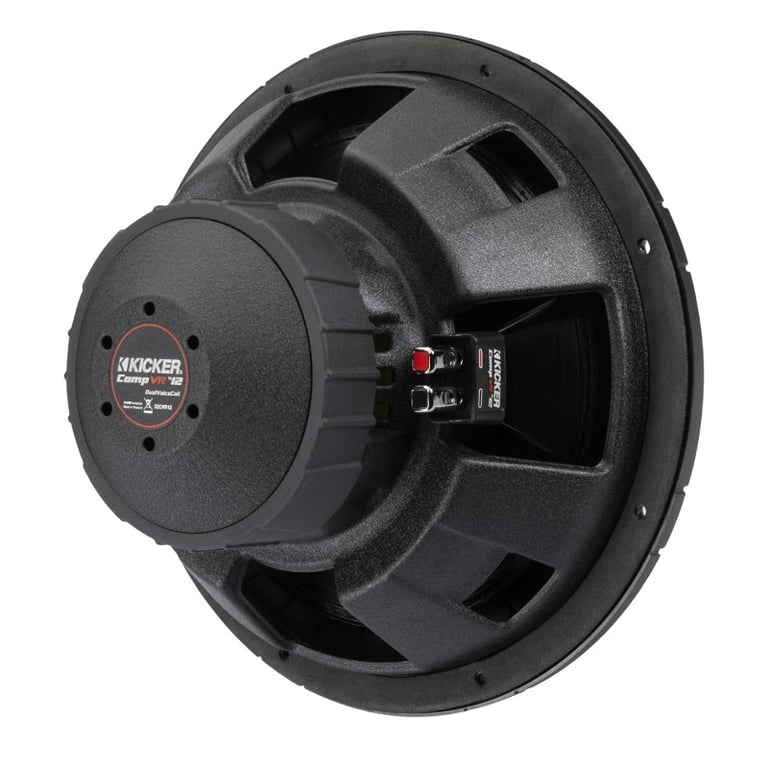

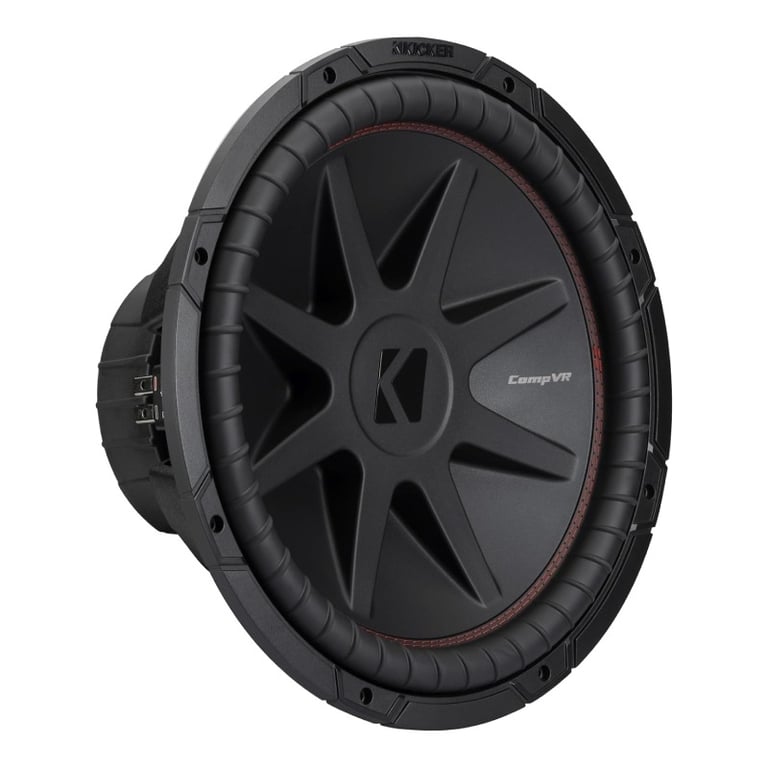

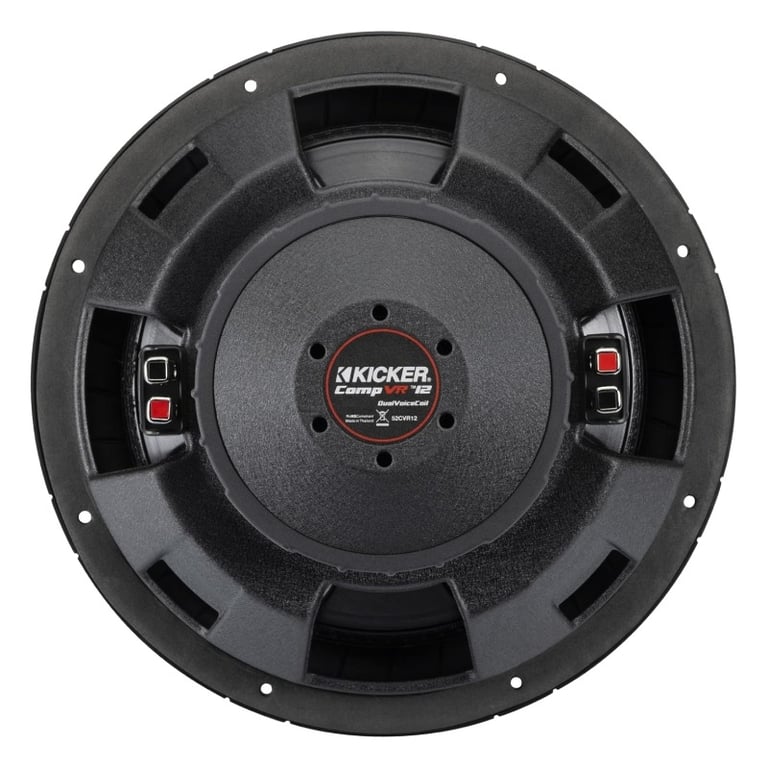

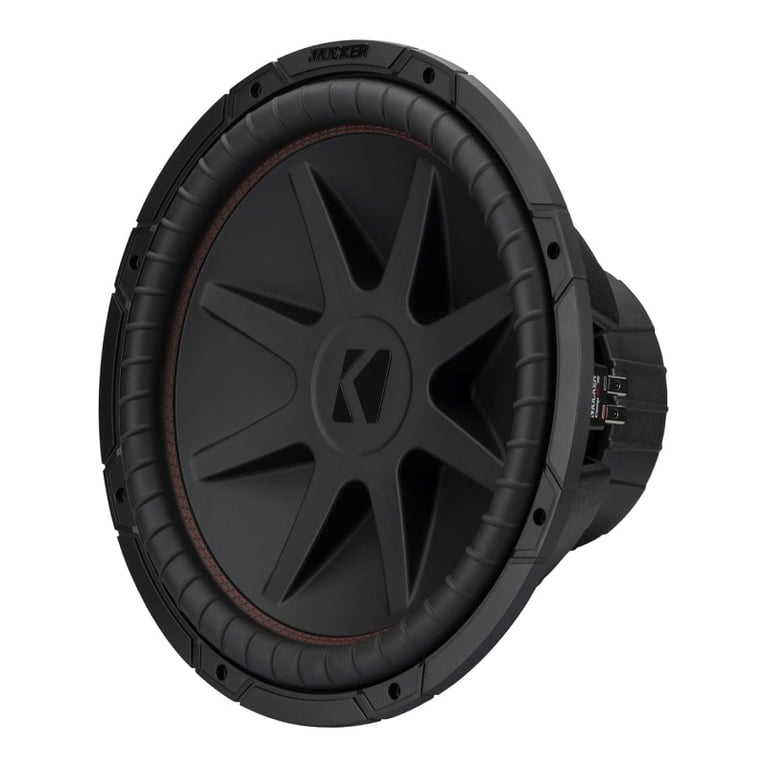

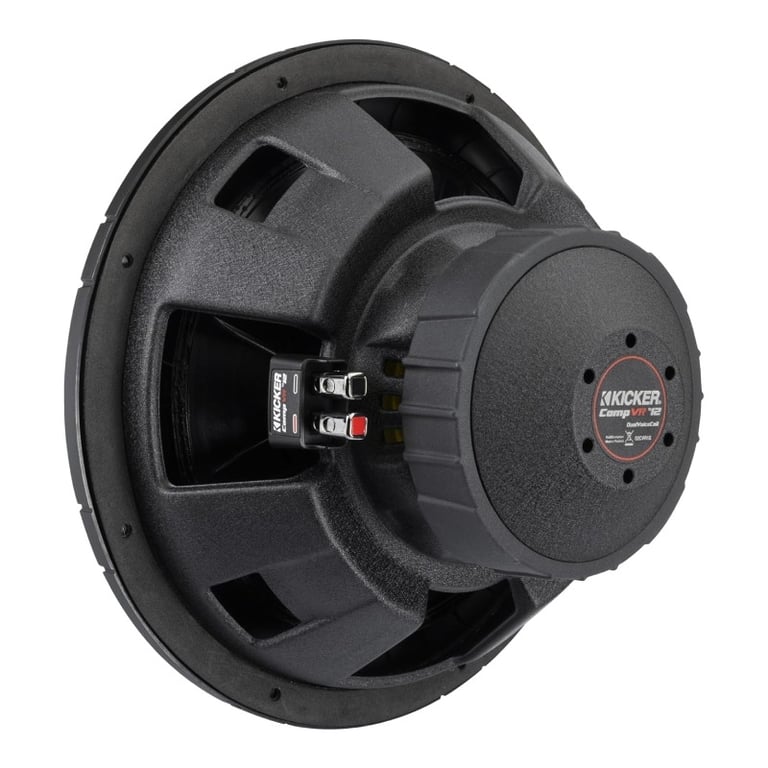

• 12" Dual 2 ohm CompVR Series Subwoofer
• Power Handling:
• Peak: 900 watts
• RMS: 450 watts
• Injection Molded Polypropylene Cone
• ISD (Inverted Structural Dome) to minimize cone flex and lower distortion
• Santoprene Rubber Surround
• Large diameter and progressive roll spider for linear cone movement
• Rear cone brace for added strength and resistance
• Optimized Santoprene ribbed surround radius for more bass output
• Sleeved high-power tinsel lead wires to eliminate power loss
• Spring-loaded nickel plated terminals for smooth connection
• One-piece Uniplate with vented hyper-extended pole piece and backplate
• Enhanced BAM (Basket and Motor) Assembly
• Perimeter venting in the BAM to relieve pressure under the spider
• 2" High Temperature Copper Voice coil on polyimide former
• 12.64 mm Xmax
• 47.05 oz. Double Stacked Ferrite magnet motor structure
• Frequency Response: 25 - 500 Hz
• Resonance Frequency (Fs): 26.1 Hz
• Sensitivity: 86.9 dB
• Recommended sealed box volume: 1 cubic feet - 4.6 cubic feet
• Recommended ported box volume: 1.75 cubic feet - 2.25 cubic feet
• Top-mount depth: 6-3/8"
• Cutout diameter: 11"
• Grille insert Kicker 52GR12 (sold separately)
• Mesh grille Kicker GR120 (sold separately)
• ANSI/CTA-2031-A Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually
