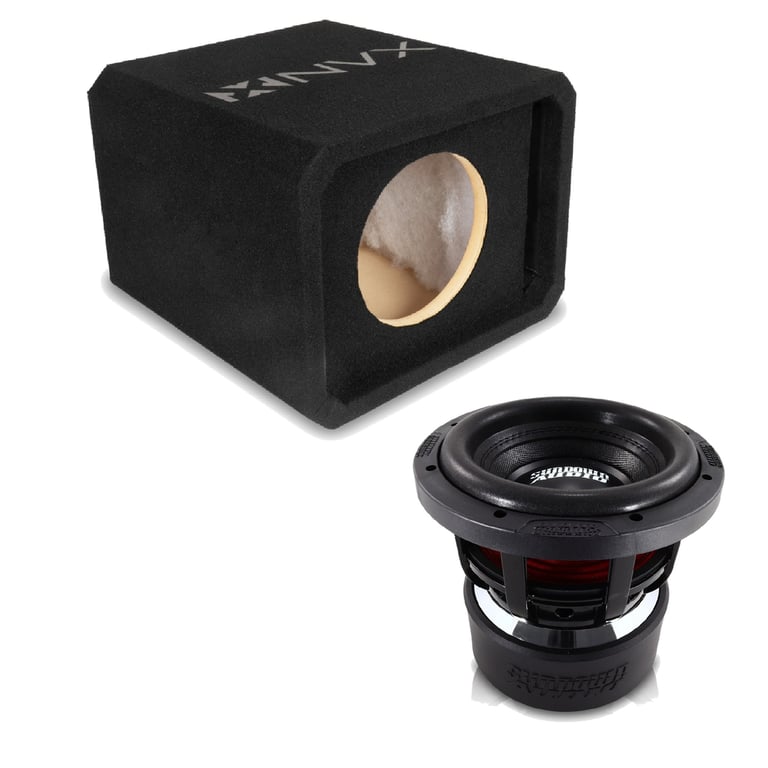

NVX NE81P w/ Sundown Audio X V.4 8" D2

Product Details:

• Not compatible with NVX VC-Series Subwoofers

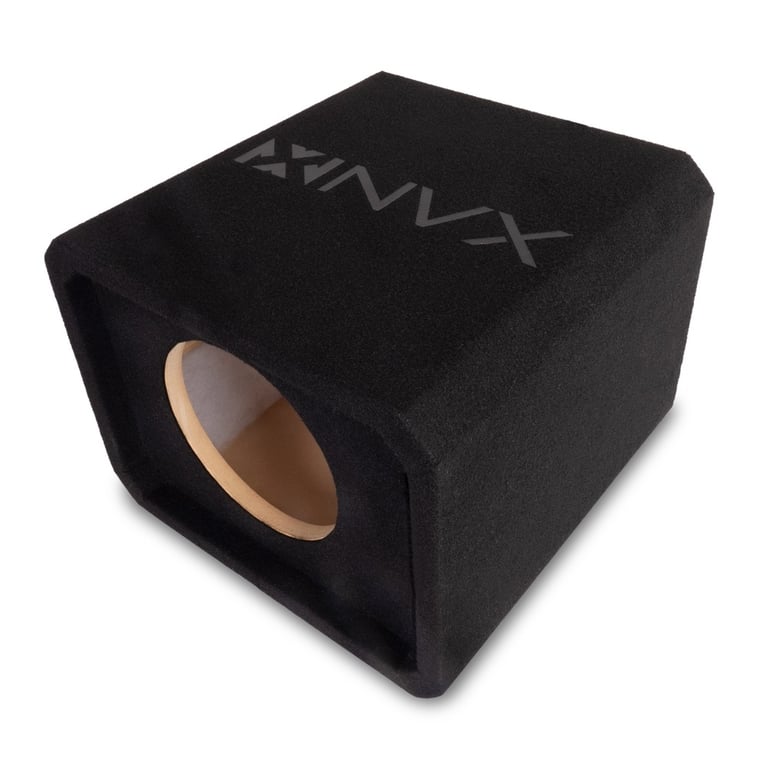

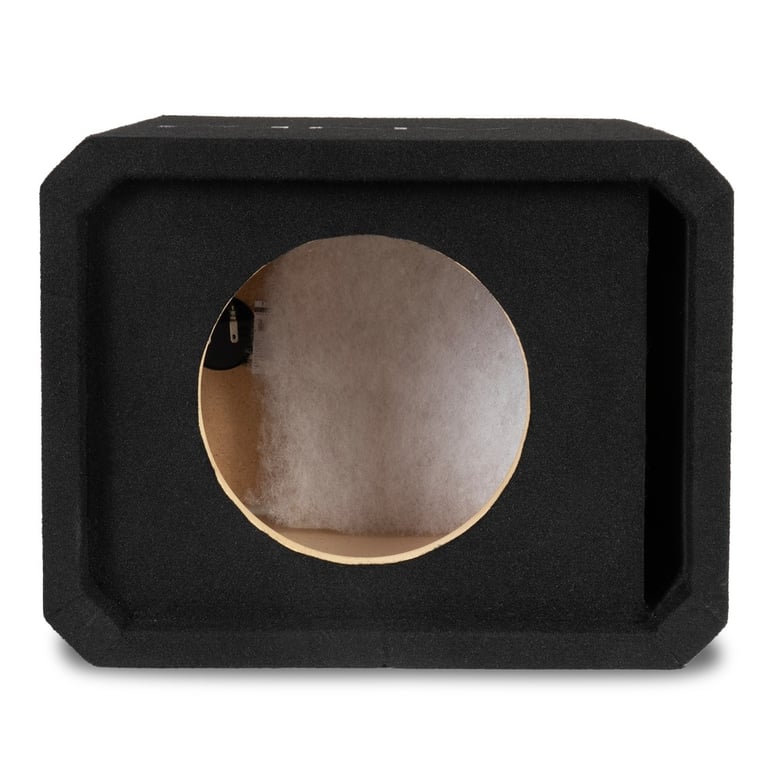

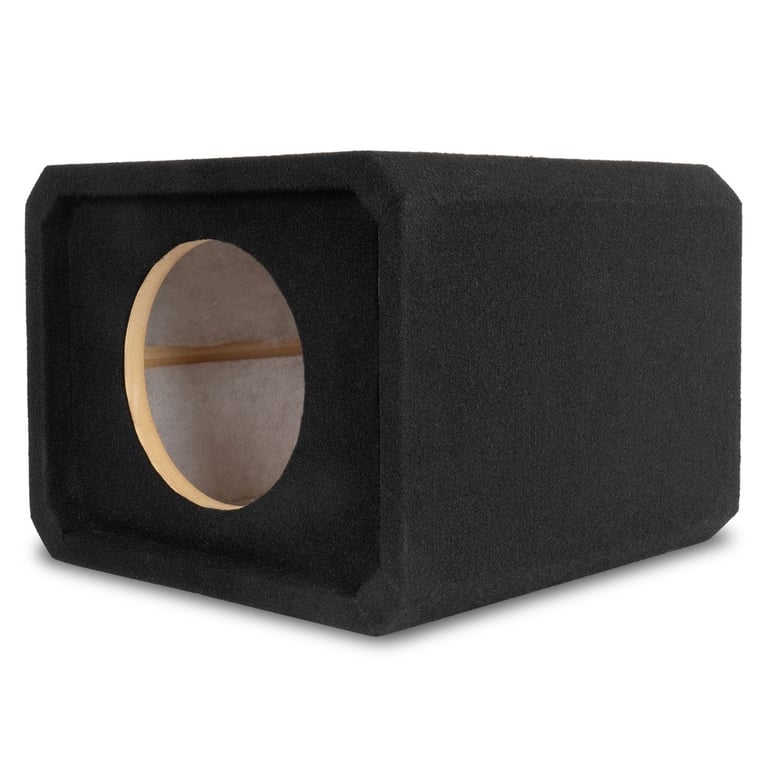

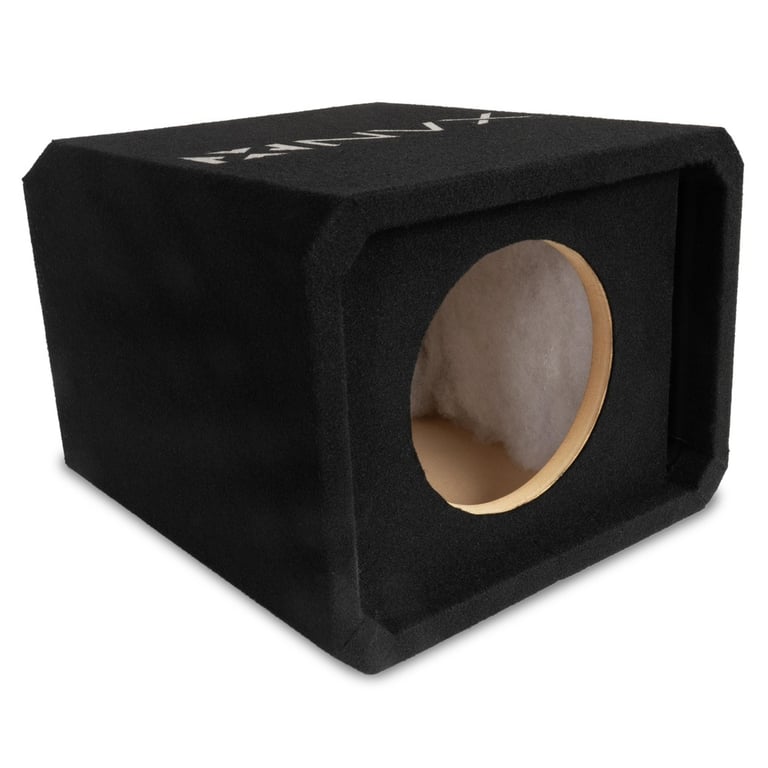

• 8" Single Ported Subwoofer Enclosure
• Made from 3/4" Medium Density Fiberboard (MDF) construction
• Built with precision CNC technology for exceptional accuracy

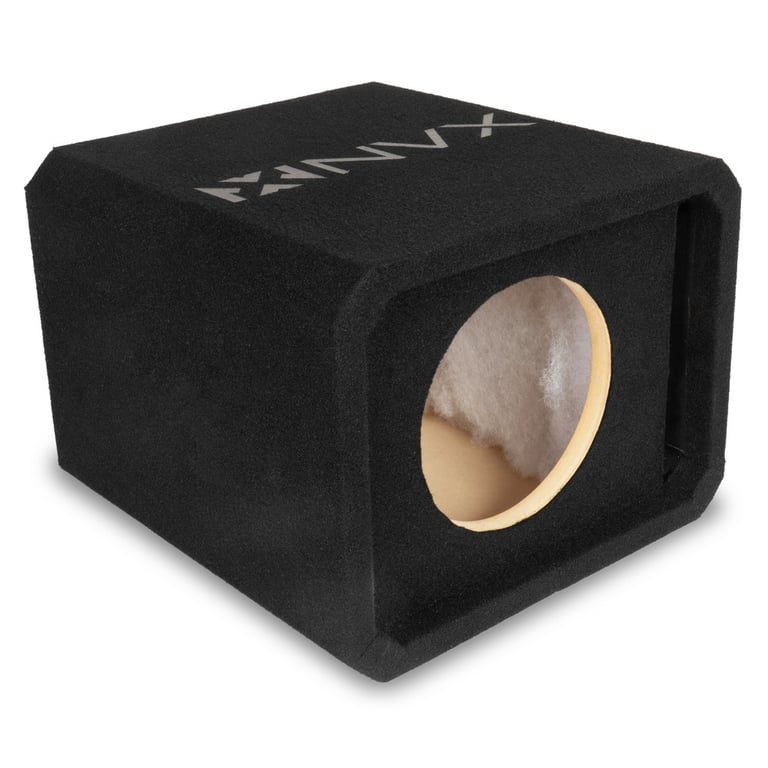

• Pre-lined with Poly-Fil for improved acoustic response
• Premium Black Carpet with Black NVX Logo

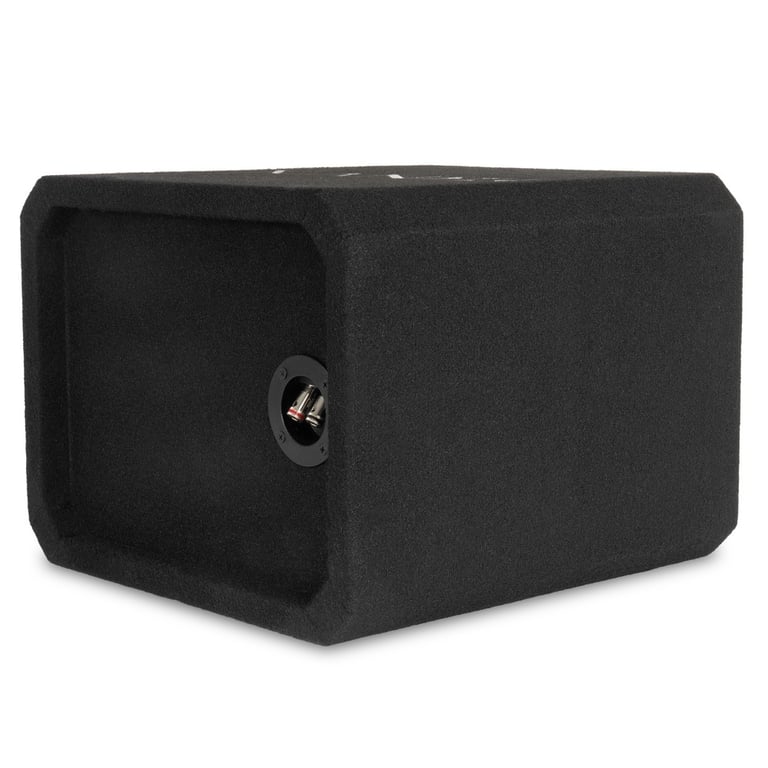

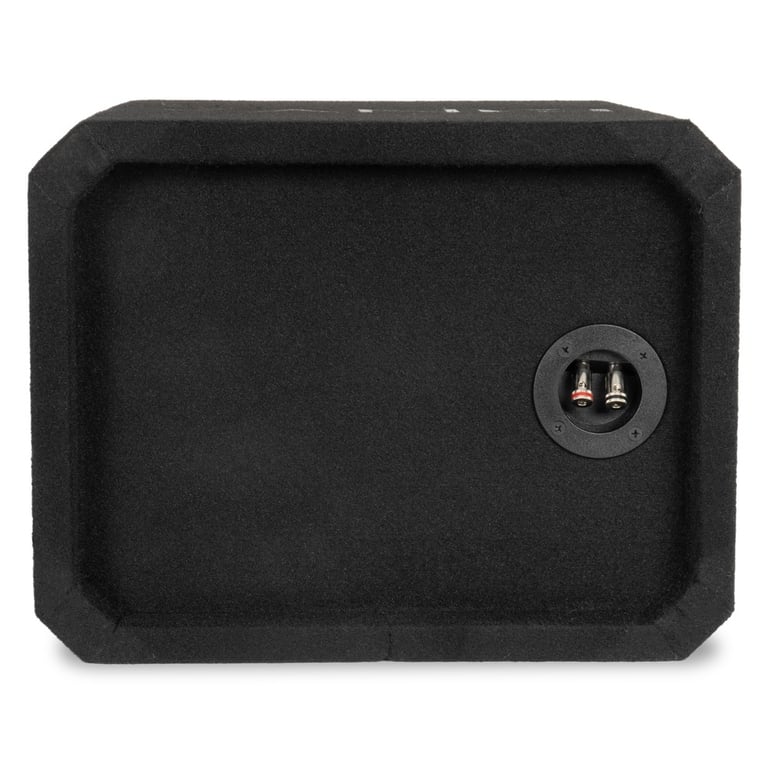

• Spring Loaded Push Terminals
• Maximum subwoofer mounting depth: 8-5/8"
• Subwoofer cutout diameter: 7-3/8"
• Internal box volume: .75 cubic feet
• Port Tuning Frequency (Fb): 38 Hz
• Dimensions: 15.25" D x 15.00" W x 11.50" H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Port Specifications:

• Tuning Frequency: 38 Hz
• Port Width: 1"
• Port Height: 10"
• Port Length: 21"

Product Details:

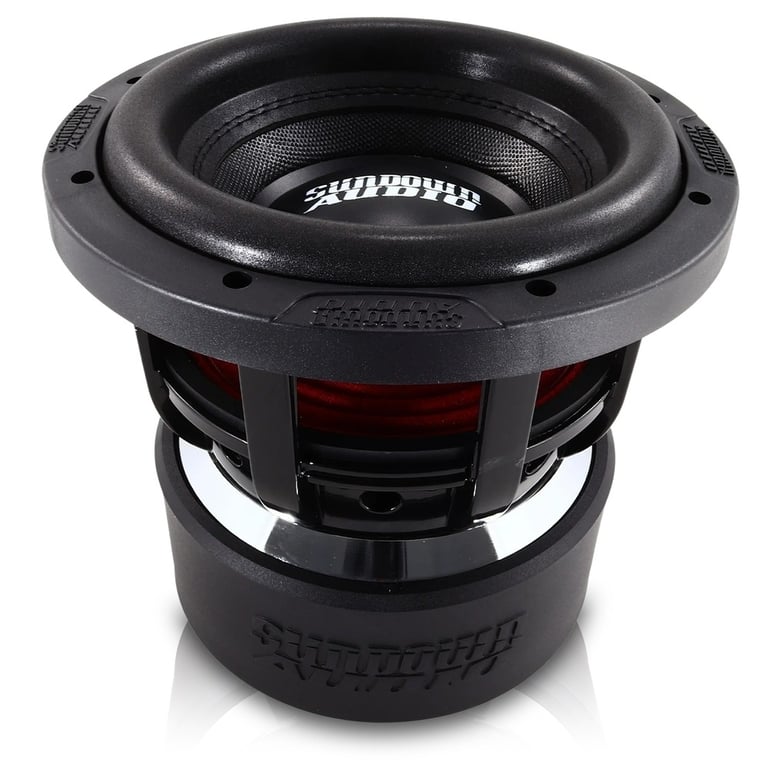

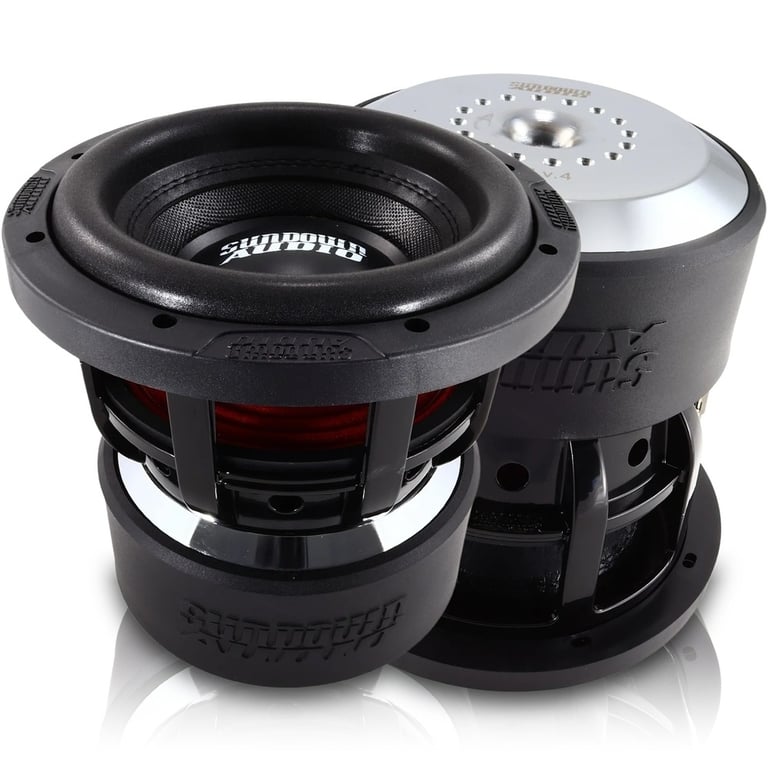

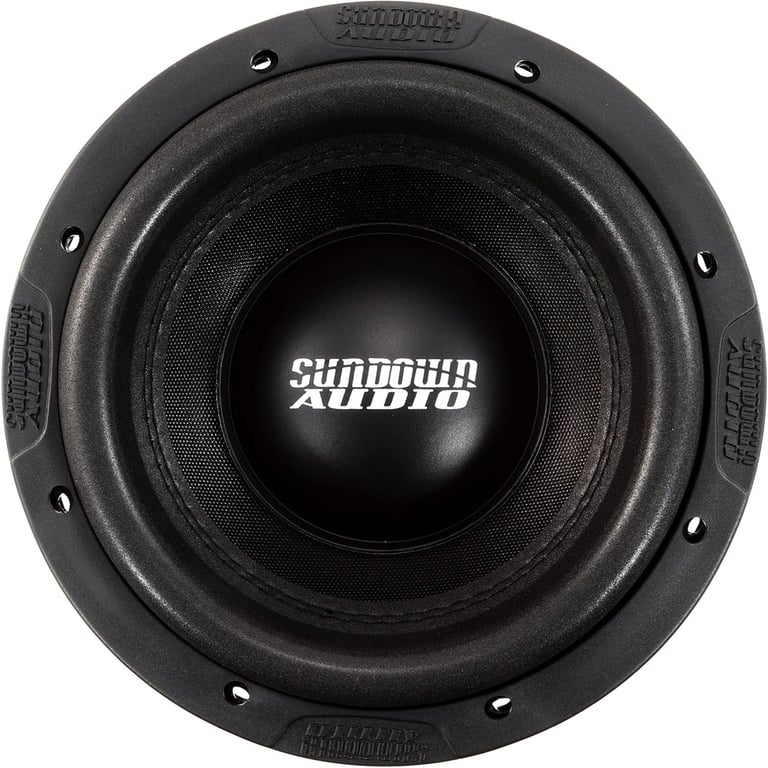

• 8" Dual 2 ohm X Series Subwoofer
• Power Handling:
• Peak: 2500 watts
• RMS: 1250 watts
• Pressed Paper Cone
• Pressed Foam Surround
• Hyper-extended pole construction
• Finite Element Analysis (FEA) optimized spider and surround
• Newly revised version of classic custom-tooled 8" frame
• Features an aluminum magnet ID shorting ring for reduced distortion
• Motor and coil are capable of 20 mm of linear x-max one-way
• 2.5" High Temperature Voice coil
• 19 mm Xmax

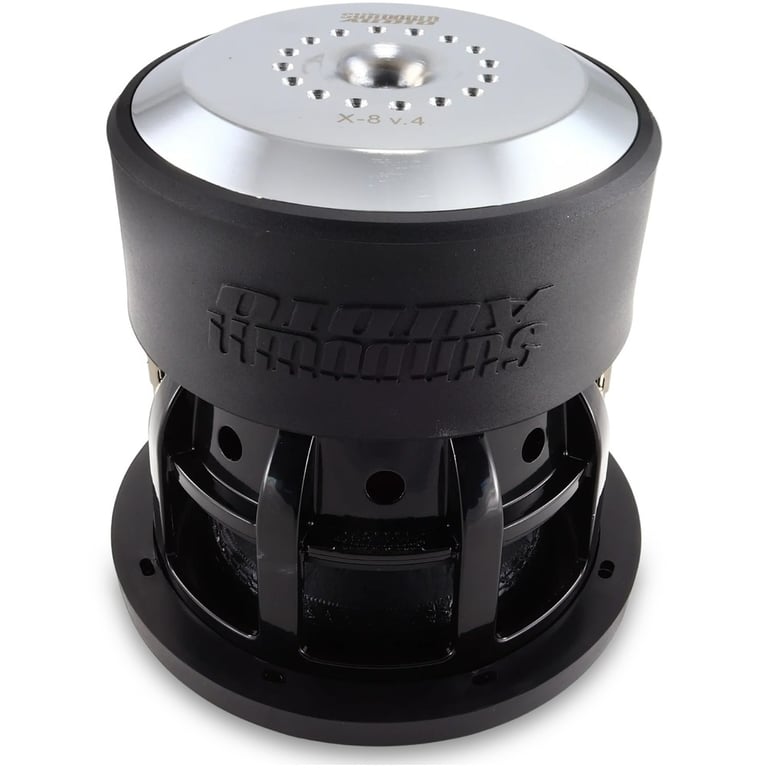

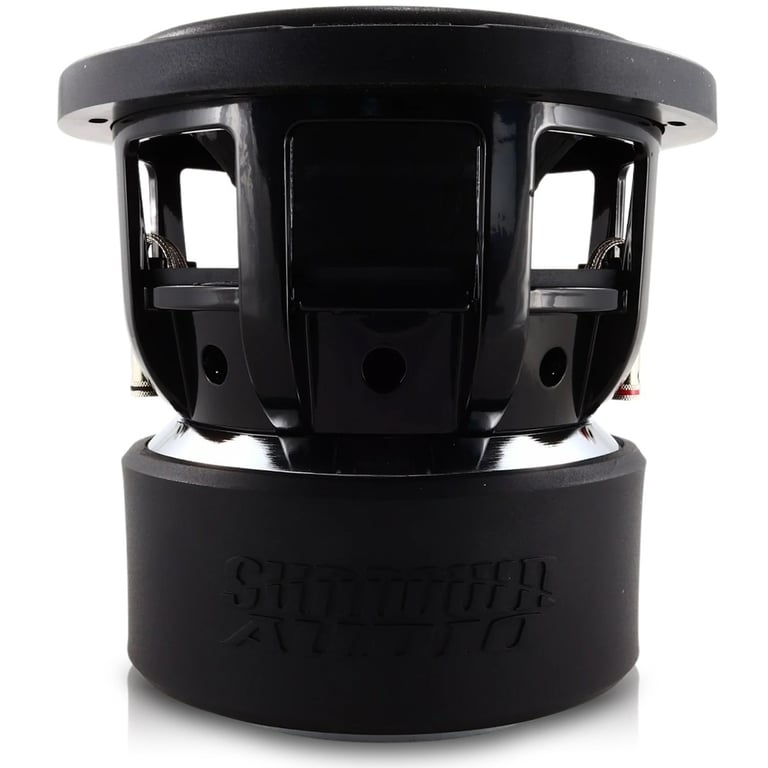

• Triple Stacked magnet motor structure
• Resonance Frequency (Fs): 41.299 Hz
• Sensitivity: 80.1 dB
• Recommended sealed box volume: 0.3 cubic feet - 0.4 cubic feet
• Recommended ported box volume: 0.75 cubic feet - 1 cubic feet
• Top-mount depth: 7.56"
• Cutout diameter: 7.32"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually
