Kenwood KDC-BT945U

In-Dash CD/MP3/WMA Receiver with Full-Dot LCD Display and Built-in Bluetooth

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

GUARANTEED LOWEST PRICE. CONTACT US 24/7 • In-dash AM/FM, CD, MP3, WMA Player • Built-in Bluetooth • White LCD Display • 50W x 4 Chan. Max • 22W x 4 Chan. RMS • 3-Band Equalizer with Car Type EQ • 3 Sets of 4V Preamp Outputs • Rear Auxiliary Input • 24-Bit D/A

Learn more about the kdcbt945u

We apologize

This item has been discontinued


Loading...

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Hifonics ZS5768CX

500W Peak (180W RMS) 5x7" / 6x8” Zeus Series 4-ohm Coaxial Speakers

4
-18.92%

$29.99

List price $36.99

Product Highlights


GUARANTEED LOWEST PRICE. CONTACT US 24/7 • In-dash AM/FM, CD, MP3, WMA Player • Built-in Bluetooth • White LCD Display • 50W x 4 Chan. Max • 22W x 4 Chan. RMS • 3-Band Equalizer with Car Type EQ • 3 Sets of 4V Preamp Outputs • Rear Auxiliary Input • 24-Bit D/A

Description


Kenwood brand icon

Authorized dealer

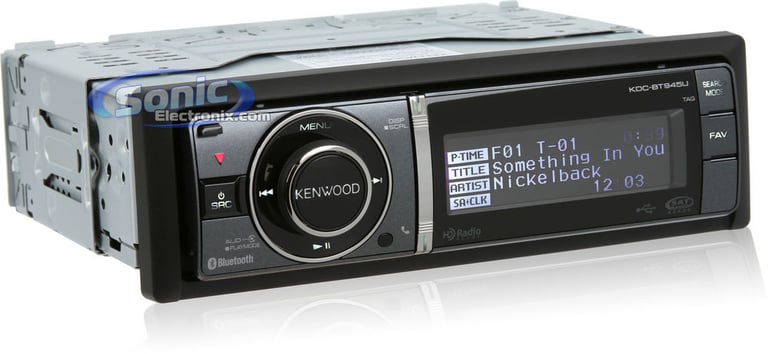

Full-Dot LCD Display Receiver

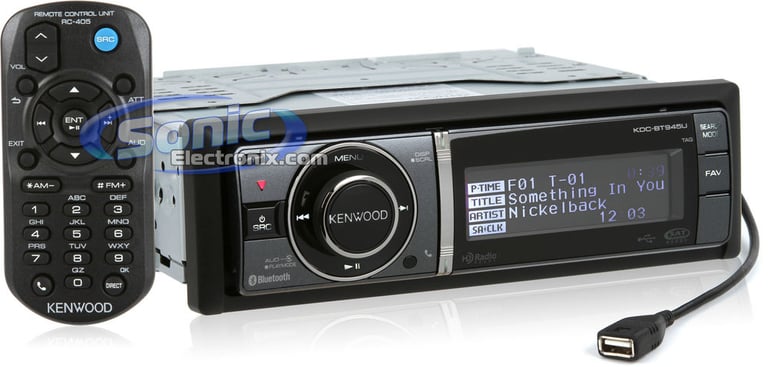

The Kenwood KDC-BT945U is an In-Dash CD/MP3/WMA with Full-Dot LCD display with built-in Bluetooth. White LCD text display, white button lighting, and MP3 ID3 tag display provide an easy to read menu. This receiver also features a built-in tuner with 18 FM presets and 6 AM presets, Sound Excellence DSP, 3-band parametric equalizer with 9 selectable tone curves, Bass boost with two adjustable levels, and the Dual Zone capability feature that allows the playing of separate sources to the front of the vehicle and the rear of the vehicle simultaneously.

Expandability options for this Player are not limited. With the built-in rear USB port, you will have full control with the latest iPods and iPhones, giving you even more playback options. Sirius and XM Satellite radio has two packages if you are interested in those services. HD Radio and full compatibility with your steering wheel controls are just some other expandability options that will satisfy you if you decide to purchase the Kenwood KDC-BT945U Receiver.







General Features:

  • In-dash AM/FM, CD, MP3, WMA player with Remote
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone

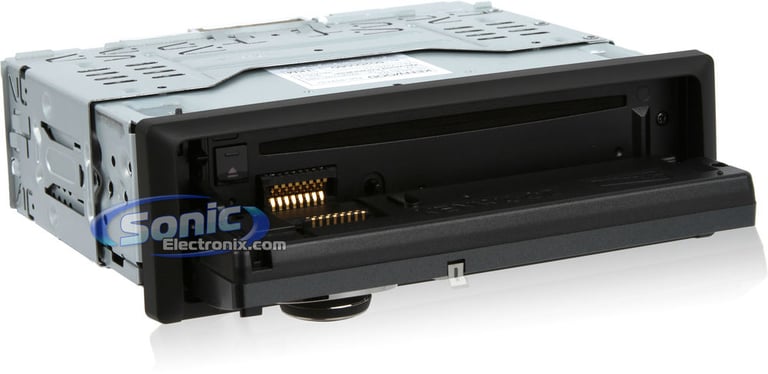

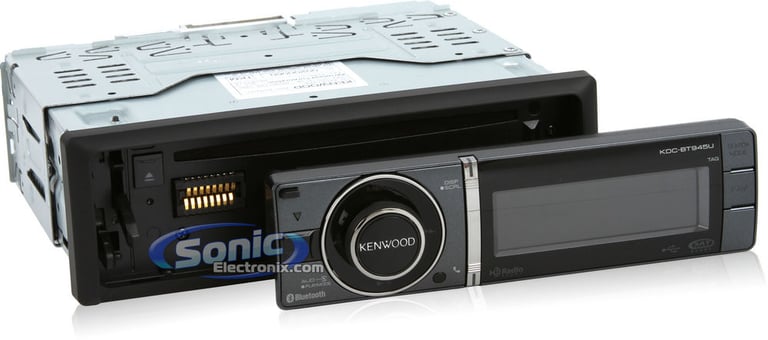

  • Flip-down, detachable face
  • White LCD display with 5 lines of text

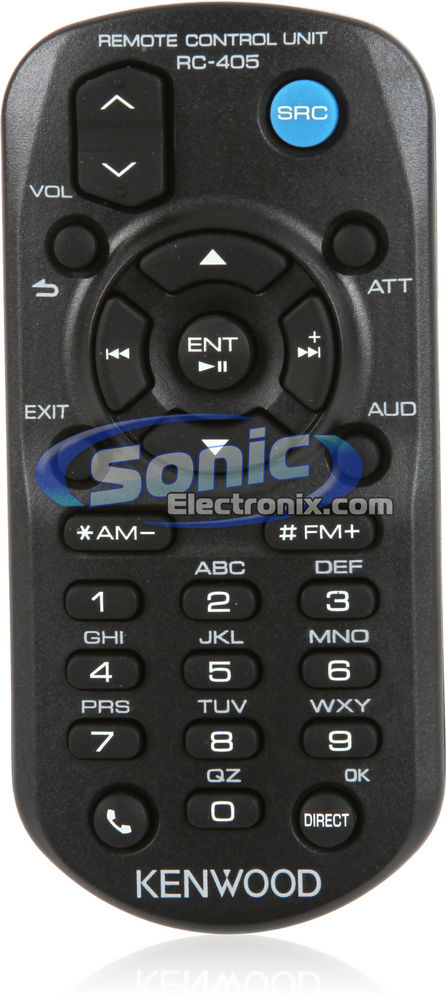

  • Wireless remote control included
  • White button lighting
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Sonic Electronix warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, MP3, WMA, and AAC
  • AM/FM tuner with 18FM/6AM presets
  • Sound Excellence DSP
  • Selectable car type equalizer adjusts the sound to your particular type of vehicle
  • Digital Time Alignment (DTA) lets you adjust the distance from the driver to each speaker for optimal sound reproduction
  • 3-band parametric equalizer with selectable tone curves (8 Preset, 1 User)
  • Advanced 24-bit digital to analog converter for enhanced audio
  • 0-Bit Mute Circuit
  • Bass boost with two adjustable levels
  • Digital E Crossover features a high-pass filter and a low-pass filter
  • Highway sound mode
  • Dual zone capability

Expandability Options:

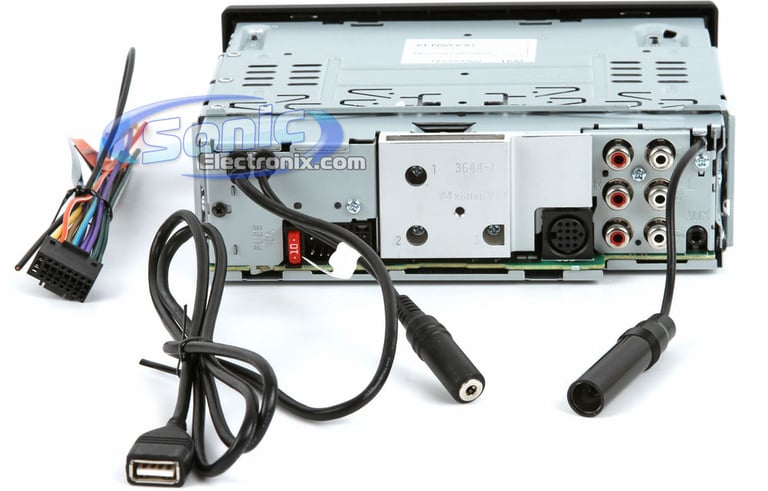

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)
  • Integrated Bluetooth: Enables phones, headsets, and portable devices to be paired for audio streaming and hands free calling with included voice microphone
  • SIRIUS Satellite Radio Ready: Kenwood SIRIUS Package required and sold separately
  • HD Radio Ready: Kenwood KTC-HR300 required and sold separately
  • iPod/iPhone Ready: Standard iPod-to-USB cable will work, however Kenwood recommends the automotive grade KCA-IP101
  • Rear 3.5mm auxiliary input: Enables the connection to portable media devices such as MP3 players, etc.
  • Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately
  • CD Changer controls

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking
  • Bluetooth version 2.1 +EDR Certified
  • Bluetooth range up to 32.8 ft.
  • Supports SMS and A2DP
  • Bluetooth profiles supported:
    • HFP: Hands Free Profile
    • HSP: Headset Profile
    • SPP: Serial Port Profile
    • A2DP: Advanced Audio Distribution Profile
    • AVRCP: Audio/Video Remote Control Profile
    • PBAP: Phone Book Access Profile
    • OPP: Object Push Profile
    • SYNC: Syncronization Profile
  • Works with all compatible Bluetooth that are paired

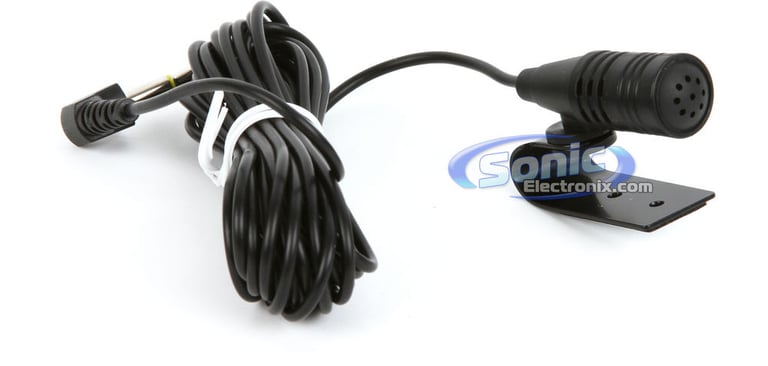

  • Includes an external wired microphone

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

BV850ACP small

Boss Elite BV850ACP

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.75" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 10-band Digital Equalizer
• Includes backup camera

(5)

$329.99

List price $329.99

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(2)

$349.99

List price $420.00

iLX-W650 small

Alpine iLX-W650

• Double DIN Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display Display
• Wired Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 3-Band Graphic / 9-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready

(123)

$329.95

List price $349.95

RB10TUN14 small

Stinger HEIGH10 - RB10TUN14 for 2014-2021 Tundra

• 10.1" Single DIN and Double DIN In-Dash Digital Multimedia Receiver
• Compatible with select 2014-2025 Tundra and Tundra i-Force Max
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• iGo Navigation System-ready (Optional)
• 3 sets of 4 volts preamp outputs
• 15 Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Wireless streaming audio with aptX for better sound quality

$999.00

List price $999.00

DMH-W4660NEX small

Pioneer DMH-W4660NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Wired and Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

(2)

$599.99

List price $750.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
3-band parametric equalizer with selectable tone curves (8 Preset, 1 User)
Display Type
TFT-LCD Display
Expandability Features
Inputs
Auxiliary (Rear)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KDC-BT945U

Weight:

5.00lbs

Internal SKU:

kdcbt945u

Internal Product ID:

22916

Product and How-to Videos


Customer Ratings & Reviews


Kenwood KDC-BT945U thumbnail image

5 star
55%
4 star
27%
3 star
9%
2 star
9%
1 star
0%



Durability
4.6
Value
4.5
Features
4.5
Design
4.8
Usability
4.3

Customer Reviews

Sort by:

Loading...

Great Value!

It is amazing how cheap quality decks are these days. Even better, is that this 200 dollar deck pretty much destroys my last 2 decks in features and sound quality that cost like 500 bucks at the time.

Pros
- Easy navigation
- Features
The ones it has are good. They don't load it with a bunch of crap your not going to use just so they can market it as having more features.
- SQ
- Nice EQ customization
- Nice display and navigation through folders and songs on USB flash drives

Cons
- Red led light does not blend in well with the deck
- Poor lcd
I bought this as I did not want a fancy display though the name scrolling has some obvious ghosting which I find annoying. An option to disable scrolling as well as alternate the text would have been nice.
- USB is hit or miss
I wanted plug and play USB, which for the most part it is, though I sometimes have to keep reinserting the flash drive a few times until the deck to properly reads from it. This only is an issue when plugging it in. Once it is read it works fine the entire time it stays plugged in.

It may work better with the software, but I will not have anything to do with crapware on my computer. I wanted pure drag and drop and plug and play (on both ends), and ease of use, and except for the issue above, that is what you can expect with using a flash drive for music instead of discs.

Overall, this deck is awesome. I only described the cons in detail in case there is a chance someone from Kenwood reads this and can fix later on down the road.

If you are reading this because you are thinking of ditching CD's and migrating to USB flash drives instead, DO IT. CD's scratch and skip and digging through disk binders is a pain that we be a thing of the past. Flash drives are dirt cheap,~10 bucks for a 4 gig, which can hold roughly 40 albums in mp3. Get a 16 gig drive and you can load it with a lot of various music for when you feel like a genre change.

By Kev on April 5, 2011

18 found this helpful


I love this head unit

The best parts of this head unit are the 4 volt pre amp out puts and bluetooth. The BT works great for phone calls but it does have the best sound for music. Overall if you don't use the BT for music it is eas ily the the best head unit for the price!

By bwymike on March 1, 2011

16 found this helpful


Nice Reciever

I find this receiver to be about a 7 out of 10. There is great sound quality, it is definatly much better than any stock radio. There are also many fine adjustments that can be made so the music can fit your style, it also has a very simple setup. It is very easy to control and navigate. The only disadvantage of this receiver is that the screen gets kind of fuzzy when the name of the song scrolls across the screen. It gets quite annoying and really makes it hard to read sometimes. Other than that great head unit.

By Eli on January 14, 2011

17 found this helpful


Excellent unit WHEN it works!

Pros:
- Excellent Sound Staging features
- Ease of BT phone pairing
- Versatile Unit

Cons:
- The USB source worked half the time. says "reading" but wouldnt work. Had to reset unit to get USB working again.
- Quality of BT call was not too decent even after adjusting Mic Gains and Echo reduction levels

By Lekan on April 15, 2011

15 found this helpful


Great sonund at a great price

I was looking for a new headunit for my car to go along with my new speakers and sub. I found this head unit on other websites for almost 100 more dollars. I found this website and saw they had the same products but almost at half the price. I couldn't be happier at my purchase and will be purchasing a new amp in a couple of weeks. This site is amazing and I wish I found it a long time ago.

By Ethan on March 24, 2011

15 found this helpful


awsome product

I loved this radio and the this company for the great price and timely shipping I shopped around for this particular radio and saved about 100$ buying here. I have since traded the truck and will be looking for this in the future for my new truck.

By Jason on December 2, 2010

14 found this helpful


Nice Unit

I got this to replace a JVC AVX44 and im definitely impressed with the sound quality improvement. There a few things that could be improved though.

Pros: OUTSTANDING sound quality, very noticeably different and improved over my previous head unit. Tons of audio adjustments, Highway sound, Supreme Sound, not a bad parametric EQ either, time correction etc. Ipod interface is pretty nice, loads flash drives quickly, menus are easy to navigate and it looks awesome in my car.

Cons: When using a flash drive there is no Random All setting, only for each folder. So if you have a bunch of subfolders it wont shuffle through all the folders, only the one you have selected. There is a skip forward button on the unit for USB but no backwards! Granted its not hard to go into the menu and select a folder but is it really that difficult to have that function on the unti?

I havent used the bluetooth yet but the menus are easy to navigate. Over all i would definitely recommend this unit. The music sounds so much crisper and detailed its like hearing songs for the first time all over again. The sound quality easily makes up for the minor drawbacks.

By cody on June 28, 2010

15 found this helpful


Good Deal

This cd player is good because it gives out a very clear sound for my basic system.

By Jake on April 20, 2010

14 found this helpful


Great Radio but just not for me

I beleive this a great radio but its not really for me its really complicated. It's really hard to set it up. Just not worth the money I paid for it.

By kenneth on November 27, 2011

12 found this helpful


Awesome!!!

I love this deck so much. It's got it all. I have had many decks and this one definitely surpasses them all. The sound quality is so good and powerful!

By brady on August 2, 2011

12 found this helpful




DEH-4300UB small

Pioneer DEH-4300UB

In-Dash CD, MP3, WMA, AAC Car Stereo Receiver with USB and Aux Inputs with iPod Control and Remote

(18)

$99.99

List price $149.99

DEH-X6500BT small

Pioneer DEH-X6500BT

In-Dash CD/MP3/USB Car Stereo Receiver w/ A2DP Bluetooth, Pandora Link, MIXTRAX, iPod Support & AUX

(33)

$104.99

List price $169.99

DEH-P6200BT small

Pioneer DEH-P6200BT

Car Stereo CD/MP3/WMA Receiver with Built-in Bluetooth, Aux In, and USB/iPod Direct Control

(8)

$144.99

List price $239.99

DEH-12E small

Pioneer DEH-12E

In-Dash CD, AM/FM Receiver with Front Panel Aux Input

(3)

$74.99

List price $89.99

E7-2 small

FiiO E7 Portable Headphone Amplifier and DAC

USB Rechargeable Portable Headphone Amplifier and DAC with Two 1/8" (3.5mm) Output Jacks for Two Headphones

(8)

$79.00

List price $99.95

A2B-AR-LI2 small

iDataLink Maestro A2B-AR-LI2 Wiring Harness

Replace Factory Amplifier for select 2017-2020 vehicles from Lincoln with A2B Systems

$79.99

List price $99.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Ford Freestar

2008 Cadillac SRX

2015 Jeep Cherokee

2001 Daewoo Nubira

2005 Ford Taurus

2006 Ford F-150

1995 Mitsubishi Eclipse

2008 Ford Focus

2003 Ford Excursion

2005 GMC Canyon

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
