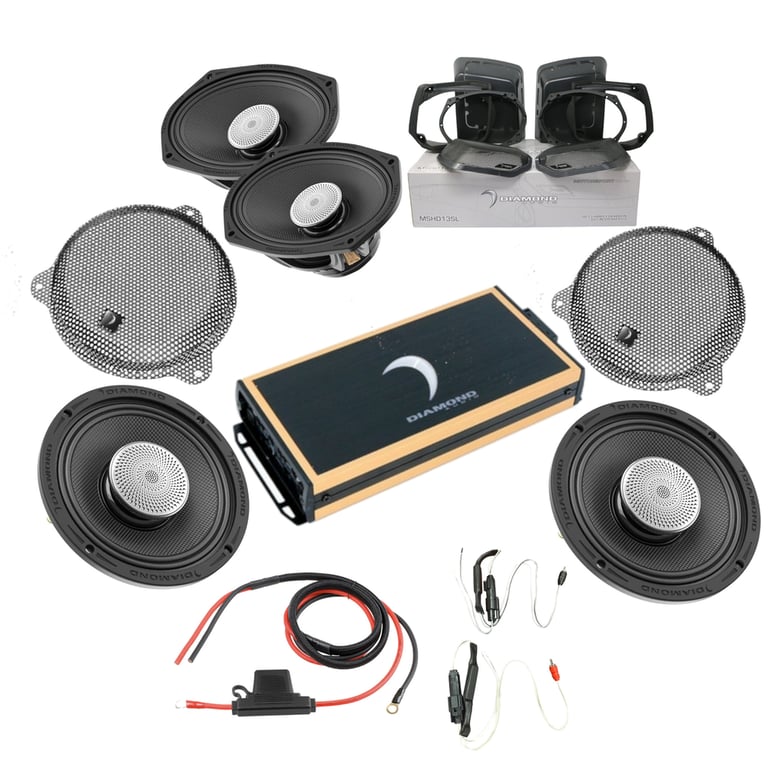

Diamond Audio 4-Speaker Sound Packs for 14-'23 HD Street Glide

Product Details:

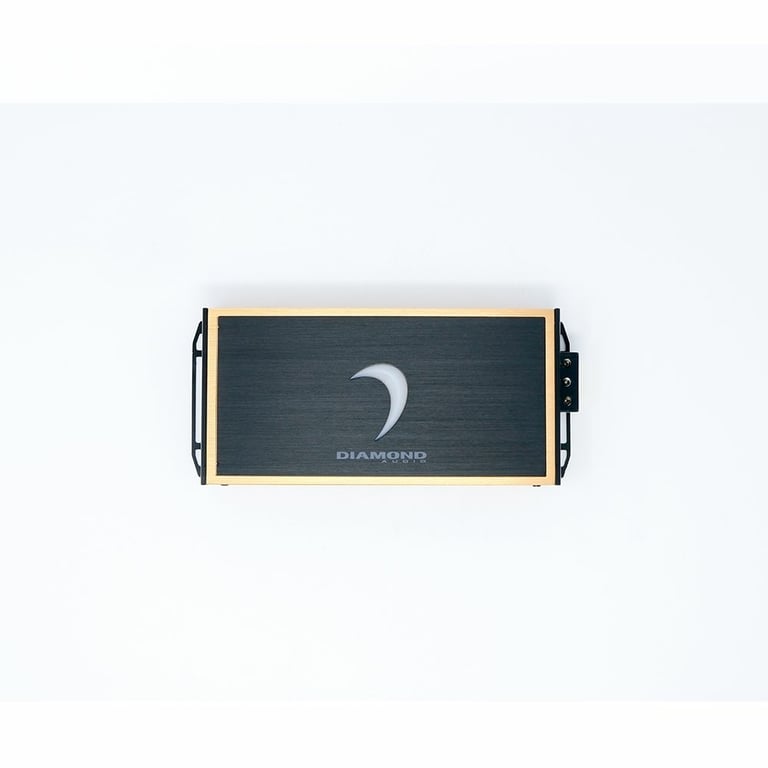

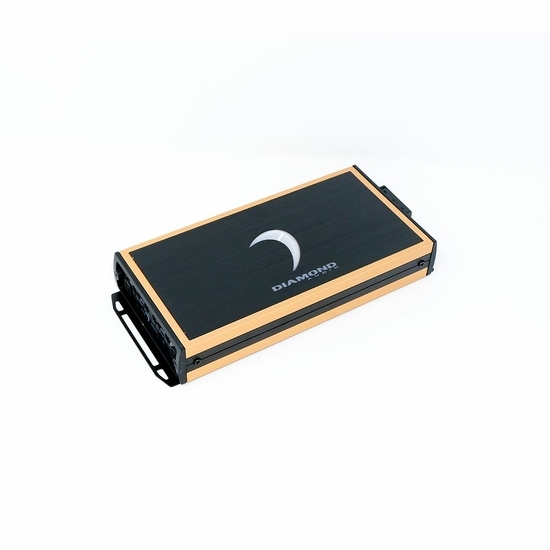

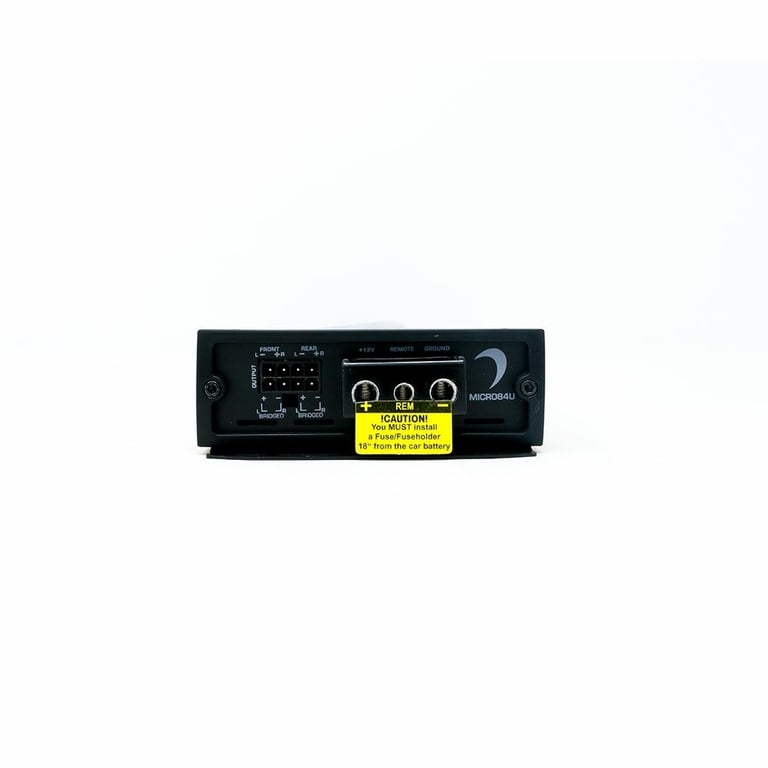

• Micro Series Class D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 85 watts x 4 channel
• 2 ohm: 125 watts x 4 channel
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS power output: 660 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• DirectFET Power MOSFET output stage
• SMD technology on 4-layer glass PC board
• Conformal coated PCB assembly for added water resistance
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 10 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 40A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 9.0" L x 4.06" W x 1.52" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MICRO84U

Product Details:

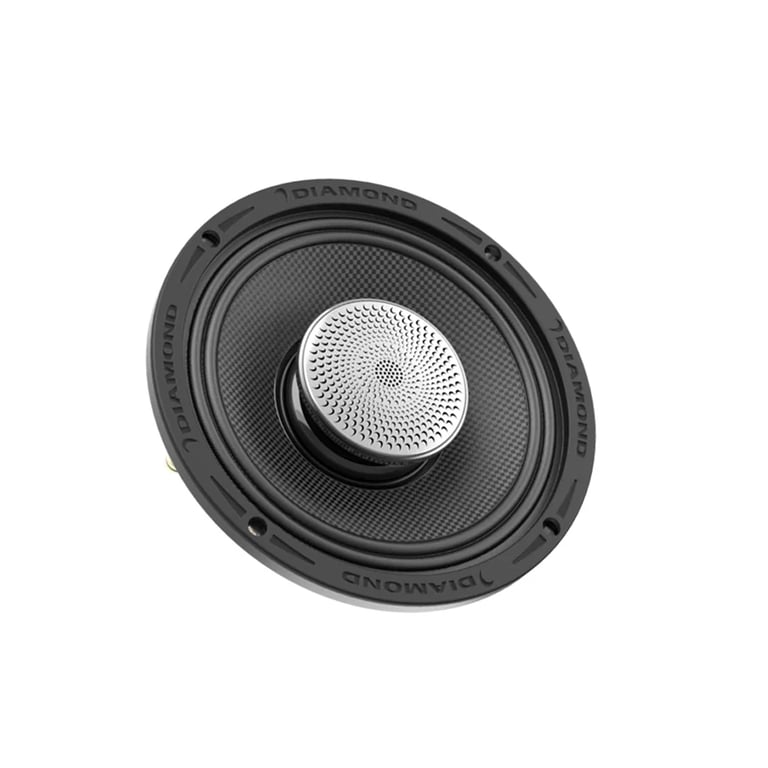

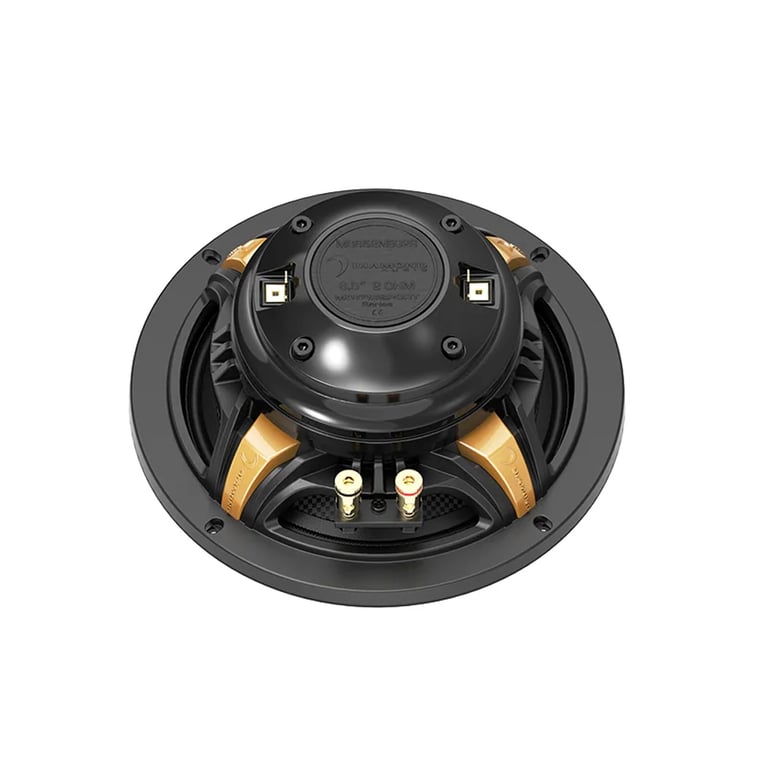

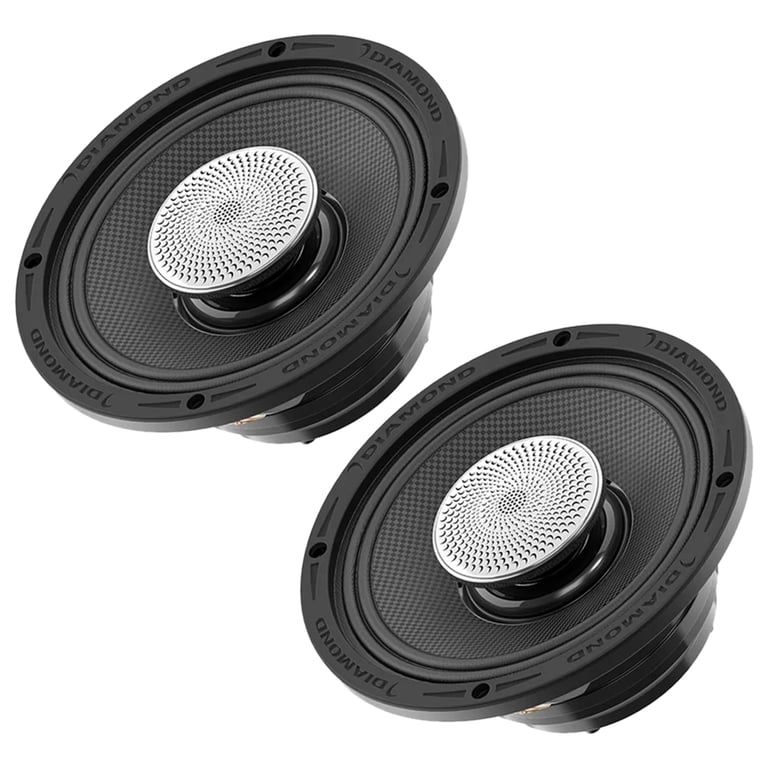

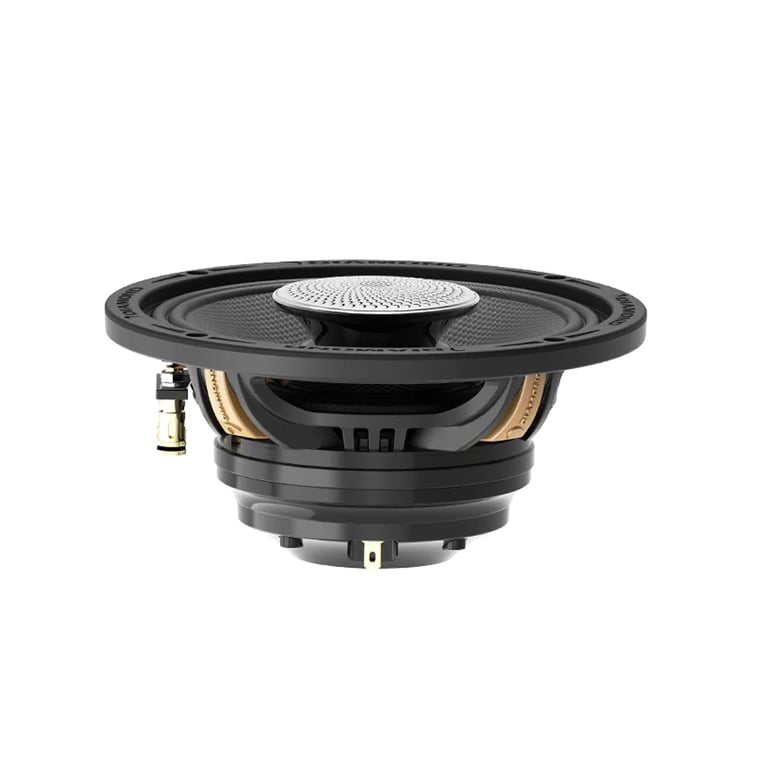

• 6-1/2" MSNEO Series 2-way Coaxial Motorsports Speakers
• Power Handling:
• Peak: 1200 watts per pair / 600 watts each
• RMS: 400 watts per pair / 200 watts each
• Waterproof DUPONT™ Kevlar cone material
• Rubber speaker surround
• Polyethylene-Naphthalate Horn Tweeters
• 2" High temperature coated voice coil
• Neodymium magnet motor structure
• Shallow mounting depth for tight applications
• Heavy duty industrial cast aluminum basket
• Bi-ampable for DSP tuning or use with separate amplifier channels
• Field serviceable tweeter voice coil
• Fully waterproof for extreme applications
• Highest output motorsports speaker
• Top-mount Depth: 2.74"
• Cutout Dimensions: 5.43"
• Impedance: 2 ohm
• Frequency Response: 180 - 20000 Hz
• Sensitivity: 95 dB
• Authorized Internet Dealer
• MFR #: MS652NEO2S
• 1-year Manufacturer's Warranty



Priced Per Pair

Product Features:

• Compatible with select 2014-2023 vehicles from Harley Davidson

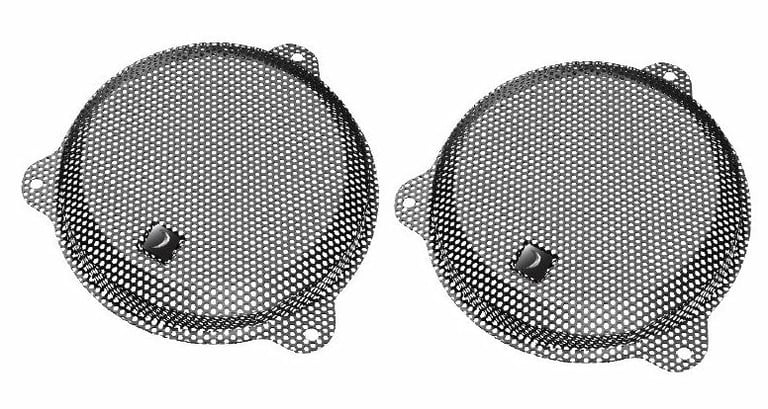

• Metal mesh upper fairing speaker grilles
• Embossed Diamond Audio logo for custom look
• Durable, OEM and factory quality construction
• Rugged construction, long lasting protection
• Protects speakers from debris and dust
• Easy installation, no cutting or modification required
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Sold in Pairs

Product Details:

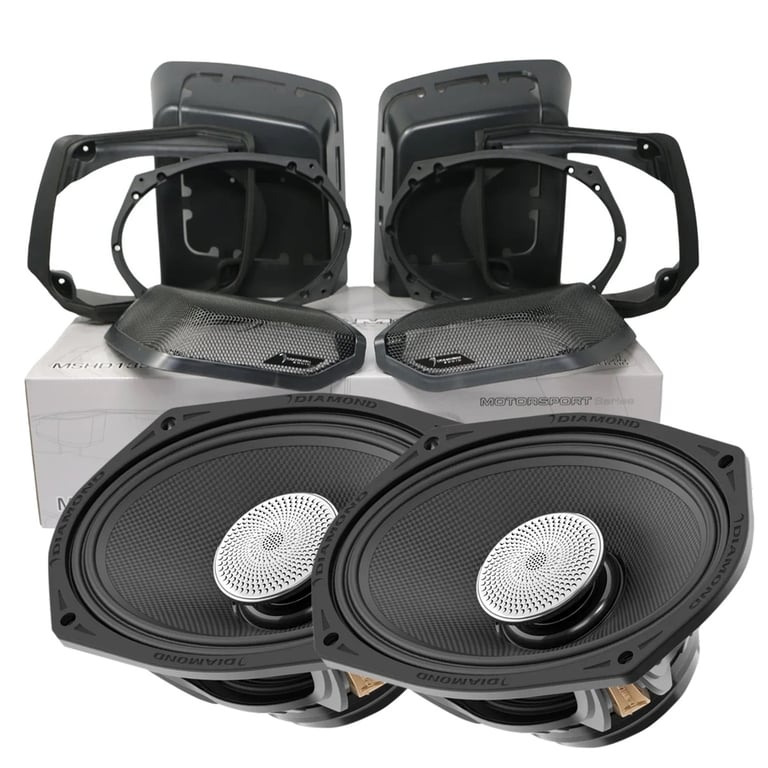

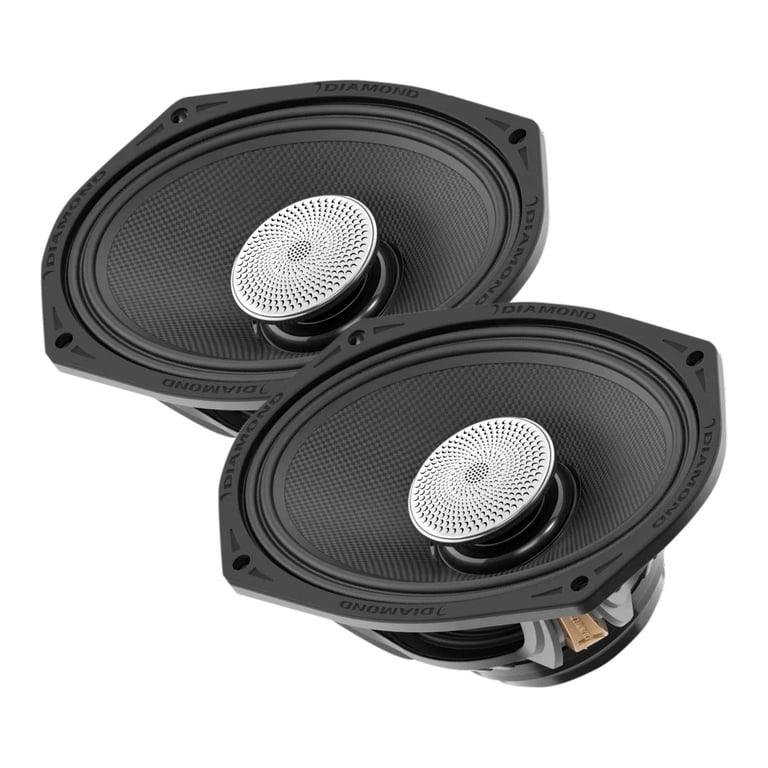

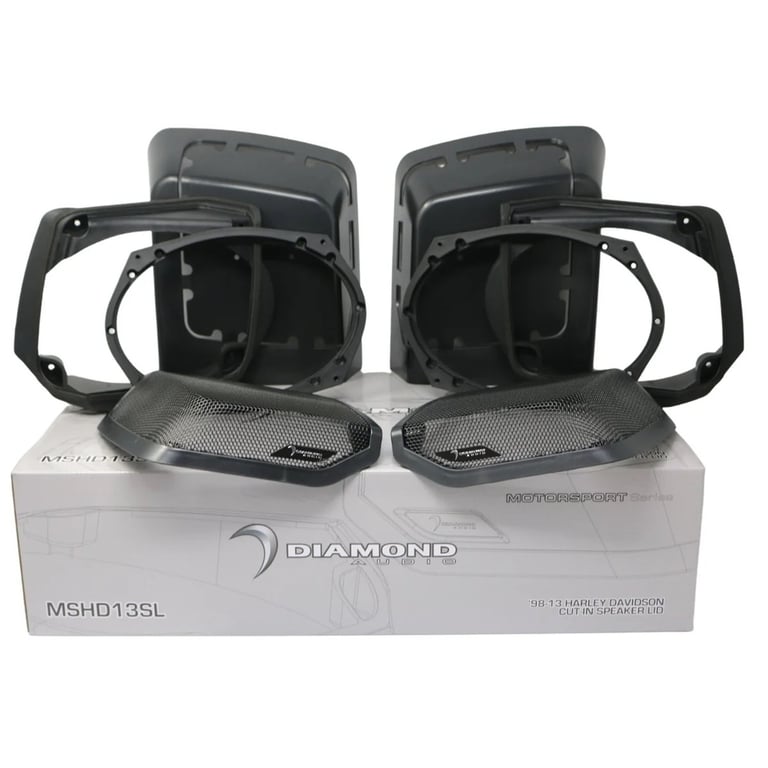

• 6x9" MSNEO Series 2 Way Coaxial Harley Davidson Cut-in Speaker Lid Kit
• Loaded with two Diamond Audio MS692NEO2 speakers
• Compatible with select 2014-2023 vehicles from Harley Davidson
• Power Handling:
• Peak: 1200 watts per pair / 600 watts each
• RMS: 400 watts per pair / 200 watts each
• Waterproof DUPONT Kevlar cone material
• Rubber speaker surround
• Polyethylene-Naphthalate (PEN) horn tweeters
• 2" High temperature coated voice coil
• Neodymium magnet motor structure
• Heavy duty industrial cast aluminum basket
• Bi-ampable for DSP tuning or use with separate amplifier channels
• Field serviceable tweeter voice coil
• Fully waterproof for extreme applications
• Highest output motorsports speaker
• Top-mount Depth: 3.74"
• Cutout Dimensions: 8.58 x 5.75"
• Impedance: 2 ohm
• Frequency Response: 110 - 20000 Hz
• Sensitivity: 95 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• 8 gauge Complete Power Amplifier Installation Kit
• Designed specifically for motorcycle audio systems up to
• Premium power and ground wire provides optimal power transfer
• Made from OFC (100% Oxygen-Free Copper)
• Complete power kit for fairing mounted amplifier on any Harley Davidson or bikes
• Easy connection of ring terminals to battery
• Terminals are Nickel for excellent signal transfer
• ATC Fuse holder offers ideal protection for powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Package Includes:

1. 6 feet of 8 gauge red power cable
2. 5 feet of 8 gauge black ground cable
3. 1 feet of 18 gauge blue remote turn-on wire
4. 3 feet braided loom to cover wire from battery to fairing
5. (1) 8 gauge in-line ATC fuse holder
6. (1) 60A ATC maxi fuse
7. (1) 8 gauge red ring terminal installed
8. (1) 8 gauge black ring terminal installed

Product Details:

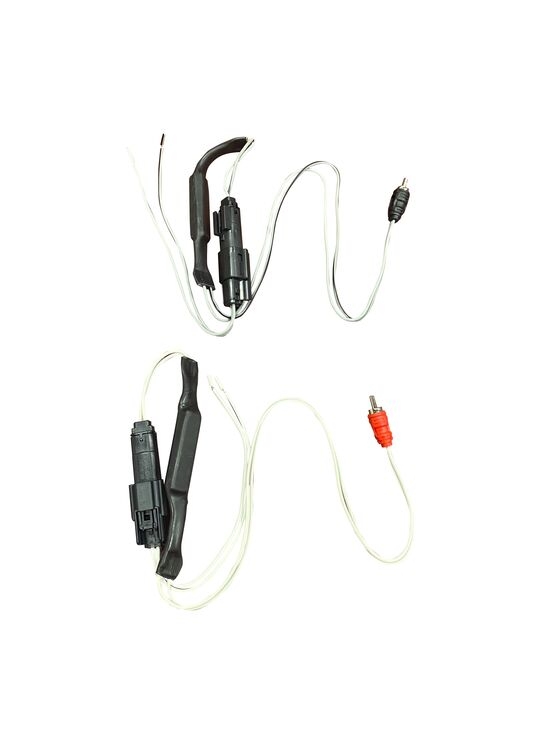

• 2-Channel Direct Motorsport RCA Harness Kit
• Designed to wire at any speaker connection from a factory stereo
• Adjustable line output converter
• Connects to the front signal harness of factory motor stereo
• Platinum-plated wires for smooth connection
• Plug and play connectors and outputs, no major modification required
• Color: White
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
