DS18 PRO-HY69MSL (Sold Individually)

350W Peak (175W RMS) 6x9" PRO Series Hybrid 8-ohm Shallow Loudspeaker

DS18
Shop all DS18
highlight-star-icon

• 350 watts Peak, 175 watts RMS
• 3.15" Titanium Horn driver
• Water-Resistant Paper cone material
• Impedance: 8 ohm
• Sensitivity: 97 dB

Learn more about the prohy69msl
Checkmark Icon

Fits your 2016 Envision

Fits the following location with adapters:

  • Mounting adapter brackets
  • Speaker harness to avoid cutting factory wires
Similar items | Update vehicle | Vehicle store
more info
Thanks , You Pay:

$119.95

 with warranty
Starting at $11/mo or 4 payments of $30 Buy now, pay later and installment payment plans are offered by Afterpay and Affirm. Learn more

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

shipping truck icon Free shipping in USA. Provide zip for delivery date.
Dollar Icon
VIP Product Get $12.00 in rewards to spend later
Quantity
In Stock.
Brand new

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


DS18 brand icon

Authorized dealer

Extreme Volume and Rugged Durability in a Slim Hybrid Design

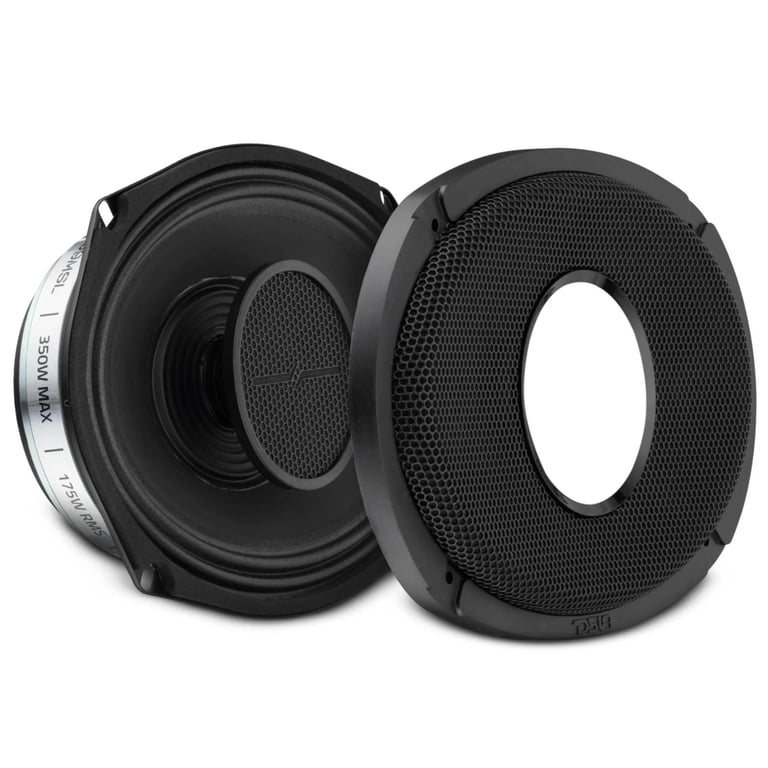

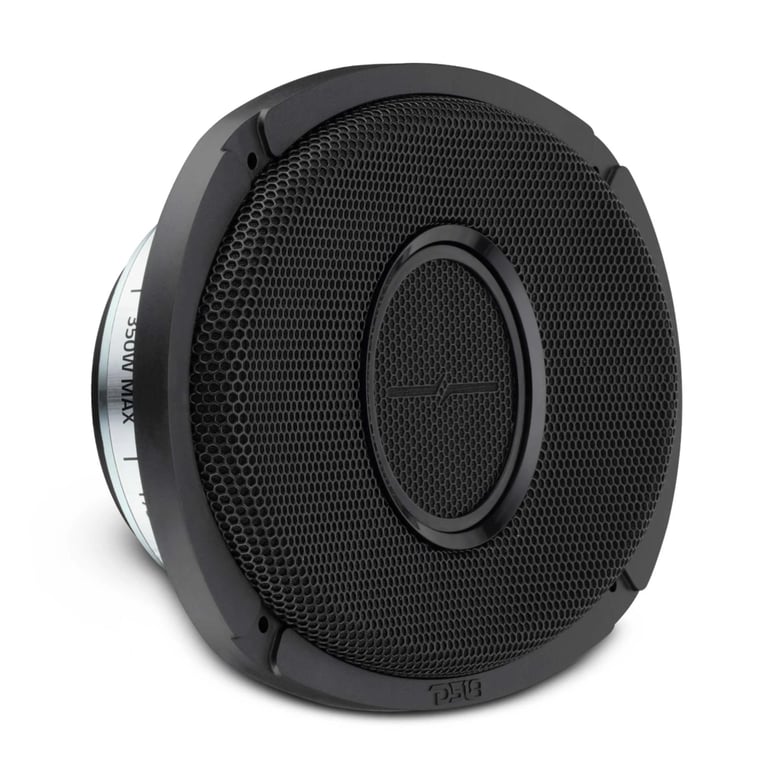

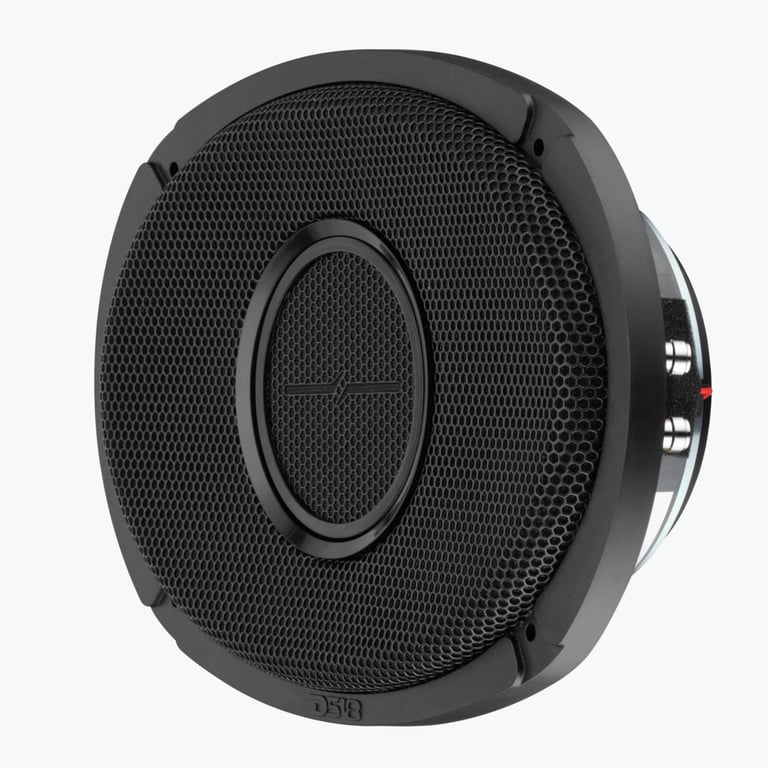

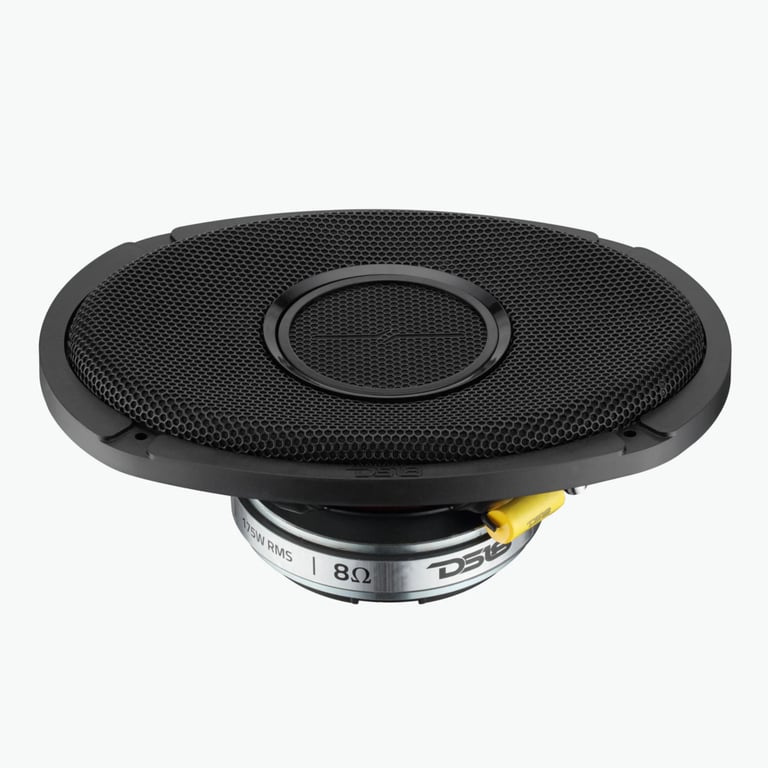

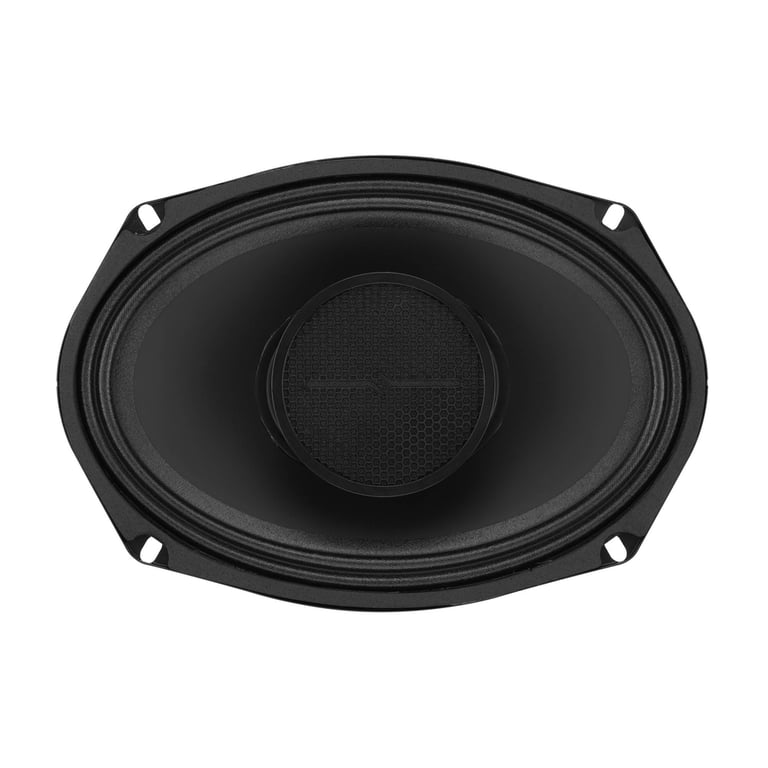

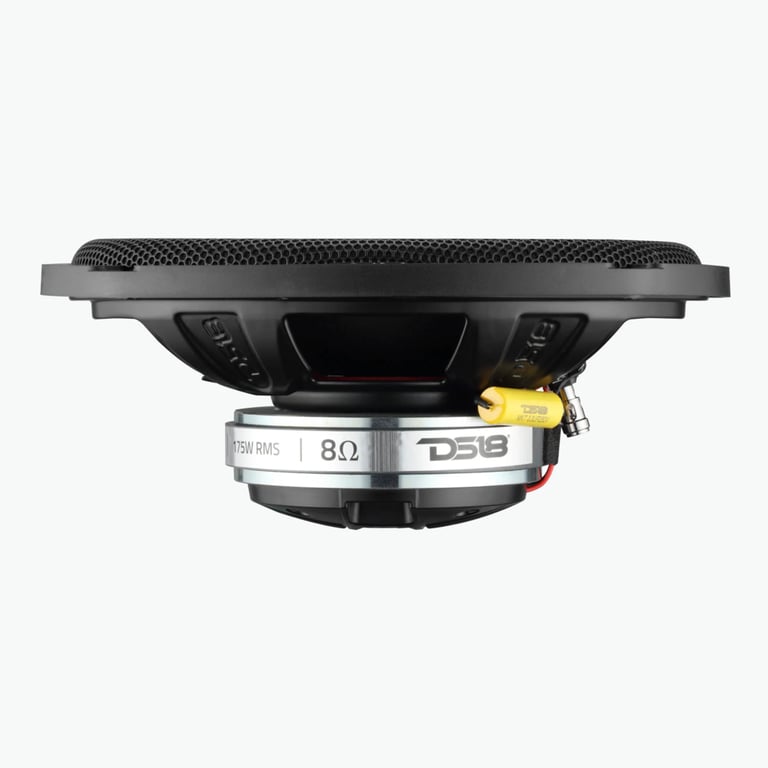

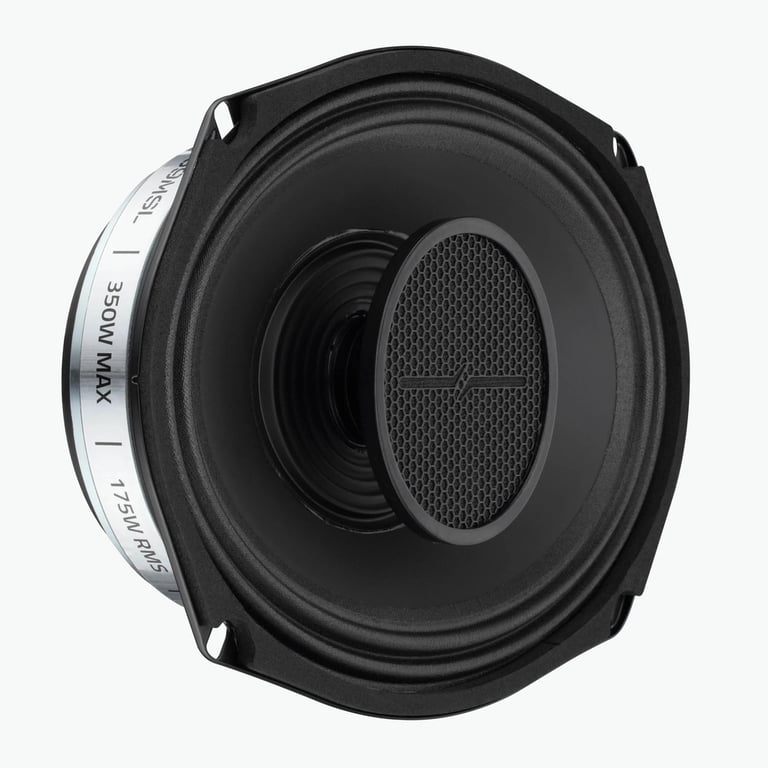

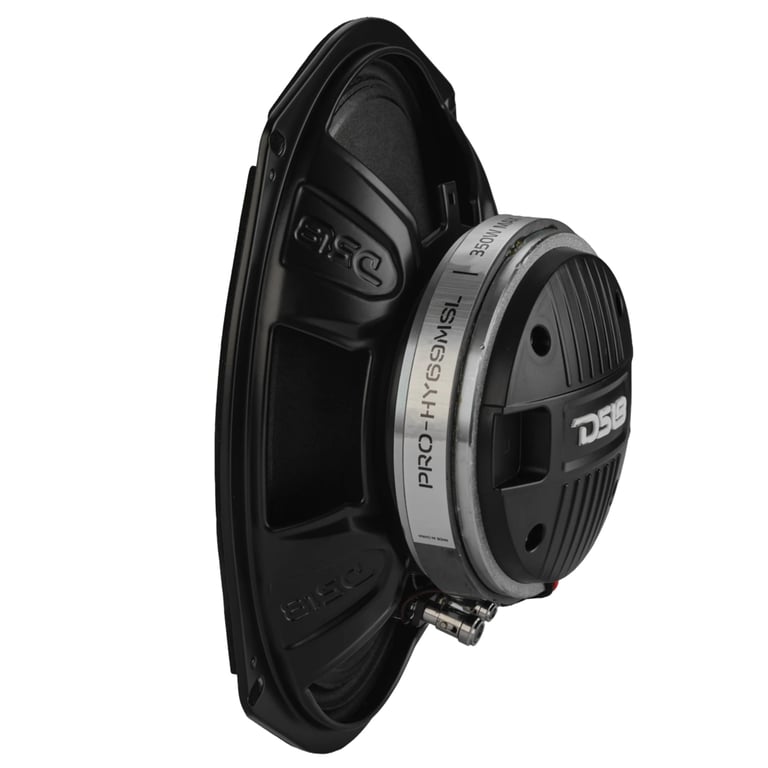

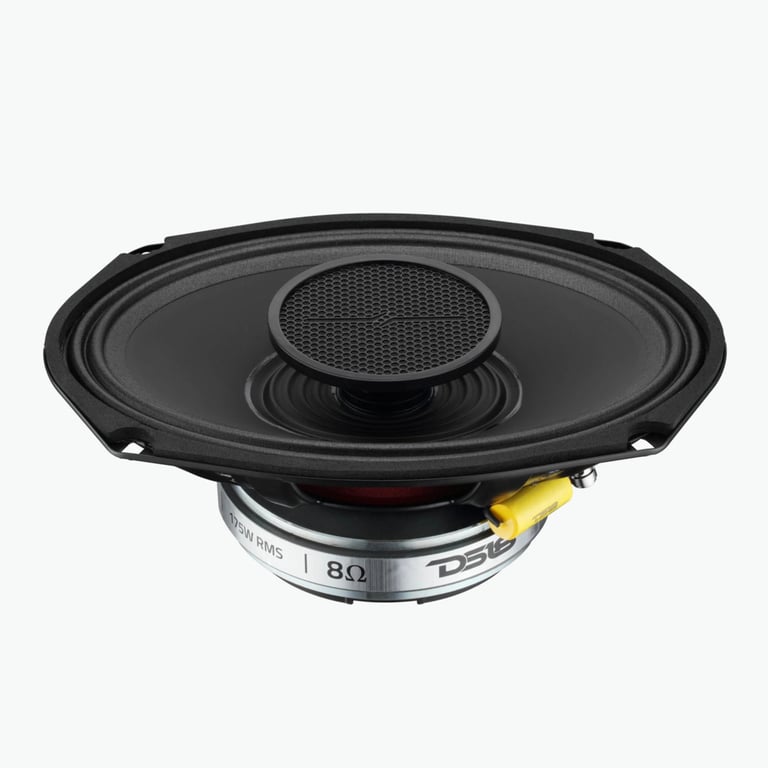

The DS18 PRO-HY69MSL is a high-output 6x9” hybrid loudspeaker specifically engineered to deliver professional-grade sound in space-constrained environments like motorcycles, UTVs, and Jeeps. Combining a water-resistant paper cone woofer with a high-intensity 1" titanium compression driver, this 2-way system provides a wide-bandwidth frequency response from 60 - 20000 Hz with an impressive 97dB sensitivity. Its slim-profile design requires only 3.4" of mounting depth, while the IP65-rated construction—featuring a treated cloth surround and a protective metal grille with sun-resistant fabric—ensures reliable performance against rain and trail spray. Driven by a hybrid magnet system of ferrite for the woofer and neodymium for the compression driver, this 175W RMS loudspeaker offers the massive volume and clarity of a full-sized system in a compact, weather-proof package.

Product Details:

  • 6" x 9" PRO Series Hybrid Coaxial Midrange Loudspeaker
  • Power Handling:
    • Peak: 350 watts
    • RMS: 175 watts
  • IP65-rated water resistance
  • Perfect for motorcycles, UTVs, SXS, slingshots, jeep
  • Water-Resistant Paper cone material
  • Cloth speaker surround
  • 3.15" Titanium Horn driver
  • 1" CCAW driver voice coil on Kapton former
  • Neodymium driver magnet motor structure
  • 1.5" CCAW speaker voice coil on KSV former
  • 25.5 oz. Ferrite speaker magnet motor structure
  • Black steel basket material for added durability

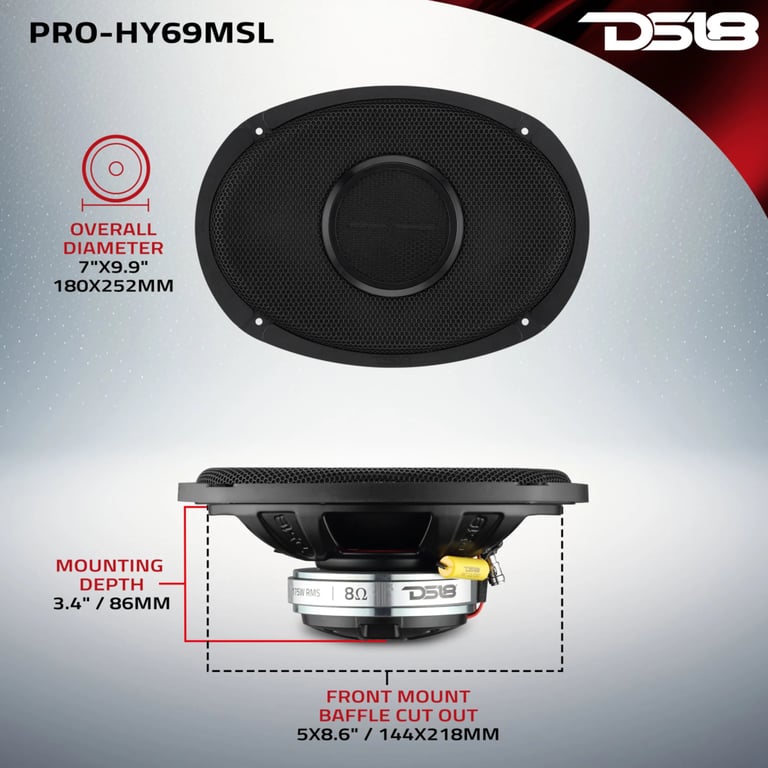

  • Top-mount Depth: 3.4"
  • Cutout Dimensions: 5.7" x 8.6"
  • Impedance: 8 ohm
  • Frequency Response: 60 - 20000 Hz
  • Sensitivity: 97 dB

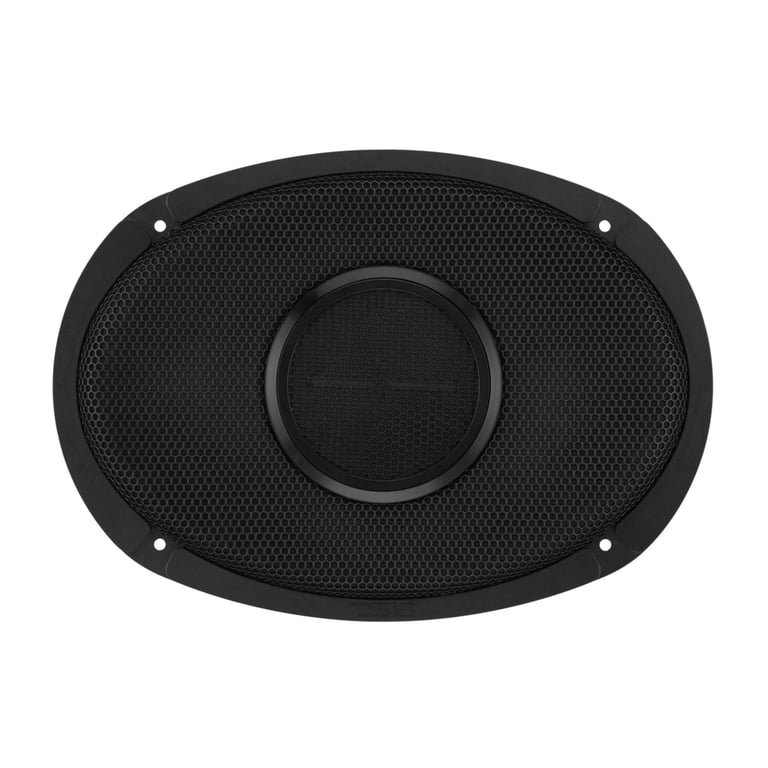

  • Mesh grille with water and sun protection cloth included
  • Available in 4-ohm and 2-ohm (sold separately)
  • Authorized Internet Dealer
  • MFR #: PRO-HY69MSL
  • 1-year Manufacturer's Warranty

  • Priced Per Each Speaker


Best selling similar products

PH654 small

Cerwin-Vega PH654

• 300 watts Peak Each, 150 watts RMS Each
• Polymide Horn Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101 dB

(2)

$189.99

List price $227.99

CVP8 small

Cerwin-Vega CVP8 (Sold Individually)

• 350 watts Peak, 170 watts RMS
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$49.99

List price $59.99

AP-M61SE Pro small

Deaf Bonce Apocalypse AP-M61SE Pro

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102.80 dB

$119.90

List price $143.99

PRO-X12MBASS small

DS18 PRO-X12MBASS (Sold individually)

• 1000 watts Peak Each, 500 watts RMS Each
• Paper cone material
• Impedance: 8 ohm
• Sensitivity: 96 dB

$131.95

List price $131.95

10MB800FT small

PRV Audio 10MB800FT

• 1600 watts Peak Each, 800 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 8 ohm
• Sensitivity: 99 dB

$129.91

List price $162.39

EPICPRO8X small

AudioControl EPICPRO8X

• 350 watts Peak Each, 250 watts RMS Each
• Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99.2 dB

$129.00

List price $129.00

PRO-X6.4BMPK small

DS18 PRO-X6.4BMPK

• 500 watts Peak Each, 250 watts RMS Each
• 1" Aluminum Bullet super tweeters with ferrite magnets
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(4)

$139.95

List price $139.95

HCCA64N small

Orion HCCA64N

• 1400 watts Peak Each, 350 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99 dB

$219.95

List price $263.99

VPRO65 small

NVX VPRO65 (Sold Individually)

• 450 watts Peak Each, 225 watts RMS Each
• 1" Aluminum Bullet tweeter
• Competition Grade Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

(4)

$74.99

List price $82.99

CVMPCL8.0 small

Cerwin Vega CVMPCL8.0 (Sold Individually)

• 400 watts Peak Each, 200 watts RMS Each
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$139.99

List price $167.99

Specifications & Details


Speaker Specifications
Series
PRO Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
6" x 9"
Design
Hybrid Coaxial Midrange
Tweeter Design
Horn
Tweeter Size
3.15"
Tweeter Composition
Titanium
Woofer Composition
Water-Resistant Paper
Woofer Surround
Cloth
Peak Power Handling
350 watts
RMS Power Handling
175 watts
Sensitivity
97 dB
Frequency Response
60 - 20000 Hz
Impedance (Per Voice Coil)
8 ohm
Voice Coil Diameter
1.5"
Shallow Mount Installation
Yes
Magnet weight
25.5 oz.
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
3.4"
Cutout Dimensions
5.7" x 8.6"
CTA-2031 Compliant
No
General specifications
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
Compatible vehicle types
ATV/UTV
Car/Truck/SUV/Van
Motorcycle
What is in the box?
Paperwork
User manual
WITB: Speakers
Speaker
Grille (attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PRO-HY69MSL

Weight:

4.40lbs

Internal SKU:

prohy69msl

Internal Product ID:

230009
