See all parts that fit your 2012 Eclipse

Echomaster HDBJK

Dual Side View Blind Spot Camera Kit for 2007-2018 Jeep Wrangler JK

Echomaster
Shop all Echomaster
Only 2 Left!
highlight-star-icon

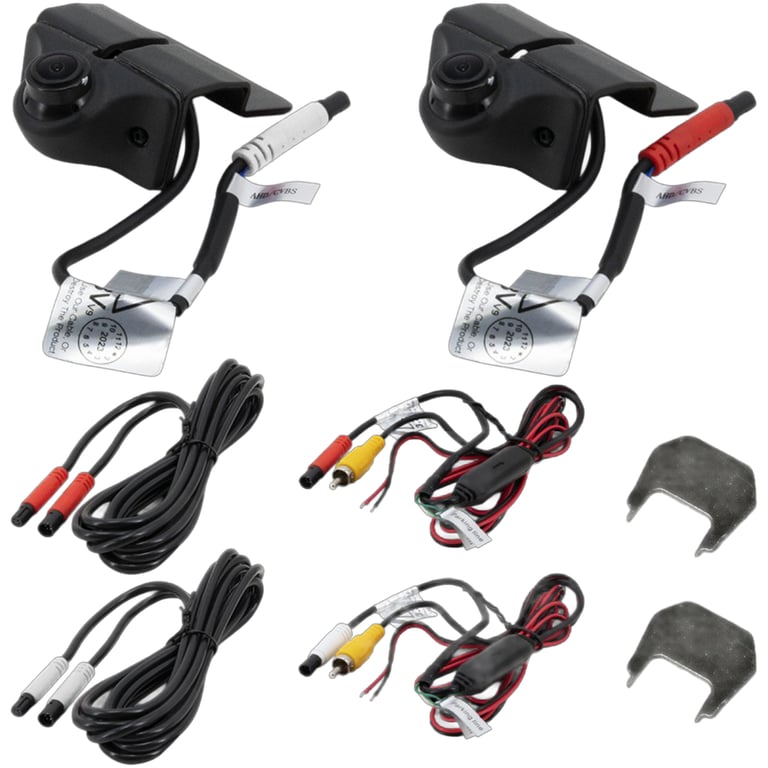

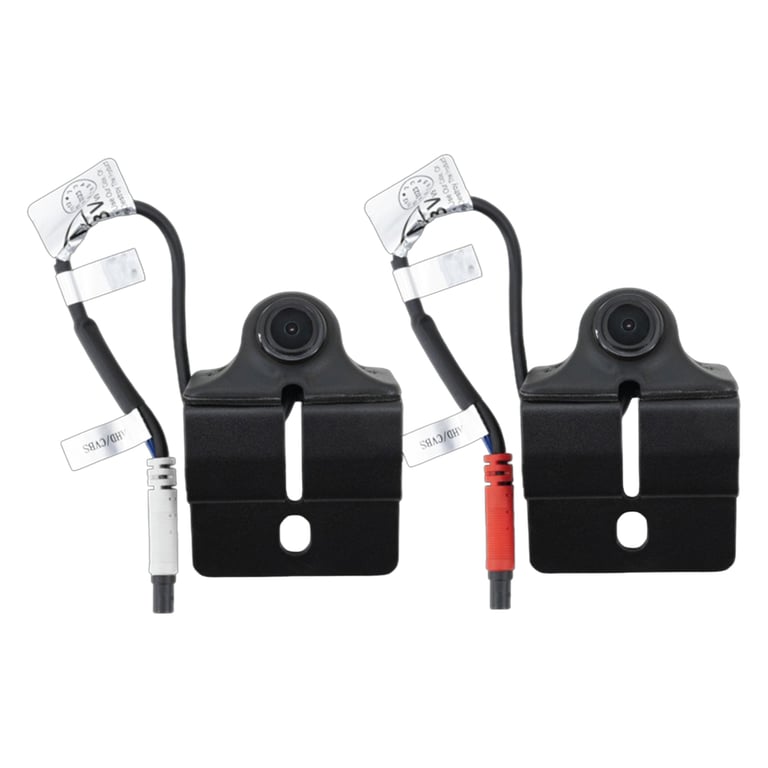

• Dual Side View Blind Spot Camera Kit
• Compatible with 2007-2018 Jeep Wrangler JK (2-Door and 4-Door models)
• Mounting Style: Bracket Mount
• Viewing Angle: 80 degrees
• Resolution: 648 x 488 (CVBS) / 1280 x 720 (AHD)
• Waterproof: IP67
• Nightvision: Low-light at 0.1 lux

Learn more about the hdbjk
Universal fit Icon

Universal – fits most vehicles.

Similar items | Update vehicle | Vehicle store
List price $309.99
Thanks , You Pay:
-26%

$229.99

 with warranty
Starting at $21/mo or 4 payments of $58 Buy now, pay later and installment payment plans are offered by Afterpay and Affirm. Learn more

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

shipping truck icon Free shipping in USA. Provide zip for delivery date.
Dollar Icon
VIP Product Get $23.00 in rewards to spend later
Quantity
In Stock. Only 2 Left!
Brand new

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


Echomaster brand icon

Authorized dealer

Premium Jeep Wrangler Blind Spot Cameras

EchoMaster HDBJK provides a definitive solution for eliminating dangerous blind spots on your 2007-2018 Jeep Wrangler JK. Engineered specifically as a premium side blind spot camera kit, this robust system allows you to navigate crowded roads and tight trails with absolute confidence. By utilizing specially designed mounting brackets that attach directly to the vehicle's body, it ensures a frictionless visual experience that provides a clear, reliable view of your surroundings—even when you have completely removed your Jeep's doors for an open-air adventure.

Beyond its essential safety capabilities, this high-quality camera kit is meticulously built to satisfy the rigorous demands of daily driving and off-road excursions. The HDBJK features an advanced CMOS sensor with selectable AHD 720p high-definition or CVBS standard-definition outputs, paired with a rugged IP67 water and debris-proof rating. By offering a completely reversible, pre-assembled installation with foam-backed mounts to protect your factory paint, as well as excellent 0.1 LUX low-light performance, this premium system allows you to confidently secure a professional-grade safety upgrade without making any permanent modifications to your vehicle.

Product Details:

  • Dual Side View Blind Spot Camera Kit
  • Compatible with 2007-2018 Jeep Wrangler JK (2-Door and 4-Door models)

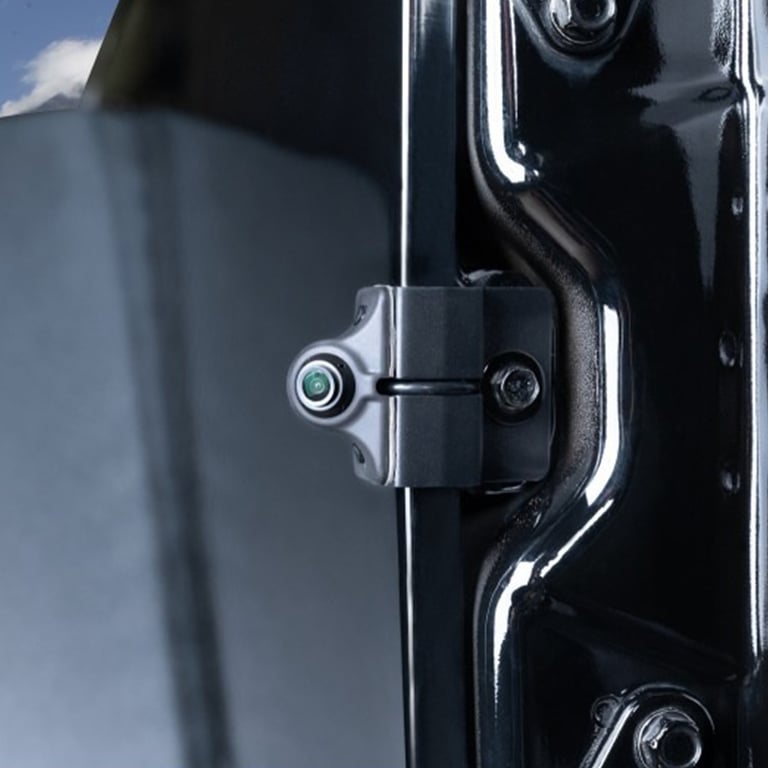

  • Non-directional camera brackets to be mounted on either side of the vehicle
  • Selectable CVBS / AHD video format with 480 / 720 TV lines respectively
  • Selectable parking lines and mirror image
  • Functions with vehicle doors on or off
  • Pre-assembled package for easy installation
  • Standard 5-pin Echomaster connector harness included
  • No modifications required to install cameras on the vehicle
  • Foam-backed brackets protect factory vehicle paint
  • CMOS sensor
  • No audio output provided
  • Mounting Style: Bracket Mount
  • Viewing Angle: 80 degrees
  • Waterproof: IP67
  • Nightvision: Low-light
  • Lux Rating: 0.1 lux
  • Resolution: 648 x 488 (CVBS) / 1280 x 720 (AHD)
  • Power Supply: 9-16V DC
  • Optional PAC VS41 to add multiple inputs and turn signal triggers to video source (Sold separately)
  • Optional PAC VS41 and BCI-CH21 to connect cameras to the factory JK stereo (Sold separately)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
