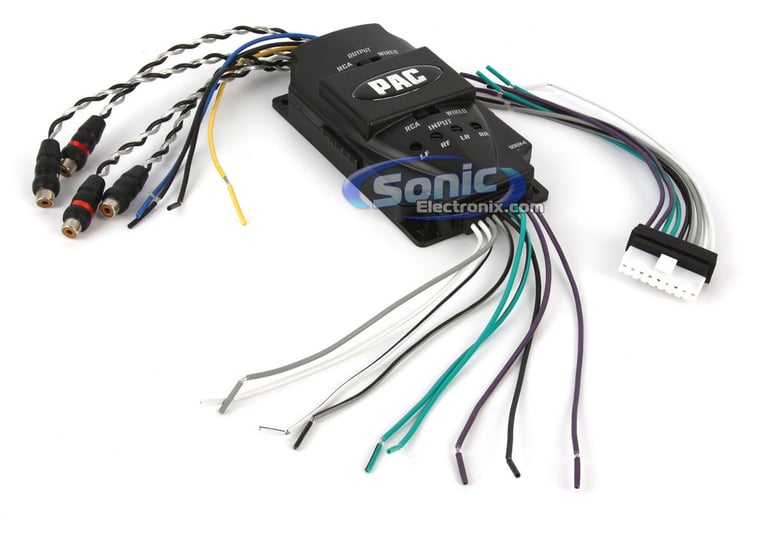

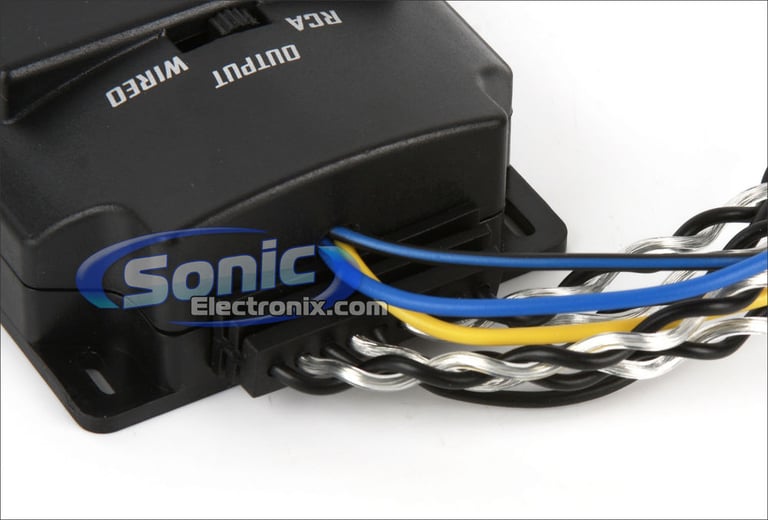

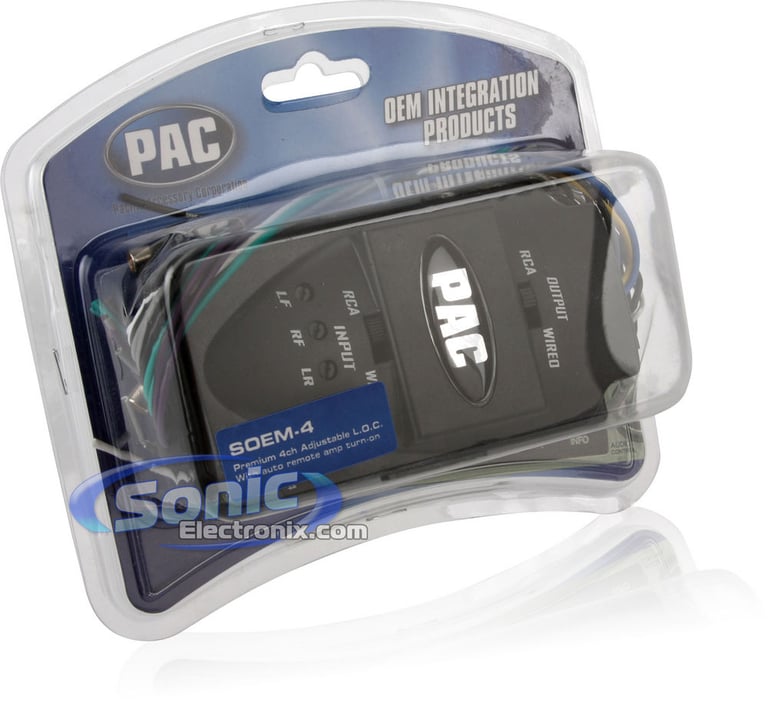

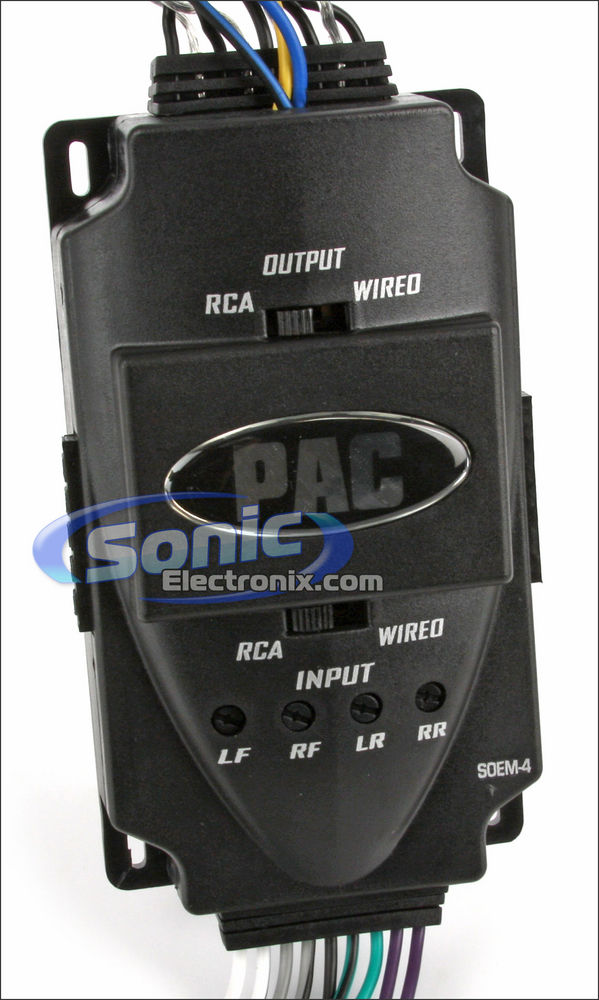

PAC SOEM-4

Premium, 240W 4-Channel Adjustable Line Output Converter with Auto Remote Amplifier Turn On

PAC
Shop all PAC
highlight-star-icon

• 4-Channel Line Out Converter
• Standard Wiring Colors
• 12 Volt Remote Amp Turn On
• Independent Channel Level Adjustment
• Wire Strain Relief
• Optimization Circuitry
• Compact Housing
• Twisted Pair Construction

Learn more about the soem4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

lp74 thumbnail

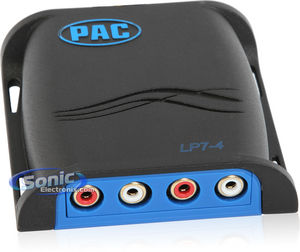

PAC LP7-4

OUR PRICE: $45.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1743 main

Metra 70-1743 Wiring Harness

Install a new car stereo in select 1987-1996 vehicles from Mitsubishi, Dodge, Eagle

3

Description


PAC brand icon

Authorized dealer

Product Features:
  • Premium 4-Channel Adjustable Line Output Converter
  • 240 watts maximum input wattage total
    • 60 watts maximum input x 4 channels
  • Auto remote amplifier turn On
  • Adjust level controls independently
  • Equipped with a 12 volt amp turn on trigger
  • Frequency response: 20-20,000 Hz
  • Programmable input and output circuitry
  • Four configurations:
    • 1. Using a factory premium amplifier with an aftermarket head unit
    • 2. Four channel line out converter for adding amplifiers to a standard factory speaker system
    • 3. Adding aftermarket amplifiers to a factory premium amplified system (Bose, JBL, etc.)
    • 4. Installing a radio with floating ground speaker outputs to a common ground speaker system
  • Includes mounting screws
  • Dimensions: 5"L x 3"W x 1-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

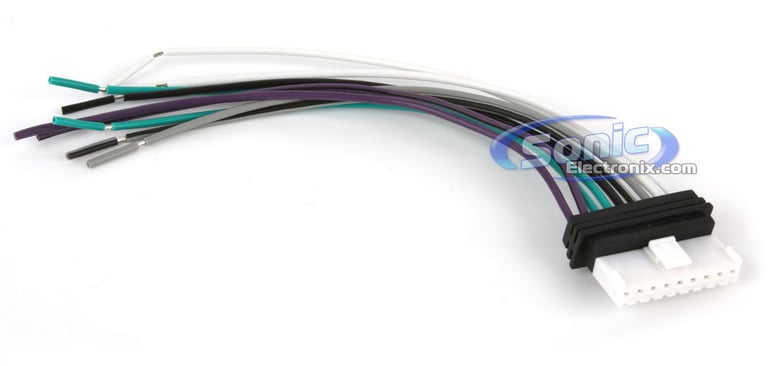

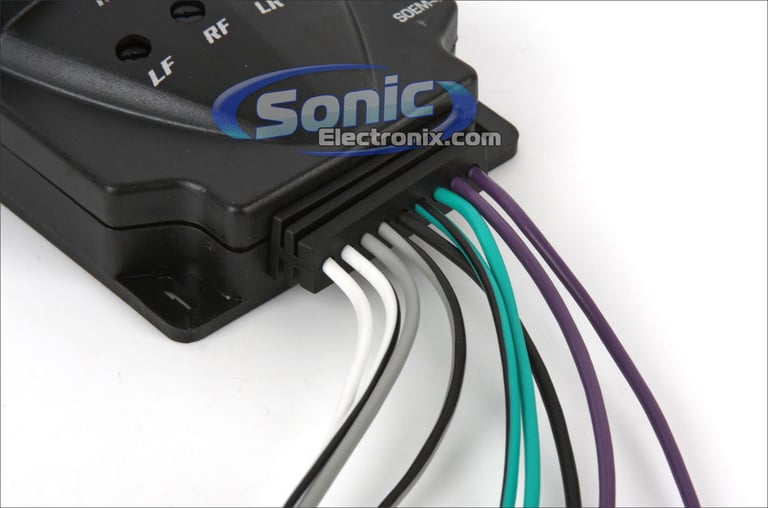

Connections:
  • Yellow – 12V Constant
  • Black - Optional audio ground (ties RCA negative conductors together, also provides audio reference
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
  • Blue/Black - Ground (must be connected)
  • Blue - Remote amp trigger - Activated by signal on purple wires

Product history:

PAC LP7-4 thumbnail
(newest, current model)
PAC SOEM-4 thumbnail
(previous model, replaced by PAC LP7-4)
PAC OEM-2 thumbnail
(previous model, replaced by PAC SOEM-4)
