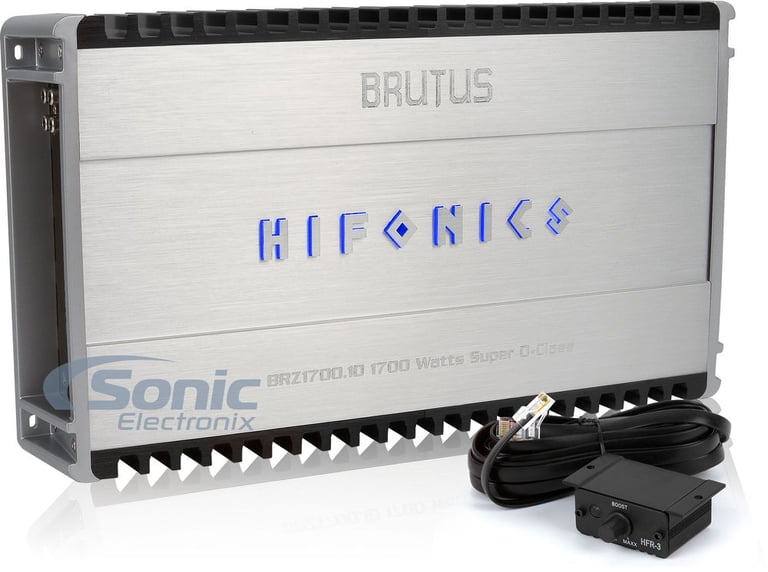

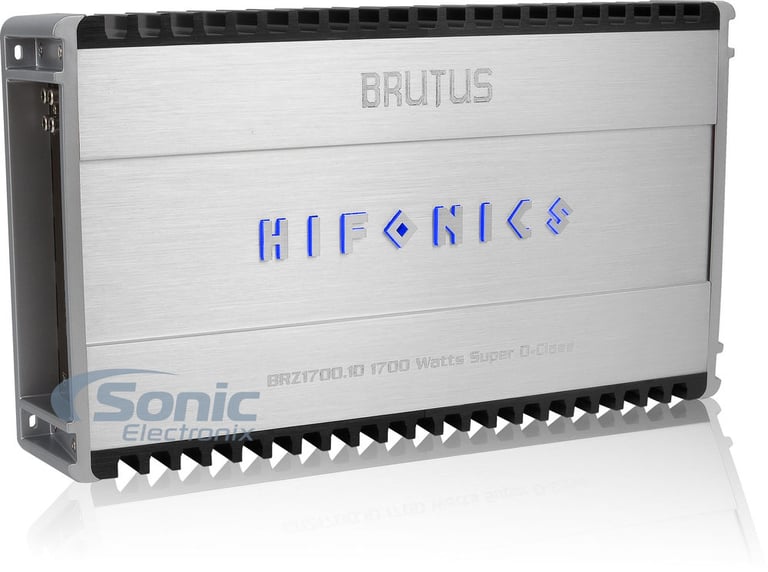

Hifonics Brutus BRZ1700.1D

1700W RMS Brutus Series 1-Channel Monoblock Super Class D Amplifier (BRZ 1700.1D)

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• 1700W x 1-Chan. @ 1 Ohm
• 1200W x 1-Chan. @ 2 Ohm
• 600W x 1-Chan. @ 4 Ohm
• Wired HFR-3 Remote
• 4-Way System Protection
• Phase Shift
• Silver-Plated RCA Inputs

Learn more about the brz17001d

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

Product Highlights


• 1700W x 1-Chan. @ 1 Ohm
• 1200W x 1-Chan. @ 2 Ohm
• 600W x 1-Chan. @ 4 Ohm
• Wired HFR-3 Remote
• 4-Way System Protection
• Phase Shift
• Silver-Plated RCA Inputs

Description


Hifonics brand icon

Authorized dealer

Performance meets Value

The new 2010 Hifonics Brutus amplifiers are much more than a good-looking amplifier. Underneath the solid aluminum casing, you will find quality amplifier components that are sure to satisfy any compatible subwoofer. The new BRZ amplifiers have changed the heat sinks on each side to vertical aluminum fins. Since heat rises, these fins draw the heat up and allow it so effectively dissipate from the amplifier. The vertical aluminum heat sinks are located on two sides of the amplifier and effectively maintain the temperature of the amplifier to prevent any overheating. Combined with the other power/protection indicators and the 4-way system protection circuitry, the Hifonics Brutus amplifiers prove to be a safe, efficient, and reliable amplifier for your subwoofer.

Every Brutus amplifier is CEA-2006 certified. That means you can be confident in knowing that you are paying for real power. The wattage that the amplifier is rated at is the wattage that it will consistently produce and supply your subwoofer with. This is typically a feature just found on the higher-end, expensive amplifiers, however all the Brutus series amps are CEA-2006 compliant with a low price tag. By choosing one of these amplifiers, you will be high-grade performance and still have money left over. Performance meets value with the Hifonics Brutus amplifiers!

General Features:

  • Brutus Series Monoblock Class D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 1700 watts x 1 chan.
  • MOSFET power supply

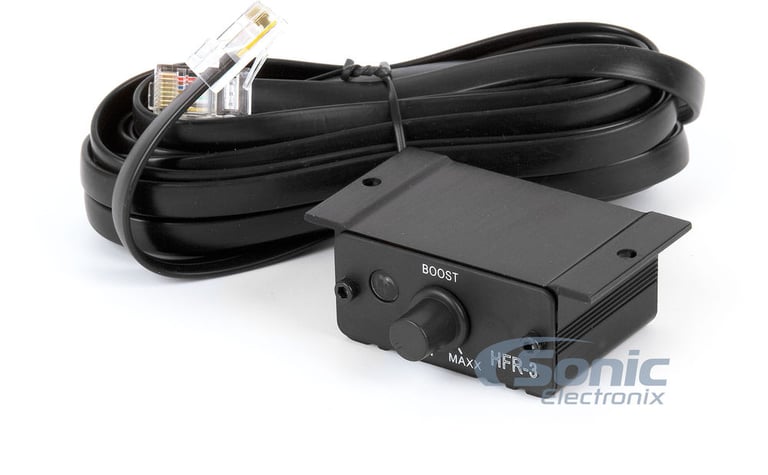

  • Wired HFR-3 remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, speaker short and DC protect)
  • Heavy duty aluminum alloy finned heatsink for maximum heat dissipation

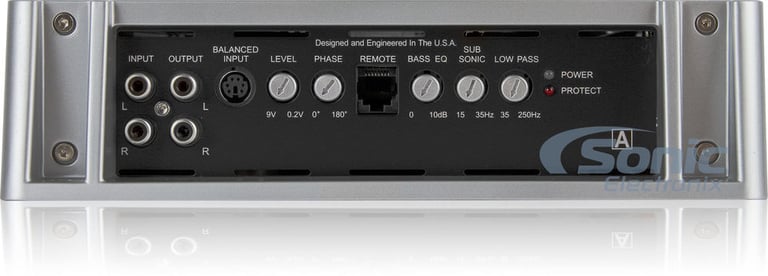

  • Silver-plated unbalanced RCA level inputs

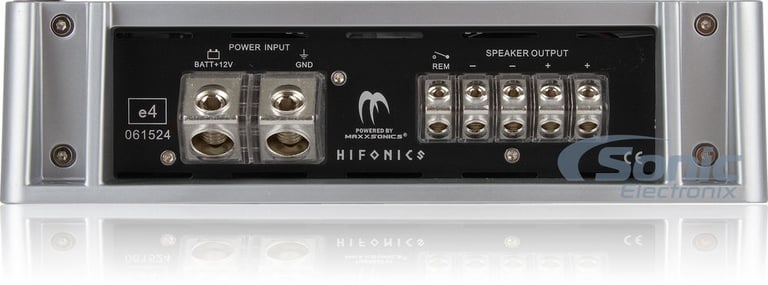

  • Silver-plated molded screw terminals
  • Input sensitivity:
    • Input Level (Unbalanced): 0.2V-9V
    • Input Level (Balanced): 0.04V-8V
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic filter (15-35 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >290
  • Frequency response: 35-250 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 16-15/16"L x 9-1/4"W x 2-7/16"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Read more about the Hifonics Brutus BRZ1700.1D in our blog!

Product history:

Hifonics BRZ1700.1D thumbnail
(newest, current model)
Hifonics BXi1610D thumbnail
(previous model, replaced by Hifonics Brutus BRZ1700.1D)
Hifonics BXi1608D thumbnail
(previous model, replaced by Hifonics BXi 1610D)
Hifonics BXi1606D thumbnail
(previous model, replaced by Hifonics BXi 1608D)
Hifonics BX1605D thumbnail
(previous model, replaced by Hifonics BXi 1606D)
Hifonics BX1500D thumbnail
(previous model, replaced by Hifonics BX1605D)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1700 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
160A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BRZ1700.1D

Weight:

14.55lbs

Internal SKU:

brz17001d

Internal Product ID:

23547
