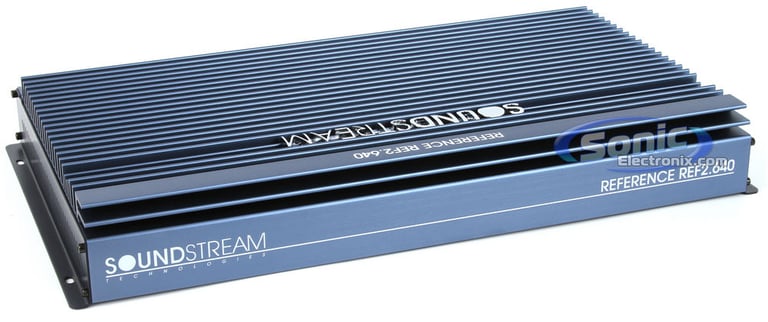

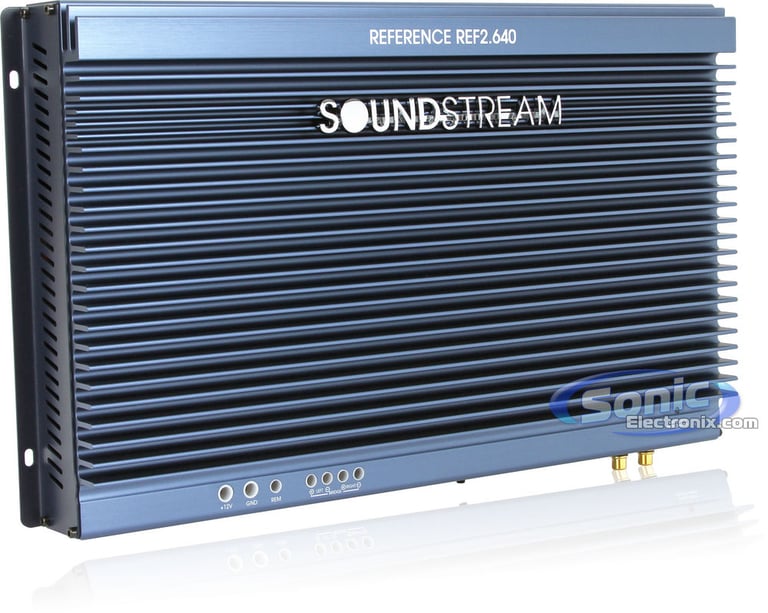

Soundstream REF2.640

570W, 2-Channel Reference Series Power Car Amplifier

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

Reference Series 2-Channel Car Amplifier • 190 Watts x 2 Chan @ 4 Ohm • 285 Watts x 2 Chan @ 2 Ohm • MOSFET Power Supply • Hawkins Bass Control • Harmonic Bass Alignment • Rail Stabilization Protection • Tri-Mode Operation

Learn more about the ref2640

We apologize

This item has been discontinued


Loading...
NSH-4565 main

NVX NSH-4565 Speaker Harness for 1973-2017 GMC, Dodge, Chrysler

Install New Speakers in select 1973-2017 vehicles from Dodge, GMC, Chrysler

4
-38.49%

$7.99

List price $12.99

Limited time!
KFC-835C main

Kenwood KFC-835C

80W Peak (20W RMS) 3.5" KFC Series 2 Way Coaxial 4-ohm Car Speakers

31
-44.29%

$39.00

List price $70.00

Product Highlights


Reference Series 2-Channel Car Amplifier • 190 Watts x 2 Chan @ 4 Ohm • 285 Watts x 2 Chan @ 2 Ohm • MOSFET Power Supply • Hawkins Bass Control • Harmonic Bass Alignment • Rail Stabilization Protection • Tri-Mode Operation

Description


Soundstream brand icon

Authorized dealer

  • Soundstream Reference Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 190 watts x 2 chan.
    • 2 ohm: 285 watts x 2 chan.
    • Bridged, 4 ohm: 570 watts x 1 chan.
  • MOSFET power supply
  • RUBI (Rapid-Use Branched Impulse) proprietary power supply technology
  • STACT (Stabilized Apex Current Technology) reduces power supply stress by 50%
  • Hawkins Bass Control (0-10 dB bass boost at 15-4000 Hz)
  • Trident amplifier power topology
  • 2 channel operation
  • Vortex induction fan thermor management
  • Ultra-low ESR capacitors ensure rapid power delivery for dynamic peaks
  • Harmonic Bass Alignment produces tighter, clean bass
  • Rail stabilization protection circuitry
  • Balanced line inputs for highest noise rejection
  • Triple Darlington output circuitry
  • BIP (Bias Input Protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

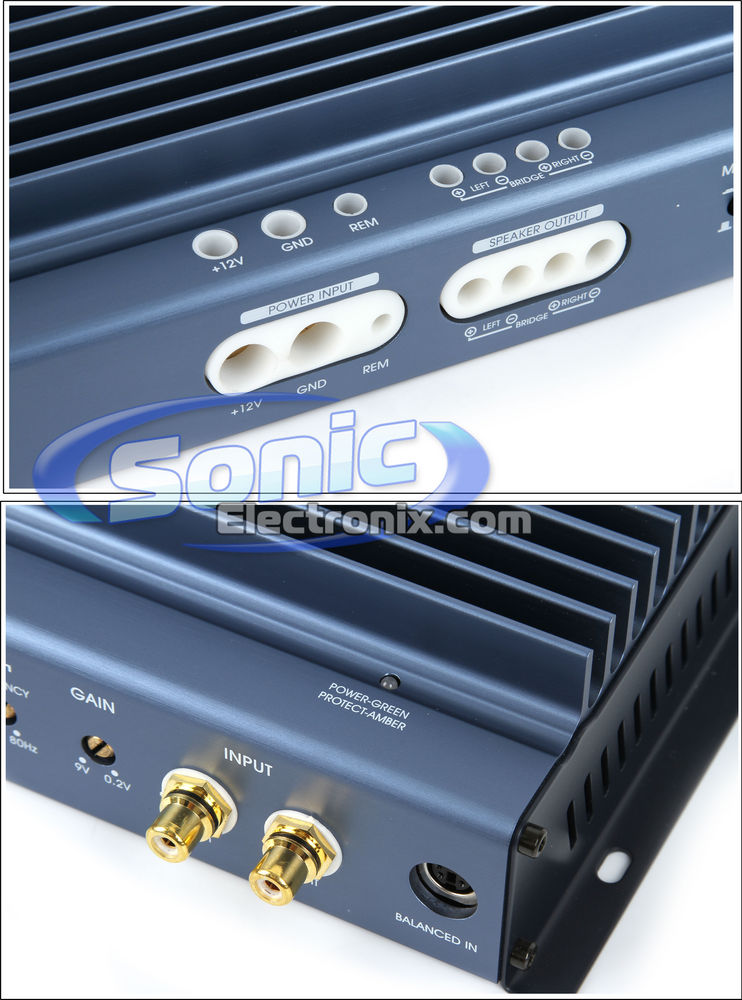

  • Gold-plated RCA level inputs
  • Gold-plated screw terminals

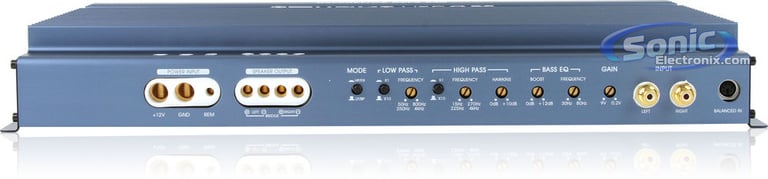

  • Tri-mode operation
  • Variable high-pass filter (15-4000 Hz, 12 dB/octave)
  • Variable low-pass filter (50-4000 Hz, 12 dB/octave)
  • Bass Boost (30-80 Hz, 12 dB/octave)
  • Frequency response: 10-50,000 Hz
  • THD (Total Harmonic Distortion): 0.02%
  • Signal-to-noise ratio: 115dB
  • Input Sensitivity: 0.2-9 volts
  • Damping factor: >200
  • Dimensions: 15-15/16"L x 9-7/8"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-21.44%

$109.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

14
-56.40%

$108.99

List price $249.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-500.2 PRO small

Deaf Bonce Apocalypse ATOM-500.2 PRO

• 231 watts x 2 channel @ 4 ohm
• 390 watts x 2 channel @ 2 ohm
• 500 watts x 2 channel @ 1 ohm
• Bridged: 780 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 500 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$189.90

List price $189.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VAD8402v2 small

NVX VAD8402 v2 (VAD8402v2)

• 300 watts x 2 channel @ 4 ohm
• 420 watts x 2 channel @ 2 ohm
• Bridged: 840 watts x 1 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$229.99

List price $275.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$254.96

List price $359.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
190 watts x 2 channel
RMS Power @ 2 ohms
285 watts x 2 channel
Bridged RMS Power
570 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
570 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
15 - 4000 Hz
Low-Pass Crossover Frequency
50 - 4000 Hz
Signal-to-Noise Ratio
115 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
No
Fuse Rating
80A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REF2.640

Weight:

25.00lbs

Internal SKU:

ref2640

Internal Product ID:

23860
