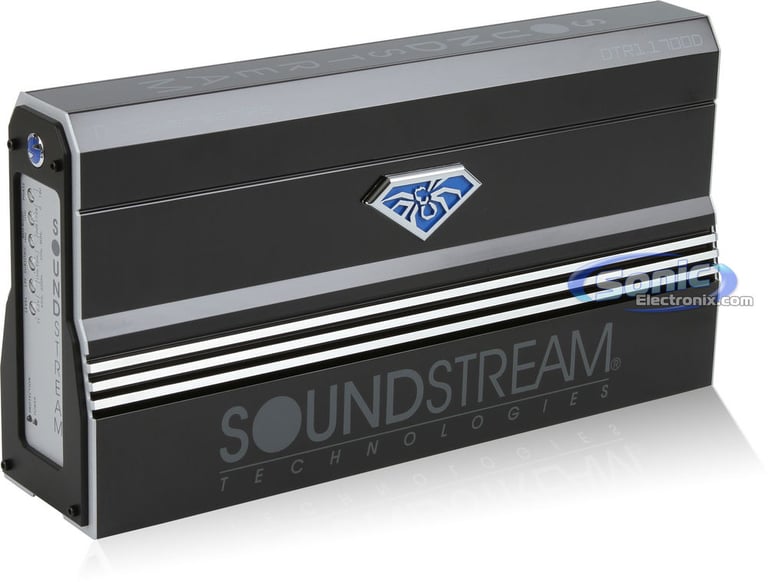

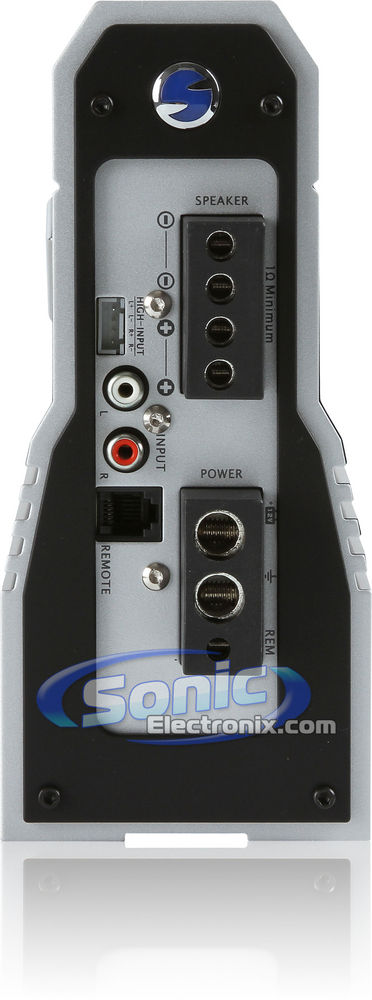

Soundstream DTR1.1700D

1700W RMS, D-Tower Series Class D Monoblock Power Amplifier

Product videos
highlight-star-icon

D-Tower Series Monoblock Class D Car Amplifier • 1700W x 1 Chan. @ 1 Ohm • 1100W x 1 Chan. @ 2 Ohm • Double Side PCB And SMD Components • Remote Bass Level Input • Gloss Black Finish • 3-Way System Protection Circuitry

Learn more about the dtr11700d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Product Highlights


D-Tower Series Monoblock Class D Car Amplifier • 1700W x 1 Chan. @ 1 Ohm • 1100W x 1 Chan. @ 2 Ohm • Double Side PCB And SMD Components • Remote Bass Level Input • Gloss Black Finish • 3-Way System Protection Circuitry

Description


Soundstream brand icon

Authorized dealer

  • Soundstream D-Tower Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 2 ohm: 1100 watts x 1 chan.
    • 1 ohm: 1700 watts x 1 chan.
  • Full MOSFET Power Supply
  • The worlds first vertical automotive stereo amplifier
  • Double side PCB and SMD components
  • LED power (green) and protect (red) indicators
  • Monoblock operation
  • Gloss black finish w/ brushed accents

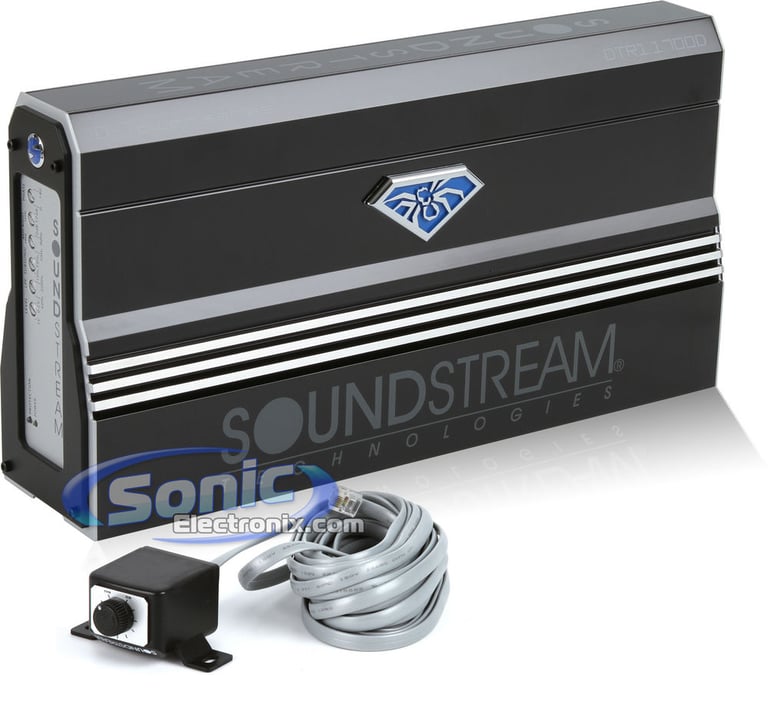

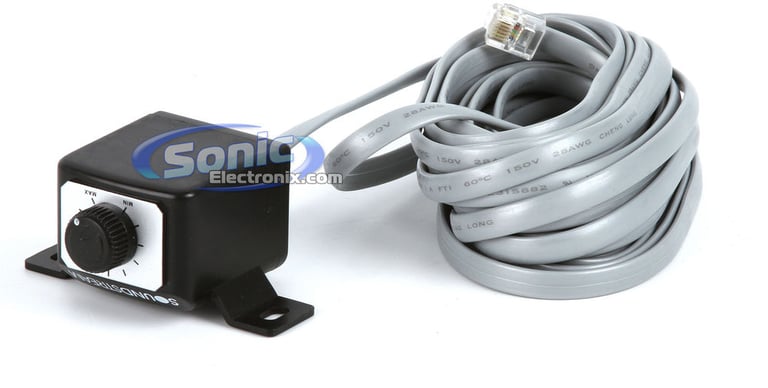

  • Dash mounted remote gain control
  • 3-Way System Protection circuitry (thermal, short, impedance)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals

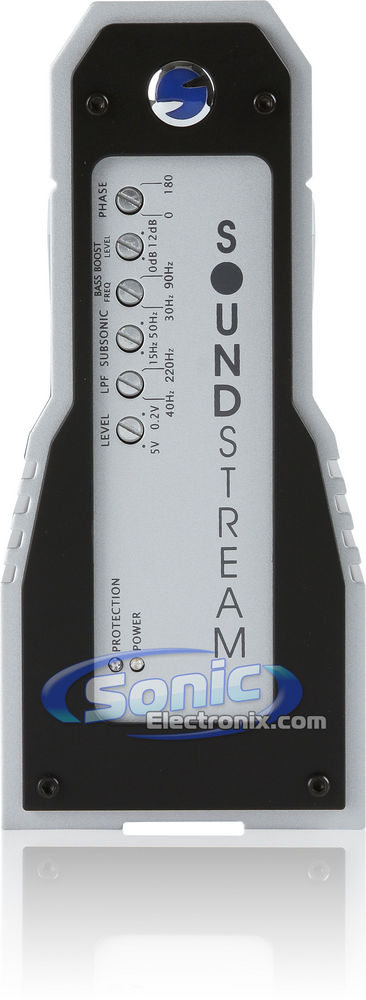

  • Variable high-pass filter (10-50 Hz)
  • Variable low-pass filter (40-220 Hz)
  • Subsonic Filter (10-50 Hz)
  • Bass boost frequency: 30-90 Hz
  • Bass boost level: 0-12 dB
  • Signal-to-noise ratio: >85 dB
  • THD (Total Harmonic Distortion): 0.5%
  • Damping factor: >200
  • Frequency response: 10-220 Hz
  • Dimensions: 14-5/8"L x 3-5/16"W x 7-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 2 ohms
1100 watts x 1 channel
RMS Power @ 1 ohm
1700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 50 Hz
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
150A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DTR1.1700D

Weight:

12.00lbs

Internal SKU:

dtr11700d

Internal Product ID:

23963

Product and How-to Videos


Customer Ratings & Reviews


Soundstream DTR1.1700D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
4.5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

very good amp

I upgraded to this from an SSL amp, which I really recommend staying away from. This amp is very powerful I'm getting 850 watts to each of my 12inch Alpine Type R's makes them pound very hard. If I had to choose again I would by them amp everytime but don't go anywhere but Sonic they have the best prices anywhere.

By michael on December 4, 2010

7 found this helpful


Great Amp.

This is a great amp. I have it wired at 2 ohms to 2 cerwin vega v-max 122's and they hit so hard. I previously had a Kenwood kac9104D and this amp just blows that amp out of the water. It produces very loud and clean notes. I highly recommend this amp. Another pro is that this amp doesn't even draw as much power as my Kenwood did. it doesn't even make my lights dim and I have an 04 Jetta, with a not so impressive alternator. And my Kenwood amp made my lights dim every single hit, and this Soundstream is putting out more power! This amp is great.

By Ben on September 2, 2010
