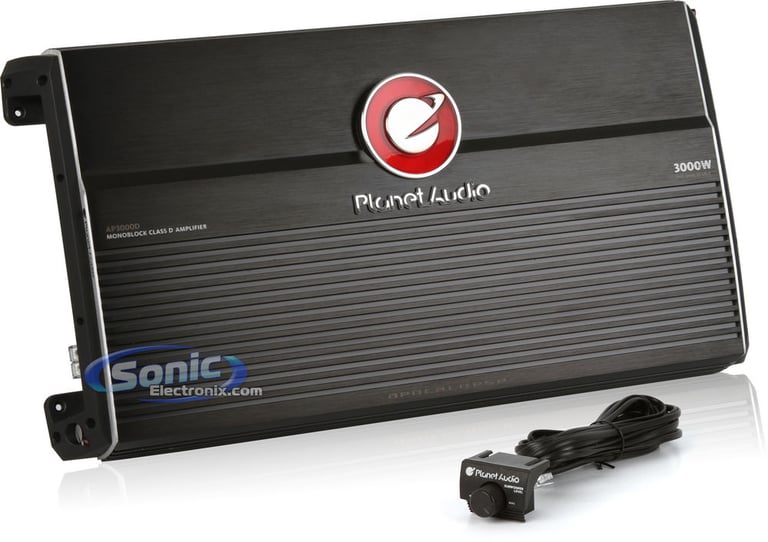

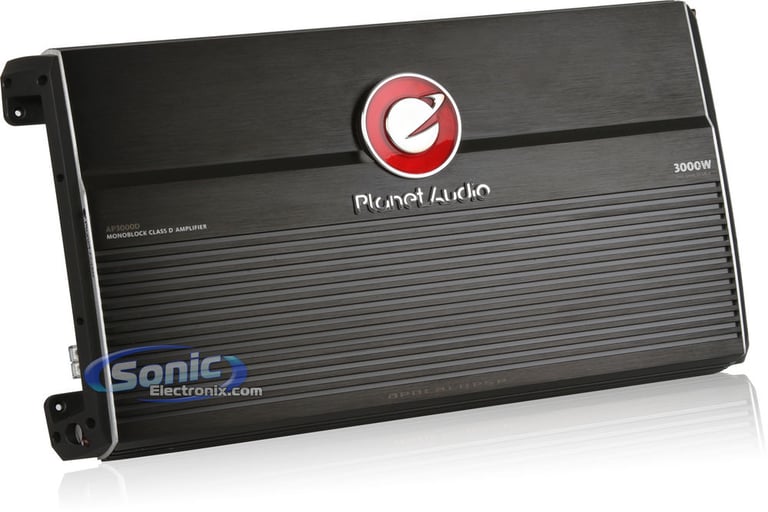

Planet Audio AP3000D

3000W Max Apocalypse Series Class D Monoblock Amplifier with Remote Level Control

Product videos
highlight-star-icon

Apocalypse Series Class D Monoblock Car Amplifier • 3000W Max. • Switchable Phase Shift • Remote Subwoofer Control • Heavy-Duty Screw Terminals • Chrome-Plated Connections • Strapping Capabilities

Learn more about the ap3000d

We apologize

This item has been discontinued


Loading...

Rockford Fosgate Punch P1 P1572

240W Peak (120W RMS) 5x7" Punch Series 2 Way Coaxial 4-ohm Speakers

7

$109.99

Product Highlights


Apocalypse Series Class D Monoblock Car Amplifier • 3000W Max. • Switchable Phase Shift • Remote Subwoofer Control • Heavy-Duty Screw Terminals • Chrome-Plated Connections • Strapping Capabilities

Description


Planet Audio brand icon

Authorized dealer

  • Apocalypse Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 chan.
    • 2 ohm: 1600 watts x 1 chan.
    • 1 ohm: 2400 watts x 1 chan.
  • Max power output:
    • 1 ohm: 3000 watts x 1 chan.
  • Pulse width modulated MOSFET power supply

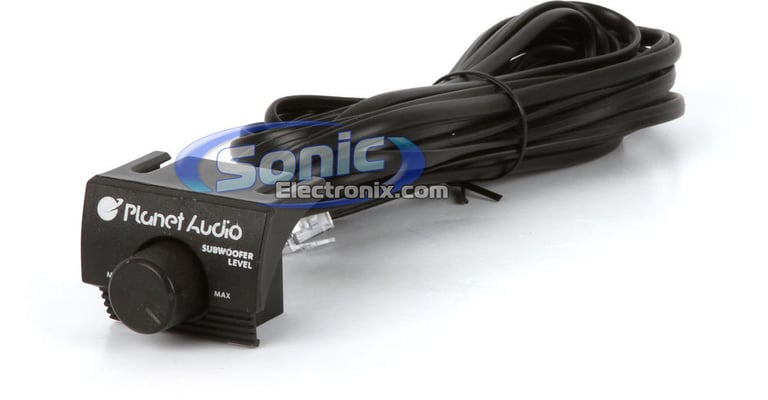

  • Convenient remote subwoofer control
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +18 dB
  • Chrome-plated connections enhance durability
  • Variable low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Low level inputs and outputs
  • Heavy-duty set-screw terminals
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Subsonic filter: 15-40 Hz
  • Phase Shift: Switchable 0-180°
  • Signal-to-Noise Ratio: 100 dB
  • Frequency response: 20-250 Hz
  • Strapping capabilities allow user to strap two amps together for twice the power using included DataLink cable (2 ohm only)
  • Dimensions: 20-5/8"L x 10-5/8"W x 2-5/16"H
  • 1-year Manufacturer's warranty

  • Loading...
    REF507CF_2_MET-825601_2 main

    2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

    390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

    3
    -12.14%

    $477.88

    List price $543.88

    Limited time!
    46CSC654 main

    Kicker CSC65 (46CSC654)

    600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

    122
    -33.36%

    $79.96

    List price $119.99

    43DSC6504 main

    Kicker DSC650 (43DSC6504)

    480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

    28
    -10.53%

    $84.99

    List price $94.99

    DB652 main

    Polk Audio DB652 (DB 652)

    600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

    12
    -9.16%

    $109.00

    List price $119.99

    Limited time!
    Club 622 main

    JBL Club 622

    360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

    5
    -28.58%

    $99.95

    List price $139.95

    CV15BT main

    Cerwin-Vega CV15BT

    Single Din Digital Media Receiver with Bluetooth

    3
    PNW-65CS2 main

    AudioControl PNW-65CS2

    250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

    4
    -5.90%

    $319.00

    List price $339.00

    MPK 163.3 main

    Hertz MPK163.3

    600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

    2
    -14.89%

    $999.99

    List price $1175.00

    NSP65 main

    NVX NSP65

    540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

    93
    -35.19%

    $69.99

    List price $107.99

    Club 522F main

    JBL Club 522F (SPKCB522FAM)

    270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

    -42.29%

    $74.99

    List price $129.95


    Best selling similar products

    NDA12001 small

    NVX NDA12001

    • 500 watts x 1 channel @ 4 ohm
    • 850 watts x 1 channel @ 2 ohm
    • 1200 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1200 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (13)

    $169.99

    List price $239.99

    ATOM 1300.1 PRO small

    Deaf Bonce Apocalypse ATOM 1300.1 PRO

    • 490 watts x 1 channel @ 4 ohm
    • 780 watts x 1 channel @ 2 ohm
    • 1300 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1300 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    $199.90

    List price $199.90

    VAD17001v2 small

    NVX VAD17001 v2 (VAD17001v2)

    • 800 watts x 1 channel @ 4 ohm
    • 1350 watts x 1 channel @ 2 ohm
    • 1700 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1700 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (35)

    $259.99

    List price $335.99

    JD1000/1 small

    JL Audio JD1000/1

    • 600 watts x 1 channel @ 4 ohm
    • 1000 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1000 watts
    • Class D 2 ohm Stable Monoblock Amplifier

    (22)

    $429.99

    List price $429.99

    VADM1 small

    NVX VADM1 v2 (VADM1v2)

    • 240 watts x 1 channel @ 4 ohm
    • 400 watts x 1 channel @ 2 ohm
    • 600 watts x 1 channel @ 1 ohm
    • Total RMS Power: 600 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (16)

    $189.99

    List price $239.99

    VAD10001v2 small

    NVX VAD10001 v2 (VAD10001v2)

    • 420 watts x 1 channel @ 4 ohm
    • 760 watts x 1 channel @ 2 ohm
    • 1000 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1000 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (37)

    $209.99

    List price $227.99

    JD500/1 small

    JL Audio JD500/1

    • 250 watts x 1 channel @ 4 ohm
    • 500 watts x 1 channel @ 2 ohm
    • Total RMS Power: 500 watts
    • Class D 2 ohm Stable Monoblock Amplifier

    (12)

    $299.99

    List price $299.99

    R2-1200X1 small

    Rockford Fosgate Prime R2 R2-1200X1

    • 400 watts x 1 channel @ 4 ohm
    • 800 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1200 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (23)

    $449.99

    List price $449.99

    Reference 10001A small

    Infinity Reference 10001A (AMPRF10001AAM)

    • 600 watts x 1 channel @ 4 ohm
    • 1000 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1000 watts
    • Class D 2 ohm Stable Monoblock Amplifier

    $499.95

    List price $569.95

    NDA15001 small

    NVX NDA15001

    • 670 watts x 1 channel @ 4 ohm
    • 1100 watts x 1 channel @ 2 ohm
    • 1500 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1500 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (14)

    $199.99

    List price $287.99

    Specifications & Details


    Power Specifications - Full Range Channels
    RMS Power @ 4 ohms
    1000 watts x 1 channel
    RMS Power @ 2 ohms
    1600 watts x 1 channel
    RMS Power @ 1 ohm
    2400 watts x 1 channel
    Amplifier Specifications
    Amplifier Class
    D
    Number of Channels
    1 - Mono
    Total Peak Power Output
    3000 watts
    Maximum Input Gauge Size
    4 AWG
    Minimum Impedance Unbridged
    1 ohm
    Minimum Impedance Bridged
    Not Bridgeable
    Speaker Level Inputs
    No
    Preamp Outputs
    1 pair
    Built-in Crossover
    Low-Pass (LP)
    Low-Pass Crossover Frequency
    50 - 150 Hz
    Subsonic Filter
    15 - 40 Hz
    Signal-to-Noise Ratio
    100 dB
    Bass Boost
    0 - 18 dB
    Remote bass/level controller
    Yes
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    AP3000D

    Weight:

    12.50lbs

    Internal SKU:

    ap3000d

    Internal Product ID:

    25301
