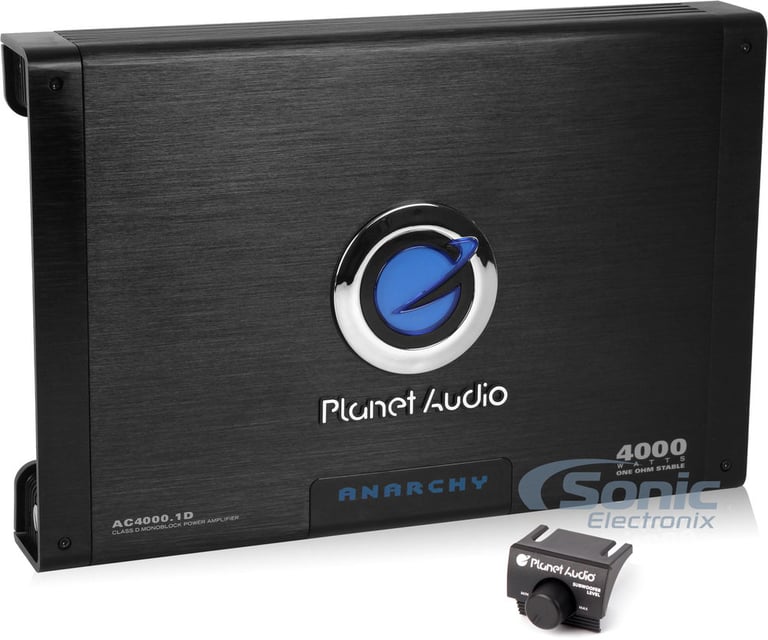

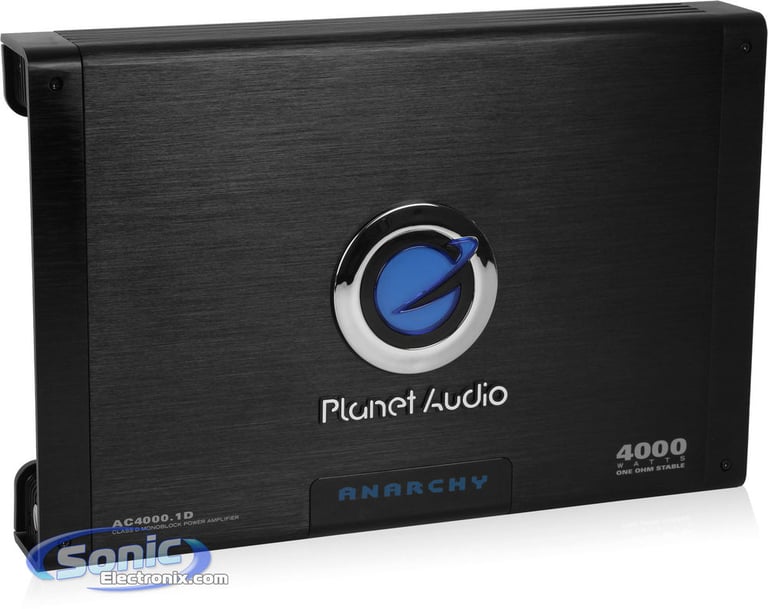

Planet Audio AC4000.1D

4000W Max Anarchy Series Class D Monoblock Power Amplifier

Product videos
highlight-star-icon

• RMS: 1500W x 1 @ 4 ohm, 2000W x 1 @ 2 ohm, 2800W x 1 @ 1 ohm
• Total Peak Power: 4000W
• Illuminated Logo
• Bass Boost 0-18 dB
• Chrome-Plated Connections
• Dimensions: 15"L x 10"W x 2-3/16"H

Learn more about the ac40001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Lowest price in 30 days
NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$54.99

List price $65.99

Product Highlights


• RMS: 1500W x 1 @ 4 ohm, 2000W x 1 @ 2 ohm, 2800W x 1 @ 1 ohm
• Total Peak Power: 4000W
• Illuminated Logo
• Bass Boost 0-18 dB
• Chrome-Plated Connections
• Dimensions: 15"L x 10"W x 2-3/16"H

Description


Planet Audio brand icon

Authorized dealer

Planet Audio Authorized Dealer

Product Features:

  • Anarchy Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1500 watts x 1 chan.
    • 2 ohm: 2000 watts x 1 chan.
    • 1 ohm: 2800 watts x 1 chan.
  • Max power output:
    • 1 ohm: 4000 watts x 1 chan.
  • Pulse width modulated MOSFET power supply

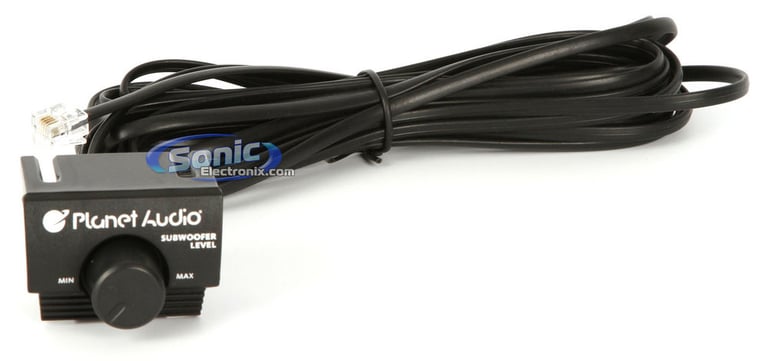

  • Convenient remote subwoofer control
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +18 dB
  • Chrome-plated connections enhance durability
  • Variable low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Low level high inputs
  • Heavy-duty set-screw terminals
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable low-pass filter: 50 - 150 Hz, 24 dB/octave)
  • Subsonic filter: 15-40 Hz
  • Phase Shift: Switchable 0-180°
  • Signal-to-Noise Ratio: 105 dB
  • Frequency response: 20-250 Hz
  • Strapping capabilities allow user to strap two amps together for twice the power using included DataLink cable (2 ohm only)
  • Dimensions: 15"L x 10"W x 2-3/16"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty
  • Planet Audio AC4000.1D owner’s manual

    Loading...
    DMH-1800NEX main

    Pioneer DMH-1800NEX

    6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

    59
    -19.05%

    $339.99

    List price $420.00

    Limited time!
    DMH-W3050NEX main

    Pioneer DMH-W3050NEX

    6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

    1
    -24.20%

    $469.99

    List price $620.00

    Club 522F main

    JBL Club 522F (SPKCB522FAM)

    270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

    1
    -42.29%

    $74.99

    List price $129.95

    Reference 5030cx main

    Infinity Reference 5030cx (REF5030CX)

    390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

    2
    -60.01%

    $99.95

    List price $249.95

    Limited time!
    DMX709S main

    Kenwood eXcelon DMX709S

    6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

    39
    -33.50%

    $399.00

    List price $600.00

    Limited time!
    iLX-W670-M main

    Alpine iLX-W670-M

    6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

    126
    -30.01%

    $349.95

    List price $500.00

    Limited time!
    DMH-241EX main

    Pioneer DMH-241EX

    6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

    22
    -35.00%

    $194.99

    List price $300.00

    Limited time!
    XAV-AX3200 main

    Sony XAV-AX3200

    6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

    15
    -25.50%

    $298.00

    List price $399.99

    XAV-AX3200, BLPCAM2 main

    Sony XAV-AX3200 with License Plate Camera

    6.95" Double-DIN Touchscreen Digital Multimedia Receiver with License Plate Backup Camera

    72
    -32.40%

    $337.99

    List price $499.98

    Limited time!
    DMX809S main

    Kenwood eXcelon DMX809S

    6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

    11
    -37.63%

    $499.00

    List price $800.00


    Best selling similar products

    NDA12001 small

    NVX NDA12001

    • 500 watts x 1 channel @ 4 ohm
    • 850 watts x 1 channel @ 2 ohm
    • 1200 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1200 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (19)

    $169.99

    List price $239.99

    ATOM 1300.1 PRO small

    Deaf Bonce Apocalypse ATOM 1300.1 PRO

    • 490 watts x 1 channel @ 4 ohm
    • 780 watts x 1 channel @ 2 ohm
    • 1300 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1300 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    $199.90

    List price $199.90

    CXA1200.1 small

    Kicker CXA1200.1 (46CXA12001T)

    • 600 watts x 1 channel @ 4 ohm
    • 1200 watts x 1 channel @ 2 ohm
    • 1200 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1200 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (41)

    $399.99

    List price $429.99

    VAD17001v2 small

    NVX VAD17001 v2 (VAD17001v2)

    • 800 watts x 1 channel @ 4 ohm
    • 1350 watts x 1 channel @ 2 ohm
    • 1700 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1700 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (144)

    $259.99

    List price $335.99

    R2-1200X1 small

    Rockford Fosgate Prime R2 R2-1200X1

    • 400 watts x 1 channel @ 4 ohm
    • 800 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1200 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (23)

    $449.99

    List price $449.99

    JD1000/1 small

    JL Audio JD1000/1

    • 600 watts x 1 channel @ 4 ohm
    • 1000 watts x 1 channel @ 2 ohm
    • Total RMS Power: 1000 watts
    • Class D 2 ohm Stable Monoblock Amplifier

    (25)

    $429.99

    List price $429.99

    VAD10001v2 small

    NVX VAD10001 v2 (VAD10001v2)

    • 420 watts x 1 channel @ 4 ohm
    • 760 watts x 1 channel @ 2 ohm
    • 1000 watts x 1 channel @ 1 ohm
    • Total RMS Power: 1000 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (38)

    $209.99

    List price $227.99

    CXA400.1 small

    Kicker CXA400.1 (46CXA4001T)

    • 150 watts x 1 channel @ 4 ohm
    • 300 watts x 1 channel @ 2 ohm
    • 400 watts x 1 channel @ 1 ohm
    • Total RMS Power: 400 watts
    • Class D 1 ohm Stable Monoblock Amplifier

    (24)

    $199.99

    List price $219.99

    JD500/1 small

    JL Audio JD500/1

    • 250 watts x 1 channel @ 4 ohm
    • 500 watts x 1 channel @ 2 ohm
    • Total RMS Power: 500 watts
    • Class D 2 ohm Stable Monoblock Amplifier

    (12)

    $299.99

    List price $299.99

    Specifications & Details


    Power Specifications - Full Range Channels
    RMS Power @ 4 ohms
    1500 watts x 1 channel
    RMS Power @ 2 ohms
    2000 watts x 1 channel
    RMS Power @ 1 ohm
    2800 watts x 1 channel
    Amplifier Specifications
    Series
    Anarchy Series
    Amplifier Class
    D
    Number of Channels
    1 - Mono
    Total Peak Power Output
    4000 watts
    Total RMS Power Output
    2800 watts
    Maximum Input Gauge Size
    1/0 AWG
    Minimum Impedance Unbridged
    1 ohm
    Minimum Impedance Bridged
    Not Bridgeable
    Speaker Level Inputs
    No
    Built-in Crossover
    Low-Pass (LP)
    Subsonic Filter
    15 - 40 Hz
    Signal-to-Noise Ratio
    105 dB
    Bass Boost
    0 - 18 dB
    Remote bass/level controller
    Yes
    Fuse Rating
    40A x 3
    Total Fuse Rating
    120
    Strappable
    No
    Sonic Certified Amplifier
    Not Tested
    Amp Bluetooth Connectivity
    No
    Hi-Res Certified
    No
    What is in the box?
    Paperwork
    User manual
    WITB: Amplifiers
    Amplifier
    Wired gain knob (wire attached)
    Mounting screws (4)
    Warranty and Return Policy
    Parts Warranty Duration
    6 years
    Labor Warranty Duration
    6 years
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    AC4000.1D

    Weight:

    13.00lbs

    Internal SKU:

    ac40001d

    Internal Product ID:

    25313

    Product and How-to Videos


    Customer Ratings & Reviews


    Planet Audio AC4000.1D thumbnail image

    5 star
    64%
    4 star
    20%
    3 star
    12%
    2 star
    0%
    1 star
    4%



    Durability
    4.3
    Value
    4.9
    Features
    4.6
    Design
    4.9
    Usability
    4.8

    Customer Reviews

    Sort by:

    Loading...

    Good amp for the price

    is a decent amp. I have it on 2 jl audio 12s n I can only turn it 1/4 way up so there's plenty of power there. Has log and subsonic filters. Only con I can think of is the level knob. It doesn't do anything. But I would recommend this amp

    By d on June 1, 2014

    35 found this helpful


    Disappointed

    I had this amp for about 6 months and it's already blown. I think that it doesn't put out the power it says it will. It did ok but it crapped out on me. Can't beat the price though.

    By mario on August 6, 2012

    32 found this helpful


    good

    i had the 3000.1 pushing two American bass xfl 12's hit super hard if u know what you are doing like flowing and installing the subwoofers to the correct ohm

    By hard hitta on July 1, 2012

    29 found this helpful


    Big power for the price!

    Bought this amp to power some new 1k watt 10 inch subs my wife got me for Christmas. This amp has no problem pushing these subs. Even the installer didn't believe how much i paid for it. Sweet amp for the money.

    By Big Mike on January 28, 2015

    29 found this helpful


    A very hot amp

    If your not going to have fans on it, you should play it all day at max level. This amp gets so hot that it burns to the touch, and I only have 2 800 watt rms kicker comp 12s on it. But it's still a pretty good amp and does a pretty good job, just be careful not to burn it.

    By Alonzo on January 10, 2015

    28 found this helpful


    Great amp

    I have it wired to 2 12" subs and it does a great job

    By Tye on August 28, 2014

    29 found this helpful


    Horrible Amp

    I have had two of these and they have both died with in 7 months, I am having them replaced, the company was really good back in the day but I do not feel they are up to par anymore. If you are wanting to replace this amp within 7 months buy it! cheap 4k watt amp. on the Design it is nice but what I can see there are no fan ports on them so if it not vented well it can over heat (I had nice airflow outside of the amp but something has gone bad in the inside) features all that I wanted and it was easy to install.

    By James on March 26, 2015

    26 found this helpful


    nothing to play with

    i got this hook up to two p3s and she be quaking my trunk had and it makes my girl made cause she always asks me to turn it down thanks to chris at sonic electronics

    By Frankie on January 1, 2014

    28 found this helpful


    worth the money

    I know it doesn't put out what it claims but it was good enough to blow a brand new 1200 watt Mofo 2ohm 12 sub.

    By designbygiorgio on October 14, 2013

    26 found this helpful


    BUY THIS AMP!

    I just got this amp in today, and the whole process hookin it up I was skeptical. I have it strapped to (1) 15l7 dual 2ohm. (Kicker) in a custom vented box about 5.0cu. This thing pounds so hard! The local stores are tellin me to turn it down when I pull up. One thing I will say is I think it's over rated. But for $120 you still get 2k watts. Oh by the way I'm wired at 4ohm, I didn't wanna take the chance and blow my sub even though I can go 1ohm.

    By Patrick on May 16, 2013

    27 found this helpful




    TQ1201D small

    Planet Audio TQ1201D

    1200W Max, Torq Series Class D Monoblock Power Car Amplifier with Remote

    (1)

    $149.99

    List price $249.99

    PL4000.1D small

    Planet Audio PL4000.1D

    4000W Max Pulse Series Class-D 1-Ohm Stable Monoblock Power Amplifier

    (13)

    $189.99

    List price $230.00

    UBT-1-2 small

    Massive Audio UBT-1

    Bluetooth Adapter Dongle for Massive Audio NANO BLU Series Amplifiers

    $54.96

    List price $64.95

    GTS2 small

    Gallo Technologies GTS2

    Push Button Engine Start w/ Auto Door Lock & Unlock Via RFID Transmitter

    $349.99

    List price $399.99

    879X small

    Clifford 879X

    LCD Responder Remote Replacement Case for Select Clifford Alarms (879XA)

    (4)

    $11.99

    List price $19.99

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2002 BMW 530i

    2002 Mazda 626

    1983 Dodge Challenger

    1998 Kia Sephia

    2000 BMW Z3

    2014 Audi TT

    1989 Ford Escort

    2013 Volkswagen Jetta

    1983 Buick Riviera

    2016 Audi SQ5

    Vehicle
    Store
    Delete

    2022 Can-Am Defender MAX HD9 XT

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
